BY 1000 Large Scale Pill Coater Machine Lab Coating machine Tablet Coating Machine

BY 1000 Large Scale Pill Coater Machine Lab Coating machine Tablet Coating Machine

Category: Film Coating Machines >>>
Supplier: Shenzhen,Yason,General,Machinery,Co.,Ltd.

Price:RUB 166,799.60 - RUB 189,545.00

Price in USD:Details

Quantity:

Product Overview

Description

Features

1.This kind of seed drum popcorn coater used to coat tablets and pius with sugar ,peanut,chocolate chips in pharmaceutical and food industry.

2.By seed drum popcorn coater has advantages of simplified operation,smooth,fine and bright tablet surface.

3.It saving auxiliary materials and convenient maintenance.

4.It is the ideal equipment for production of sugarcoated tablets.

Model	BY200	BY300	BY400	BY600	BY800	BY1000	BY1250
Coating pot diameter(mm)	200	300	400	600	800	1000	1250
Production capacity(kg/times)	1-2	1-3	2-5	5-15	30-50	50-70	90-150
Coating pan speed	46r/min	46r/min	46r/min	40r/min	32r/min	32r/min	30r/min
Adjustable tilt angle	15°-45°	15°-45°	15°-45°	15°-45°	15°-45°	15°-45°	15°-45°
Motor Power	0.37kw	0.37kw	0.37kw	0.75kw	1.1kw	1.5kw	2.2kw
Fan power	40w	40w	40w	120w	200w	200w	2.2kw
Internal and external heating power(W)	900+500	900+500	900+500	1000+500	1500+2000	2000+2000	2000+2000
Dimensions (mm)	485585766	485585766	485585810	8056001210	11508001550	115010001550	134012501680
Weight	65kg	65kg	70kg	115kg	240kg	250kg	400kg

Detailed Images

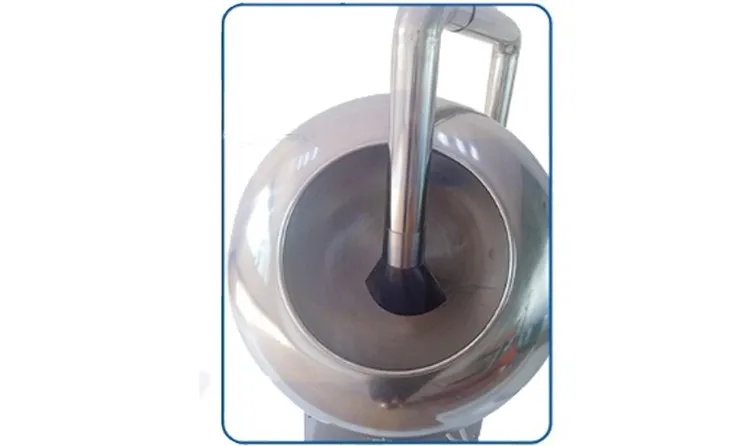

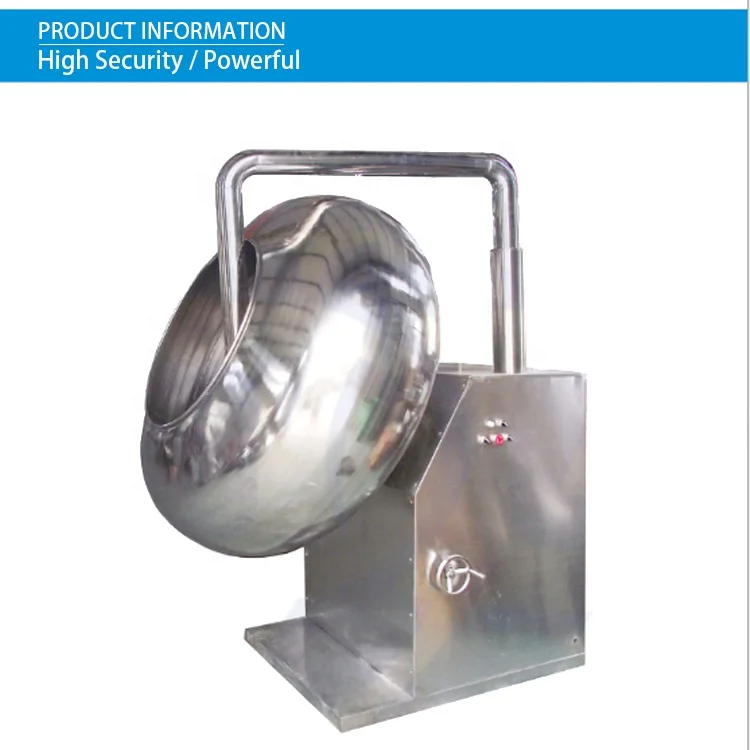

Coating pan

High quality 304 stainless steel, thickened one-piece pot. There is no welded joint, and the inner and outer walls are bright without dead ends. The machine is equipped with an adjustment mechanism, and the available unit adjusts the inclination angle of the sugar-coated pan according to the tablet loading and material exchange performance, and is a national body provided for the sugar coating process.

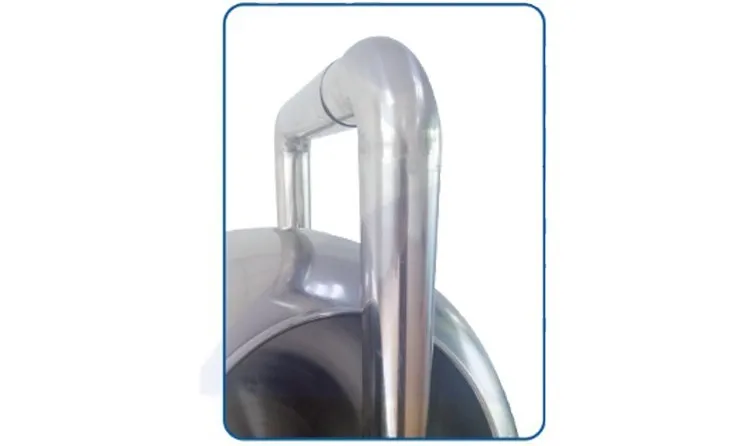

Air supply duct

The blower sends hot air to the pot to remove moisture from the surface of the tablet, thereby obtaining a qualified sugar-coated tablet. (can be taken out when not in use)

External heating device

It is used to heat the outside of the pot, the height of the heating plate can be adjusted before and after.

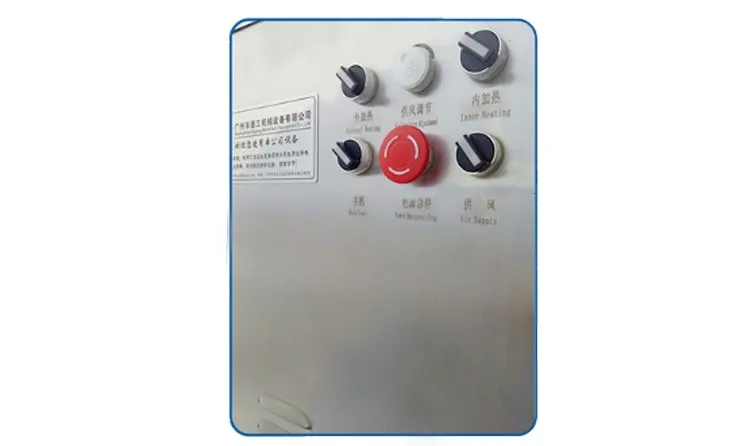

Electrical control panel

Chinese and English control switch, simple and convenient

Packing:

Machine packing inside is plastic films and outside is fumigation wooden case.

Our wooden case is very strong,it can bear long time shipping on the sea.

And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.

Delivery:

For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:

1. Over 1CBM or 100KG, we suggest send by Sea.

2. Below 1CBM or 100KG, we suggest send by Air.

3. Below 0.5CBM or 50KG, we suggest send by Express.

The price show on our website just the machine EXW price, please contact us before you place order.
