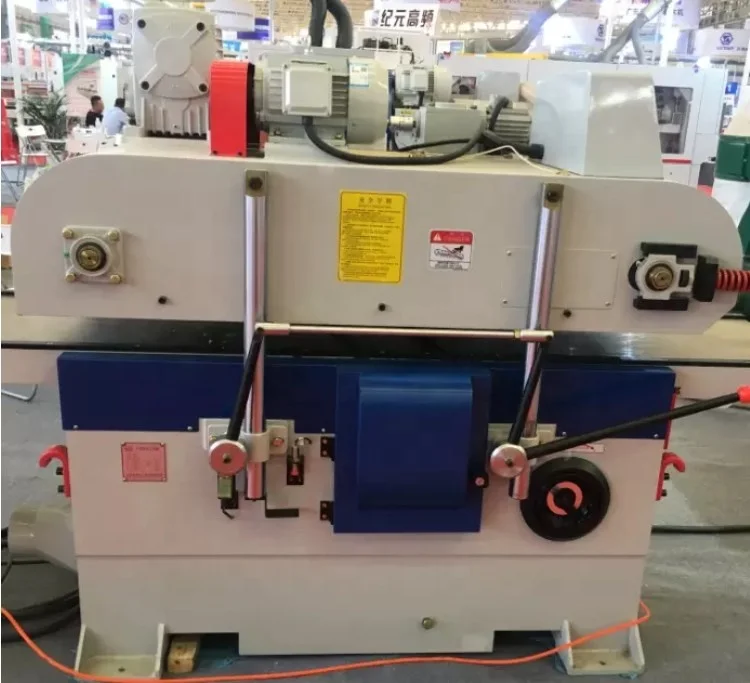

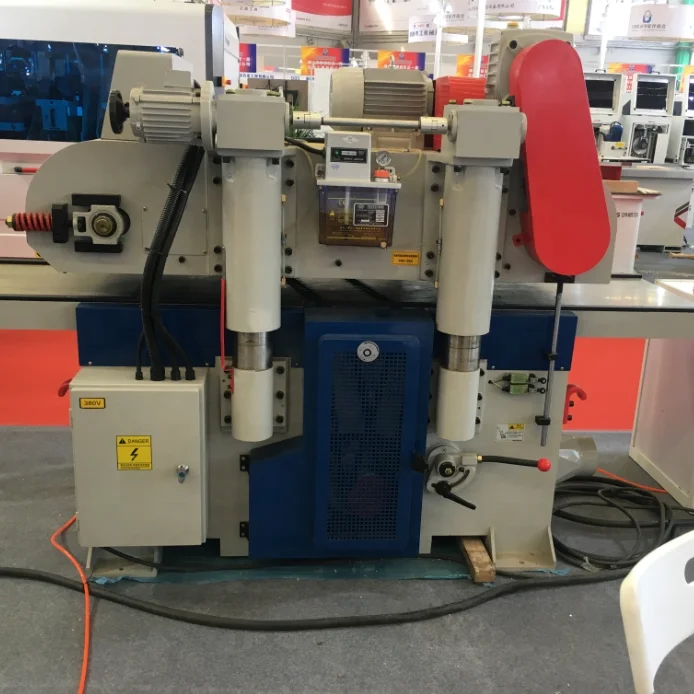

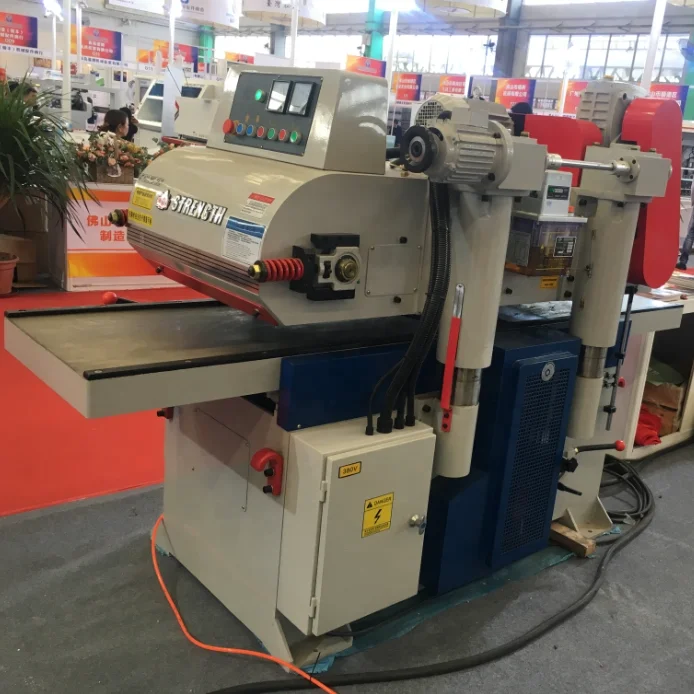

woodworking machinery 220v wood automatic feeding surface planer
- Category: >>>
- Supplier: Jinhua Lima Machinery Co. Ltd.
Share on (62379341149):
Product Overview
Description
Product Description

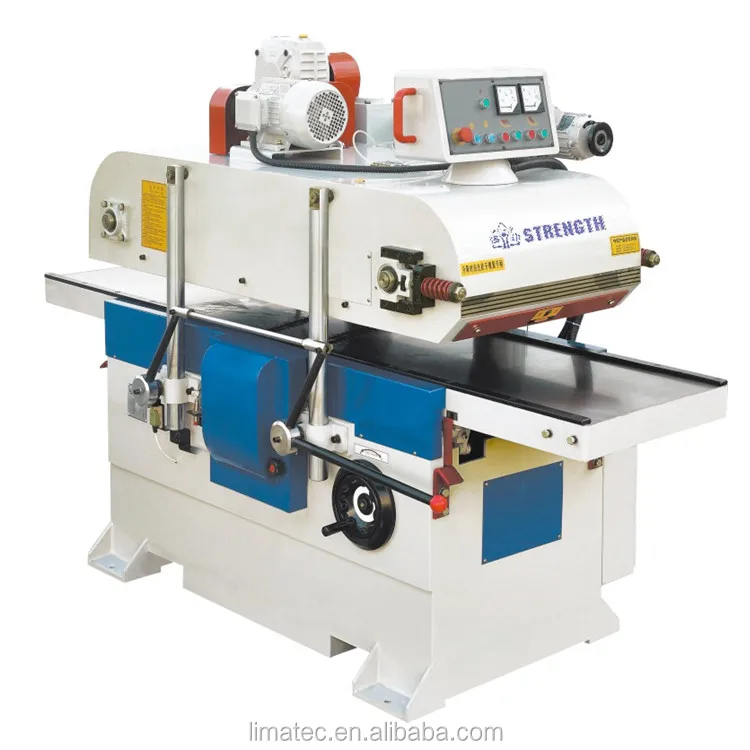

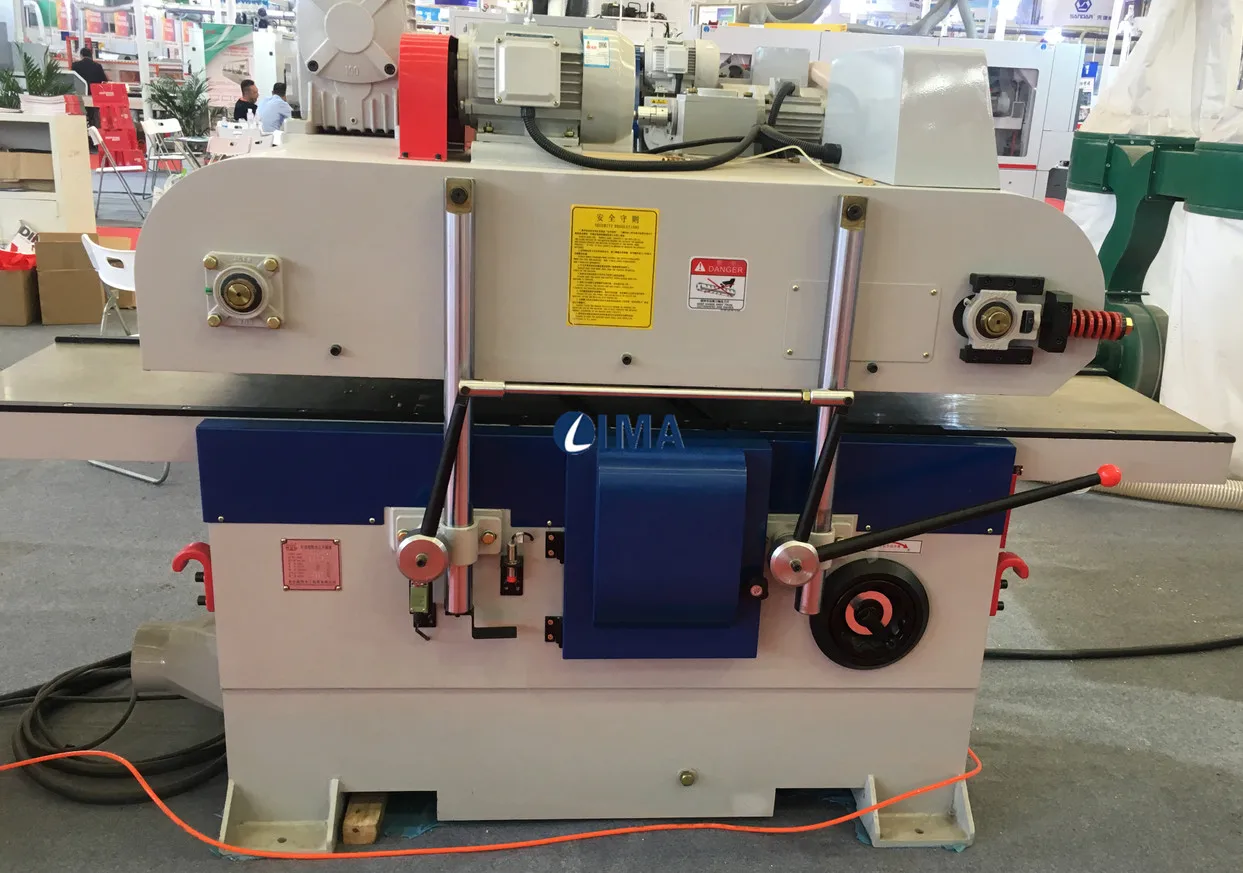

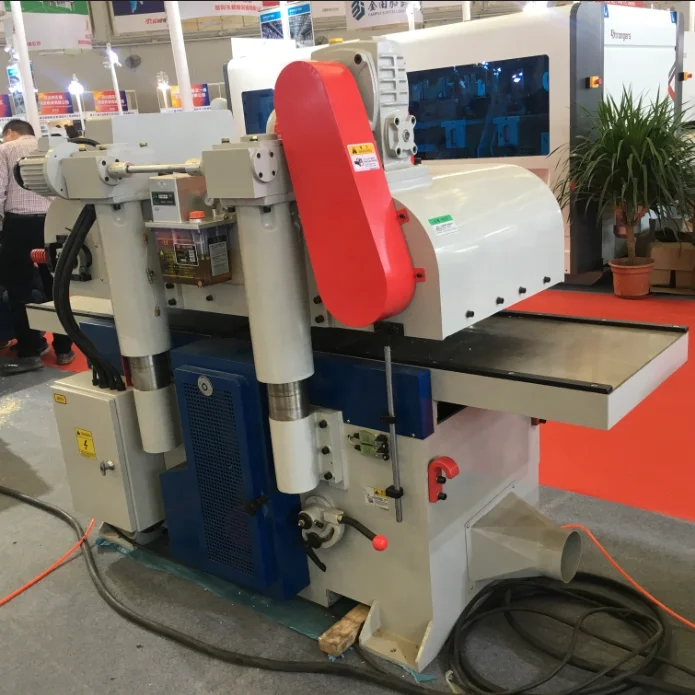

Auto Jointer with 2 cutter head
straight cutter head or spiral cutter head
12"/16"/20"---Max. working width 300mm/400mm/500mm
Main technical data | MB503C | MB504D | MB505D |
Max. working width | 300mm | 400mm | 500mm |
Working thickness | 10-150mm | 10-150mm | 10-150mm |
Max. working depth | 5mm | 5mm | 5mm |
Feeding speed | 7.5-10m/min | 7.5-10m/min | 7.5-10m/min |
Cutter head speed | 5000r/min | 5000r/min | 5000r/min |
Cutter head motor | 4kw | 5.5kw | 7.5kw |
Feeding motor | 1.1kw | 1.5kw | 2.2kw |
Lifting motor | 0.37kw | 0.37kw | 0.37kw |
Workbench length | 2300mm | 2300mm | 2300mm |
Machine weight | 1100kg | 1400kg | 1900kg |

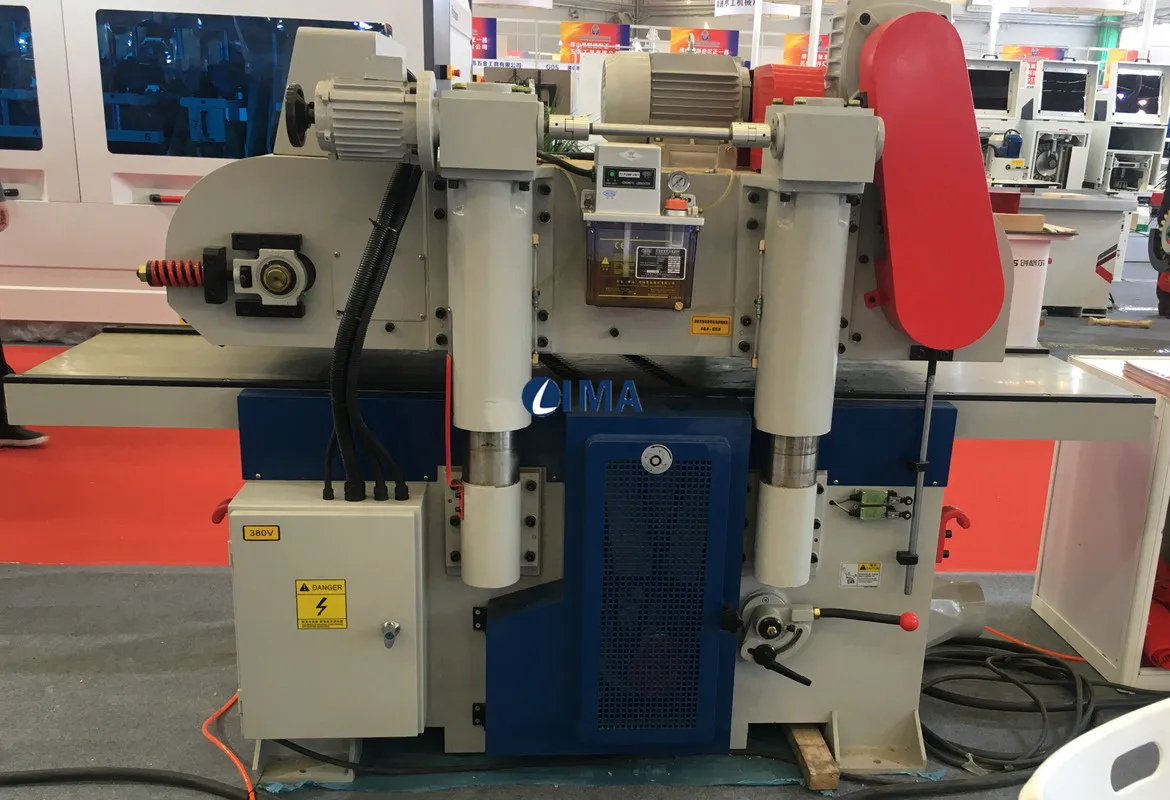

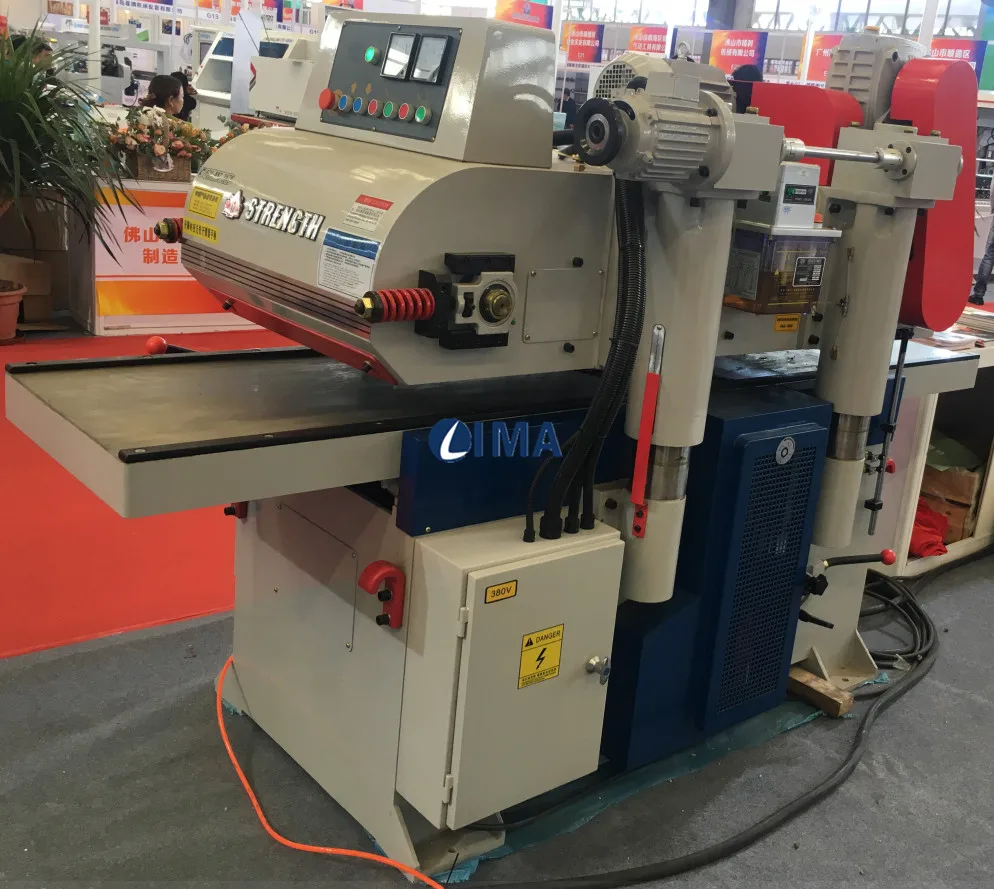

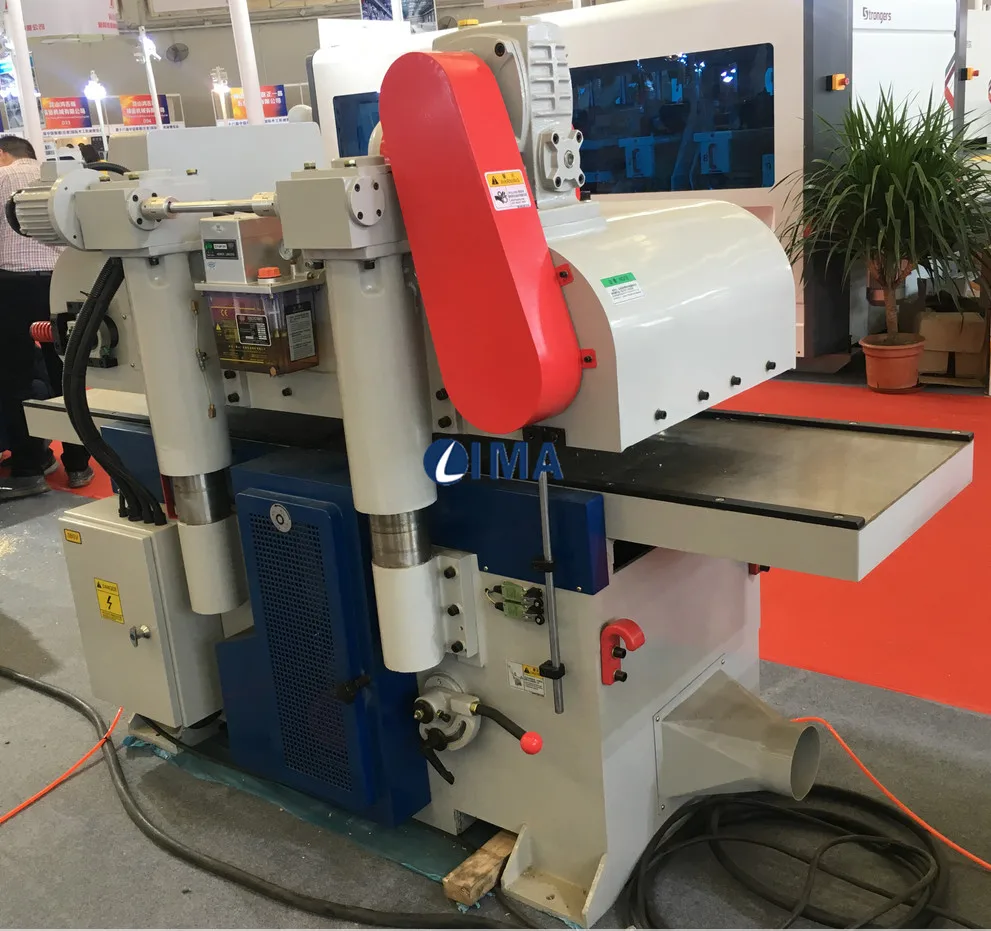

Detailed Images
MAIN FEATURES
• Precision-ground cast-iron tables
• Parallelogram table adjustment
• Shielded ball-bearing cutterhead with grease fittings
• Heavy-duty cast-iron cabinet stand with noise-dampening system
• Precision handwheel-controlled table elevation
• Stress-relieved infeed and outfeed tables
• Automatic feeding and automatic thickness setting
• Precision-ground cast-iron tables
• Parallelogram table adjustment
• Shielded ball-bearing cutterhead with grease fittings
• Heavy-duty cast-iron cabinet stand with noise-dampening system
• Precision handwheel-controlled table elevation
• Stress-relieved infeed and outfeed tables
• Automatic feeding and automatic thickness setting
•Automatic lubrication system for the infeed chain
• Two cutter head with straight cutter head or spiral cutter head
• Two cutter head with straight cutter head or spiral cutter head

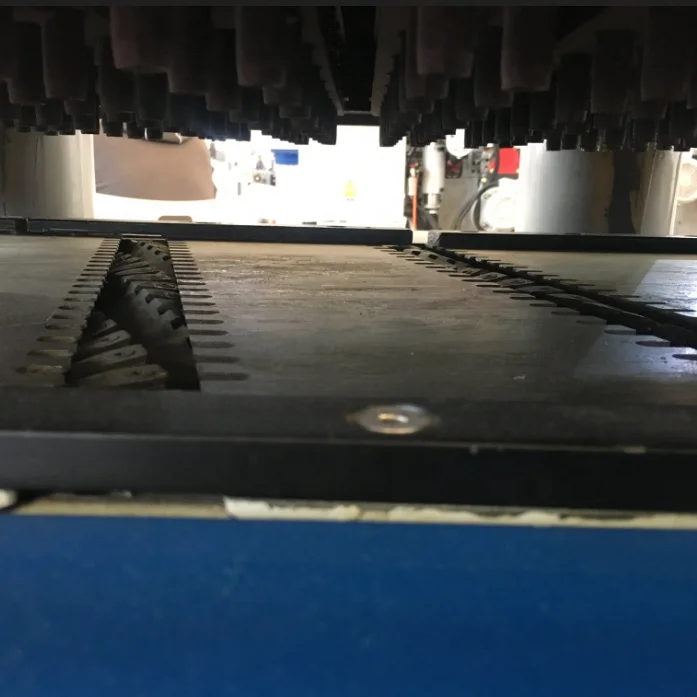

Elastic pressure claw, chain drive, precision ground for extremely smooth feeding and maximum wear resistance
When working, the working table is locked, it protects the machine, making the machine durable
With 2 cutter head and it's easy to change the blades
Designed for gaining great cutting performing by use of bevel helical cutterhead device.
Special-designed control panel
Automatic thickness lifting and it's easy to operate
The automatic lubricator delivers lubrication oil to the caterpillar chain.
Durable thickness lifting
Optinal for spiral cutter head
With carbide tips TIGRA made in Germany
Related Products
Packing&Shipping
After Sales Service
WARRANTY
ONE YEAR WARRANTY EXCEPT WEARING PEARTS
We have a team for after service
If you have any questions,our after service would solve it
Our machines quality is high and stable
