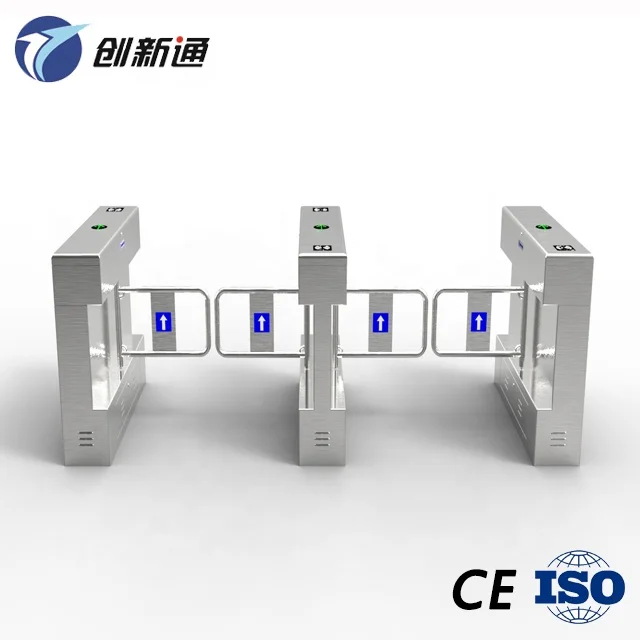

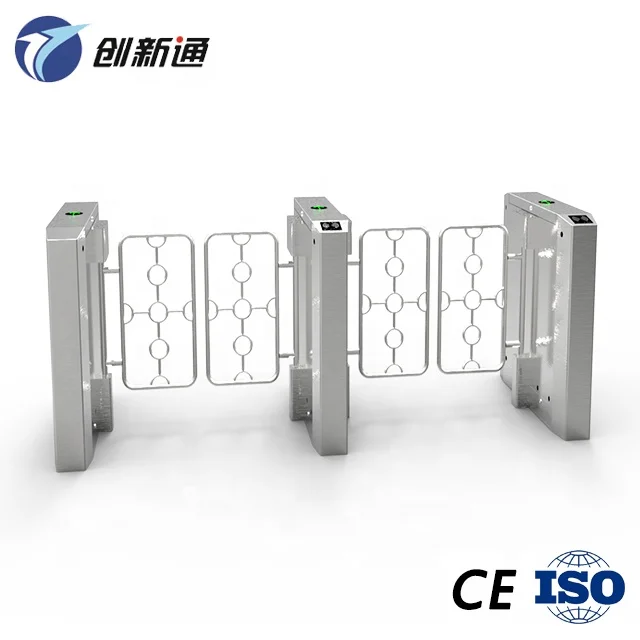

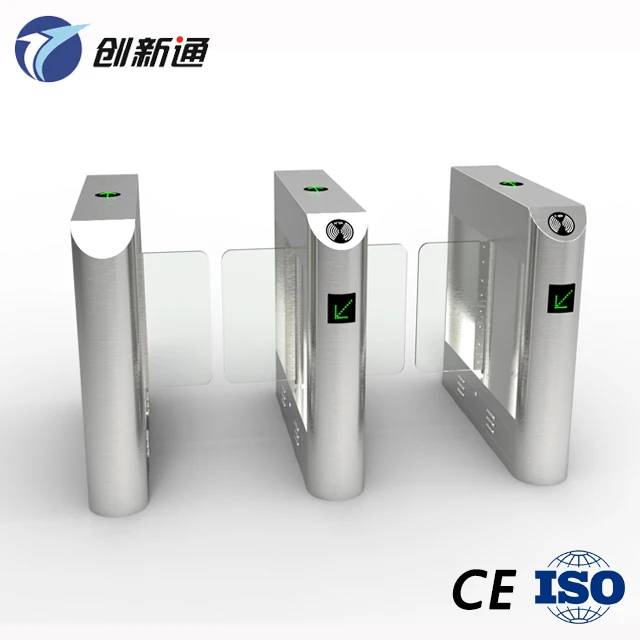

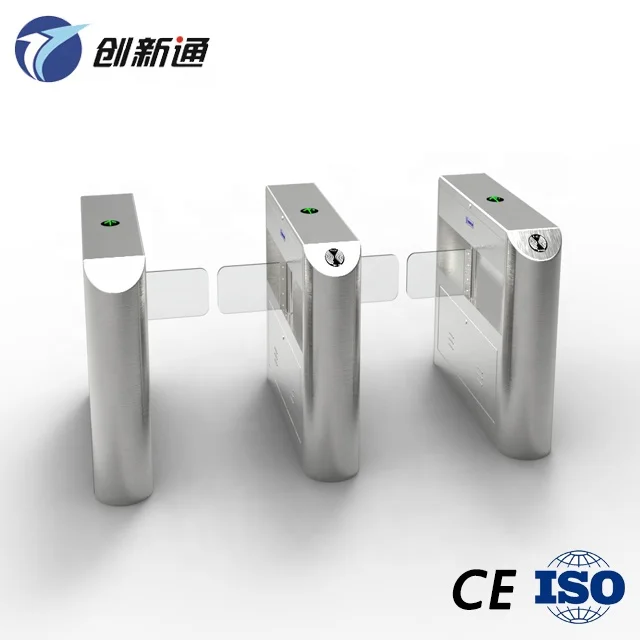

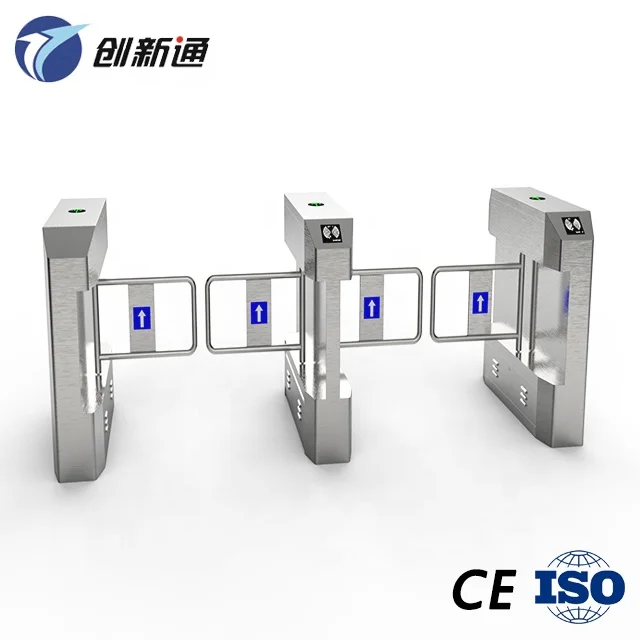

Indoor Automatic Pedestrian Access Control Gates for Disabled Aisles
Disabled Aisles Swing Barrier Gates Spotlight:
♦Adopt Brush-less motor,it has longer lifespan.
♦Non polar collision avoidance,it has strong resistance to destruction.
♦Super ego protection, it is the preferred choice for non-motorized vehicle passageway.
♦Cutting edge new ARM technology,which has better expand-ability and high cost performance.
♦Merits for smooth running,passing speed adjustable and low wear.
♦Adopt module structure design,it has easier operation and less maintenance.
♦Lane size can be setting and has good anti-pinch performance to protect passengers.
Automatic Swing Gates Entrance Control Swing Gate for Outdoor
Disabled Aisles Swing Barrier Gates Specifications:
Automatic Swing Gates Entrance Control Swing Gate for Outdoor
| Housing material | International standard 304SS,201/316SS |
| Dimensions | 1200L*280W*1000H mm |
| Arm length | 1140mm |
| Weight | 50kg |
| Arm rotation angle | 180 degree |
| Passing speed | 30-40 perople/minute |
| MCBF | 8 million times |
| Input voltage | AC220±10% V,50HZ |
| Driving motor | DC brushless motor 50W/24V |
| Working environment | Indoor and outdoor |
| Working temperature | -40℃—— 80℃ |
| Suitable humidity | 5%—— 90% |
Automatic Swing Gates Entrance Control Swing Gate for Outdoor
Swing Gates Turnstile Main Functions:
1.Equipped with standard card read window, can be connect with multi card-readdevice
2.With function of break down self check and alarm,easy maintenance and operation.
3.Swing turnstile can be connected with external button or remote control. achieved one or bi-direction passing at will
4.Auto reset function: If the passenger does not pass in given time, arms will lock automatically,delay time can be 3 s, 5 s, 10 s, 60 s..(given time can be set by operator).
5.Mechanical anti-trap:When people or objects hinder the arm running,the system will automatically detect and stop the run,swing arm strength of small, realize humanized protection.
6.Swing turnstile can realize a normally open or normally closed function switched by external button or remote control.
7.Lighting indicator :High brightness passing indication.
8.Normally open function:the swing turnstile arm will auto opening when power is off.the direction can be adjusted.
9.Sound and light alarm function, including illegal traffic, following, anti-trap etc
Automatic Swing Gates Entrance Control Swing Gate for Outdoor
Founded in 2006, CXT Co.,Ltd. with 13 years of experience CXT is a recognized expert in supplying, installing and maintaining pedestrian entrance control gates solutions for the corporate, leisure, attractions, stadium,bank,prison and government etc. We recognize the need for different types of turnstile entry systems for access control, depending on the application, level of security, budget, the aesthetic impact and freedom of movement required. As such CXT specializes in matching the right security turnstile gate to your application.
Automatic Swing Gates Entrance Control Swing Gate for Outdoor
Whether you’re looking for tripod turnstile,flap turnstile,swing turnstile,full-height turnstile,sliding turnstile,barrier free turnstile, drop arm, or have a custom project in mind, we can build you a product that fits your needs. We invite you to see why, for the past 10+ years, we have been the leader in security access.
Automatic Swing Gates Entrance Control Swing Gate for Outdoor


Automatic Swing Gates Entrance Control Swing Gate for Outdoor
Why choose us:
1. Our Factory has 13years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.
5. Online technical support makes it carefree to be our business partner.
6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.
7. Factory can be visited at any working time. Clients are warmly welcome to visit our factory
Automatic Swing Gates Entrance Control Swing Gate for Outdoor




Package details: Factory Standard Carton Box packing ,can upgrade to Export Plywood Case at Buyer's request with separated cartonbox packed inside.
Shipping mode: By sea or by air at your notification.
Lead time: 1-30 working days pending on actual order amount
High quality is our obligation!!!
![]()
Full Ranges of Brushless Technology Full Height Turnstiles and Waist Height Turnstiles series for your selection!
