High efficiency rhinestone fixing machine ultrasonic

Product Description



Mainly used for women clothes, underwear, children's wear, T-shirt, embroidery patterns, belts, handbags, hats and supplemental supplies, etc.

1.Adopt ultrasound. this machine is able to hot fix the rhinestone materials immediately, such as Denim,Cotton,Jeans,Hemp fabric,Woolen,Synthetic Fiber,Silk,Knitwear,Synthetic Leather,Velvet etc. Especially suitable for the material that can't resist high temperature and can be easy to deform and discolor.
2.Main components specially imported from other countries, such as two five-way solenoid valve uses from south Korean, cylinder adopts Germany FESTO, two two-way adopt Japan CKD, assuring superior quality and reliable usage. 3.Infrared positioning, precisely hot fix the rhinestone's position and very strong sticking effect.

4.Five different size of suction nozzle: 8# 10#  12#  16#  20#  30# 34#

5.Able to work continuously 24 hours, high working efficiency.

Technical Parameter




Model

HT-DK100

Voltage

220v/50hz

Power

0.3kw

Air Pressure

0.4-0.5MPA

Speed

220-320pcs/min

Size of rhinestone

2-7mm

Dimension

850*950*1050mm

Weight

85kg

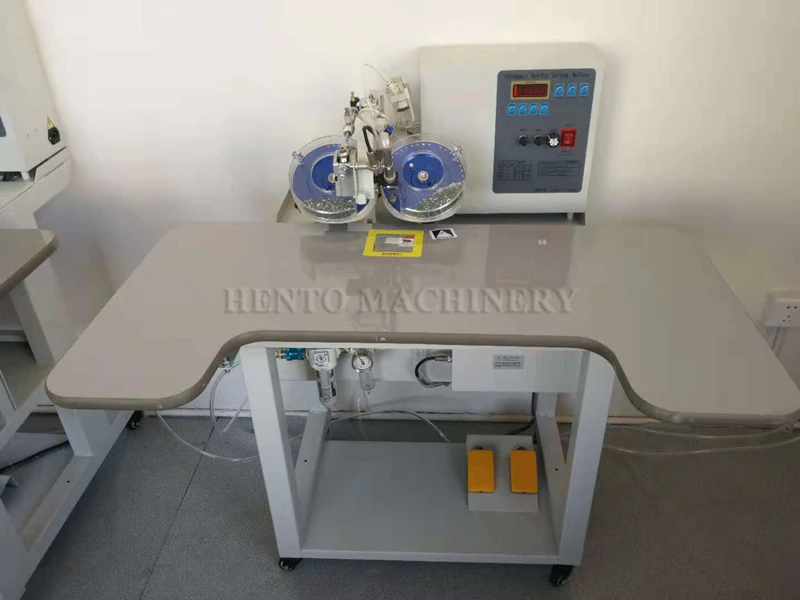

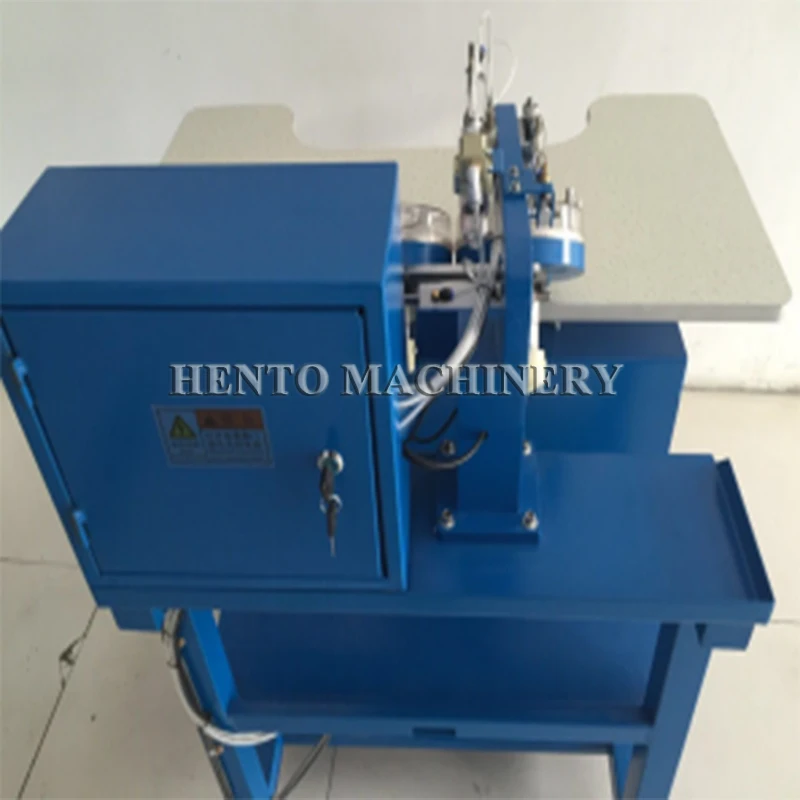

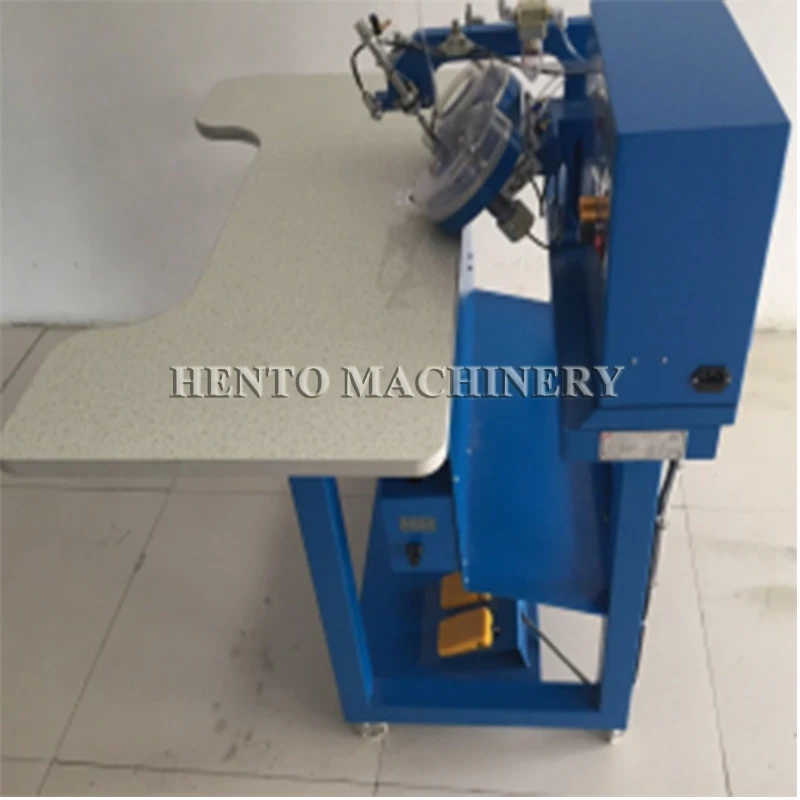

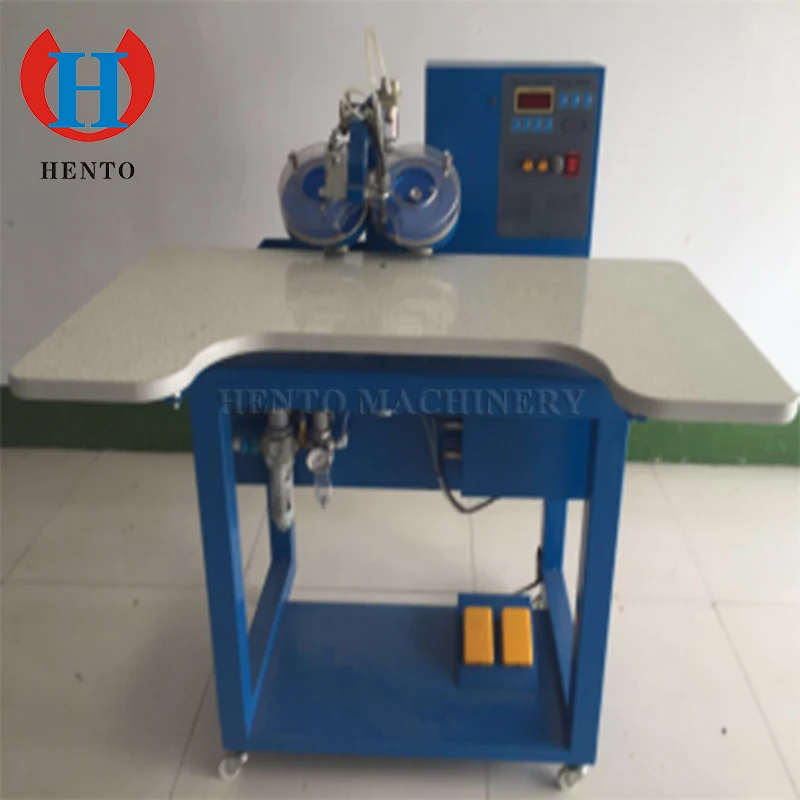

Product Pictures
