Taizhou City 2cavity Fully Automatic PET Bottle Blowing Machine
- Category: >>>
- Supplier: Taizhou Huangyan Zhengge Plastic Machinery Co. Ltd.
Share on (62379427334):
Product Overview
Description
Product Description
Taizhou City 2cavity Fully Automatic PET Bottle Blowing Machine

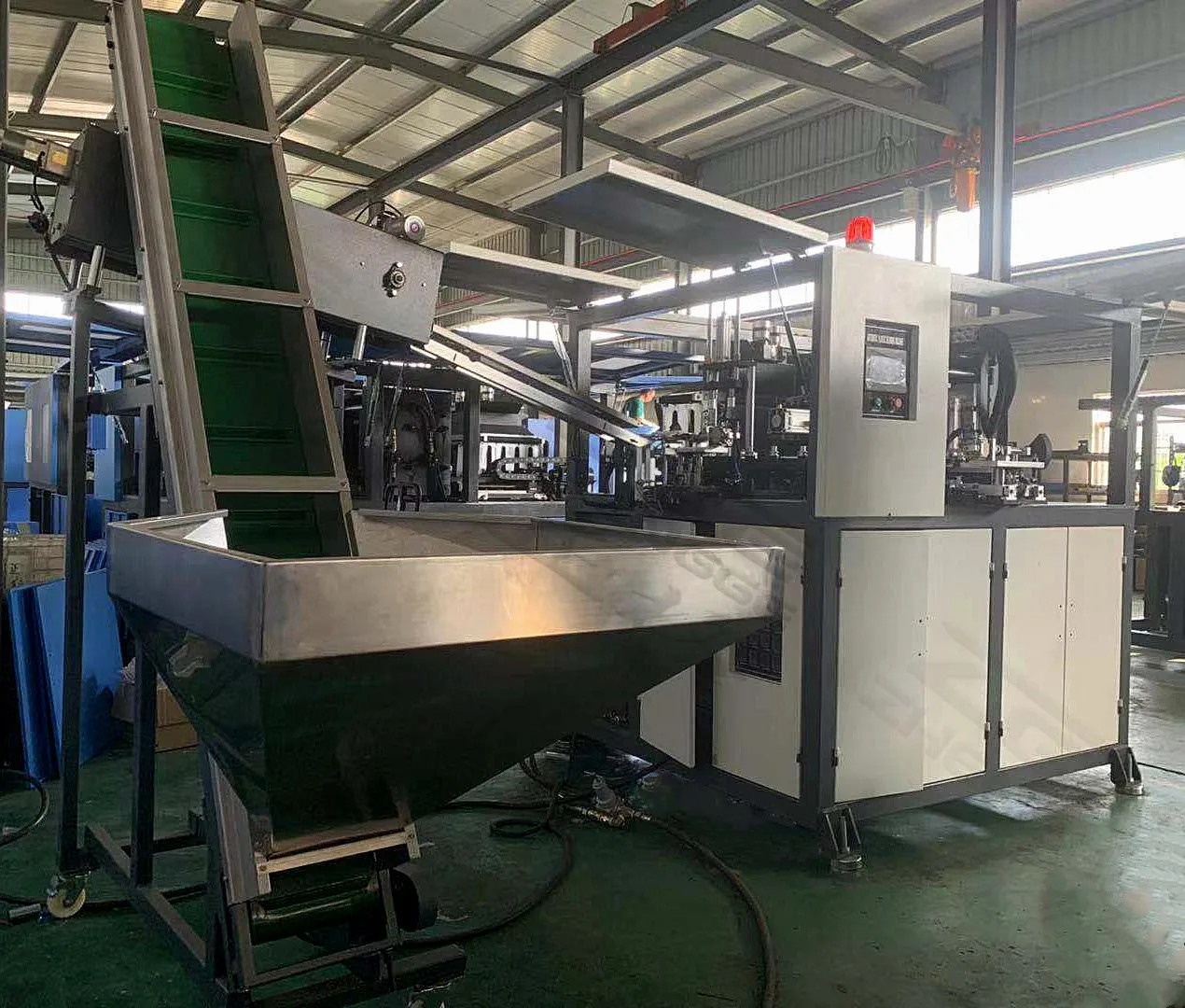

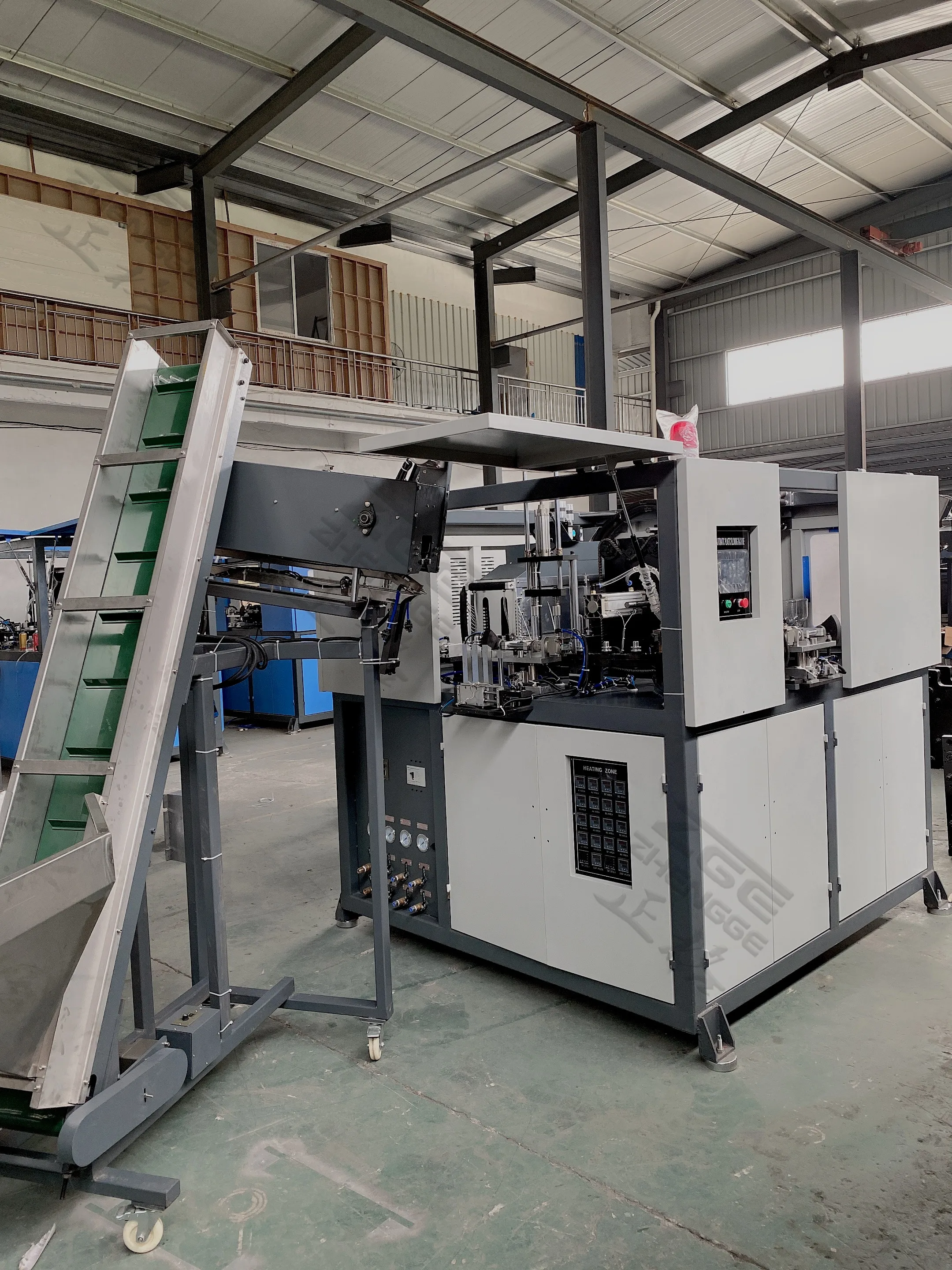

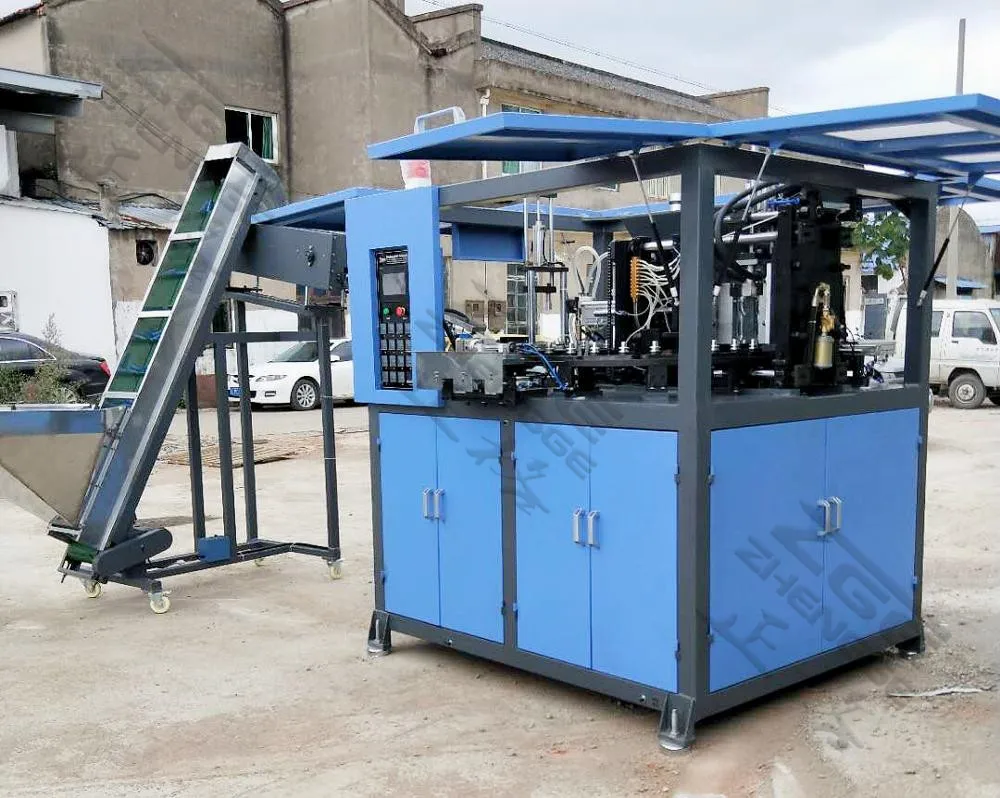

- Overall Appearance -
- Machine Feature -
ZHENGGE bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.ZHENGGE Machinery's Bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
ZG series bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
5. increase energy using efficiency,increase productivity per unit of time.
6. manual and automatic methods of operation, human-machine interface control, simple operation.
7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.
9. heat and noise are significantly reduced compared with YCQ series.
10. less than 0.2% scrap rate for finished bottle .
Model | ZG-2000 | ||
Theoretical output | 1600-2000 pcs/h | ||
Finished bottle | Max. bottle volume | 2L | |
Max. neck diameter | 38mm | ||
Max. bottle diameter | 110mm | ||
Max. bottle height | 365mm | ||
Mold specifications | Cavity | 2 cavity | |
Mold thickness | 180mm-240mm | ||
Open stroke | 130mm | ||
Electrical system | Power voltage | 380v/3Phase/50HZ | |
Installation power | 20kw | ||
Actual power consumption | 15kw | ||
Air source | High pressure air compressor | 1.2m³/min 30Kg | |
Low pressure air compressor | 1.6m³/min 10Kg | ||
Cooling water | Recommend water chiller | 5HP | |
Blowing machine size | Length*width*height/weight | 1980*1650*2020mm/2000kg | |
Preform loader size | Length*width*height/weight | 1950*1350*2650 mm/550kg | |

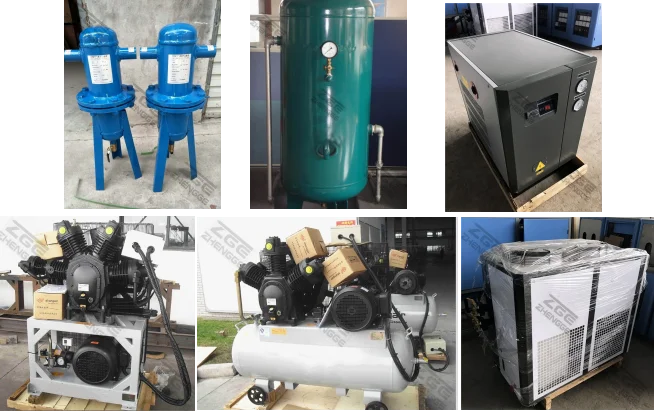

We supply the whole line and best solution! Auxiliary machines we employee are all famous around the world.
Details Images
PLC
A. Adopt mitsubishi brand PLC to control the machine. Easy to operate.
B. Built-in memory of the PLC saves all the sets of numbers required to produce different size bottles.
B. Built-in memory of the PLC saves all the sets of numbers required to produce different size bottles.

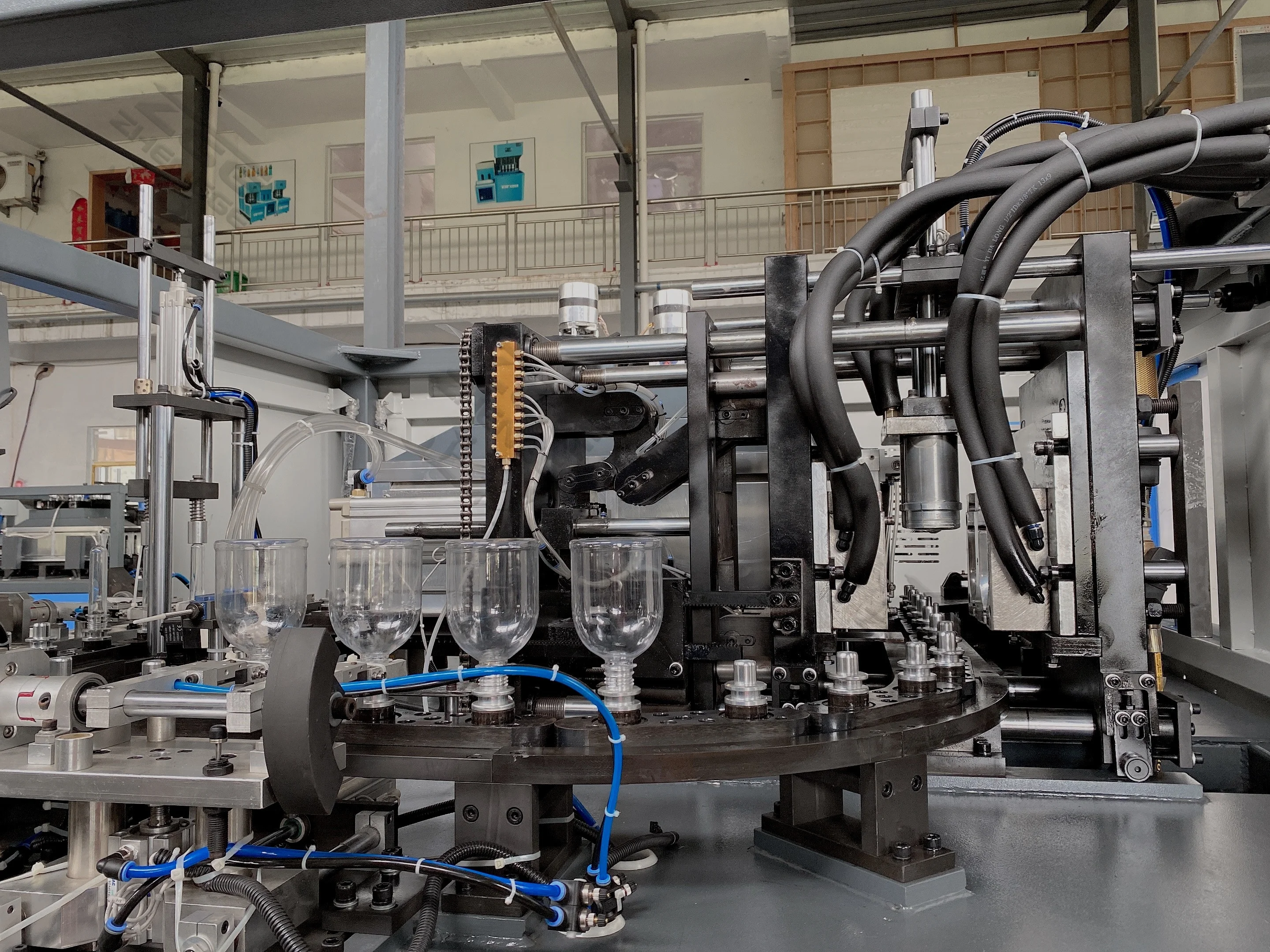

MANIPULATOR
A.Manipulator controlled by PLC can take the finished bottle from the conveyor belt accuracy.
B.Cooperate closely,High accuracy.
C.Save labour.
B.Cooperate closely,High accuracy.
C.Save labour.

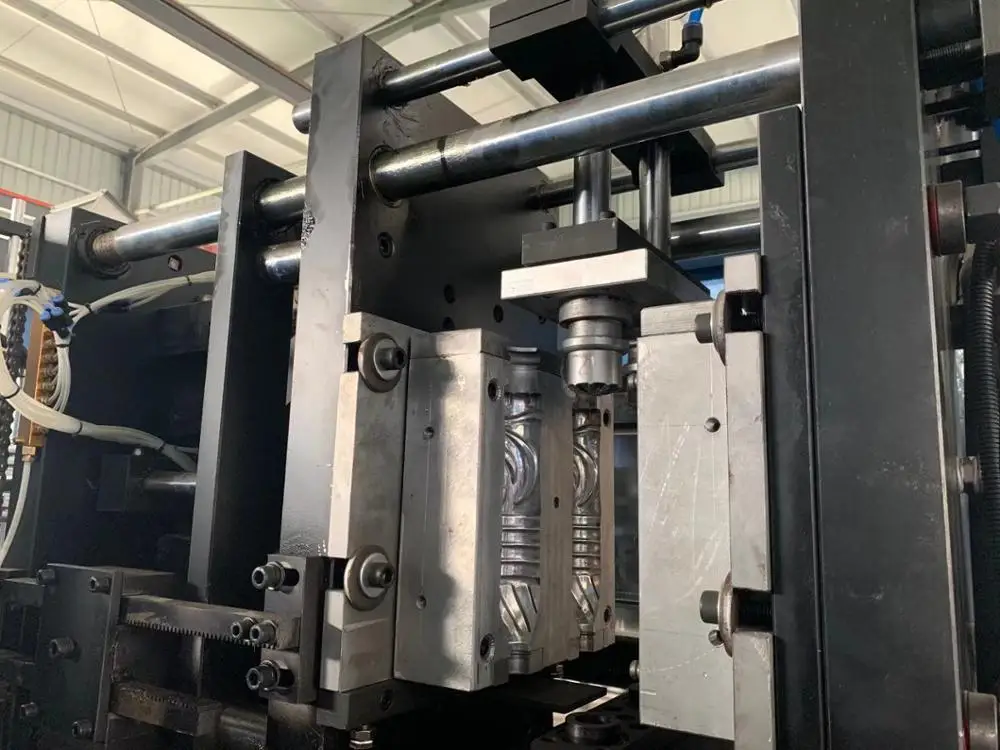

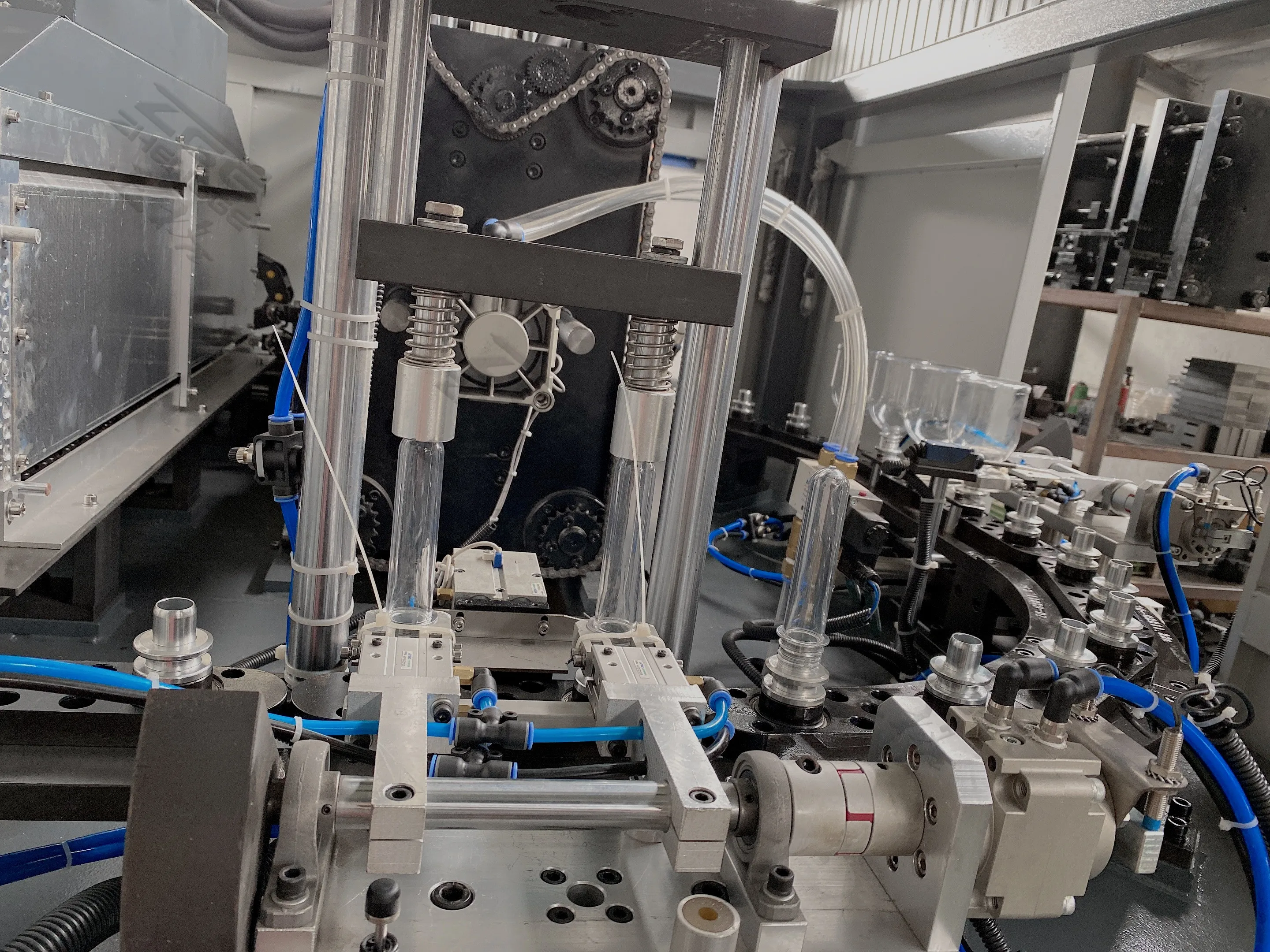

CLAMPING SYSTEM
A. Each stretching cylinder controlled independently. Stable and reduce the failure rate.
B. The mold adopt 7075 aluminum,portable and avoid rust.
B. The mold adopt 7075 aluminum,portable and avoid rust.
HEATING SYSTEM
A.Manipulator controlled by PLC can take the finished bottle from the conveyor belt accuracy.
B.Cooperate closely,High accuracy.
C.Save labour.
B.Cooperate closely,High accuracy.
C.Save labour.
Temperature control
A.Control each lamps seperately
B.Enable heating effect professional
FEEDING MACHINE
A.Make the preform slide down the track and enter the heating system under its own gravity.
B.Save labour,Efficient and accurate.Without preform hurt，avoid pollutoin.
B.Save labour,Efficient and accurate.Without preform hurt，avoid pollutoin.
What Can We Do For Bottle
All bottle shape and bottle size we can do! We have a professional engineer team.
All bottle parameter can be customized by your need. We also can help you optimized bottle design and supply the best solution for you!

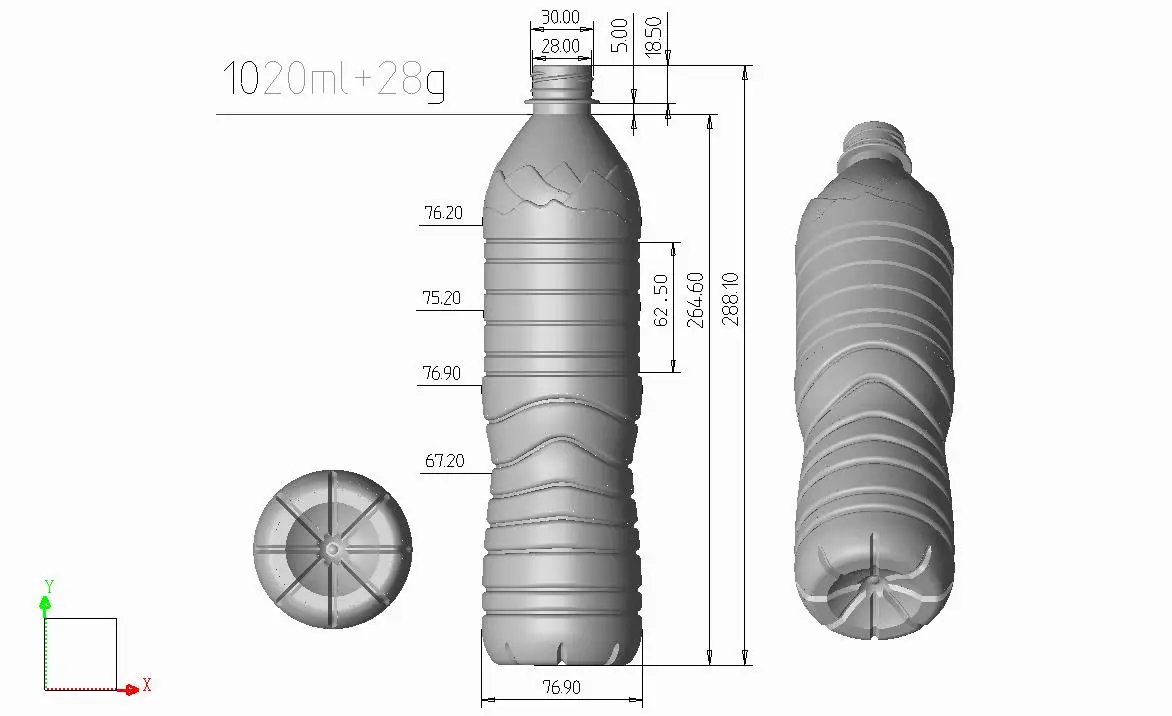

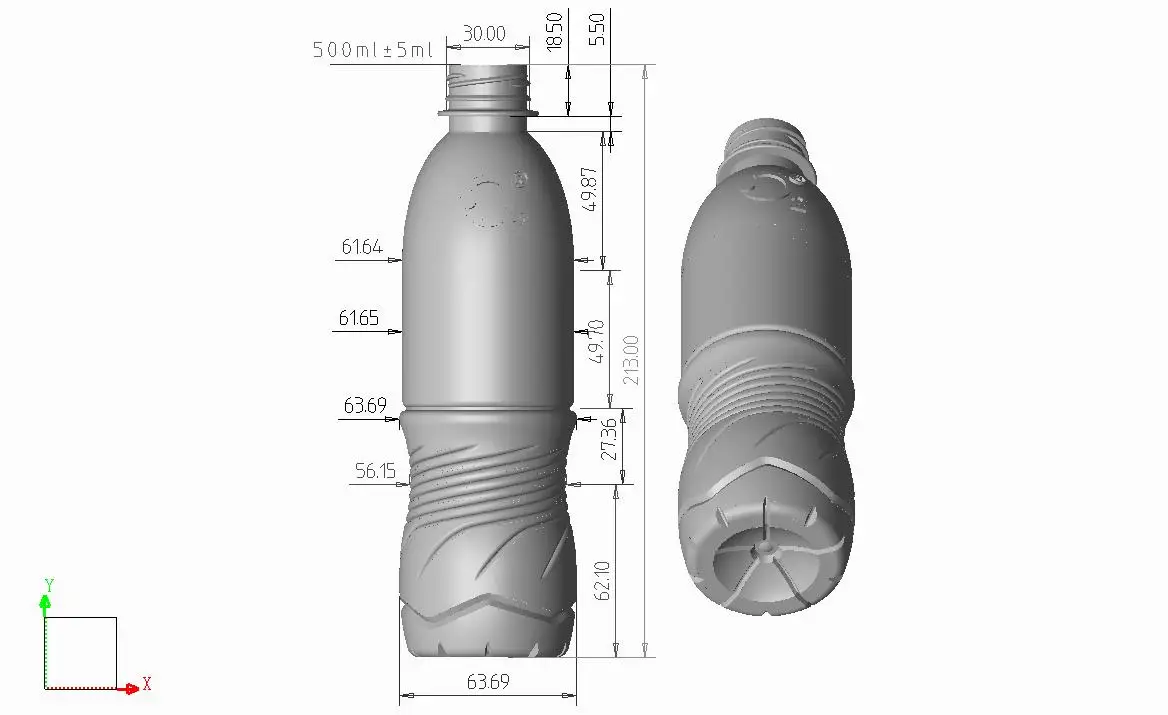

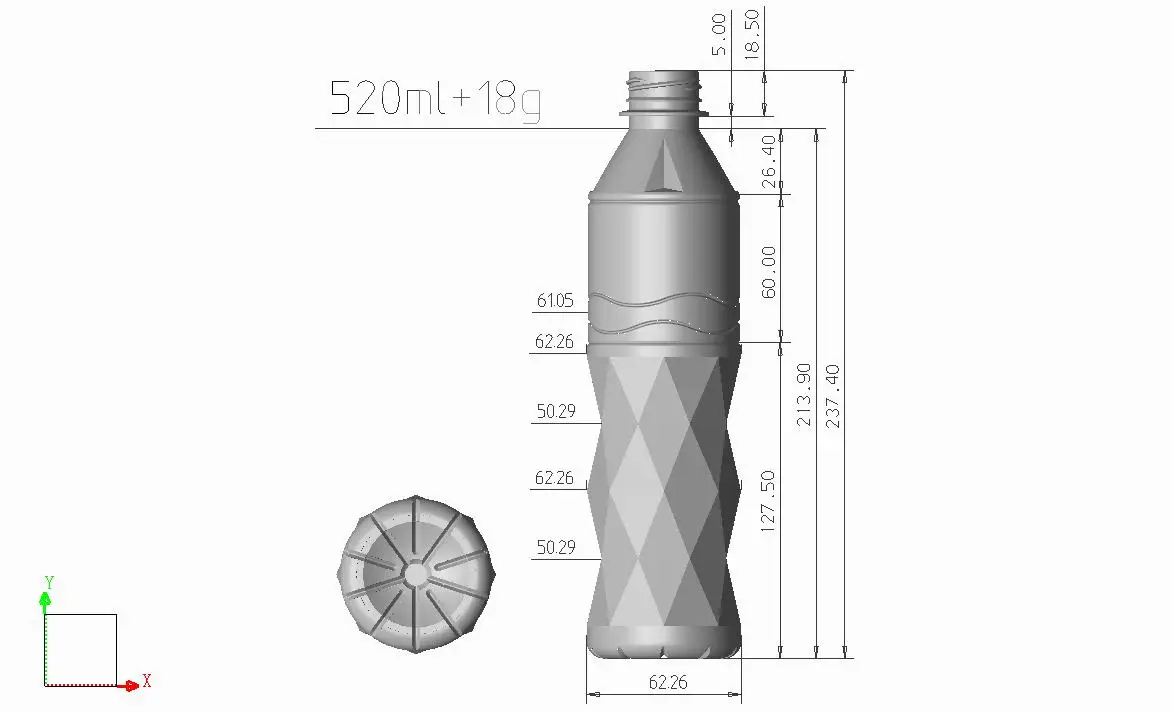

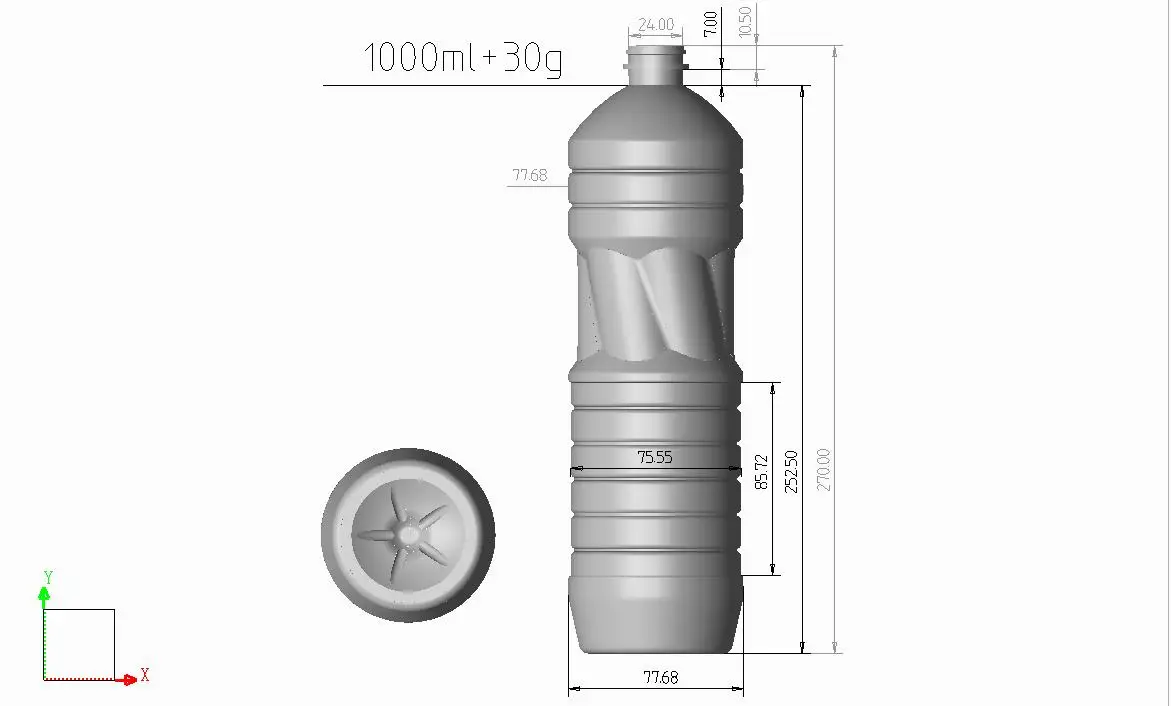

- Design Drawing -
for you ref,we could customized design!

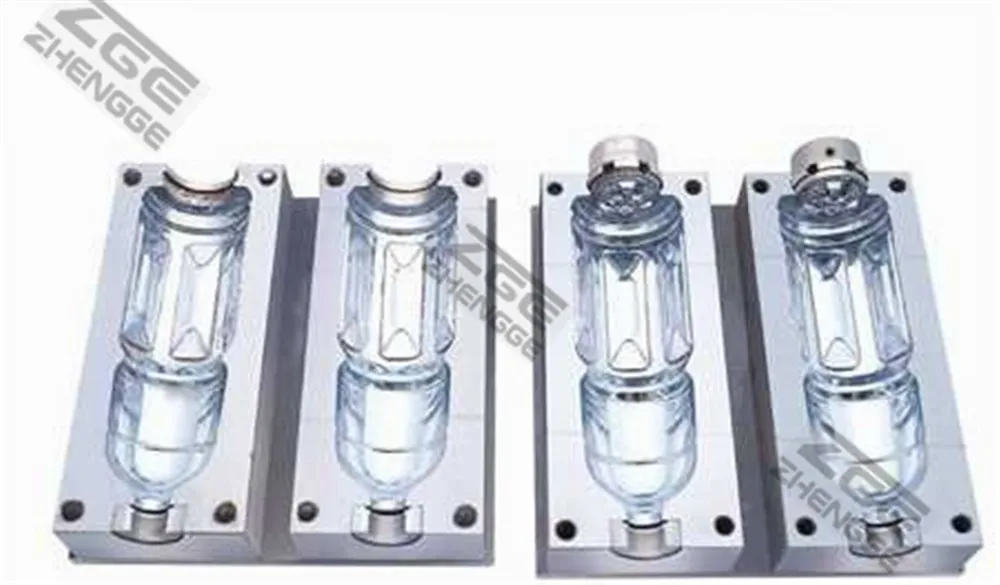

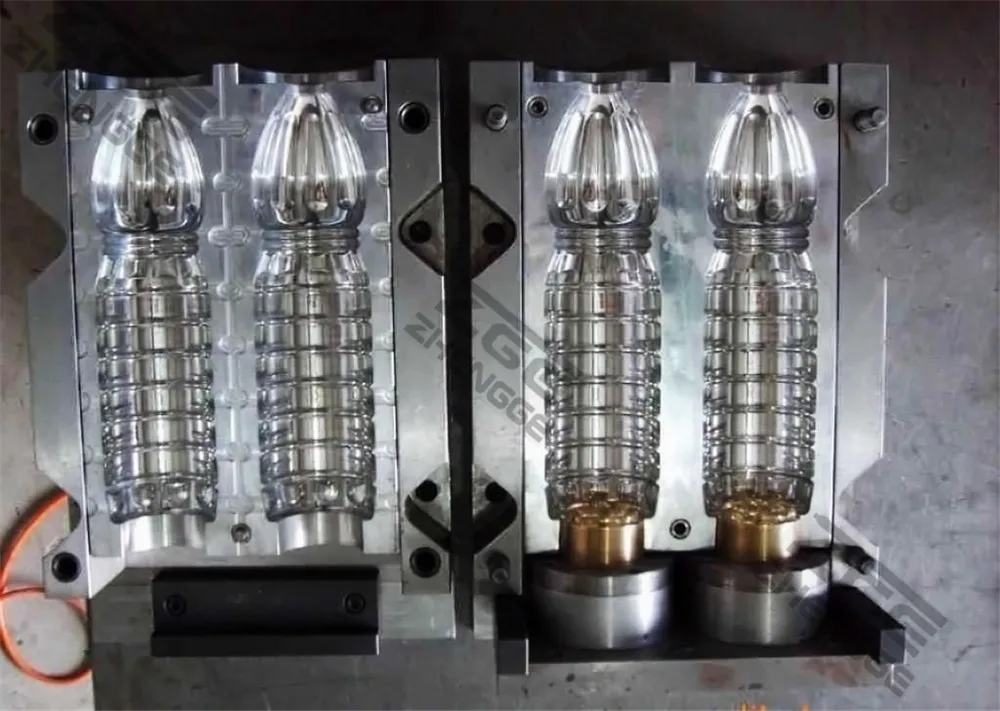

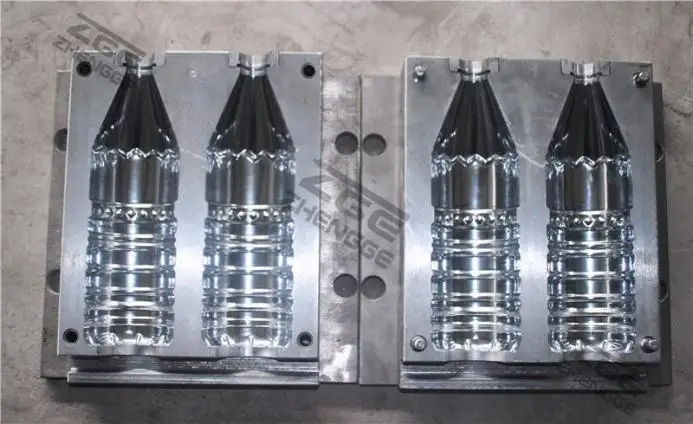

- Moulds Make -
Our engineers posses rich molds manufacturer experience!
Our Service
Pre-Sales Service
* Welcome to visiting our Factory.
*24 hours on line answer your question.
*According customers' demands,recommending the most suitable machine.
* Take video to show real scenes as client's request.
Delivery&Package
Delivery time: 25days as usual after confirm the bottle design.
Package way:The normal package is wooden box. If export to Europe countries,the wooden box will be fumigated.If container is too tight,we will use pe film for packing or pack it according to customers special request.
After-sale Service
Installation
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation .
Quality guarantee
We promise that our goods are all new and not used. We promise that the products of this line could storage for one year without adding any aseptic.
Answering questions online
If you have any questions when use
machine,please contact us, we will help you handle in time.
Our Factory
- Profile -
We hold rich experiences in this line,We are trustworthy!
- Introduction -
TAIZHOU HUANGYAN ZHENGGE PLASTIC MACHINERY CO,.LTD is specialized in manufacturing bottle blowing machine and mould.we have strong technical force, excellent production equipment,advanced testing instruments and perfect management system. The product will make your enterprise have a good progress day by day. TAIZHOU HUANGYAN ZHENGGE PLASTIC MACHINERY CO,.LTD. Enjoys good reputation from regular and new customers through our excellent quality,competitive price production equipment, which attracts many customers to purchase.
