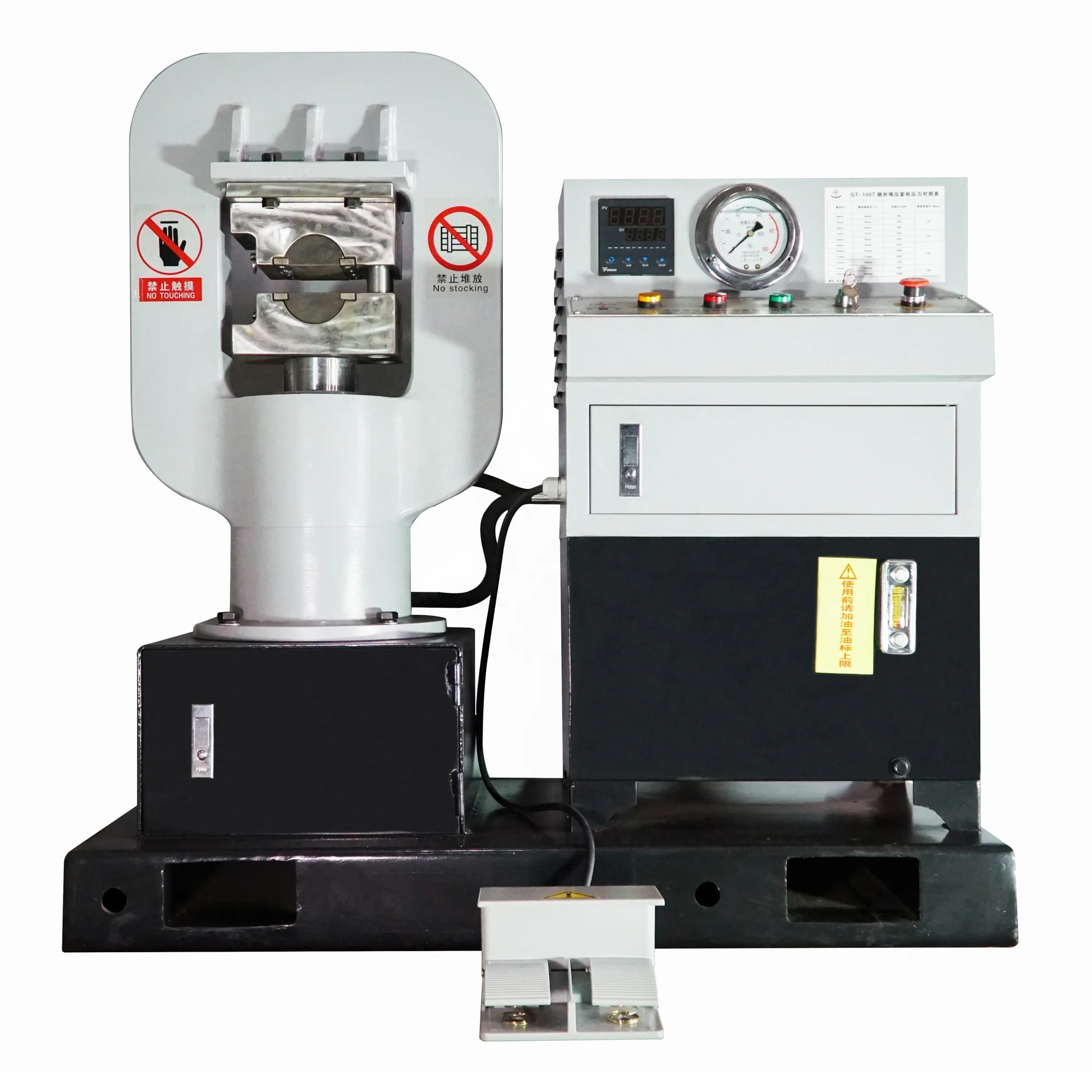

Hydraulic wire rope pressing machine

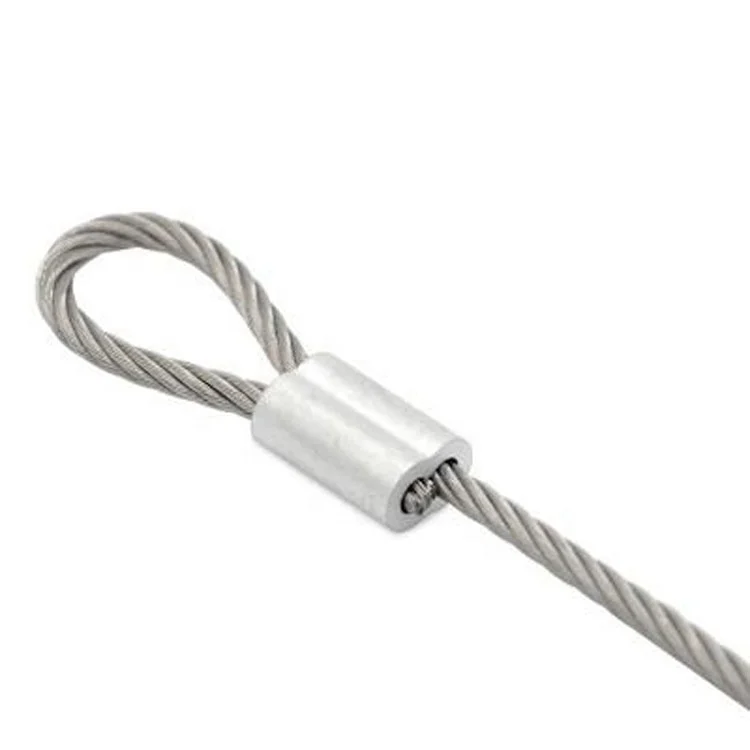

 Xingtai wire rope press machines are used to make pressed wire rope sling.

The body of swagers are manufactured from one single block construction that ensure strength, long service life and a minimum of maintenance. All swagers are thoroughly test run and are supplied with a full tank of oil.

 1.  It uses a mechanical and electrical design, to switch to a different mold, you can suppress the different specifications of wire rope, easy to operate and safe.

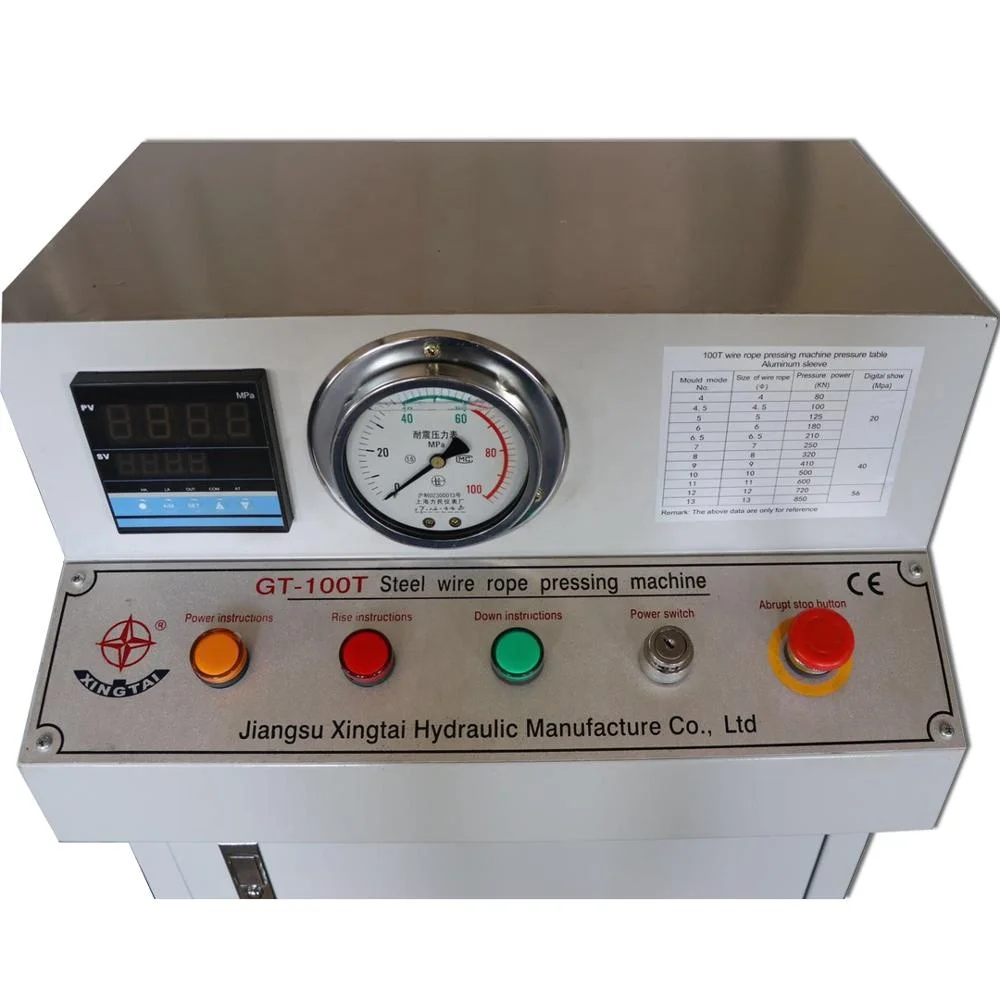

 2.  Dual control for hydraulic system, the overflow valve, magnetic contact on the pressure gauge can be accurately controlled.

 3.  Electric control parts of the low-voltage control, an increase of operating system security.

 4.  Pull the rope to suppress large, beautiful, fast, and a wire rope press-fit just a few minutes to complete, significantly reduced the labor intensity and improve the work efficiency.

5.  Xingtai wire rope press machine have exported to many countries, UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Nigeria, Russia, Botswana and so on.

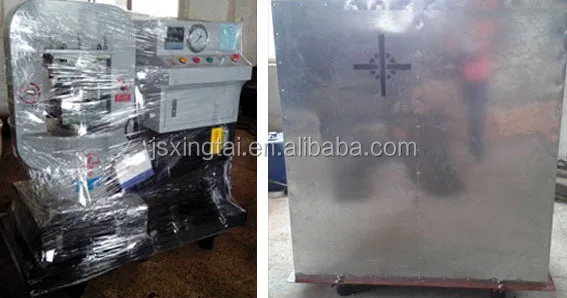

 Shrinkwrap and iron box

 1.  Warranty period:  one year

2.  Fast delivery reliable quality

3.  Competitive price and 24 hours technical support

4.  We delivery goods to port as clients' request

5.  We can produce mould as clients' drawing or other request

5. CE

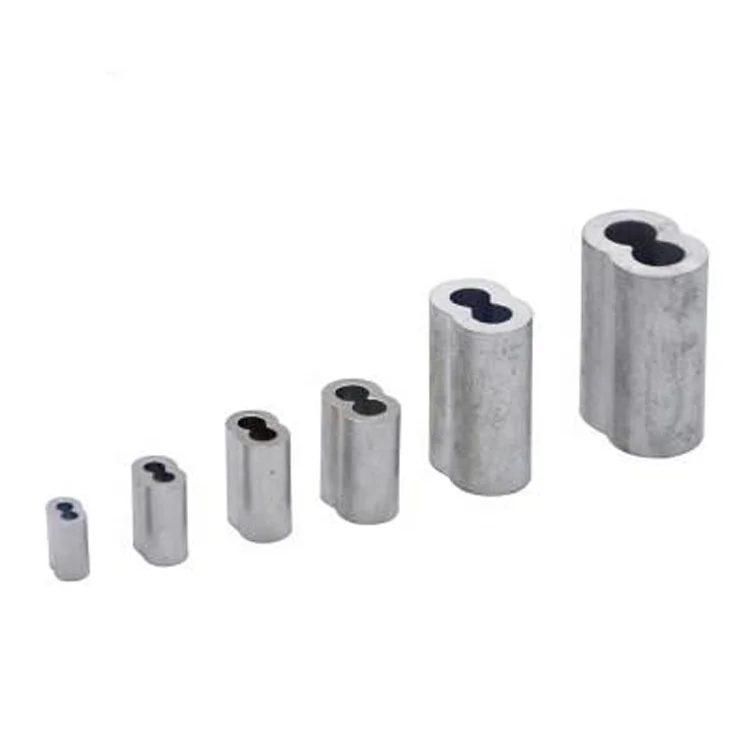

Jiangsu Xingtai Hydraulic Manufacture Co.,Ltd was founded in 1992, and located in Taizhou City, Jiangsu Province, China. Xingtai hydraulic engages in hydraulic wire rope press machine, wire rope annealing and tapering machine,aluminium sleeve,and lifting clamp. Xingtai hydraulic owns advanced producing equipment, tremendous technique capacity, authoritative test facility, prefect quality management system.

Xingtai hydraulic swage construction is forgged from high stength alloy steel. The body of swagers are manufactured from one single block construction that ensure strength and long service life. Xingtai hydraulic machines adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency.  Xingtai hydraulic machines have exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Russia, Botswana,Polland and so on.

How to operate hydraulic steel wire rope press machine

1. Fix fitted mould, tight the bolts on the left of both tool set ( the tool is offered by factory); Refer diameter of wire rope table to adjust pressure, put sleeve with steel wire rope in the middle of mould Vertically.

2. Operate pedal rise switch, the piston will rise and the rising pilot lamp lights; Auto-stop when reach given pressure and finish pressing; Operate descendent switch, the piston will descend and the descendent pilot lamp lights; and take out pressed steel wire rope.

Q: Are you trading company or factory?

A: We are professional wire rope pressing machine and wire rope annealing machines manufacturer with 20 years' experience.

Q:  What is after-sales services?
A:  24 hours around the clock & 12 months warranty
       Life-long maintenance service for the product

Q: If I didn't use press machine before, how can I install and operate the machine?

A: We will delivery machine with use manual.

Q: Shall I see the machine work before I order?

    a. Please send us inquiry and we will check whether there are customers in your country.

    b. You may come our factory, we will teach you how to operate.

    c.  We may send you video.

Q: How long to finish one machine if I place order?

A: As usually, delivery time is 30 days.  If we have machine and dies that you need in stock,  we  may delivery machine in 7-10 days after receipt of your payment.
