Product Description



Technical data
Voltage |
220VAC or 110VAC,50HZ,60HZ |
Power Consumption |
400W |
Control |
DMX / Wire Remote |
Dmx Control Channels |
1CH |
IP Grade |
IP20 |

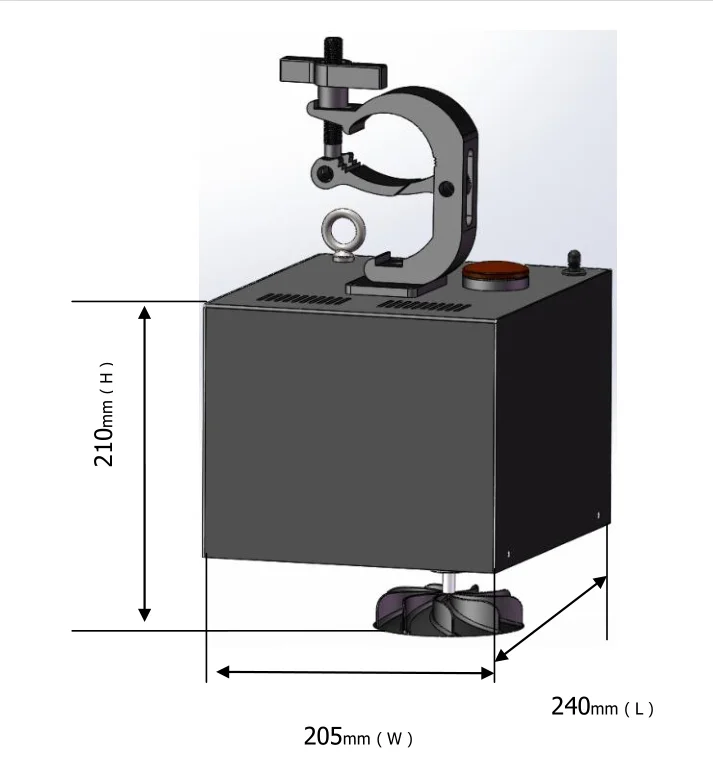

Product dimension |
232*195*235(mm) |
Product weight |
8.5Kg |

Safety instructions
Storage Environment Description
Equipment must be stored in dry conditions(The air humidity is within 35%)
Do not expose the equipment to high temperature above 30 degrees outdoors
for too long
Equipment should not be stored in leaky environment
Do not store equipment in environments with corrosive and flammable
substances
Ignition Conditions
Equipments should not be damped or flooded, and should be avoided from
being used on the same stage as stage equipment which produces water mist as
far as possible
Keep watch at a safe distance of 3 meters from the equipment during discharge
Do not set off outdoors in heavy rain and snow
Regulations on Safe Use
In the process of heating and constant temperature, do not touch the top and
side outlets of the equipment.
During the working process of the equipment in the discharge area, it is strictly
forbidden for unrelated personnel to approach it.
Do not place shield on top of equipment during heating, constant temperature
and discharge
After the discharge, try to use up the consumables in the shaking. If there is too
much left over, please cover the lid to prevent the leakage and dampness of the
consumables (storage time should not exceed 2 days).
Do not remove side rubber footpad by yourself
Unused powder should be sealed and moistureproof preserved
When using equipment, be sure to follow local laws and regulations.
Correct Use of Specifications
Live plug-in is not allowed
After starting the device, press the "FUNCTION" button (that is, the first button
on the screen), observe for 3-5 seconds to determine whether the temperature
is rising normally.
Put in powder after the equipment is kept at constant temperature. Keep in
mind that the powder cover must be covered well after the powder is put in.
After using the equipment, try to use up the consumables as far as possible.
After the above operation, remember to cover the fireworks pollen and store
them in dry environment.
If the fireworks pollens are not exhausted and need not be idled, please cover
the consumables immediately (storage time should not be too long, it is
recommended not to exceed 2 days).
In the cold or humid environment, it is strongly recommended not to leave
consumables in the equipment. After using, the equipment must be idled for
25 seconds and stored in a dry environment!
Control instructions
