Cost saving Diesel engine drive dry shotcrete machine with high quality for subway

Product Description



GZ-9D is diesel large-sized shotcrete machine for the spraying process.

GZ-9D shotcrete machine can be used for large-section tunnel building, mine, etc.
GZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.

Diesel engine drive dry shotcrete machine with high quality for subway



Technology Parameter



Output Capacity
6-9m3 /h
Max. Horizontal Conveying Distance
200m
Suitable Mix Ratio(Cement/Sand)
≤1:4~5
Max. Aggregate Size
Dia.20 mm
Conveying Hose Inner Diameter
Dia.64 mm
Conveying Pressure
0.2-0.4MPa(29-58PSI)
Air Consumption
10~12m3/min(357-430CFM)
Material Charging Height
1.1m
Rotor Speed
7.5-11r/min
Diesel Engine
20hp, 2200rpm, Radiator Cooling

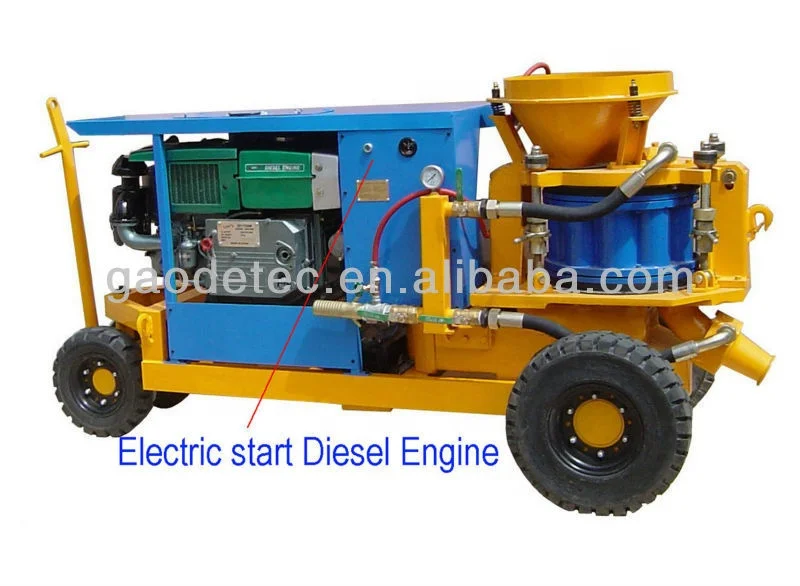

Diesel Engine Starting
Electric start

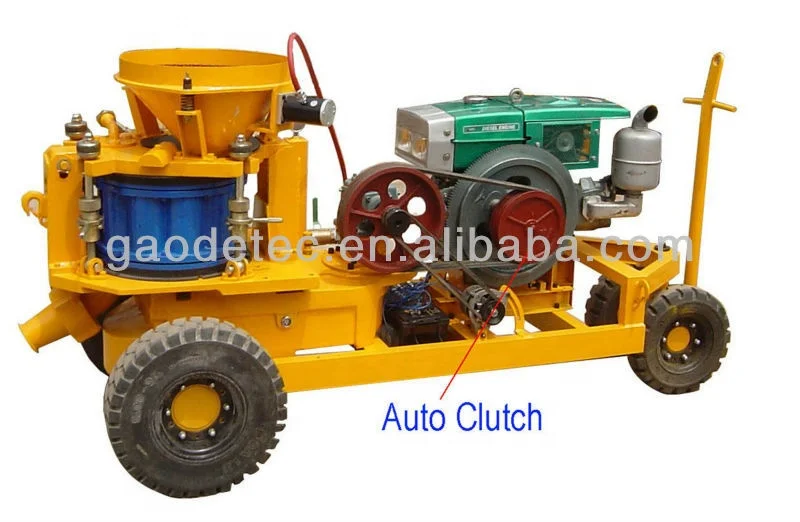

Clutch Type in Diesel Engine
Automatic Clutch
Air Vibrator
OR100, Oli
Overall Dimension(length×width×height)
2.66×1.11×1.50m
Net Weight
950kg

Accessories



Diesel engine drive dry shotcrete machine with high quality for subway
A complete set of GZ-9 shotcrete machine
No.
Description
Quantity
Unit
Remarks
1
GZ-9 Main Machine
1
set

2
Nozzle Assy
1
set

3
Conveying Hose, ID64mm, 50ft.Length
1
piece

4
Water hose with hose hoop
1
piece

5
Rubber Hose Joint
3
piece
Fitting
6
Quick Coupling
3
piece

7
Upper Sealing Plate
1
piece

8
Lower Sealing Plate
1
piece


Application



GZ-9D shotcrete gunning machine application

1. Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect.
2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.Diesel engine drive dry shotcrete machine with high quality for subway

Packaging & Shipping

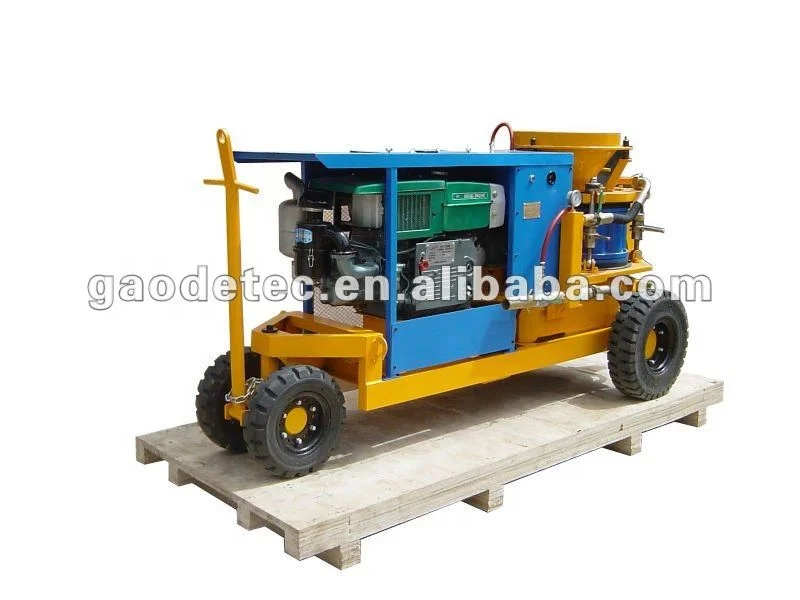

1. Plastic wrap, plywood case, free-fumigation, standard export packing. as shown below.

2. Or customised.Diesel engine drive dry shotcrete machine with high quality for subway
