Product Overview
Description

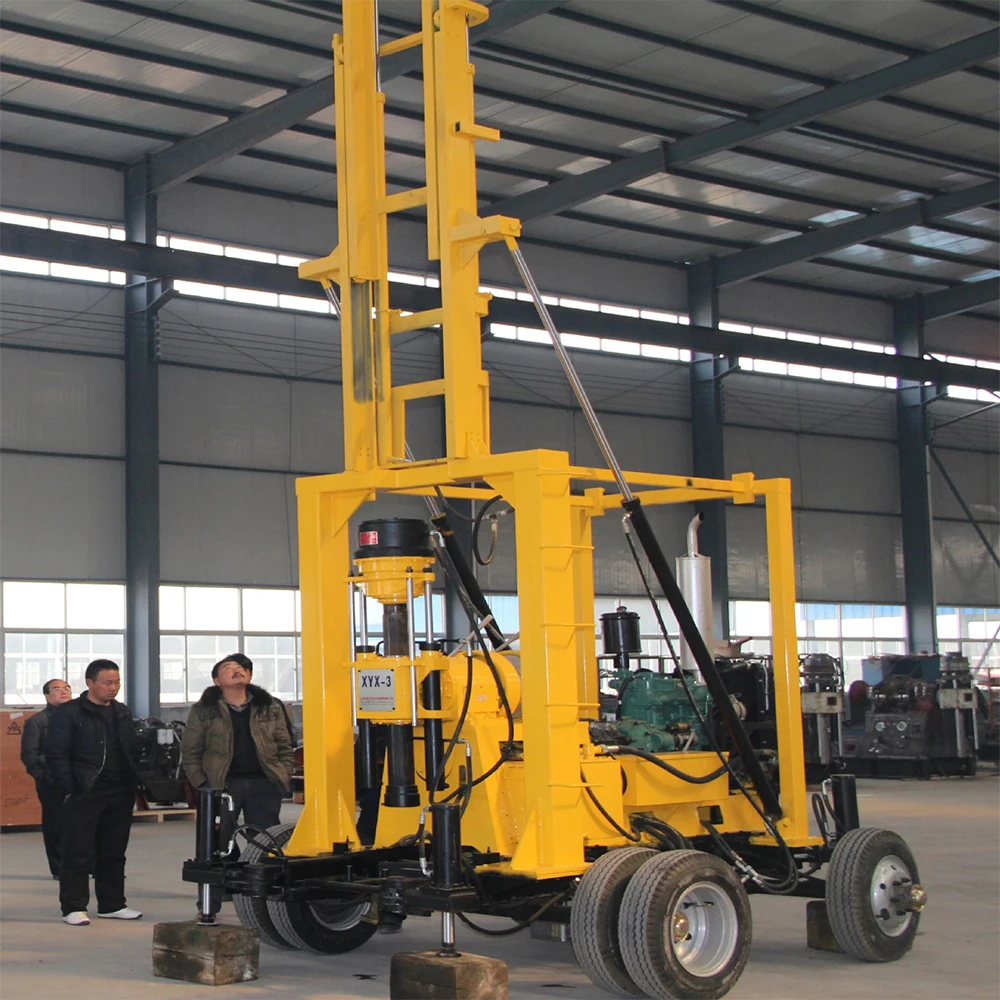

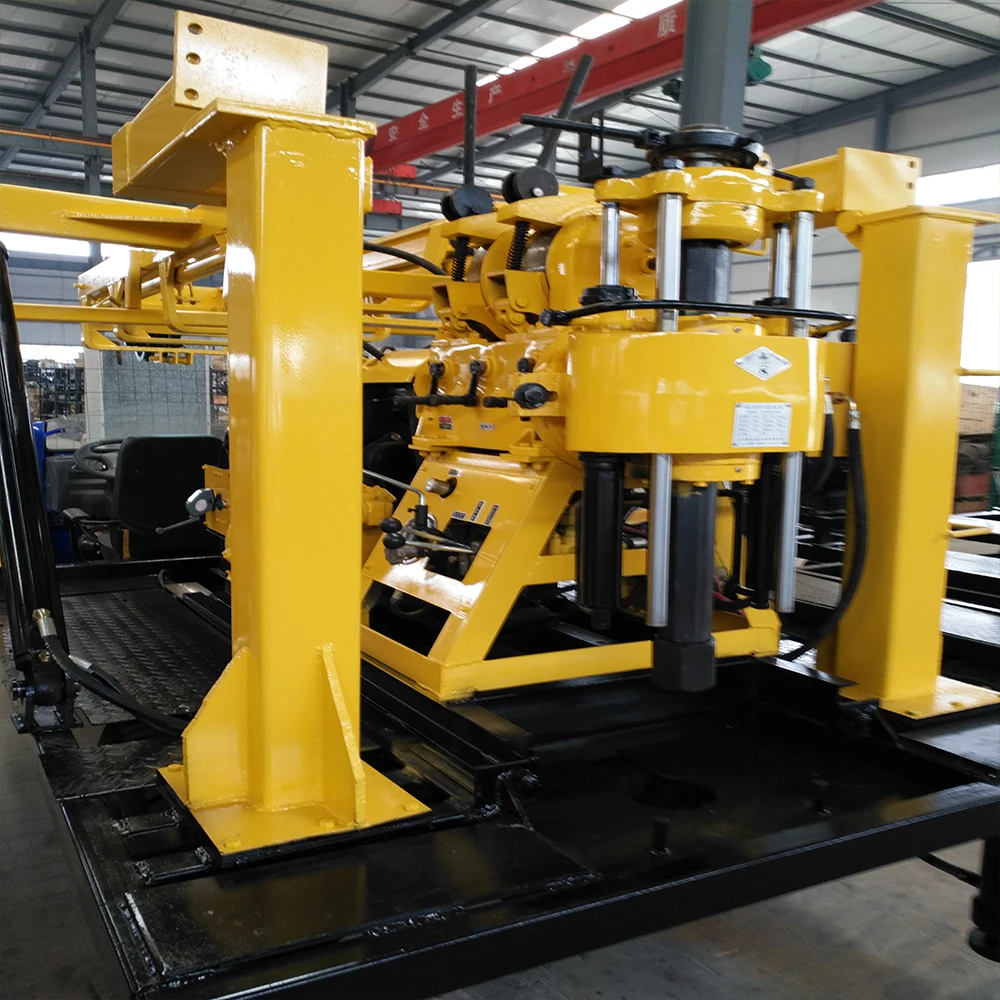

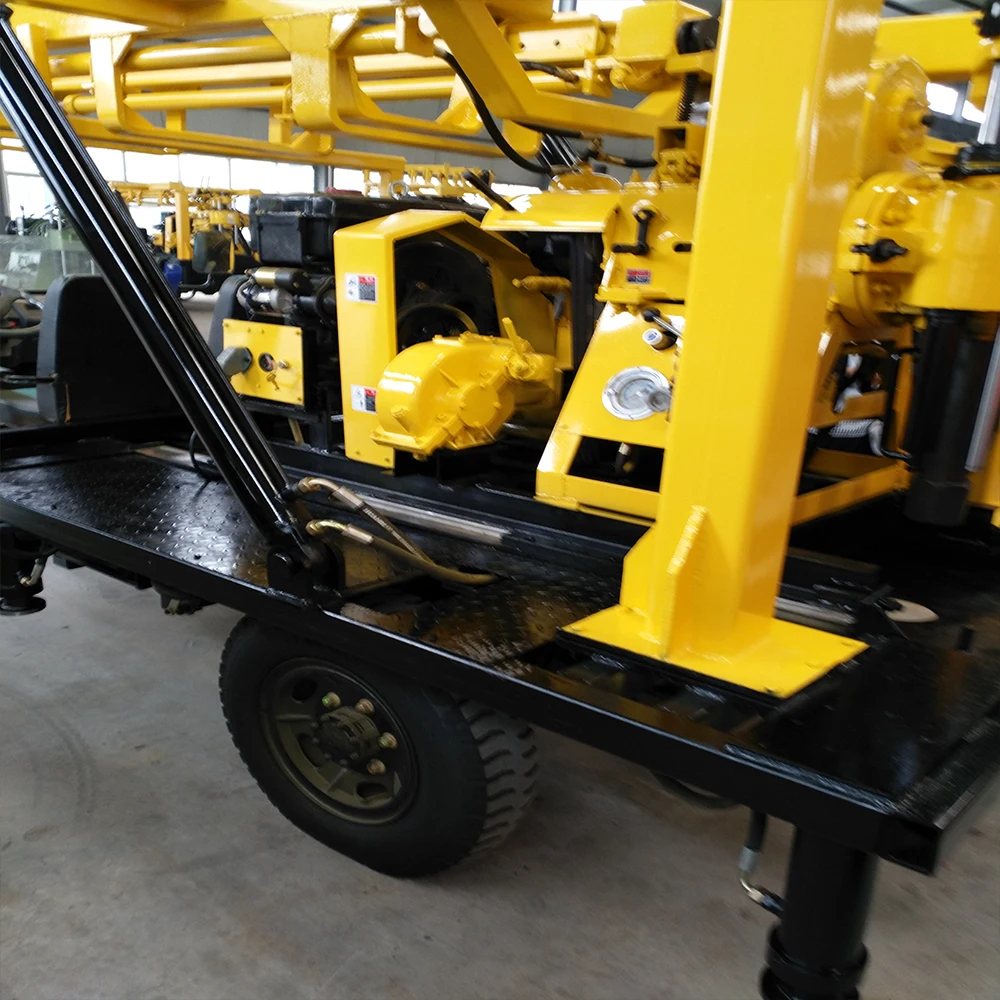

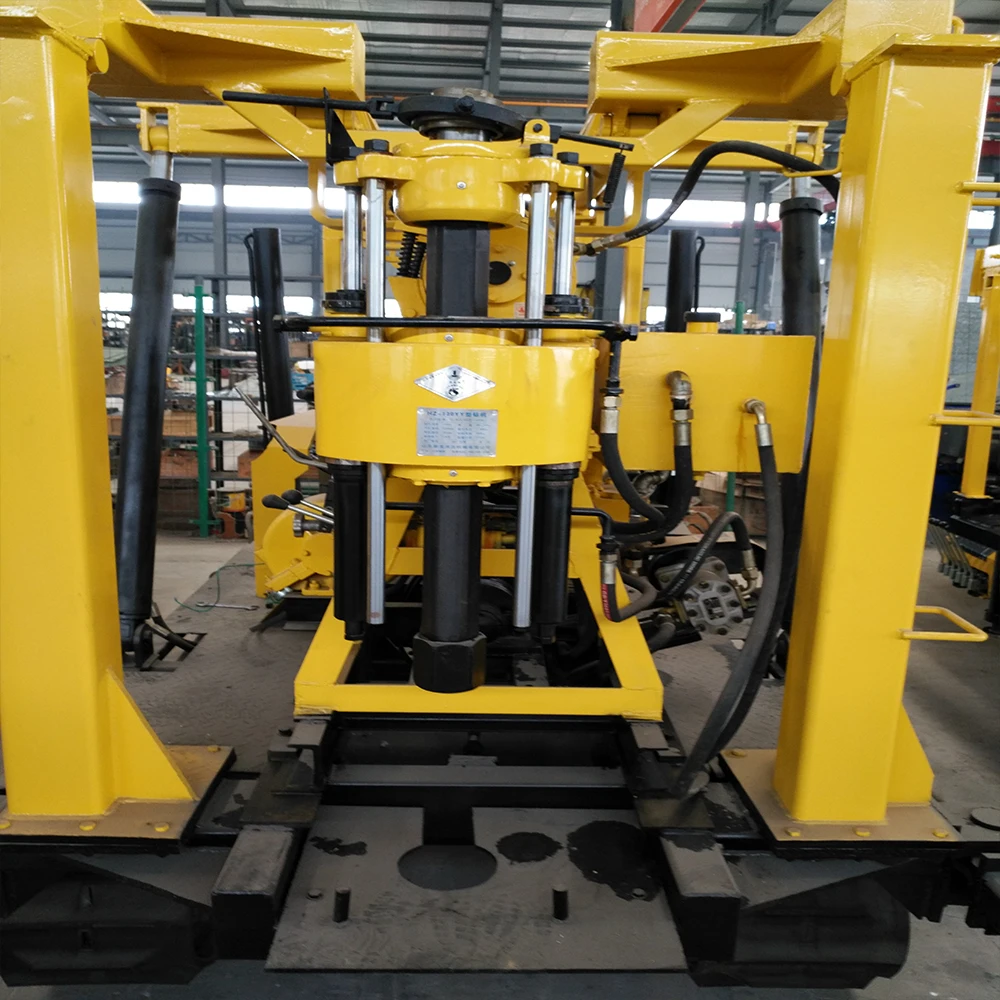

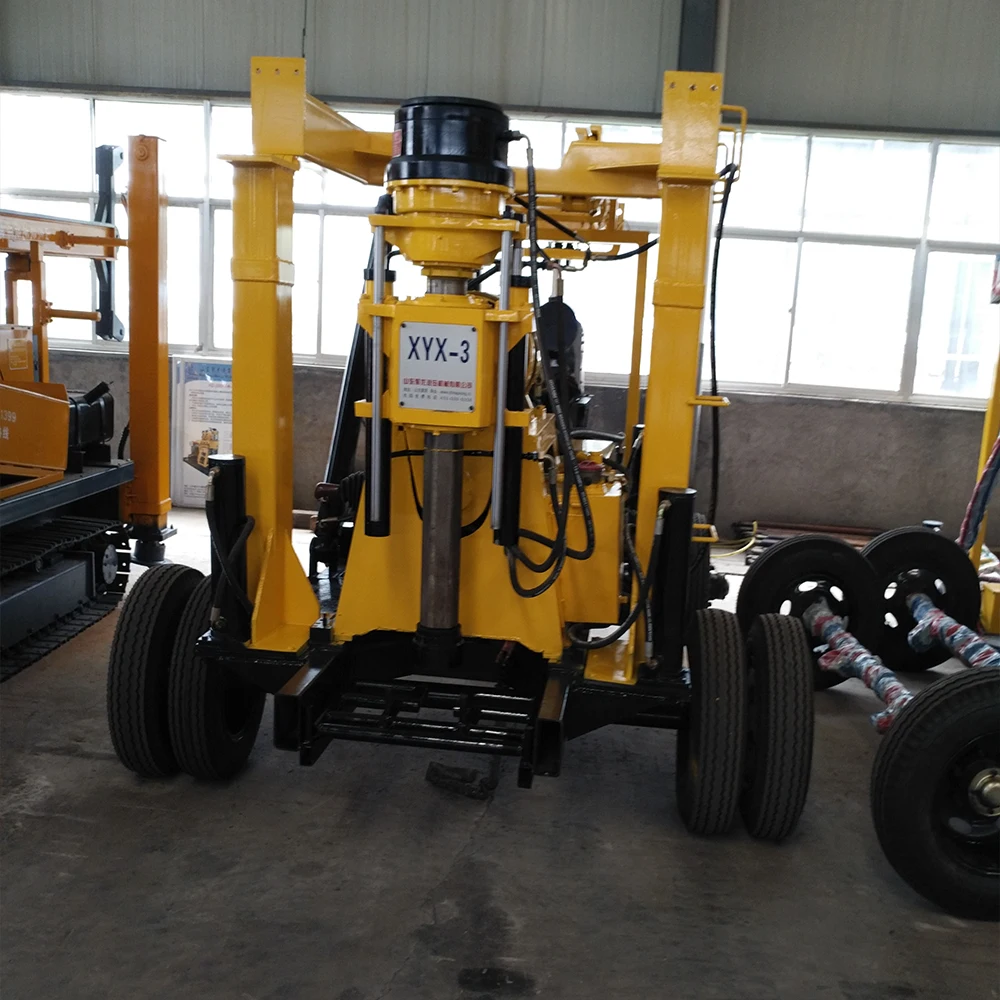

XYX-3 Trailer-mounted Water Well Drilling Rig Introduction:
XYX-3 Trailer-mounted Water Well Drilling Rig is type of vertical shaft drill, which can be powered by diesel engine or electric motor. It is mainly used for diamond bit drilling and carbide bit drilling of solid bed. It also can be used in exploring drilling and base or pile hole drilling.
XYX-3 type: track-mounted rig, trailer mounted rig
Professional XYX-3 Trailer-mounted Water Well Drilling Rig Features:
core drilling rig
1.compact size and light in weight of mechanical transmission, major diameter of vertical shaft, long distance of support span and good rigidity, hexagonal Kelly ensure the torque transfer.
2.High speed and suitable range of speed to meet varies need of small diameter diamond bit drilling, big carbide bit drilling and all kinds of the engineer holes.
3.Hydraulic systems can adjust the feeding pressure and the speed, so it can satisfy the drilling in various stratums .
4. Pressure gauging can make you get the information about the feeding pressure at the end of the hole.
5.Transmission and clutch of Automobile are choice in order to achieve the good generalization, easy repairing and maintenance.
6.Close levers, convenient operation.

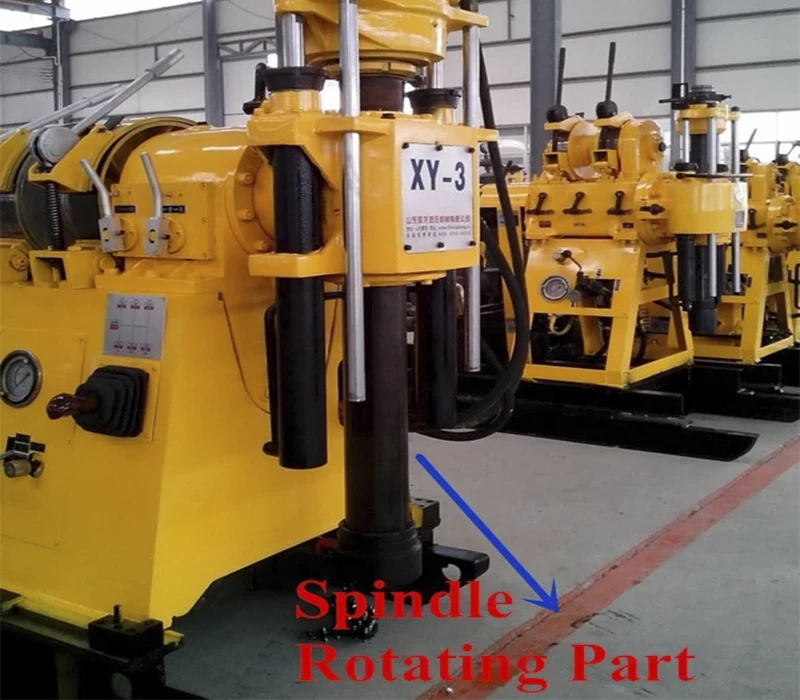

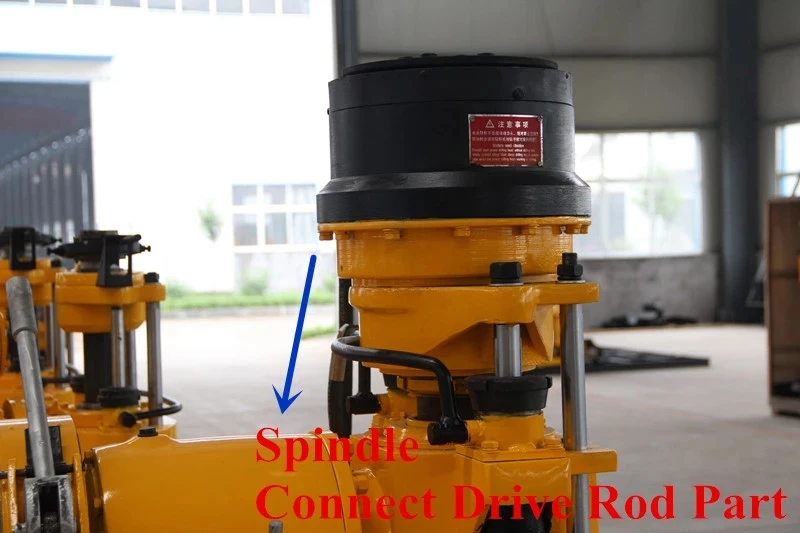

7.The spindle has the octagon section so give more torgue.
Application:
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.

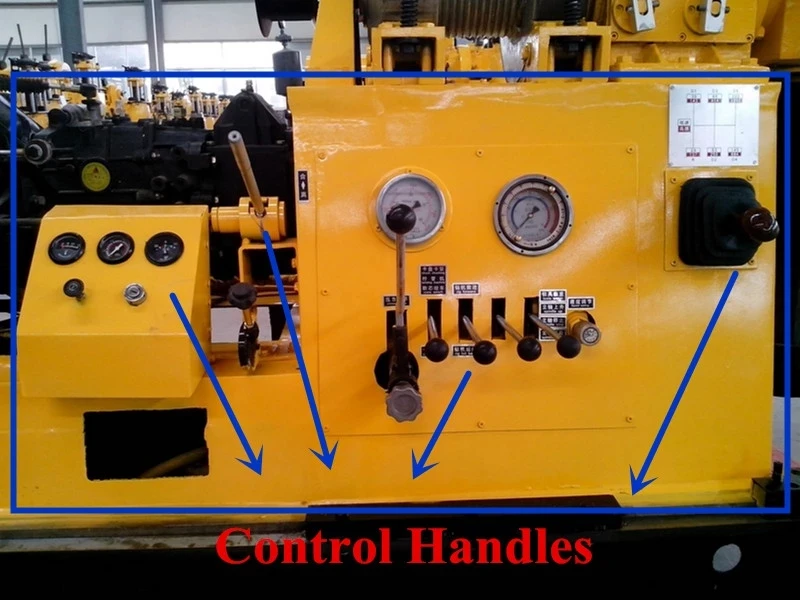

3. Centralized handles, easy operation, safe and reliable.
4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
5 lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
Technological Data of XYX-3 Trailer-mounted Water Well Drilling Rig:
1.Fundamental parameters
Drilling depth 100m 600m
300m 250m
Rod diameter 50, 60mm
Drilling angle 65°~ 90°

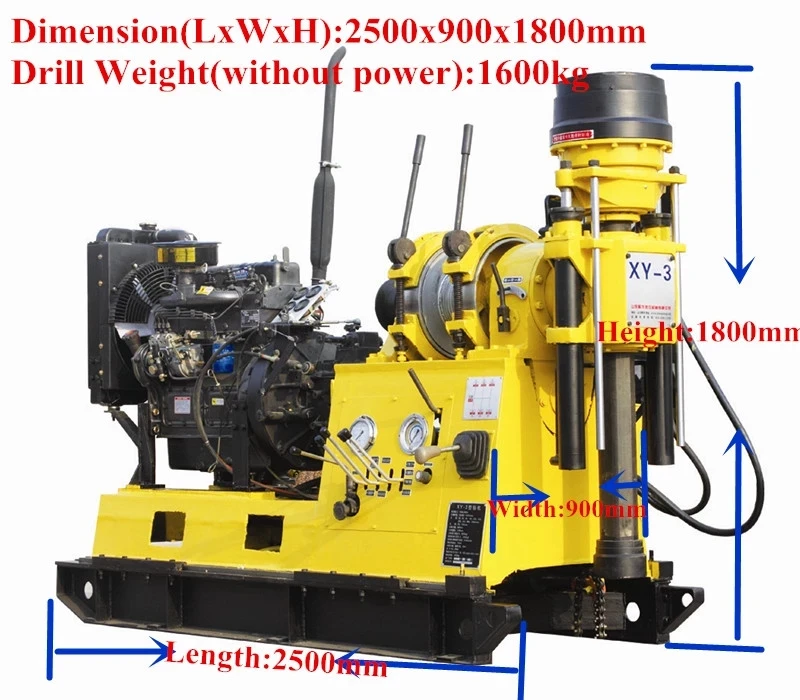

Overall dimension (L x W x H ) 2500*900*1800mm
Rig weight with diesel engine 1600Kg
with electric motor 1550Kg
2.Rotation & Spindle speed
Co-rotation 75, 135, 160, 280, 355, 495, 615, 1030 r/min
Reverse rotation 64, 160 r/min
Spindle stroke 550mm
Spindle pulling force 68kn
Spindle feeding force 46kn
Maximum output torque 3550nm

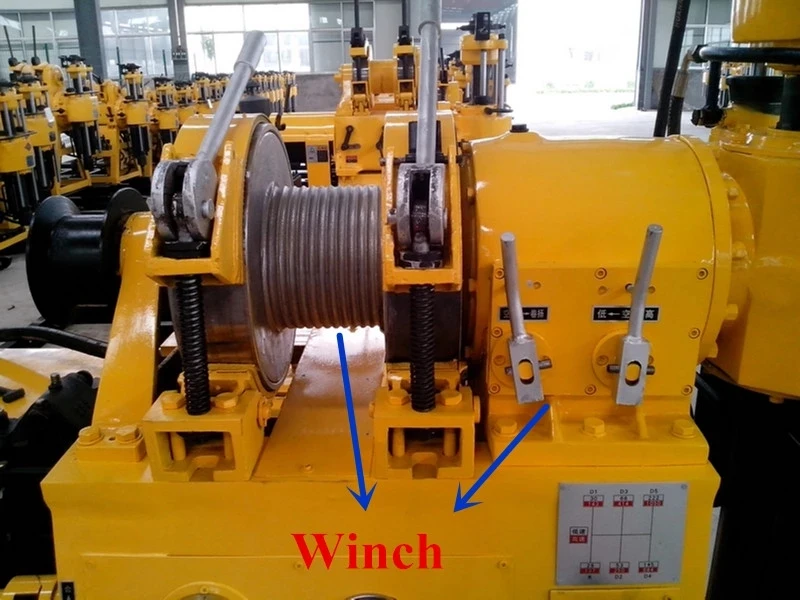

3.Hoist
Lifting speed 0.31, 0.62,1.18, 2.0 m/s
Lifting capacity 30 KN
Cable diameter 15mm
Drum diameter 264mm
Brake diameter 460mm
Brake band width 90mm
4.Frame moving device
Frame moving stroke 420mm
Distance away from hole 300mm

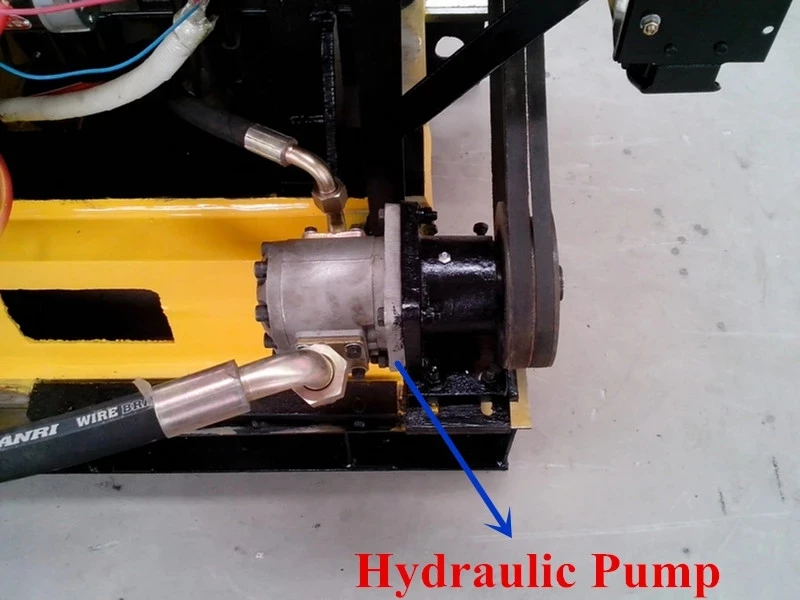

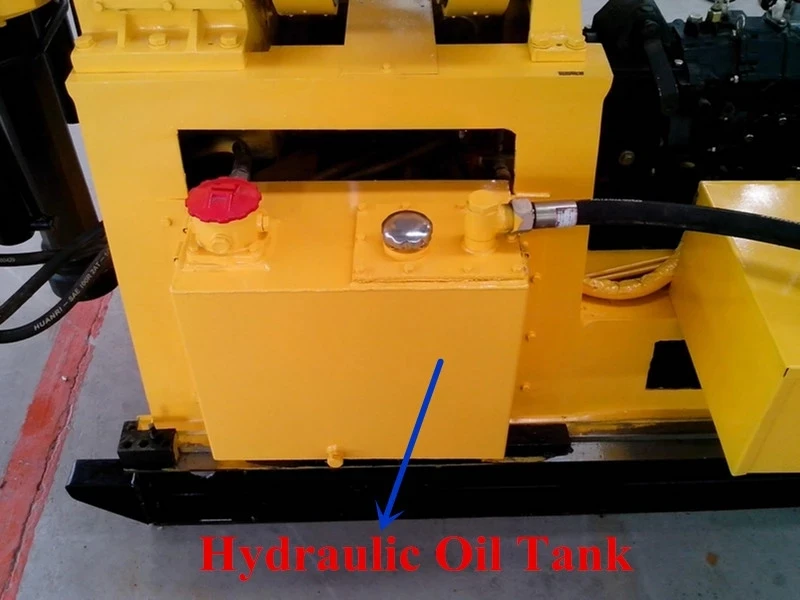

5.Hydraulic oil pump
Type CBW-E320
Rated flow 40L/min
Rated pressure 8MPa

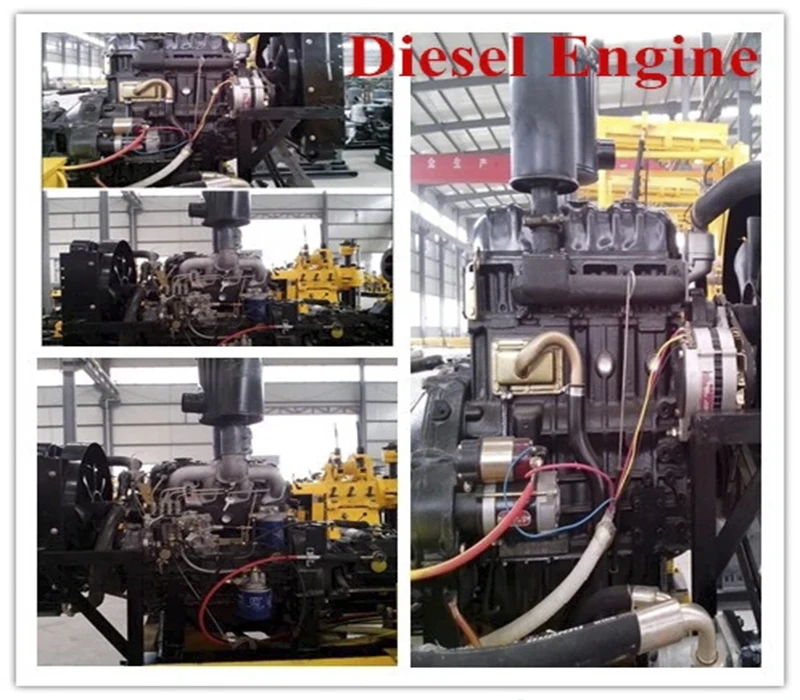

6. Power unit
Diesel engine CZ4102
Rated power 35.3KW
Rated speed 2000r/min
Electric motor Y200L-4
Rated power 30kw
Rated speed 1450 r/min
