Product Overview
Description
Product Description
Product Application
Aluminum soft tubes line or collapsible tubes line is a set of machines to produce tubes to pack products like ointment, artistic pigment, cosmetics, sealant, toothpaste, shoe polish, AB glue, hair dye, tomato sauce, chocolate sauce, instant adhesive, pen barrel, cigar, etc.

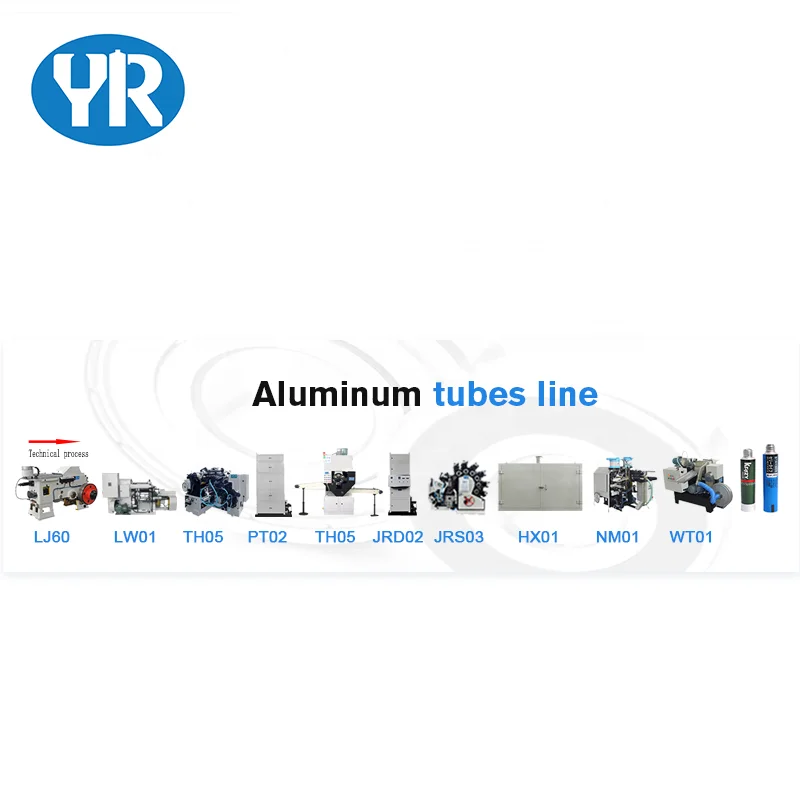

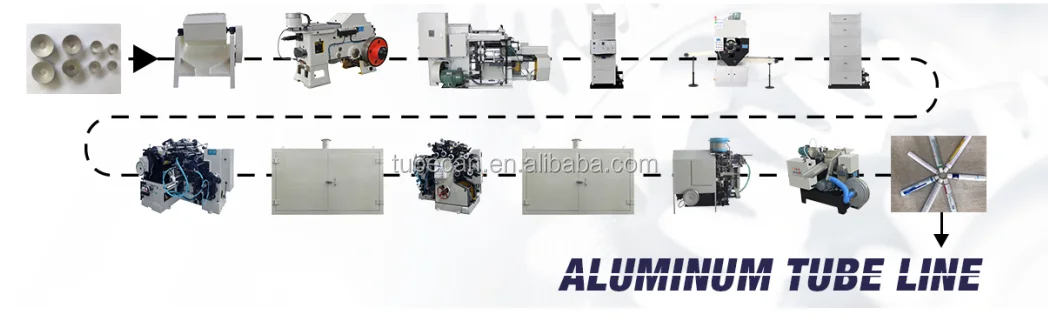

The YR series aluminum tubes lines produced by us are fully automatic. Each equipment of the series can work alone or form an automatic production line partially or fully, according to client’s needs. The machines include LJG01 Extrusion press,LWG Trimming , THG Annealing oven, PTG Internal lacquering machine, GHG Lacquering curing oven, CCG Accumulator, DYG Base-coating machine, YSG01 6-color and YSG02 8-color printing machine, HXG Drying oven, NMG Capping machine, WTG Latexing machine and BZG Packaging machine.
All the equipment of the series is properly aligned in structure, advanced in design, highly automated and fast in production. All devices adopt SIEMENS PLC to ensure stability and all ovens employ FUJI Temperature Controller to automatically control the working temperature.
Main units and controlling components all adopt branded products to ensure reliable and stable working performance. All the products can be passed automatically through the production line. The color touch screen can display the instant information of speed and production, making it convenient for management.
Aluminum soft tubes line or collapsible tubes line is a set of machines to produce tubes to pack products like ointment, artistic pigment, cosmetics, sealant, toothpaste, shoe polish, AB glue, hair dye, tomato sauce, chocolate sauce, instant adhesive, pen barrel, cigar, etc.
The YR series aluminum tubes lines produced by us are fully automatic. Each equipment of the series can work alone or form an automatic production line partially or fully, according to client’s needs. The machines include LJG01 Extrusion press,LWG Trimming , THG Annealing oven, PTG Internal lacquering machine, GHG Lacquering curing oven, CCG Accumulator, DYG Base-coating machine, YSG01 6-color and YSG02 8-color printing machine, HXG Drying oven, NMG Capping machine, WTG Latexing machine and BZG Packaging machine.
All the equipment of the series is properly aligned in structure, advanced in design, highly automated and fast in production. All devices adopt SIEMENS PLC to ensure stability and all ovens employ FUJI Temperature Controller to automatically control the working temperature.
Main units and controlling components all adopt branded products to ensure reliable and stable working performance. All the products can be passed automatically through the production line. The color touch screen can display the instant information of speed and production, making it convenient for management.
SPECIFICATIONS FOR ALUMINUM COSMETIC TUBE MAKING LINE | ||
Production Speed | ≤60pieces/min | |
Diameter | φ11㎜- φ22㎜or φ25㎜-φ35㎜ | |
Motor Power | 230KW | |
Dimensions | 24000×3500×4200(㎜) | |
Intake Pressure | 0.55MPa | |
Would like to know more about our equipments? Feel free to send us an inquiry!
MAIN MACHINE

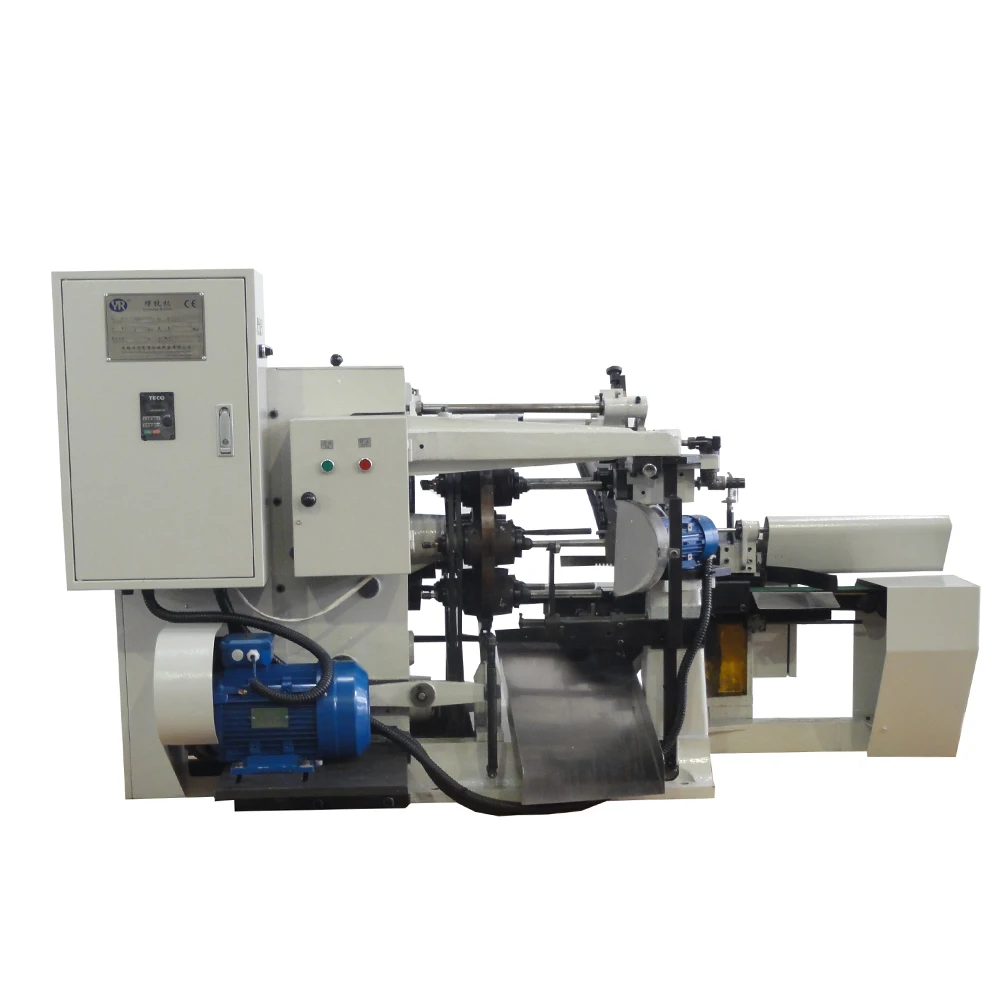

Name: LWD01 Trimming machine
Main technical parameters
A. Tube diameter range: φ11mm-φ38mm
B. Tube length range: ≤185mm
C. Production speed: ≤60tubes/min
D. Motor power: 2.2KW
E. Dimensions: 2100*1750*1100mm
F. Weight: 1300KG
Main technical parameters
A. Tube diameter range: φ11mm-φ38mm
B. Tube length range: ≤185mm
C. Production speed: ≤60tubes/min
D. Motor power: 2.2KW
E. Dimensions: 2100*1750*1100mm
F. Weight: 1300KG
MAIN MACHINE

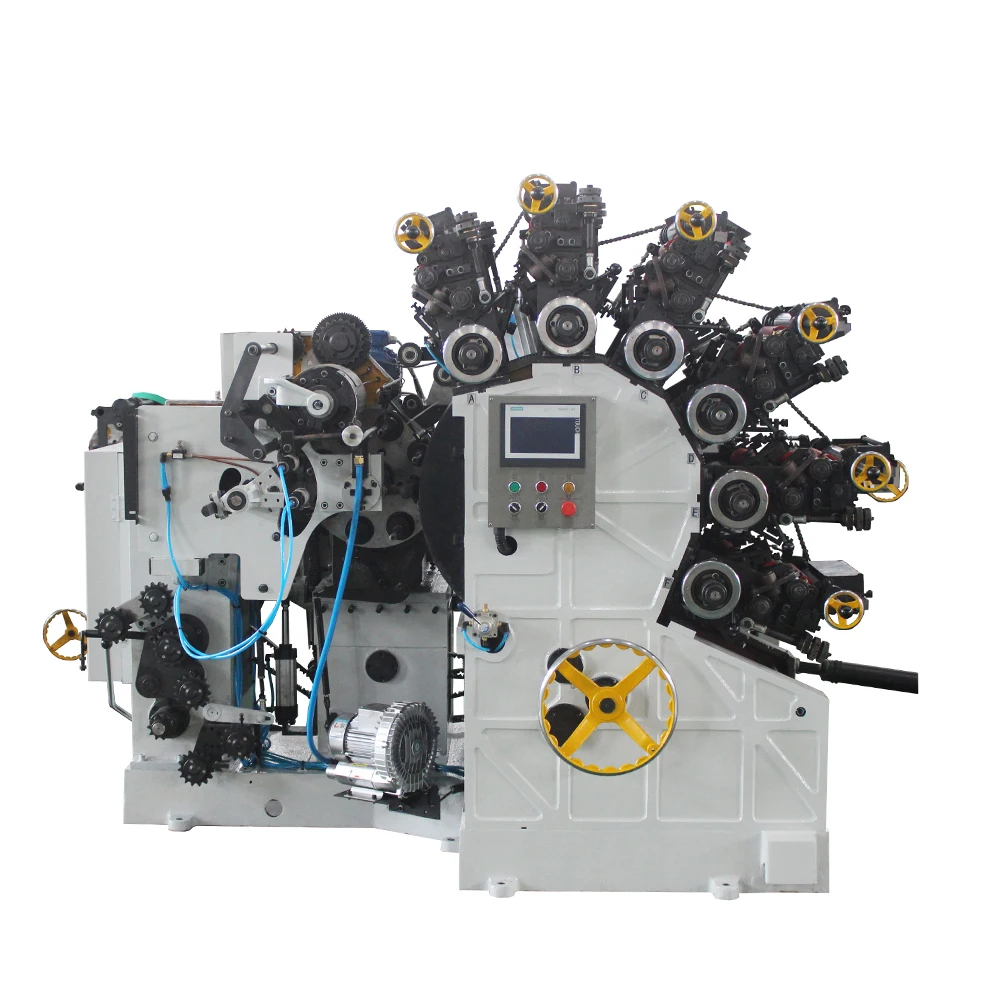

Name: YSD03 6-Color Printing Machine
Main technical parameters
A. Tube range: φ11-φ38mm
B. Tube length range: ≤200mm
C. Production speed: ≤60tubes/min
D. Motor power: 5.5KW
E. Dimensions: 2100*1530*1600mm
F. Weight: 3800KG
Main technical parameters
A. Tube range: φ11-φ38mm
B. Tube length range: ≤200mm
C. Production speed: ≤60tubes/min
D. Motor power: 5.5KW
E. Dimensions: 2100*1530*1600mm
F. Weight: 3800KG
Would like to know more about our equipments? Feel free to send us an inquiry!
Certifications
Packing&Shipping
PACKAGING INFORMATION | ||
Size | 24 (L) * 3.5 (W) *4.2 (D) | |
Weight | 20T | |
Packaging Details | International Export Standard Wooden Case | |
After Sales Service
ENGINEERS ONSITE GUIDANCE
Experienced engineers team to the site to provide instructions.
Company Introduction
Wuxi Yingrun Machinery Technology Co., Ltd. Is located in beautiful Wuxi, China, only 150 kilometers away from Shanghai.
The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
FAQ
Q: What's the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
Would like to know more about our equipments? Feel free to send us an inquiry!
