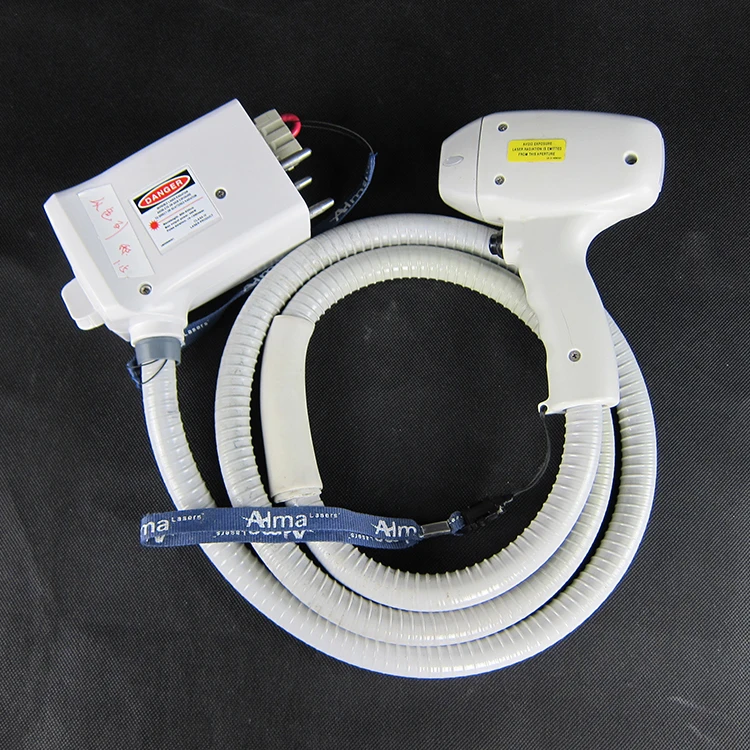

laser hand piece repair 808nm diode laser kit fix
- Category: >>>
- Supplier: Oriental-Laser (beijing) Co. Ltd.
Share on (62379730021):
Product Overview
Description
laser hand piece repair 808nm diode laser kit fix
7 in 1 pack 810nm diode laser hair removal machine kit
diode laser 808nm hair removal handpiece repair kit

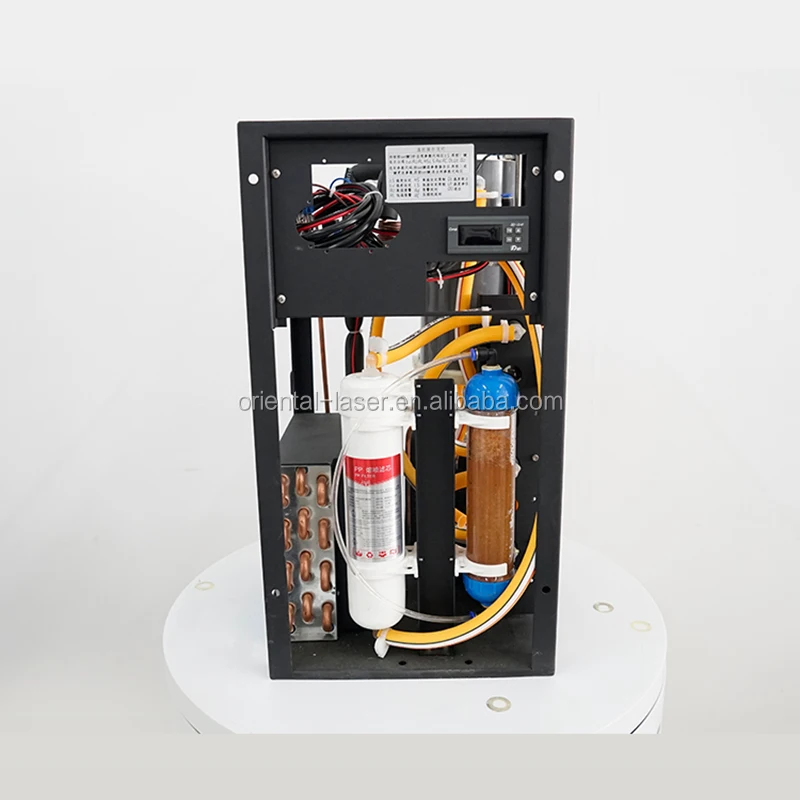

1.Cooling System —— a system that protects the heart
Water heat disspation system combine with the wind system
The process is water pump push the water flows circulation from water tank to handle,then
return to the water tank and lower the water temperature through the Freon compressor system
In Order To Get A Good Cooling Results
2.Water filtering system
We have designed an impurity filtration system to ensure that the fine passage of the laser will not be blocked, ensuring a longer service life of the handpiece.
3.Control System
The control system is independently developed, with higher compatibility and stronger stability.
Multi-function system alarm system
Water heat disspation system combine with the wind system
The process is water pump push the water flows circulation from water tank to handle,then
return to the water tank and lower the water temperature through the Freon compressor system
In Order To Get A Good Cooling Results
 | the water pump need higher pressure,we adopt centrifugal brushless water pump. Pressure stronger ,working stable . The water circulation speed faster. |
 | We have configured the Japanese Freon compressor cooling system, which has more powerful cooling effect and faster cooling efficiency, which is 3-4 times the effect of the radiator. It is the highest configuration and level on the market. |
 | We adopt 4L water tank , combines these to get the best results , from the test feed back , our machine could working on max power for more then 12 hours without serious heat |
2.Water filtering system
We have designed an impurity filtration system to ensure that the fine passage of the laser will not be blocked, ensuring a longer service life of the handpiece.
 | PP water filter : filter various particulate impurities in the liquid(rust, sand) |
 | Ion-excahnge water filter : displacement of adsorbed ions |
| germicidal lamp devices | Sterilization lamp : kill bacteria, fungi and microorganisms in water |
| Generally, germicidal lamp devices are rarely used in laser hair removal devices. | |
3.Control System
The control system is independently developed, with higher compatibility and stronger stability.
Multi-function system alarm system
In order to make the laser instrument safer and have a longer life, we have designed a professional standard safety alarm system from the water flow, temperature, operating system, etc., so that you can use it more safely in the hair removal process.
| 2.100W-24V Pump Power Supply |
| 3.150W-12V Control Board Power Supply |
| 4.Footpedal Switch |
| Plastic TFS-201 ( 18CM 3 wires ) 380V 220V 10A |
| 5. 3 water pump set |
| 3 water DC brushless Centrifugal pump set IP68 20000 hours |
| 6.Control board |
| Newest version, high stability Size: 20cm*10cm*8cm |
| 7.electrical wire |
1.5 square pure copper core wire flexible wire |
| 8-9 fan cover -electric fan |
electric fan12V 0.60A 3 Wires Electric Fan SIZE:120*120*25(mm) |
| 10.Ion-excahnge water filter |
PC 1.4mm | 1/4”0.2L 260MM*58MM |
| 11.PP filter |
| 11 Inch Length:27.5cm Diameter:6.5cm Interface:1/4” |
| 12.10.4 inch color touch Screen |
| 10.4 inch color touch Screen made in Taiwan Dwin |
| 13.Screen cable |
| 14.glasses |
| protection from diode laser, OPT, IPL, YAG Laser treatment. patient use. |
| 15.Protective glasses goggles |
OL02 is professional protective goggles designed for 808nm diode laser wrikle removal, rejuvenation, whitening and hair removal. |
| 16.Cable Tie |
| 17.Hose barb valved panel mount |
Acetal Natural 42005 5/16 316 Stainless Steel |
| 18.Quick socket |
Aviation Plug and Socket Connector GX16-2 |

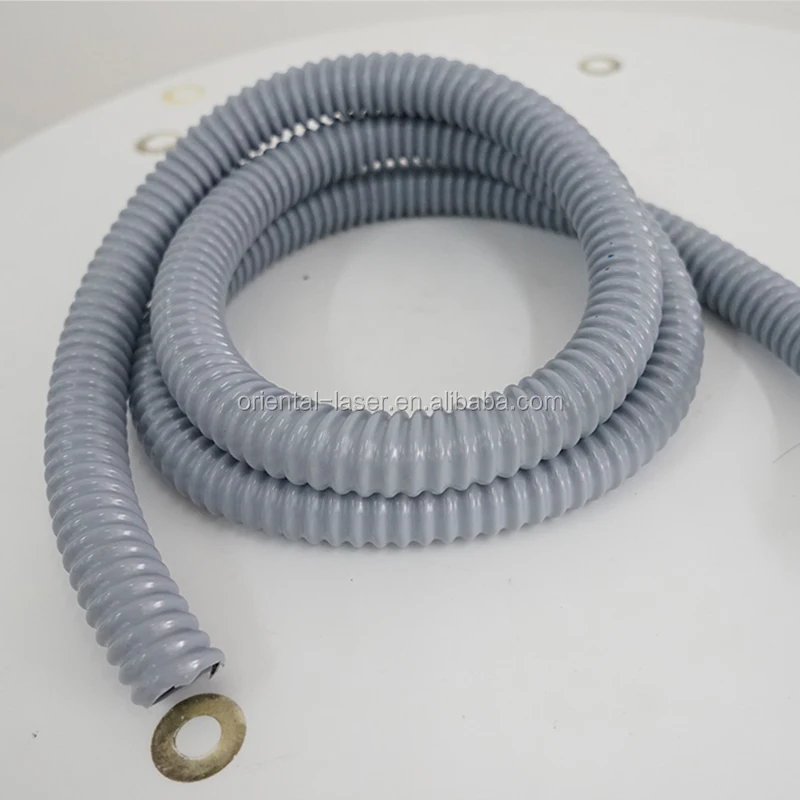

| 19.hose |
| 20.Transparent hose |

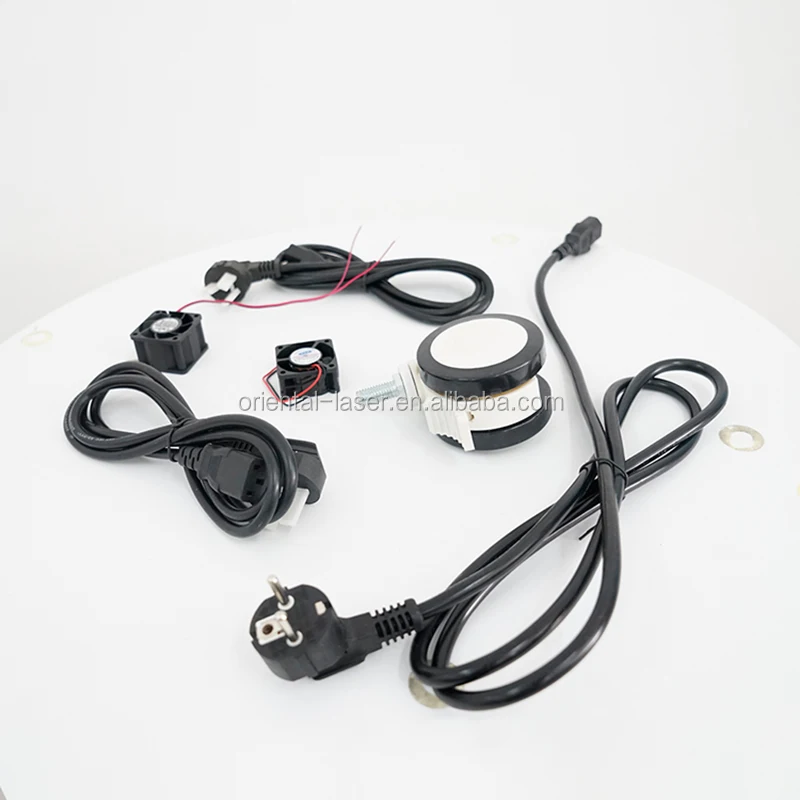

| 21.power cable |
250V 16A 3G 1.5mm² |
| 22.Aerial plug |
Aviation Plug and Socket Connector GX16-2 |
| 23.Power outlet |
| 24. connecting terminal |
| U type Pre-insulated terminal , Flame retardant pvc , |
| 25.screw |
| 26.Water funnel |
90mm, thin mouth transparent plastic small large diameter funnel |
| 27.hard tube |
| 28 Temperature Sensor |
| Temperature Sensor Stainless Steel Package Probe DS18B20 |
| 29.Water Flow Sensor |
MJ-168 1/2'' Hall flow sensor MJ-168 output pulse signal |
| 30.Key Switch |
| Two-speed self-locking 10A 415V |
| 31.Self-lock Emergency Stop Switch |
| NP2-BS542 Self-lock Emergency Stop Switch |

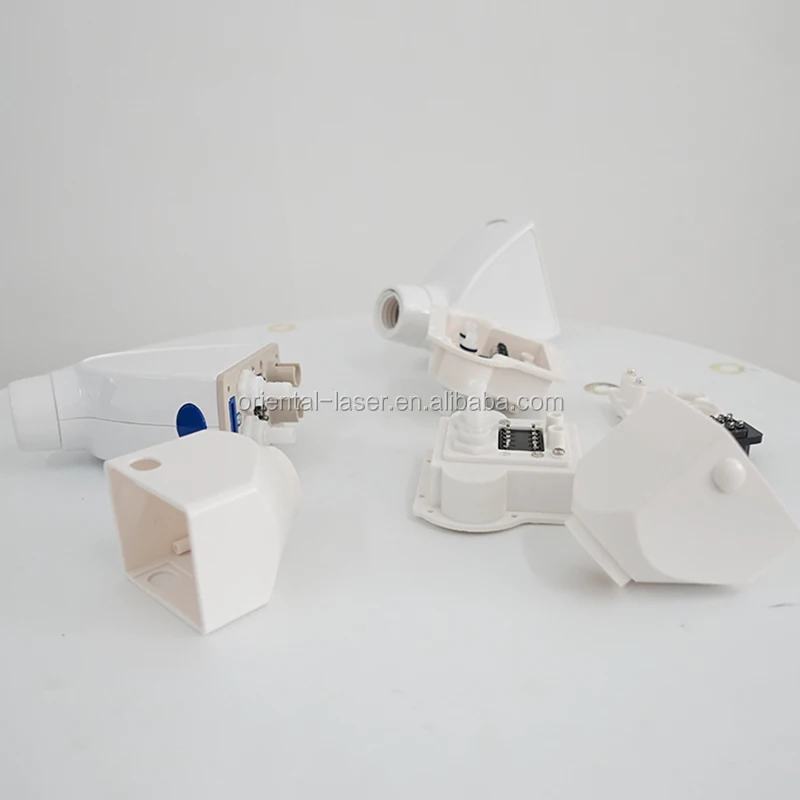

| 32.Handpiece connector |
| 33 Freon compressor |
| 34 Water tank |
