1.Life expectancy is two times that of lead-acid batteries.The weight is more lighter
2.No memory effect and rechargeable.the battery life is more longer
3.Safer and more environmentally friendly, No heavy metals and hazardous substances.
4.Built-in IC chip will prevent battery pack over charge, over discharge, over-current,
over-heat,short circuit .
5.Avoiding mechanical accidents caused by vibration.

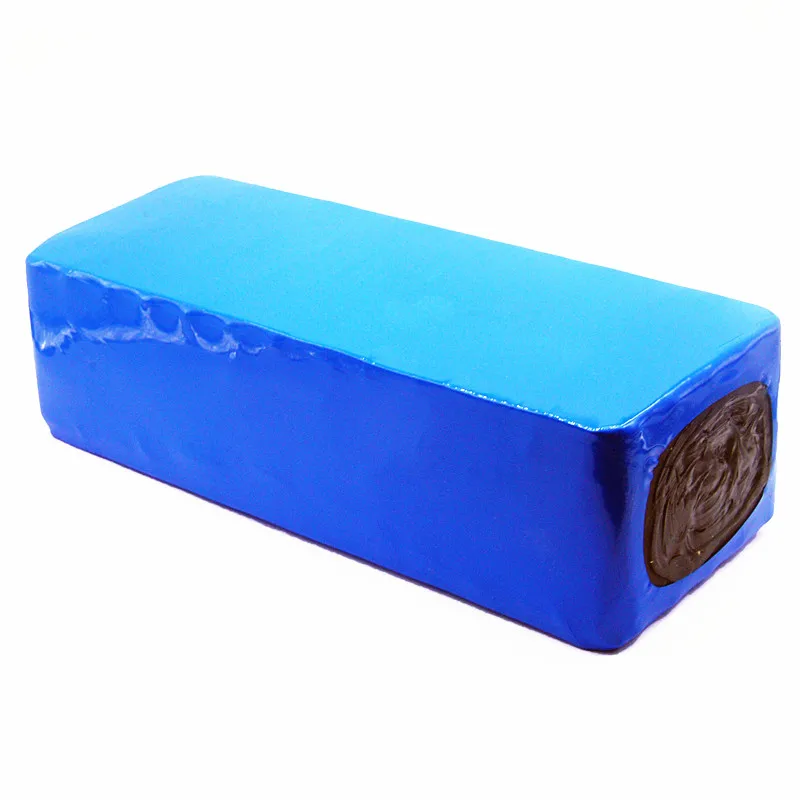

Product Specifications
Battery Model
36v 12ah
Nominal Voltage (V)
36v
Nominal Capacity (AH)
12ah
Source Resistance (mΩ)
about 40
Cell Specification
3.7V 2.0AH
Cell Combination
6-parallel 10-series
Cell Size
18650
Cell Quantity (parallel*series)
60pcs
Discharge Cutoff Voltage (V)
30+/- 1V
Charge Cutoff Voltage (V)
42v
Rated Discharge Current (A)
15A
instantaneous Maximum Discharge Current (A)
45A
Maximum Continuous Discharge Current (A)
15A
Maximum Continuous Charge Current (A)
5A
Charge Mode
CC-CV
Standard Charge Current (A)
2A
Charge Time under Standard Charge Current
6hours
Fast Charge Current (A)
5A
Charge Time under Fast Charge Current
2.5hours
Charge Temperature Range
-20-55°C
Cell Size (L*W*T )
195*115*70mm
Battery Weight
About4KG
Battery Power
500W
Feature:
1. Cells - A grade cells to make sure batteries in high and full capacity 2. Protection - Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload 3. Compose Type : Injection Technology to make battery more stable. 4. Certifications : CE,UL,FCC, RoHS, ISO9001 5. Long life cycle, No memory, environment friendly.
