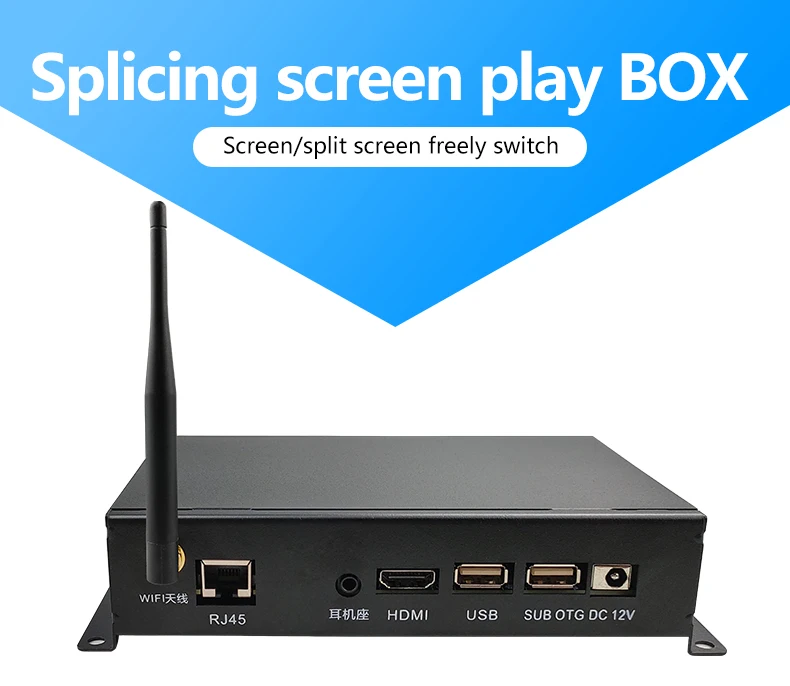

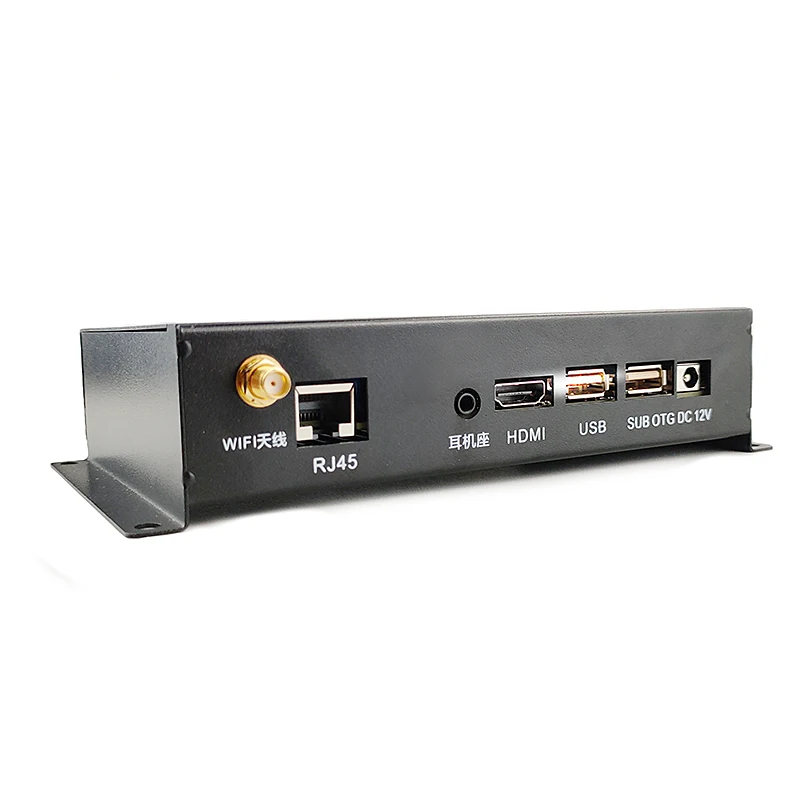

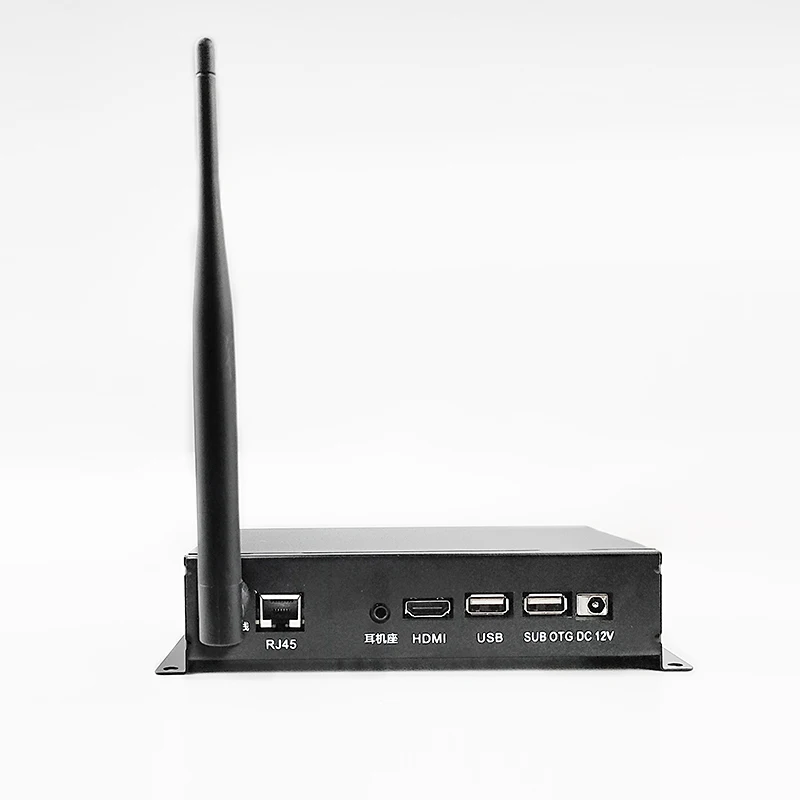

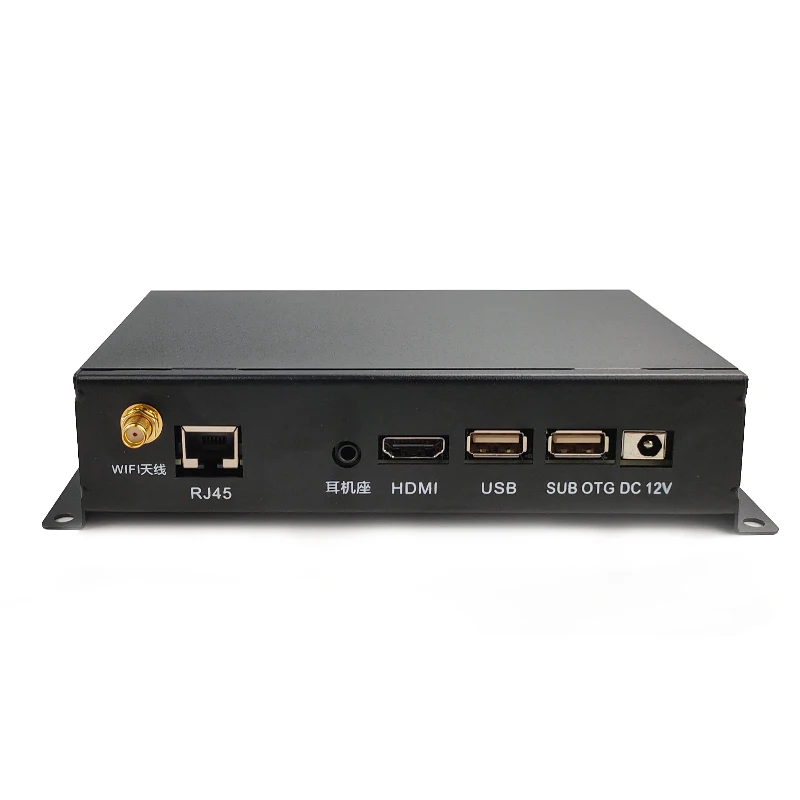

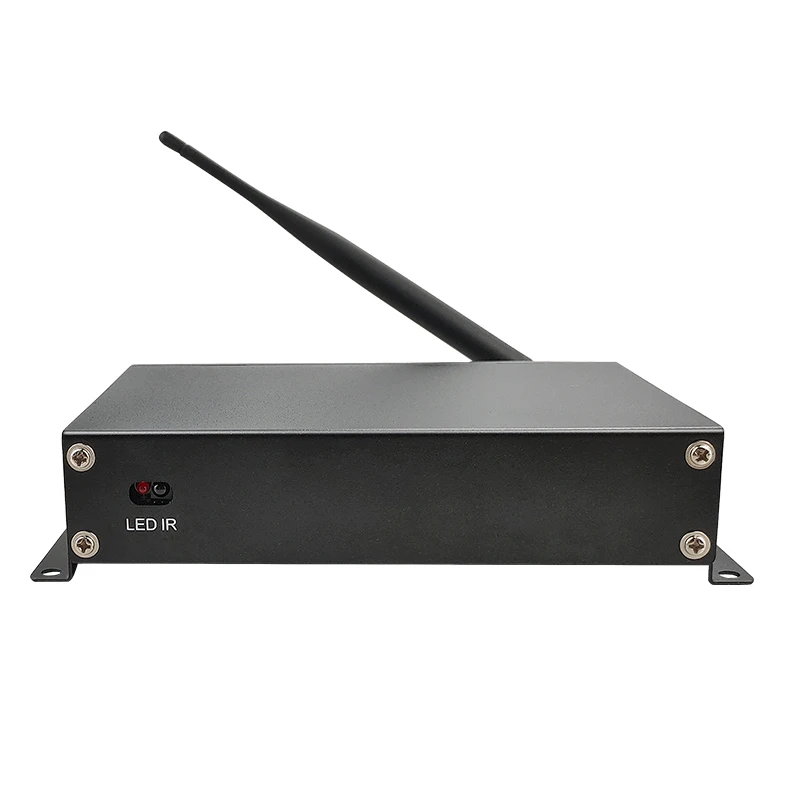

1X3 1X4 1X5 1X10 1x20 Video processor Multi screen for TV Splicing Display point to point solution
- Category: >>>
- Supplier: Shenzhen Sinten Technology Co. Ltd.
Share on (62379821330):
Product Overview
Description

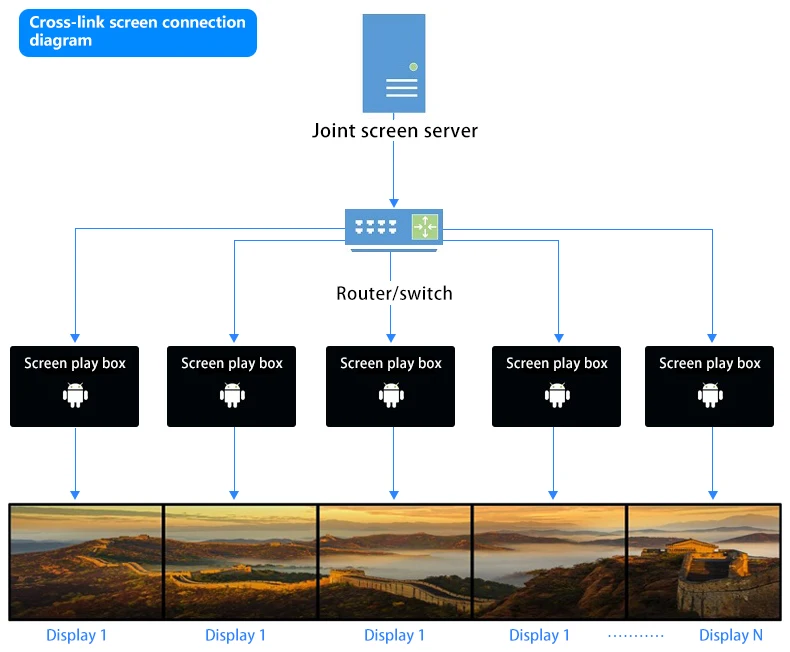

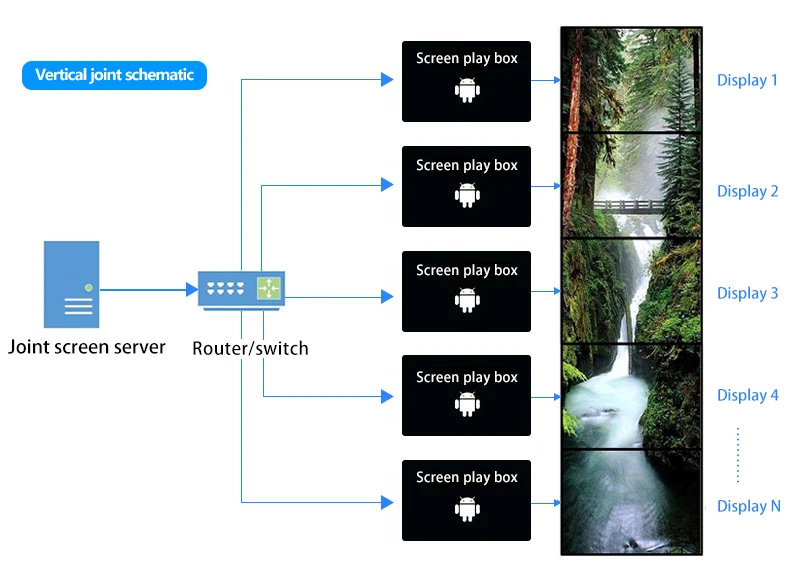

| 1 | The server can be deployed on the WAN and LAN |

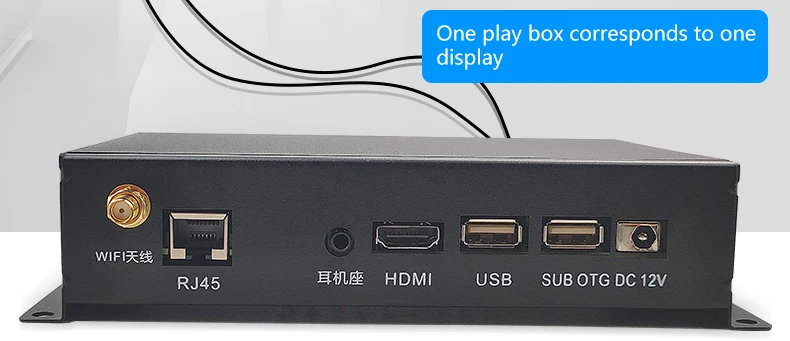

| 2 | Each screen is connected to an Android screen player |
| 3 | Android play box through wired access network |

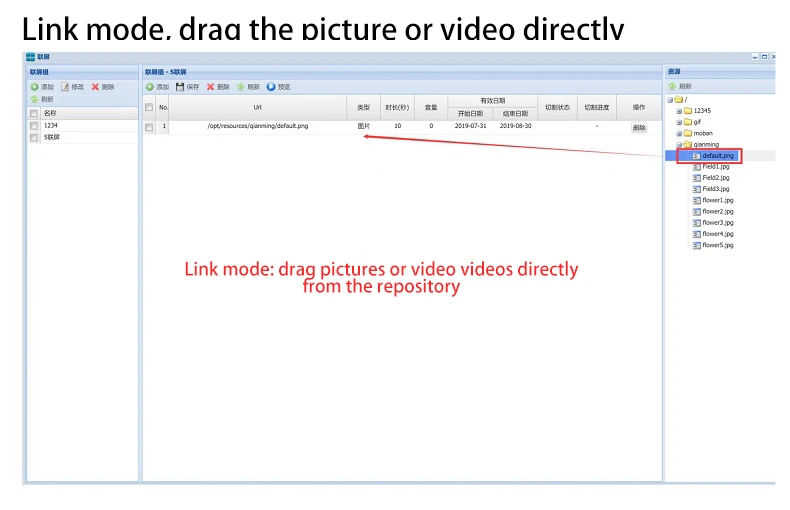

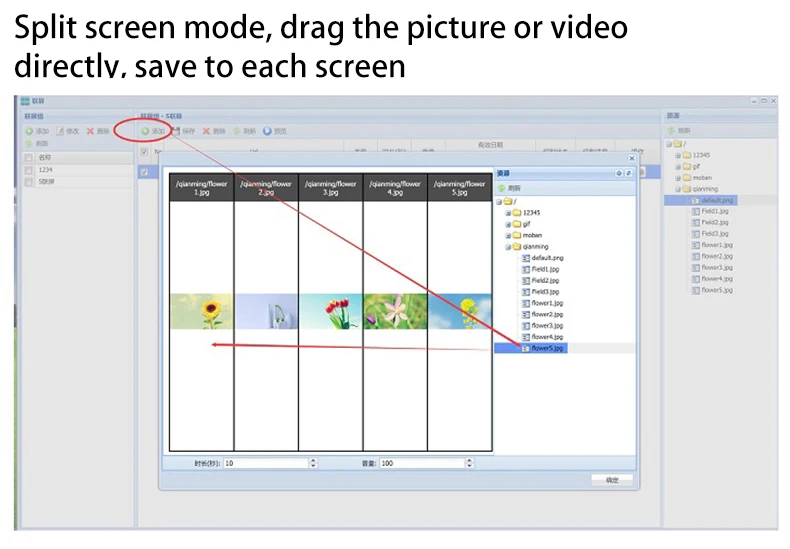

| 4 | The video and picture material are directly sent to the Android player box for local playback after being cut by the server. |
| 5 | Support screen unlimited expansion, support 200+ screenscreen |
|
Core device |
|
|
CPU |
Rk3288 four core 32-bit arm coretex-a17 core architecture, 28nm process design, operating frequency of 1.8GHz; GPU is arm mali-t764 |
|
Memory |
2GB (standard) DDR3 dual channel (up to 4G) |
|
Built in memory |
8GB (standard) / 16GB / 32GB / 64GB / EMMC (optional) |
|

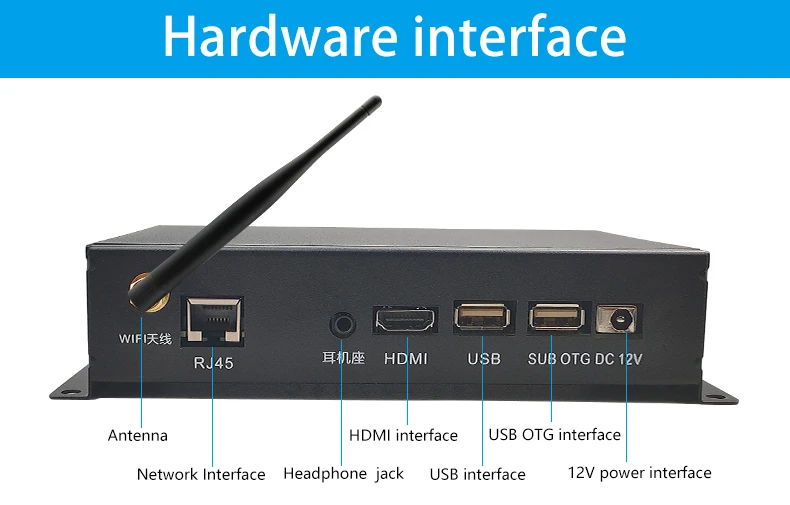

HDMI interface |
Hdmi2.0 supports 4K * 2K 3840x2160p output |
|
USB2.0 Host |
Support 1 + 3 USB host interface, for external HD USB camera, USB disk, keyboard and mouse and other devices |
|
USB2.0 OTG |
It can be used to debug the system, update the firmware, or in host mode |
|
Power Supply |
12V / DC input interface |
|
Network support |
|
|
Ethernet |
RJ45 interface Gigabit Ethernet |
|
WIFI/ Bluetooth |
On board WiFi / BT module, protocol, support Bluetooth 4.0 (support ble) |
|
operating system |
Android 5.1 |
|
Input power supply |
12V 2-5A (depending on the screen) |
|
Appearance size |
160mm*106mm*40mm |
