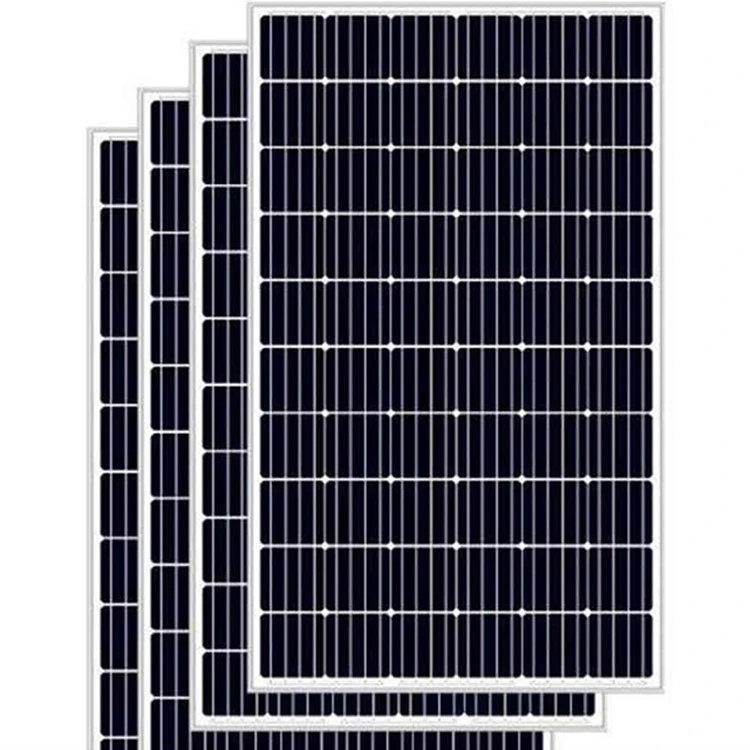

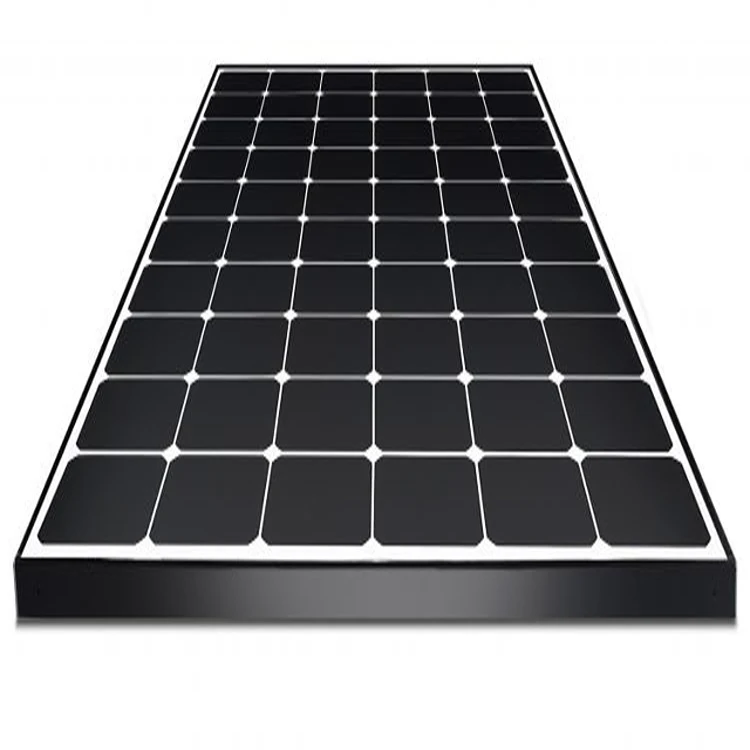

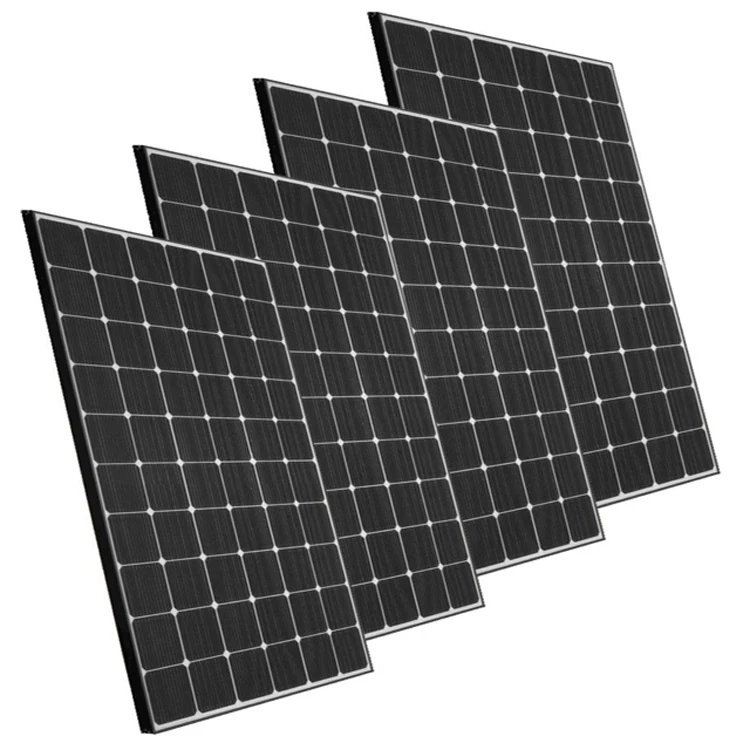

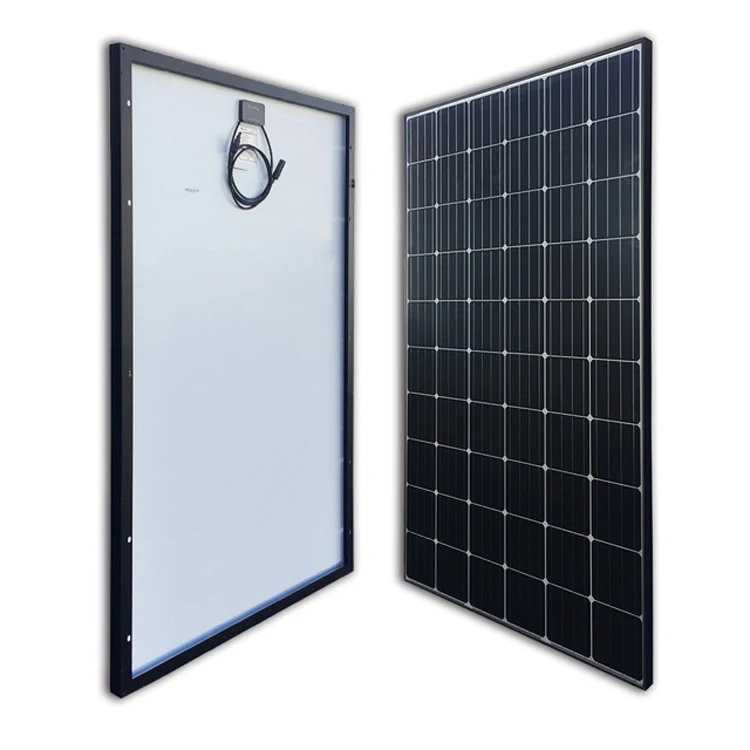

Manufacturer wholesale price sales photovoltaic panels, quality assurance, certificate complete
- Category: >>>
- Supplier: Xuzhou Hengda Electronic Co. Ltd.
Share on (62379823533):
Product Overview
Description
Product Description

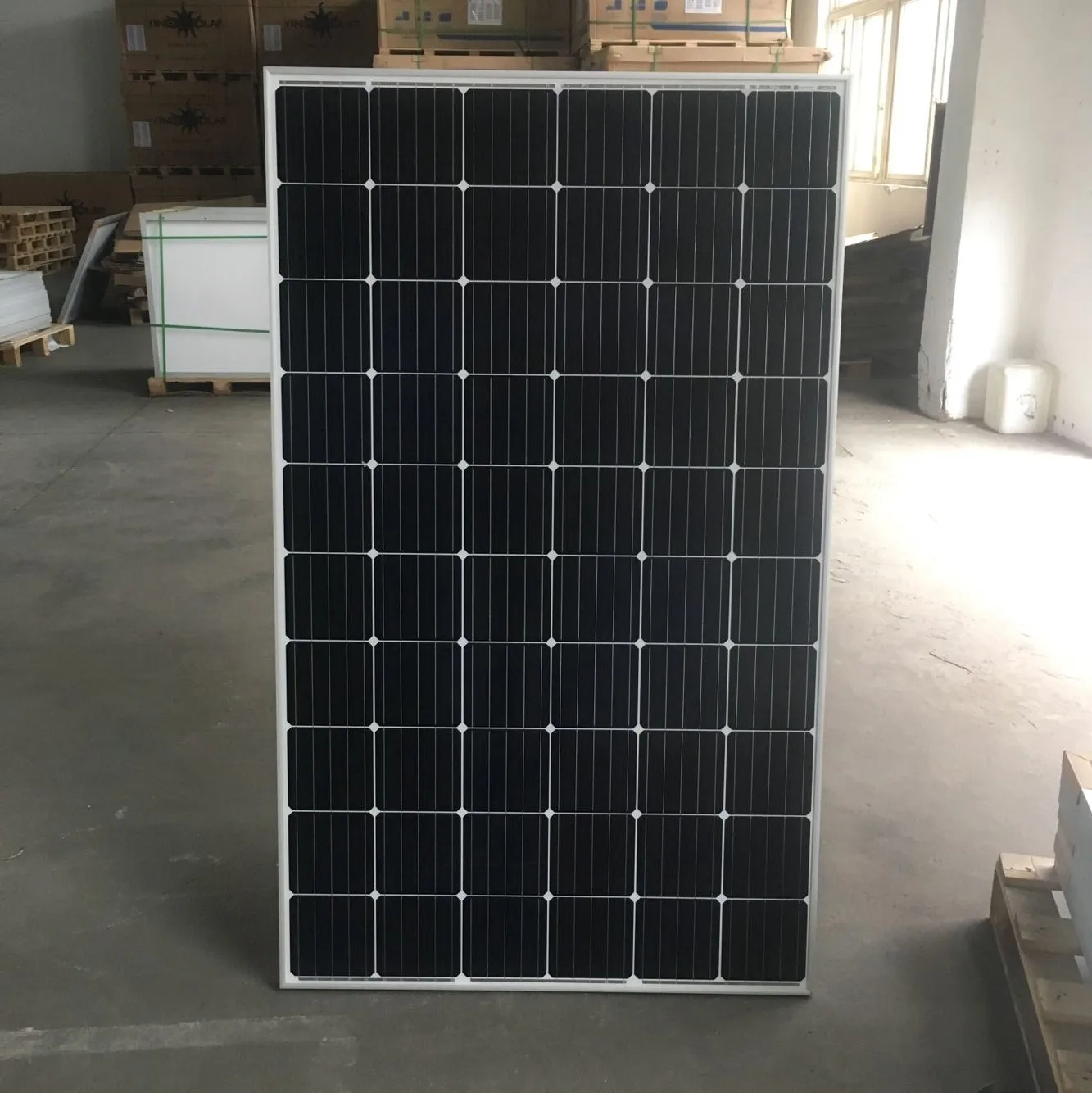

HDM60
270W-285W
Monocrystalline PV module
270W-285W
Monocrystalline PV module

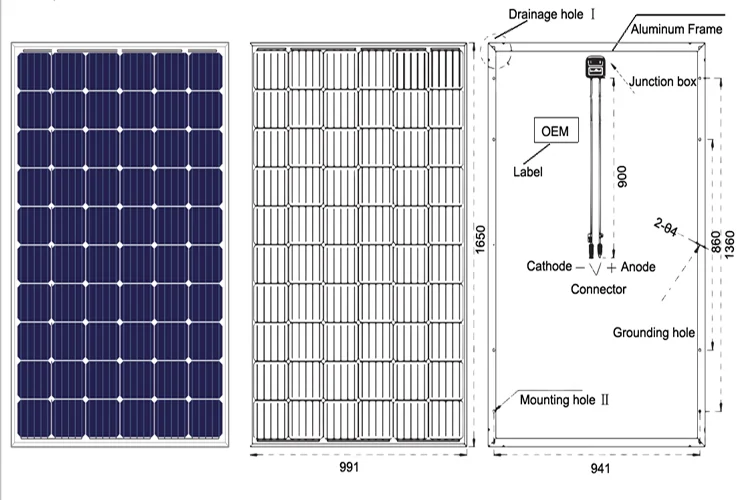

Mechanical Specification | ||
Cells Type | Mono156.75×156.75mm | |
Weight | 18.6kg | |
Dimension(L×W×T) | 1650×991×35mm | |
Output Cables | TUV，Length900mm，4.0mm² | |
No.of Cells | 60（6×10） | |
Front Glass | 3.2mm High Transmission,Low Iron Tempered Glass | |
Frame | Anodised Aluminium | |
Junction box | IP67，3 Bypass Diodes | |
Connector | MC4 or MC4 Compactible | |
Packing Configuration | ||||||
Container | 20GP | 40GP | 40HC | |||
PCS per pallet | 30 | 30 | 30 | |||
PLT per container | 14 | 28 | 28 | |||
PCS per container | 400 | 840 | 924 | |||
Operating Parameters | ||
Maximum system voltage | DC1000V | |
Operating Temperature(℃) | -40 ~+85℃ | |
Maximum series fuse rating | 15A | |
Snow load,frontside | 5400Pa | |
Wind load，backside | 2400Pa | |
Nominal operating cell temperature (NOCT) | 45℃±2℃ | |
Application level | Class A | |
Electrical Characteristics (Standard Test Conditions) | ||||||||
Module Type | HDM60-270 | HDM60-275 | HDM60-280 | HDM60-285 | ||||
Maximum Power(Pmax) | 270W | 275W | 280W | 285W | ||||
Open-circuit Voltage（Voc） | 38.5V | 38.8V | 39.0V | 39.3V | ||||
Maximum Power Voltage（Vmp） | 31.5V | 31.6V | 31.7V | 31.8V | ||||
Short-circuit Current（Isc） | 9.17A | 9.25A | 9.35A | 9.45A | ||||
Maximum Power Current(Imp) | 8.57A | 8.70A | 8.83A | 8.97A | ||||
Module Efficiency(%) | 16.51% | 16.82% | 17.13% | 17.43% | ||||
PowerTolerance | 0～+5W | |||||||
Temperature Coeffcient of Isc | 0.05%/℃ | |||||||
Temperature Coeffcient of Voc | — 0.32%/℃ | |||||||
Temperature Coeffcient of Pmax | — 0.41%/℃ | |||||||
Standard Test Environment | Irradiance 1000w/m², Cell temperature 25℃, Spectrum AM1.5 | |||||||
Electrical Characteristics (Noct) | ||||||||
Module Type | HDM60-270 | HDM60-275 | HDM60-280 | HDM60-285 | ||||
Maximum Power(Pmax)） | 202W | 205W | 209W | 212W | ||||
Open-circuit Voltage（Voc） | 35.8V | 36.1V | 36.3V | 36.6V | ||||
Maximum Power Voltage（Vmp） | 28.9V | 29.2V | 29.4V | 29.6V | ||||
Short-circuit Current（Isc） | 7.41A | 7.48A | 7.55A | 7.63A | ||||
Maximum Power Current(Imp) | 6.98A | 7.03A | 7.10A | 7.17A | ||||
Standard Test Environment | Irradiance 800w/m², Cell temperature 20℃, Spectrum AM1.5, Wind speed 1m/s | |||||||
Details Images
GLASS
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

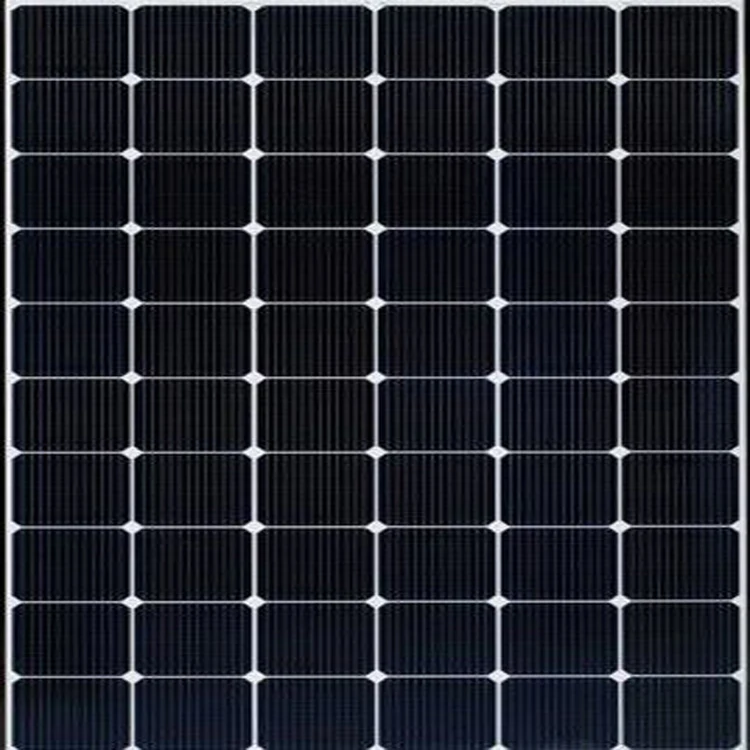

Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

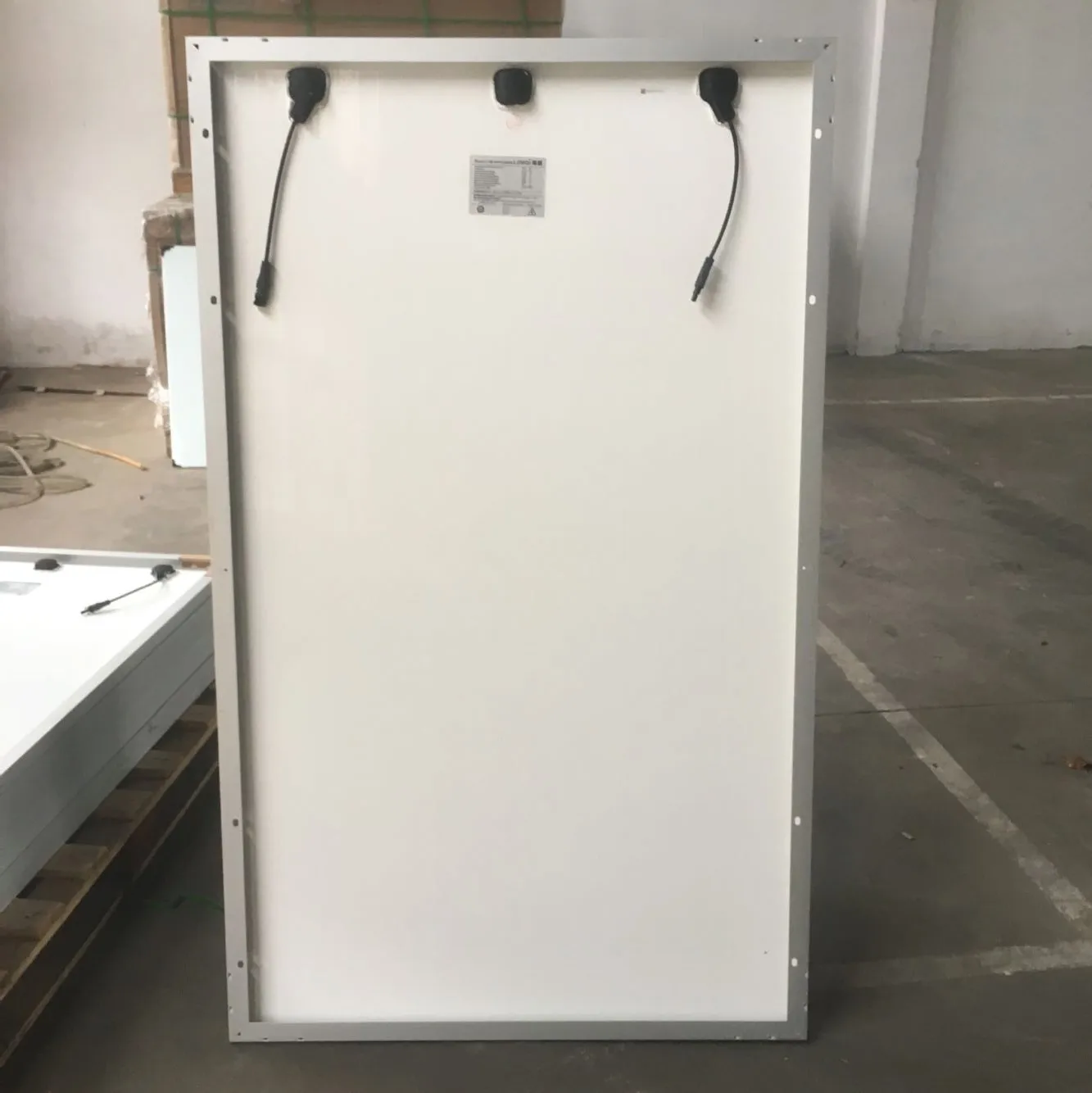

Junction Box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Packing & Delivery
By sea | Delivery from Shanghai or Ningbo seaport |
By air | Departure from Shanghai Pudong Airport |
By express | By TNT/DHL |
（60 cells panels)Container | 20GP | 40GP | 40HC |
Pcs/Pallet | 30 | 30 | 30 |
Pallets/Container | 14 | 28 | 28 |
Pcs/Container | 400 | 840 | 924 |
Related Products
Company Profile

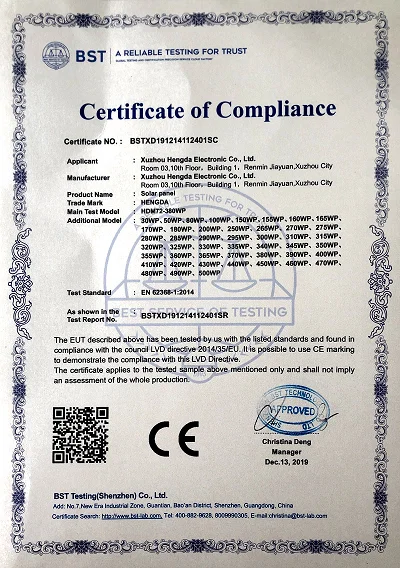

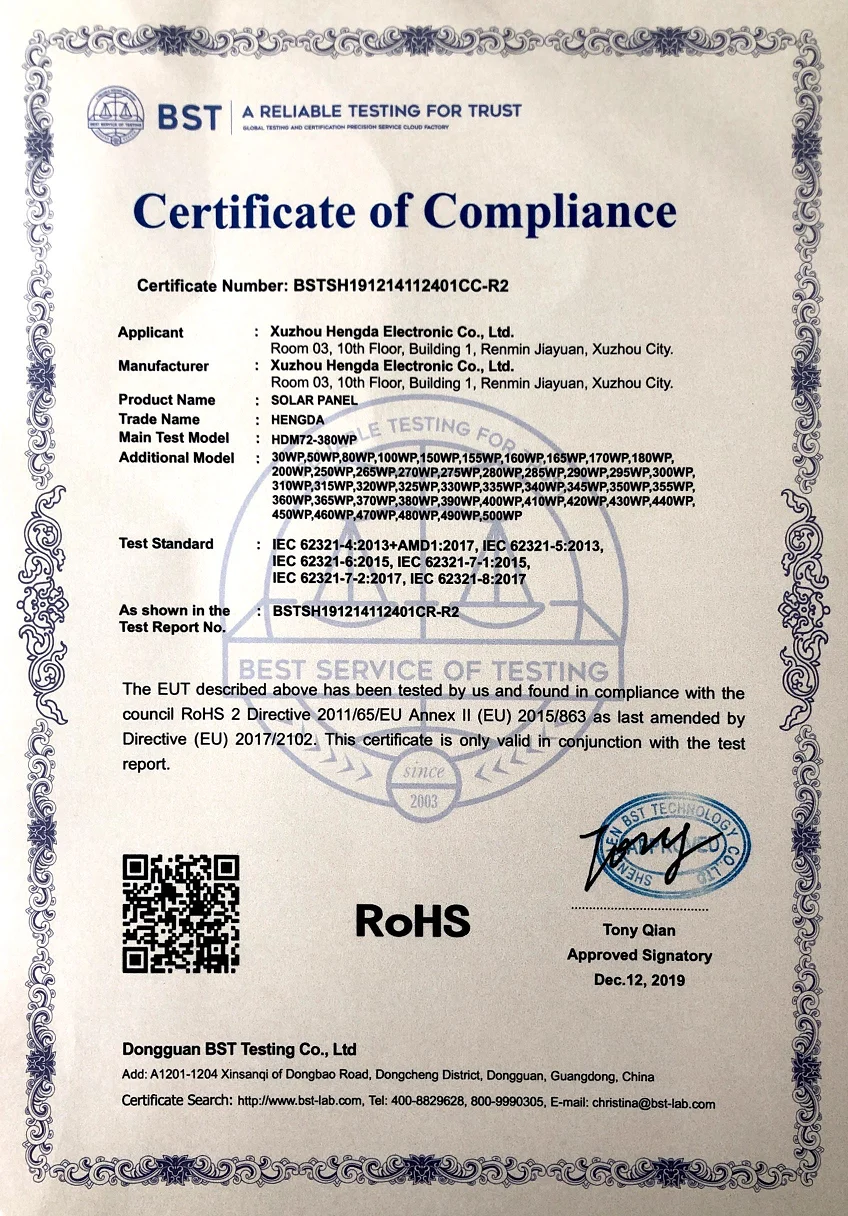

Certifications
