Roller glass coating machine
US $10000-$13000
Rotated Glue Coating Silicone Sealant Spreading Rotating Table for Insulating Glass Hollow Glass Double Glazed Processing
- Category: >>>
- Supplier: Jinan Kation Trading Co. Ltd.
Share on (62379828644):
Product Overview
Description
Product Description
Rotated Sealant Spreading Table
Features
1) The supporting arm can be adjusted based on glass dimension.
2) The support device is equipped with vacuum chuck. So no manual holding is needed on spreading.
3) Operators are capable to operate the foot switch for control the lifting and rotating of glass about the 0~90 degree rotation as to complete sealing of glass edge.
4) The machine is simple in operating procedures and high in working efficiency.
2) The support device is equipped with vacuum chuck. So no manual holding is needed on spreading.
3) Operators are capable to operate the foot switch for control the lifting and rotating of glass about the 0~90 degree rotation as to complete sealing of glass edge.
4) The machine is simple in operating procedures and high in working efficiency.
5) Easy operating, simple and flexible.
6) It is used for fixing and rotating glass when manual coating the outside of IG glass.
7) The middle sucker is suitable for small pieces of glass，however，extra support frame is for large pieces of glass.
6) It is used for fixing and rotating glass when manual coating the outside of IG glass.
7) The middle sucker is suitable for small pieces of glass，however，extra support frame is for large pieces of glass.

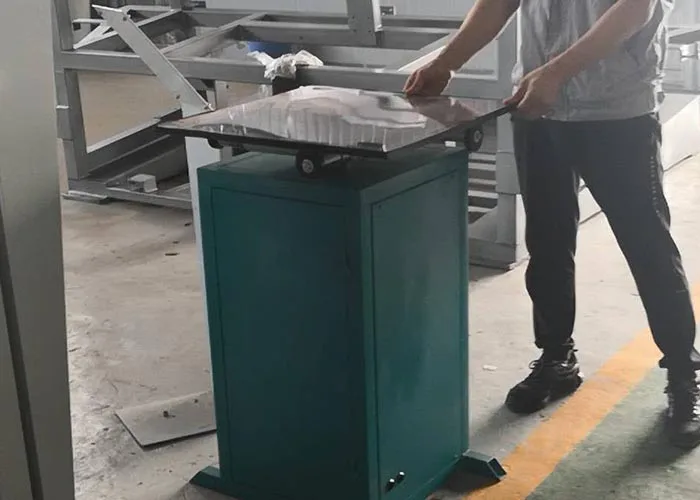

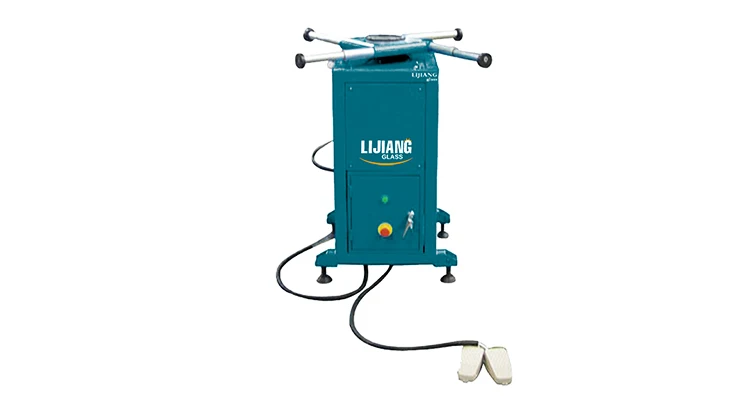

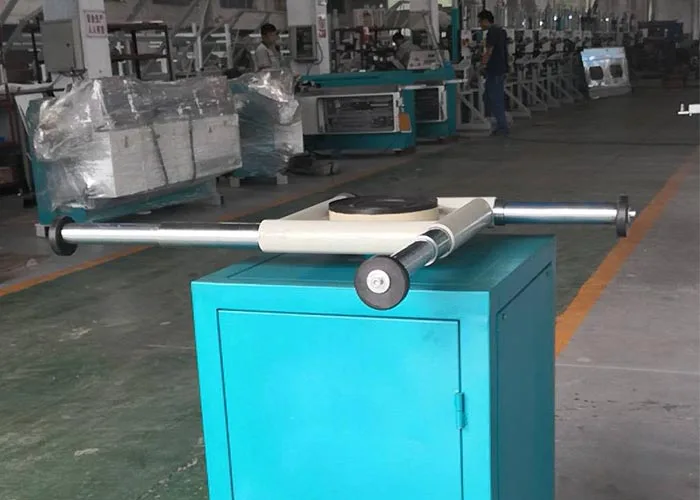

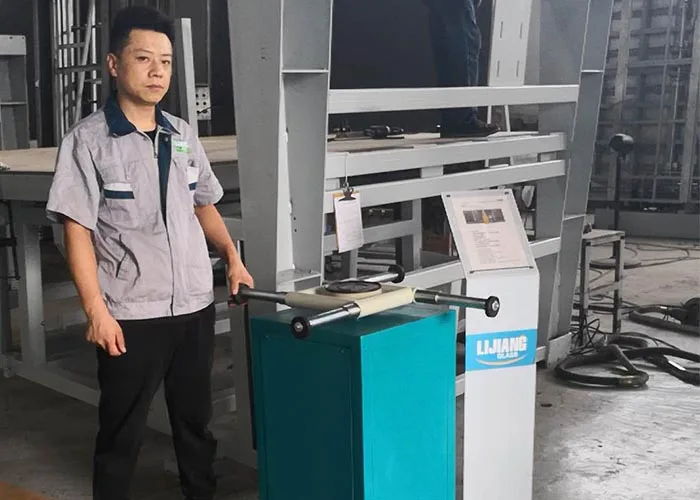

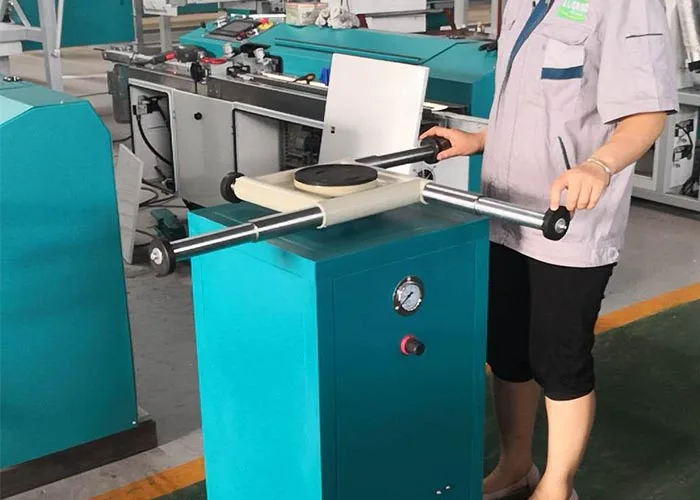

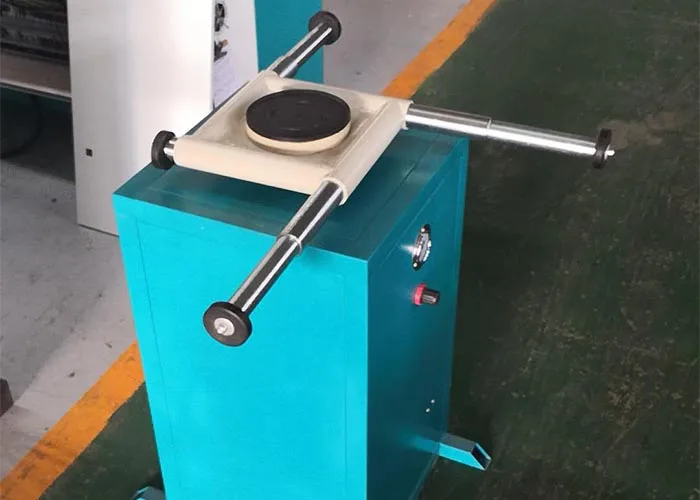

Details Images
Item. | Spec. | ||||||
Air pressure | 0.5-0.8Mpa | ||||||
Rotation speed | 4r/min | ||||||
Input voltage | 220V 50Hz or 380V 560Hz | ||||||
Input power | 0.12Kw | ||||||
Min. glass size | 175mm*175mm | ||||||
Max.Glass dimension | 2000*2000mm | ||||||
Motor power | 120W | ||||||
Overall size | 70*80*110mm | ||||||
Weight | 200Kg | ||||||

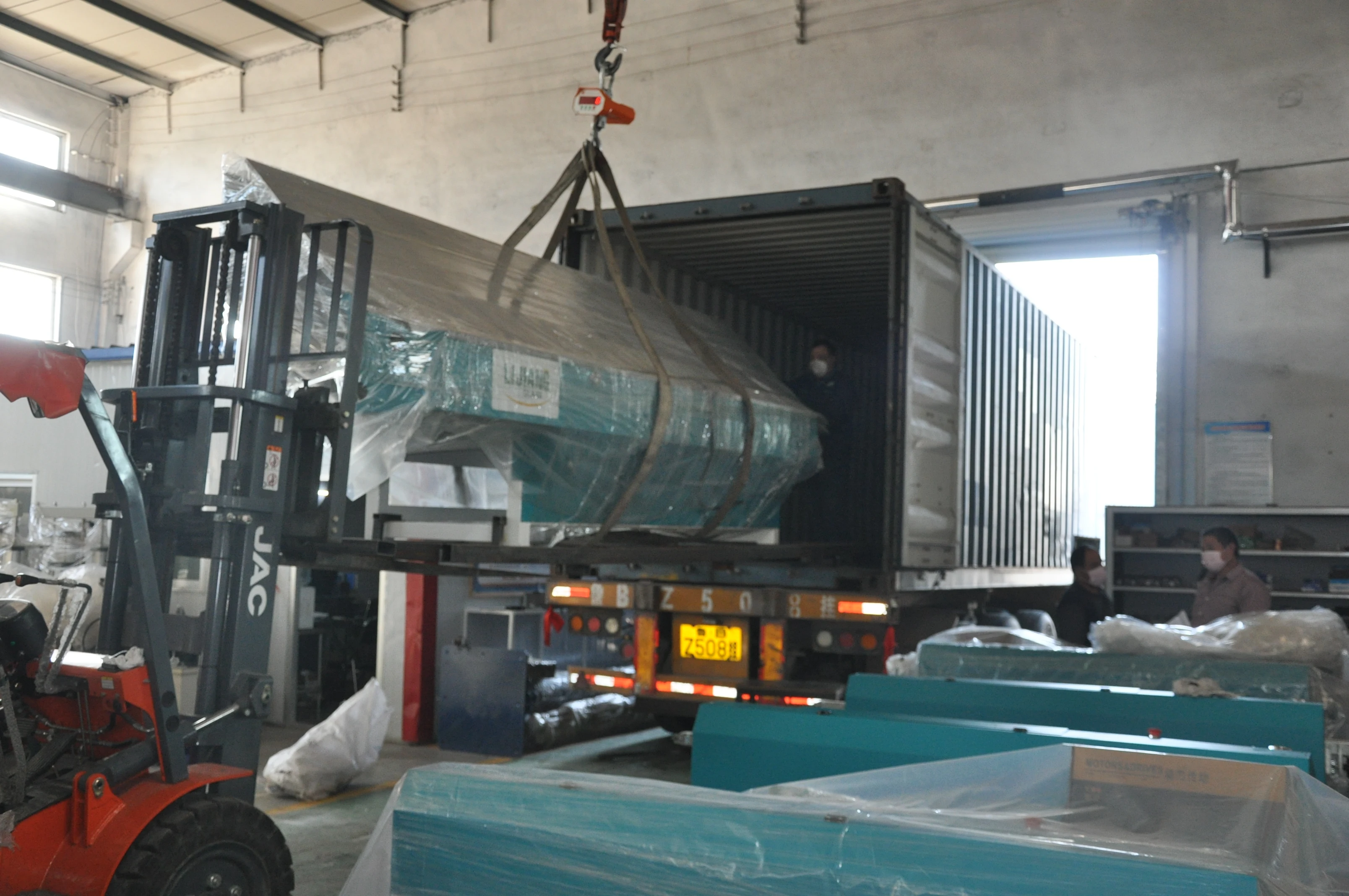

Packing&Delivery
