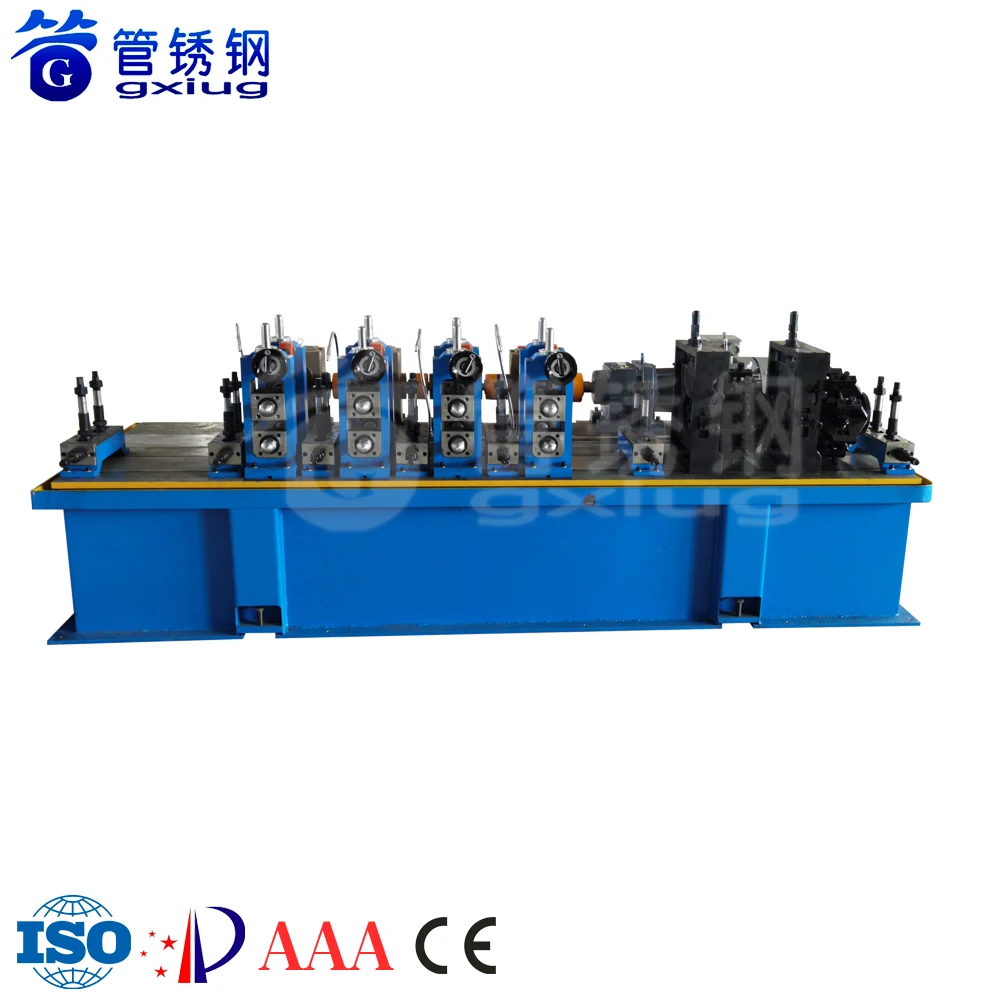

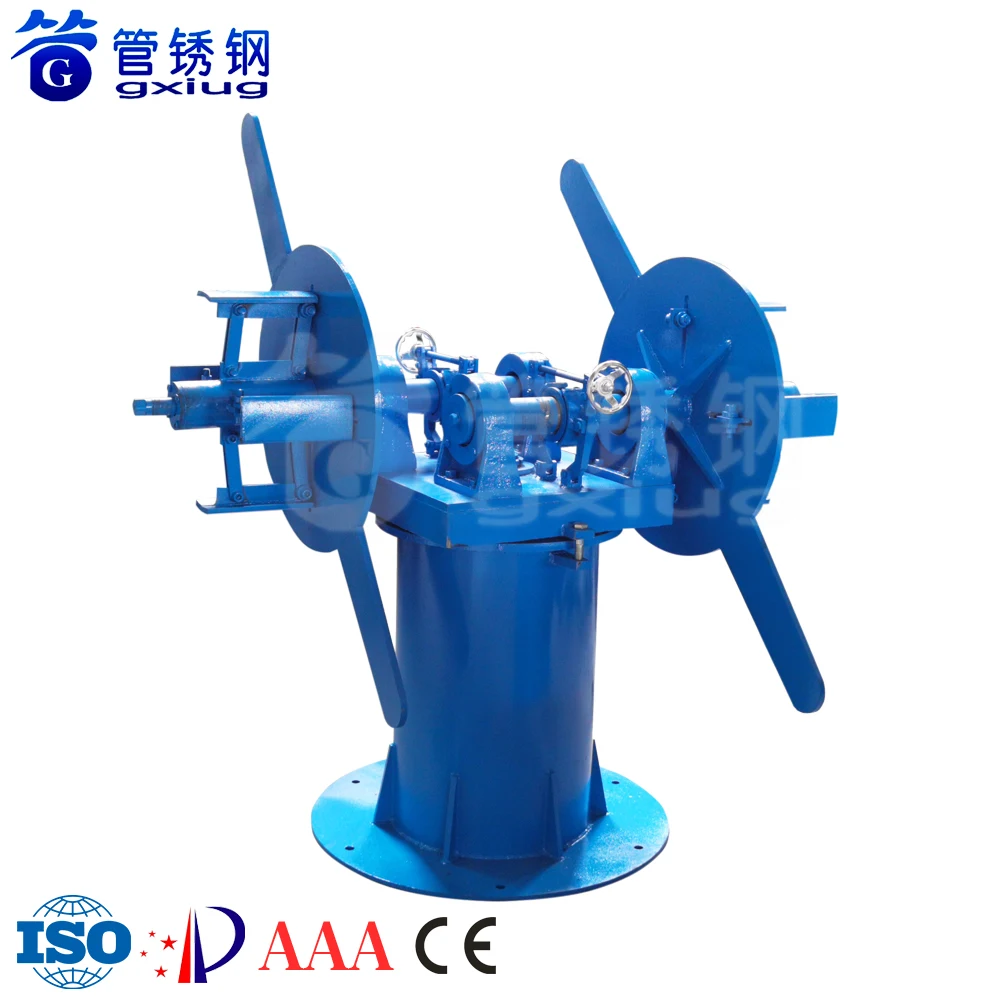

GXG Technology Stainless Steel High Pressure Pipe Making Machine Supplier

Product Overview

Description



TUBE MATERIAL:Stainless Steel 304/316L / Titanium Etc

PIPE SHAPE:Round Etc

USDAGE:Water pipe / Fluid pipe / Titanium pipe / Petrochemical pipe / Aerospace Automobile pipe /Drinking food grade pipe/Hygienic grade pipes Etc

MODEL	GXG-20	GXG-30	GXG-40	GXG-50	GXG-60
Round Tube Range (mm)	Ø5-20	Ø15-32	Ø25-51	Ø38-76	Ø63-114
Square Tube Range (mm)	——	——	10*10-40*40	20*20-60*60	40*40-90*90
Wall Thickness Range (mm)	0.2-1.0	0.3-1.5	0.3-2.0 / 1.5	0.5-2.5 / 1.8	0.5-3.0 / 2.2
Horizontal Shaft Diameter(mm)	Ø40	Ø40	Ø40	Ø50	Ø60
Vertical Shaft Diameter(mm)	Ø20	Ø25	Ø25	Ø30	Ø35
Main Motor Power(kw)	5.5*2	5.5+7.5	7.5*2	11*2	15*2
Installation Dimension(L*W  m)	20*1	21*1	22*1.3	24*1.4	26*1.5
Rated Voltage(v)	220 / 380/ 415 / 440
