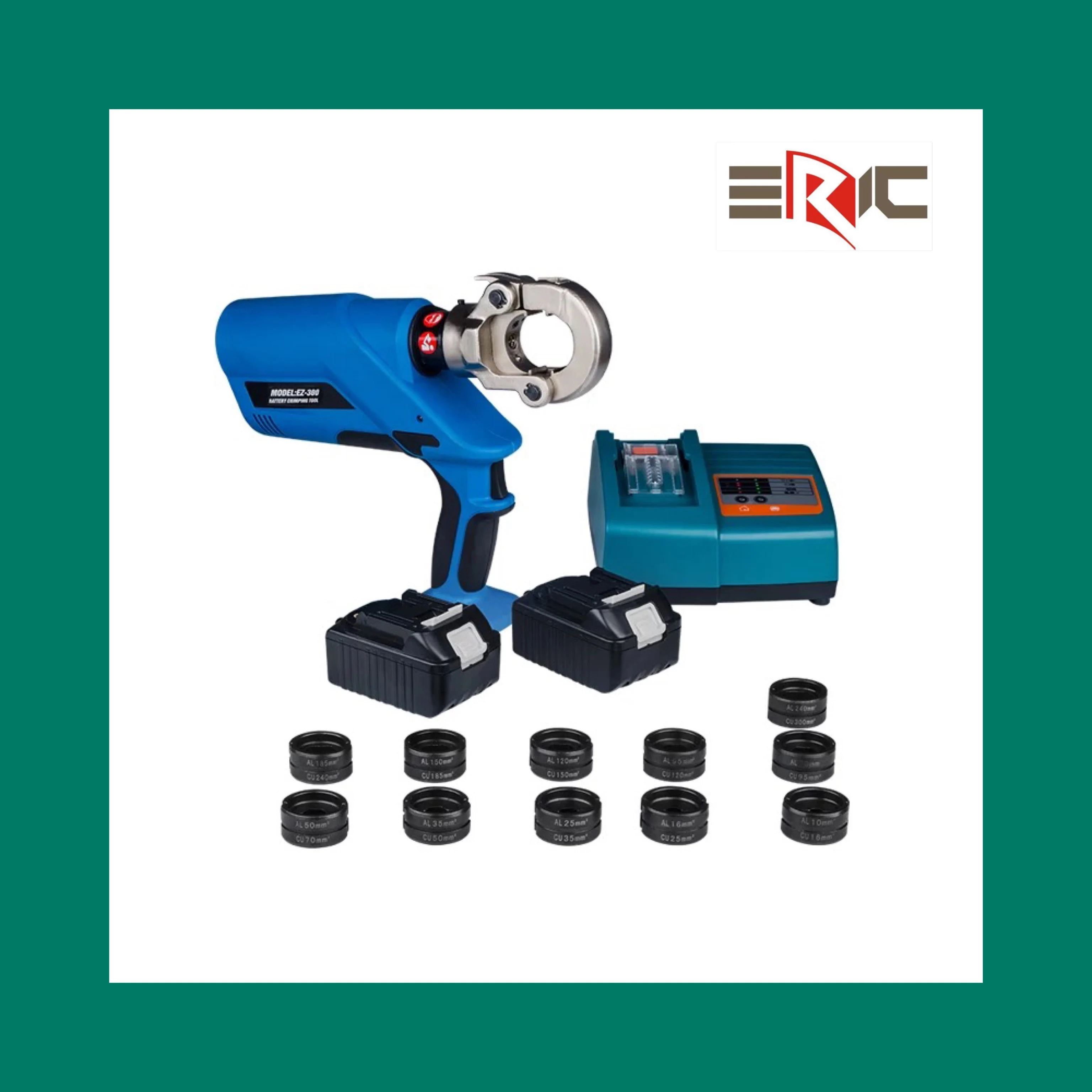

Pro Press 16 300m Battery Hydraulic Plier Machine Electric Hydraulic 11 Dies Cable Lug Terminal Wire Crimping Tool Cutting Steel
- Category: >>>
- Supplier: Taizhou Eric Trade Co. Ltd.
Share on (62380145253):
Product Overview
Description
Battery Powered Hydraulic Crimping Tool
1. Microcomputer control system-automatically detect pressure when it is crimping, with double safety protect.
2. The hydraulic unit incorporates an automatic retraction which returns the piston into it is starting position when the maximum operating pressure is reached.
3. The tool equipped with a fast approach towards the connecting material and a slow working stroke.
4. The crimping head can be smoothly turned by 360°around the longitudinal axis in order to gain better access to tight comers and other difficult working areas.
5. If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
6. All tools can be controlled by one trigger. These results in an easy handling and a better grip compared to a two button operation.
7. Lion batteries do neither have a memory effect nor self-discharge. Even after long periods of non-operation the tool is always ready to operate. In addition we see a low power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
8. A Temperature sensor makes the tool stop working automatically when the temperature over 60 degree.
9. Under long time working, the fault signal sounds; it means the tool can't continue work until the temperature reduced to the normal.

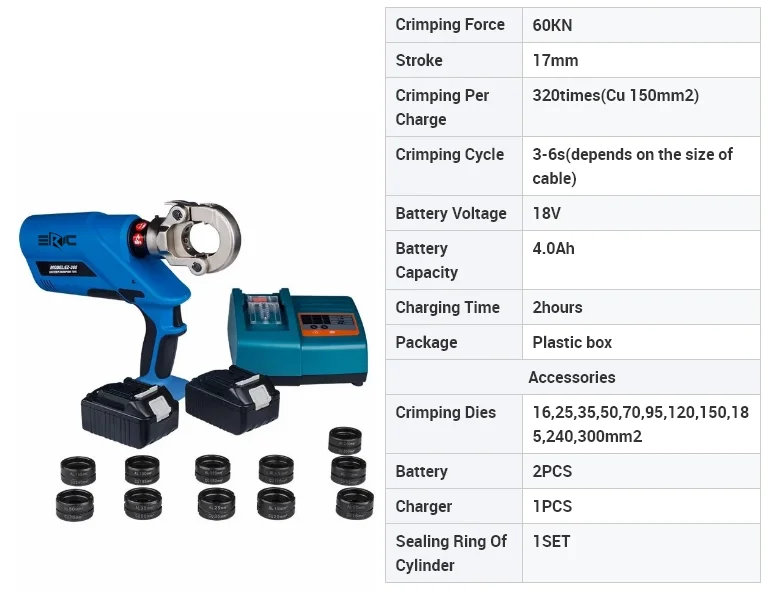

Model | EZ-300 | EZ-400 |
Output | 60kn | 120kn |
Stroke | 17mm | 42mm |
Voltage | Dc 18V/4.0AH lithium battery | Dc 18V/5.0AH lithium battery |
Charging time | 1.5hour | 1.5hour |
Crimping Range | 16-300mm2 | 16-400mm2 |
Dies Size | 16/25/35/50//70/95/120/150/185/240/300mm2 | 16/25/35/50//70/95/120/150/185/240/300/400mm2 |
Total Weight | 5.0/12kg | 8.0/16kg |
PRODUCT DESCRIPTION

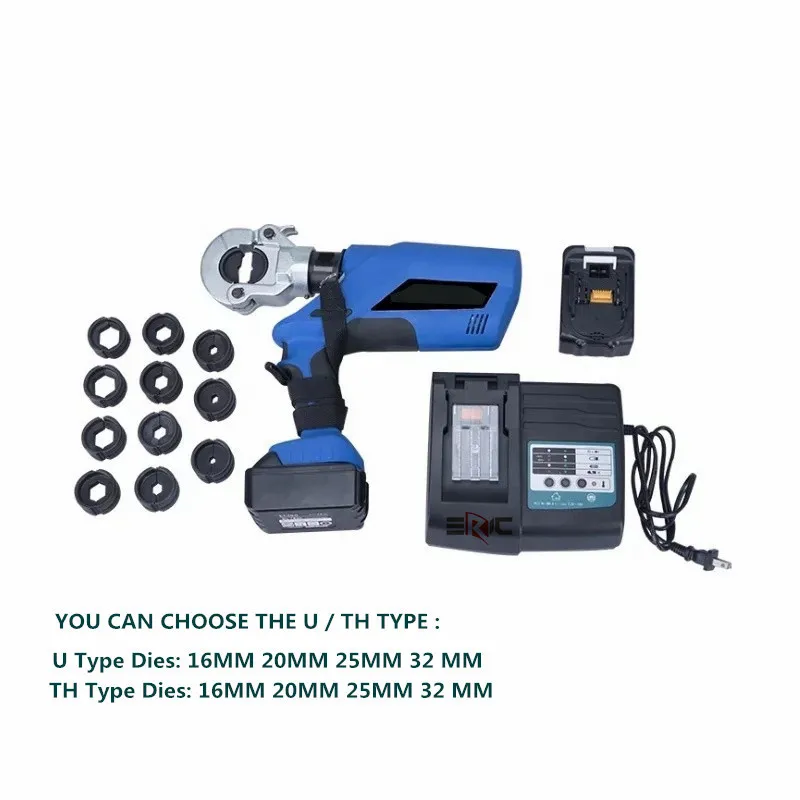

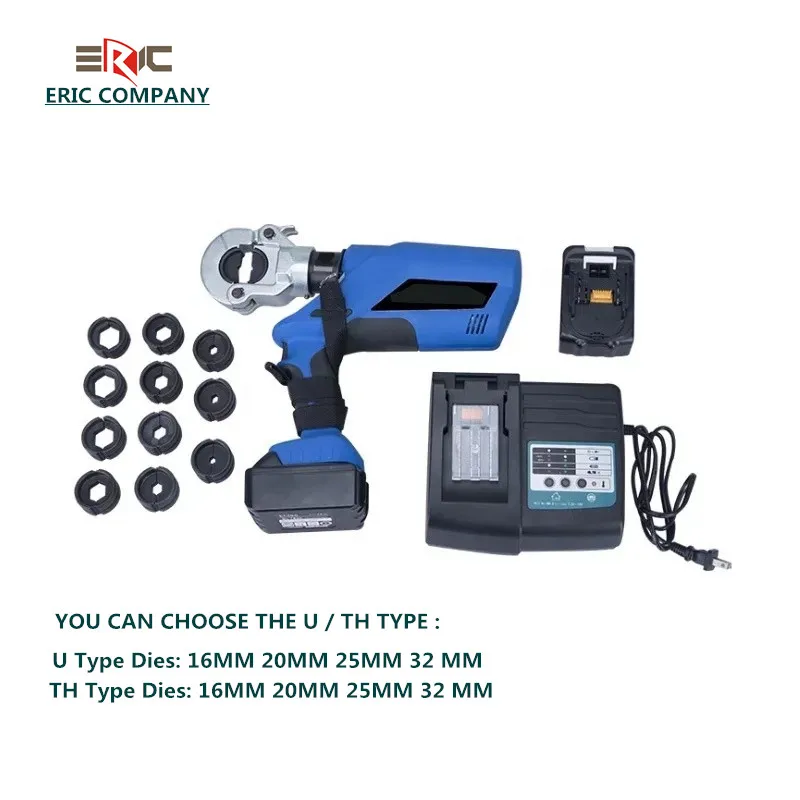

PRODUCT DISPLAY
PRODUCT INSTALLING
Direction for use
Micro computer control system-automatically detect the pressure when it is crimping with double safety protect.Pressure released
automatically function the tool stop forcing the pressing and release 90% pressure when the pressure reached maximum.
The tool equipped with a double piston pump which characterized by a fast approach towards the connection material and transfer to high pressure automatically by slow crimping.
automatically function the tool stop forcing the pressing and release 90% pressure when the pressure reached maximum.
The tool equipped with a double piston pump which characterized by a fast approach towards the connection material and transfer to high pressure automatically by slow crimping.
The crimping head can be smoothly turned by 350 degree around the longitudinal axis in order to gain better access to tight
corners and other diffcult working areas.If a deviation from the set operation pressure of low battery charges is identified ,an acoustic signal sounds and a red display flashes .
corners and other diffcult working areas.If a deviation from the set operation pressure of low battery charges is identified ,an acoustic signal sounds and a red display flashes .
One key control -press the trigger to start working ,half loosing the trigger means stop forcing pressure,loosing fully means
piston return to the original position.li-ion batteries do neither have a memory effect nor self discharge.even after long periods of non operation the tool is always ready to operate.In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries .
piston return to the original position.li-ion batteries do neither have a memory effect nor self discharge.even after long periods of non operation the tool is always ready to operate.In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries .
A Temperature sensor makes the tool stop working ,automatically when the temperature over 60 degree C.Under long time working ,the fault signal sounds ,it means the tool cant continue work until the temperature reduced to the normal .
Description of application effect

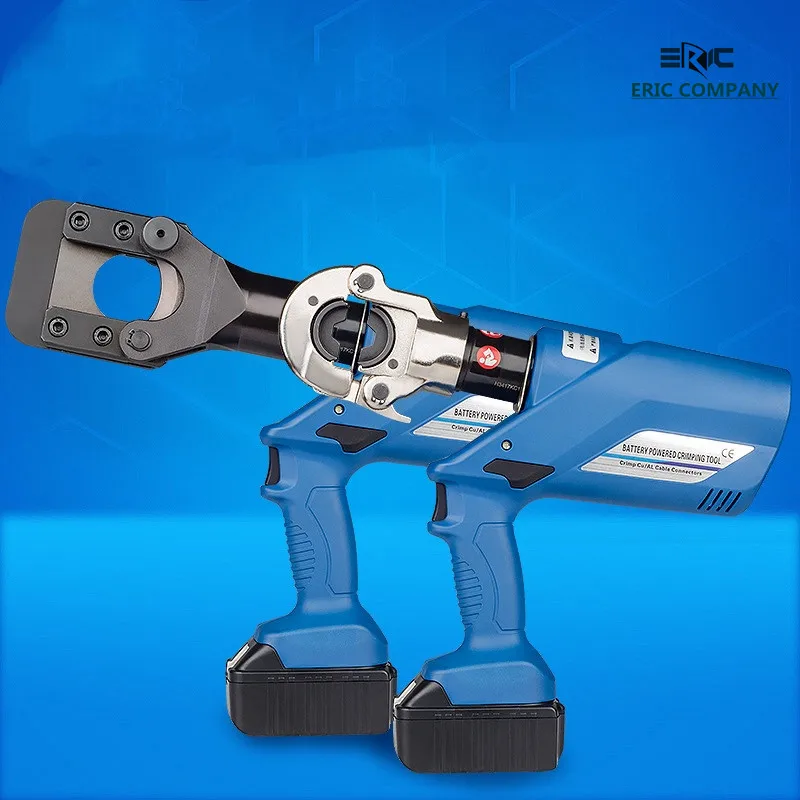

Battery Powered Crimping tools
MORE INTELLIGENCE
MORE PERFORMANCE
MORE ERGONOMIC

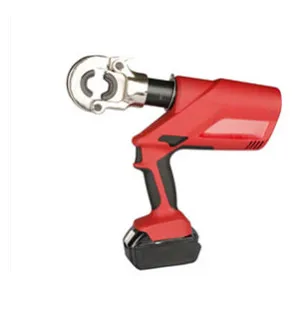

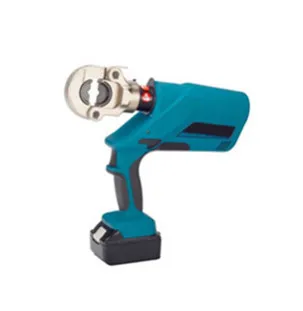

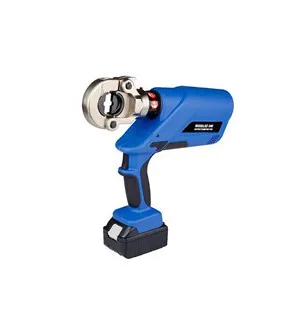

RELATED PRODUCTS
PACKING&SHIPPING
♦ Packaging Detail:
♦ International standard Export Packaging:
Plastic bag→Inner box→Carton.
♦ 30-35 days after receipt the deposit.
♦ According to Customers' Specific Requirments.
♦ International standard Export Packaging:
Plastic bag→Inner box→Carton.
♦ 30-35 days after receipt the deposit.
♦ According to Customers' Specific Requirments.
OUR SERVICE
FAQ
Q 1: Is the whole working procedure finished by your workshop ?
A: Yes, the whole working procedure finished by our workshop.
Q 2: What is your delivery time ?
A: It depends on the quantity of your order.
Normally 3- 7days for samples, 30-45days for standard, 30-60 days for customized.
Q 3: Can we make OEM or ODM ? / Can we put customer brand ?
A: Yes, we can make the OEM and ODM for you if your quantity is large,
customer logo, color, shape, package method should be provided by the customer.
Q 4: Why we choose to purchase from your company ?
A: We have a professional team,we have our own factory and can accept orders.
With us your money in safe your business in safe.
A: Yes, the whole working procedure finished by our workshop.
Q 2: What is your delivery time ?
A: It depends on the quantity of your order.
Normally 3- 7days for samples, 30-45days for standard, 30-60 days for customized.
Q 3: Can we make OEM or ODM ? / Can we put customer brand ?
A: Yes, we can make the OEM and ODM for you if your quantity is large,
customer logo, color, shape, package method should be provided by the customer.
Q 4: Why we choose to purchase from your company ?
A: We have a professional team,we have our own factory and can accept orders.
With us your money in safe your business in safe.
