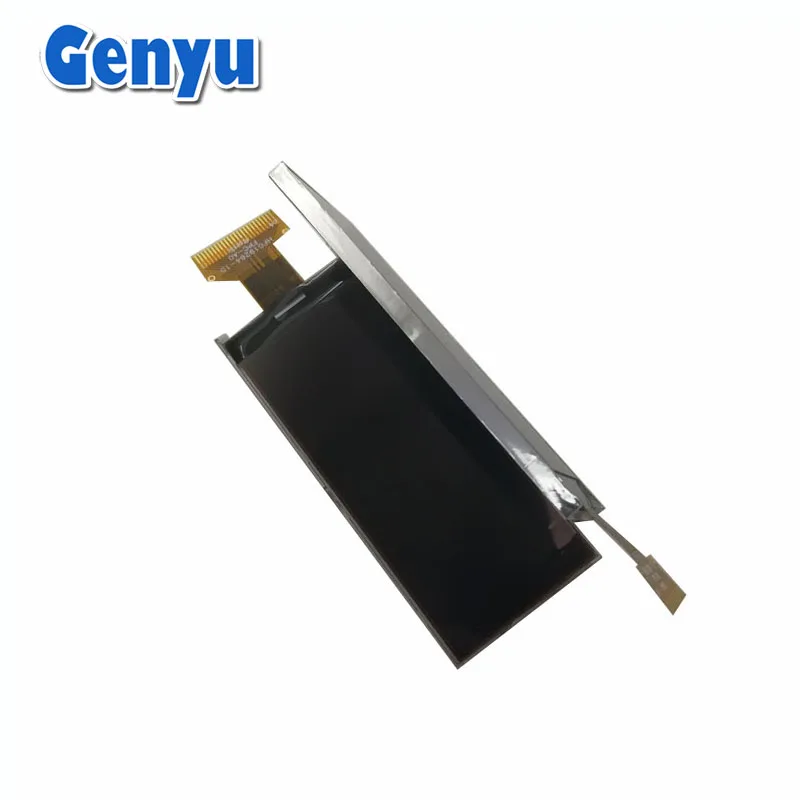

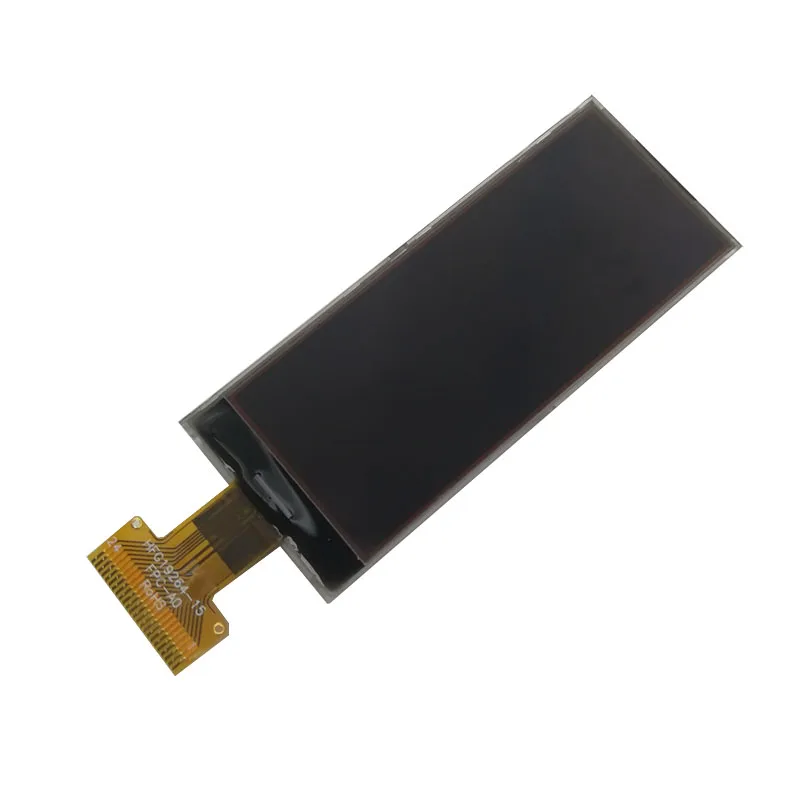

Factory Provide Black Background White Font 19264 COG Graphic LCD

Product Overview

Description

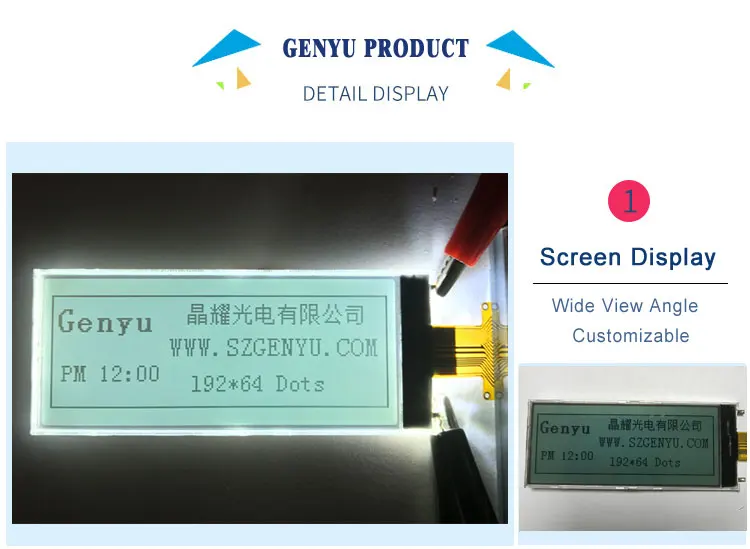

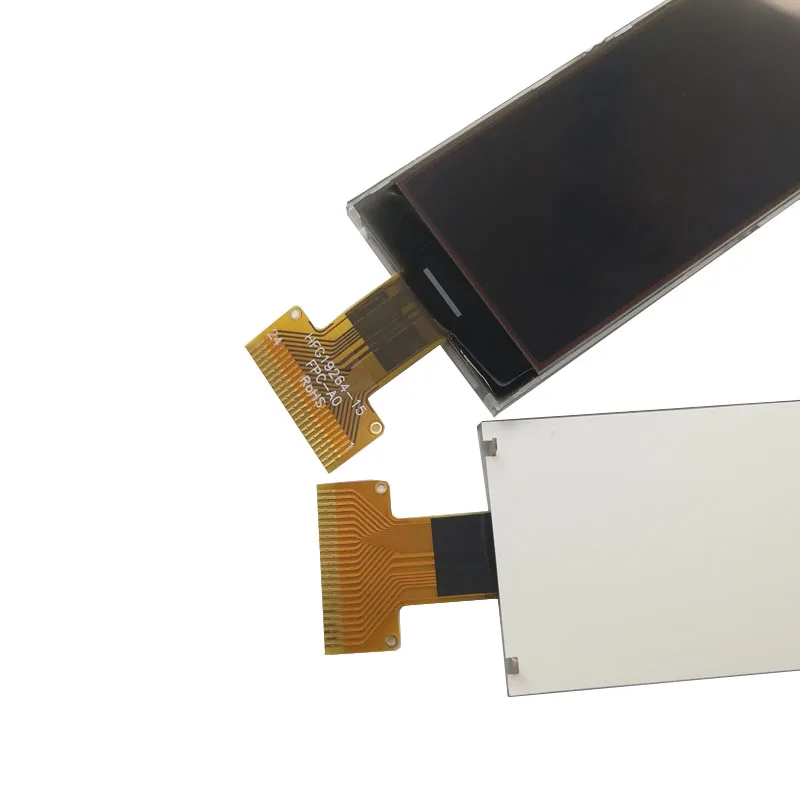

Factory Provide Black Background White Font 19264 COG Graphic LCD



  ♣ Product Description

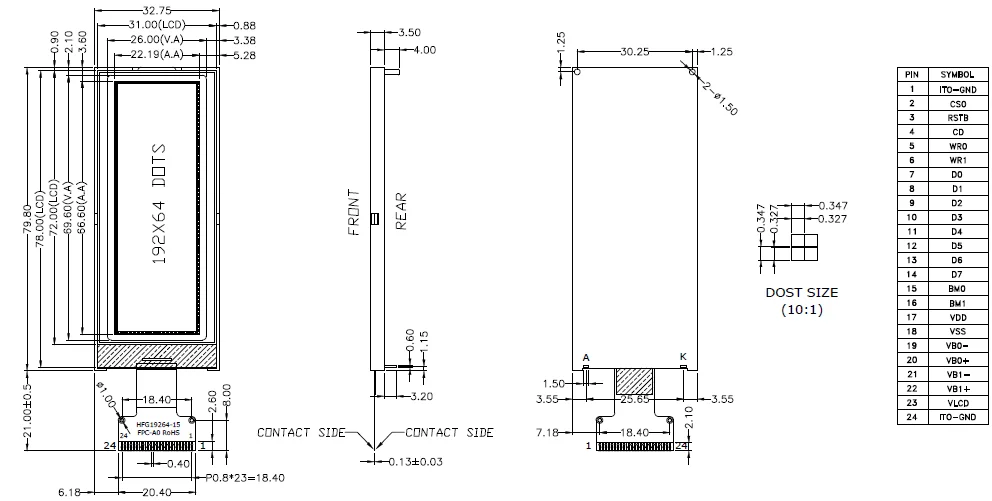

1. Safety Pin



Pin	1	2	3	4	5	6	7-14	15	16	17	18	19	20	21	22	23	24
Symbol	GND	CS	RSTB	CD	WR0	WR1	D0-D7	BM0	DM1	VDD	VSS	VB0-	VB0+	VB1-	VB1+	VLCD	GND

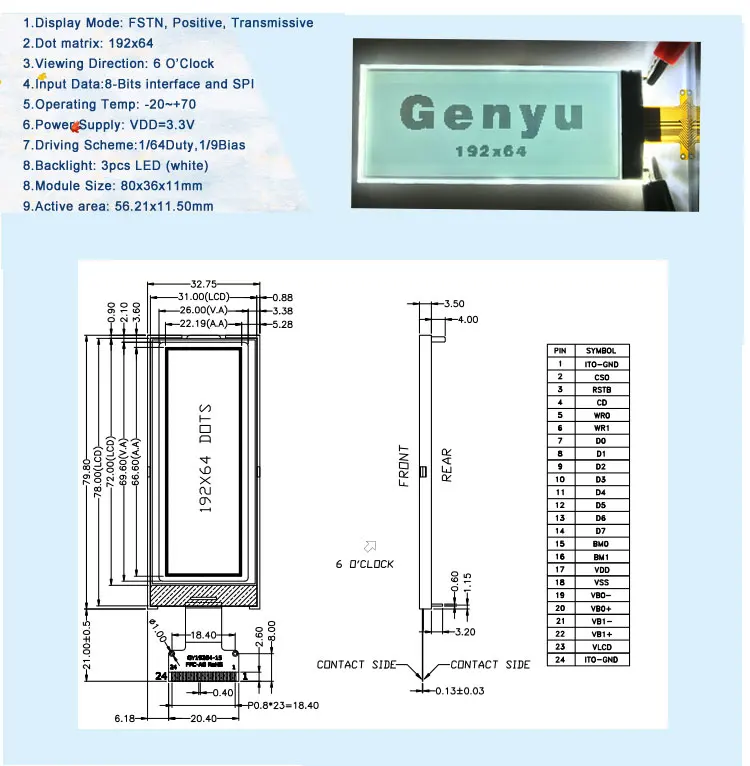

2. Features (GY19264-22)

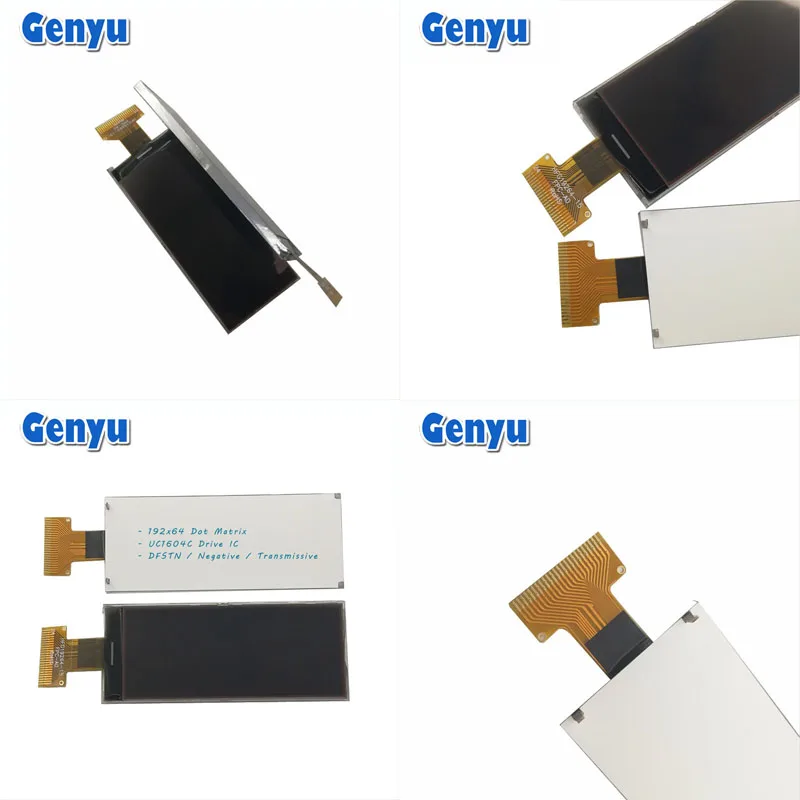

(1) Display Type : FSTN,Transmissive, Negative

(2) Resolution : 192x64 dot matrix display
(2) Interface : 4SPI and 6800, 8080, 8-bits
(3) Drive IC : UC1604C
(4) Viewing Angle : 6 O'CLOCK
(5) Power supply : VLCD=9.0 V; VDD=3.0V
(6) Backlight : 3 PCS LED White



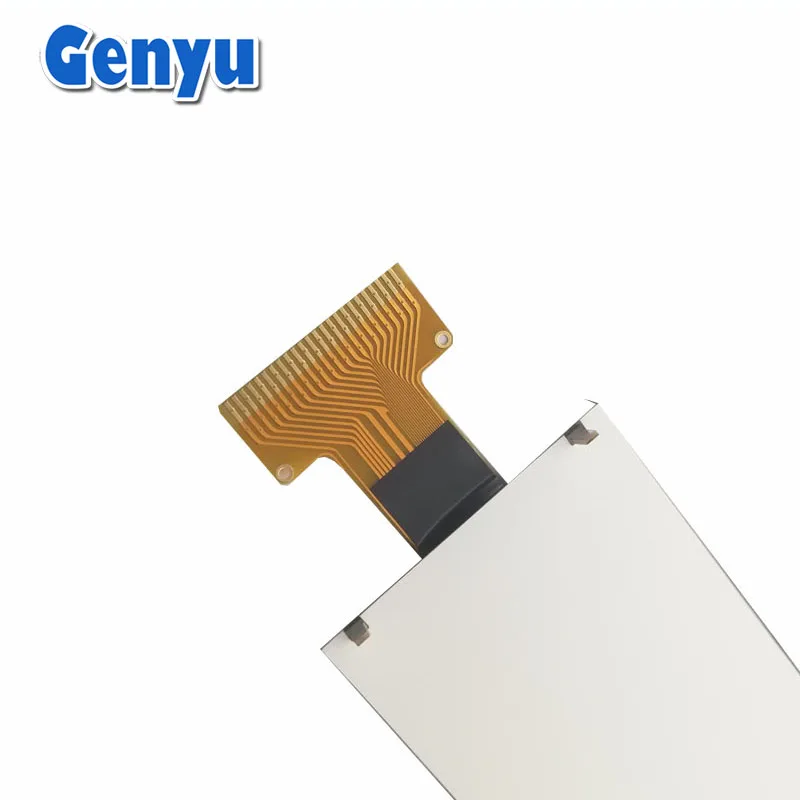

Structure	LCD + IC + FPC + BL

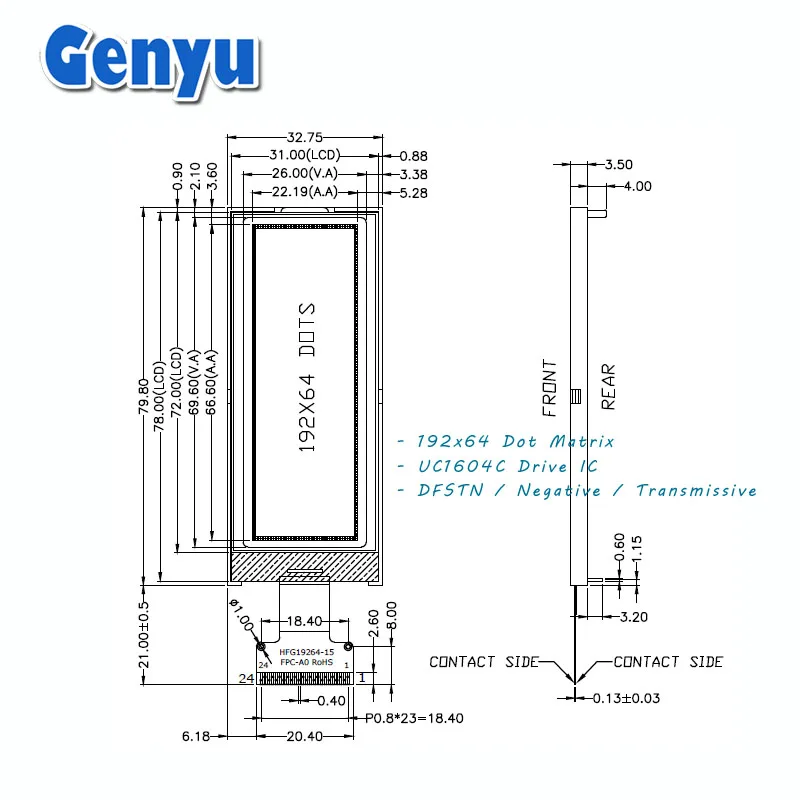

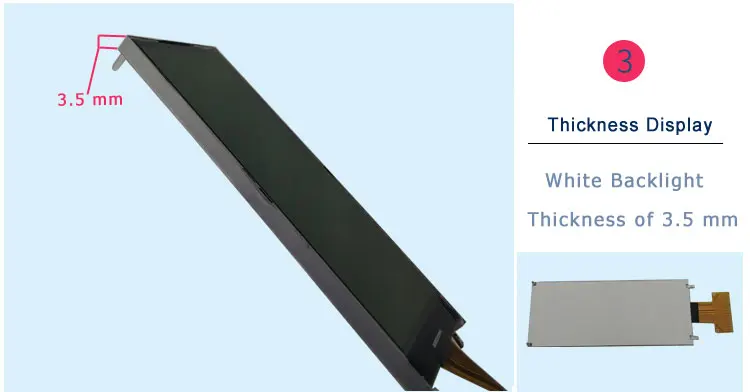

Module Size	32.75*79.8*3.5 mm
Viewing Area	22.19*66.6 mm
Working Temperature	-20~+70 °C
Storage Temperature	-30~+80 °C

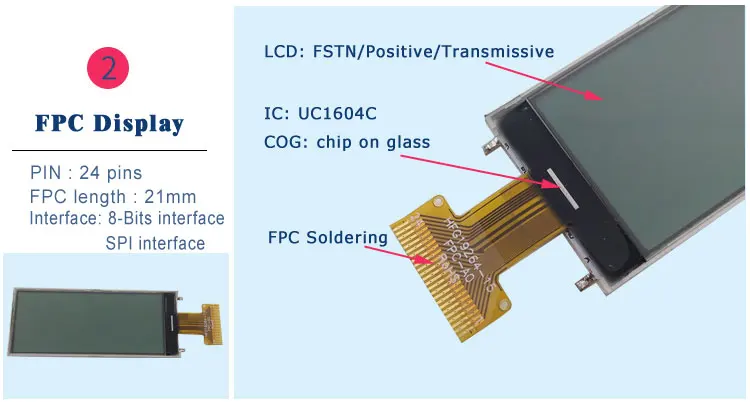

Connection	COG + FPC





















  ♣ Related Products (GY19264-15)









♣ Product Application



  ♣ Professional Packaging





  ♣ About Us

Genyu Custom Mono FSTN 192x64 dots matrix LCD Module With 8 Bits parallel interface

1. Production Line



2. Order Process



 Genyu Custom Mono FSTN 192x64 dots matrix LCD Module With 8 Bits parallel interface

  ♣ Great service



1.  All products are being sent in accord with the real goods. When the clients purchasing, we will provide detailed instructions and procedures. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.



2.  Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.



3.  When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.



4.  The warranty period of the product is 12 months.





  DFSTN COG Graphic LCD Module 19264 Monochrome Display 192x64 Shenzhen LCD Screen
