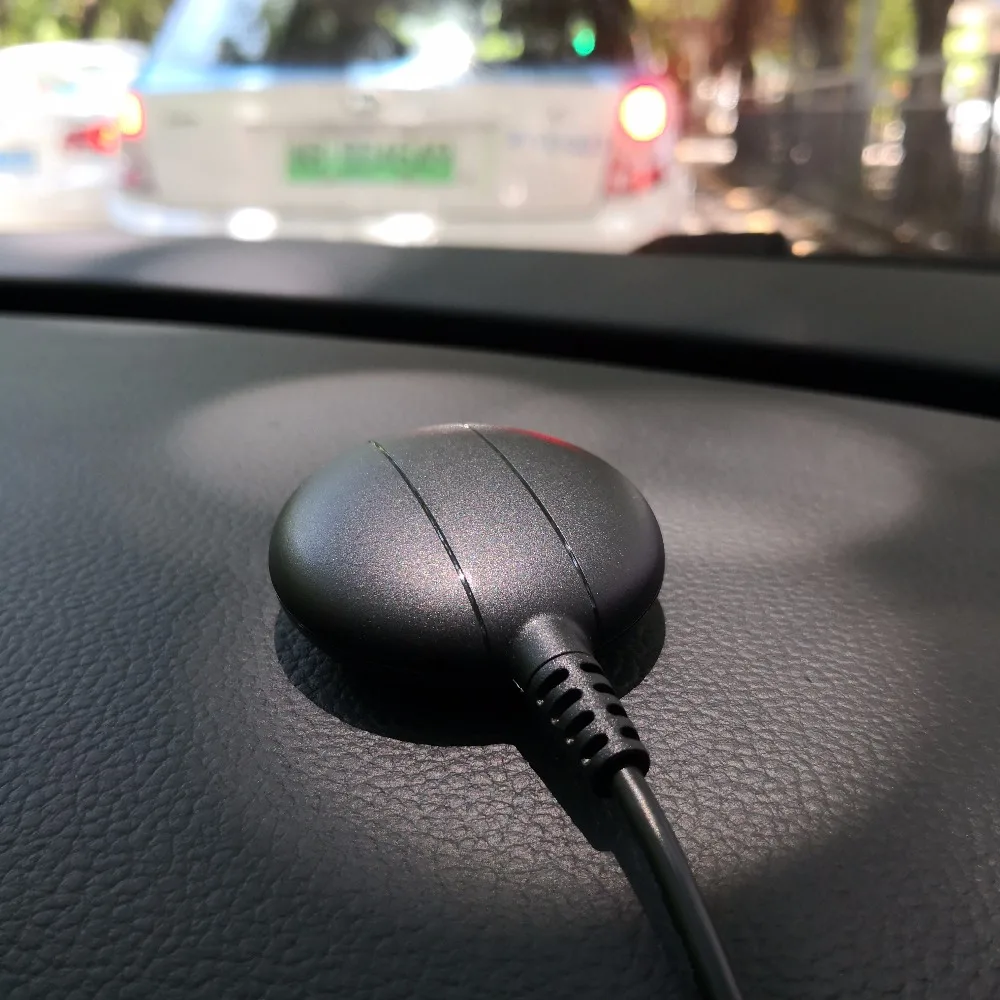

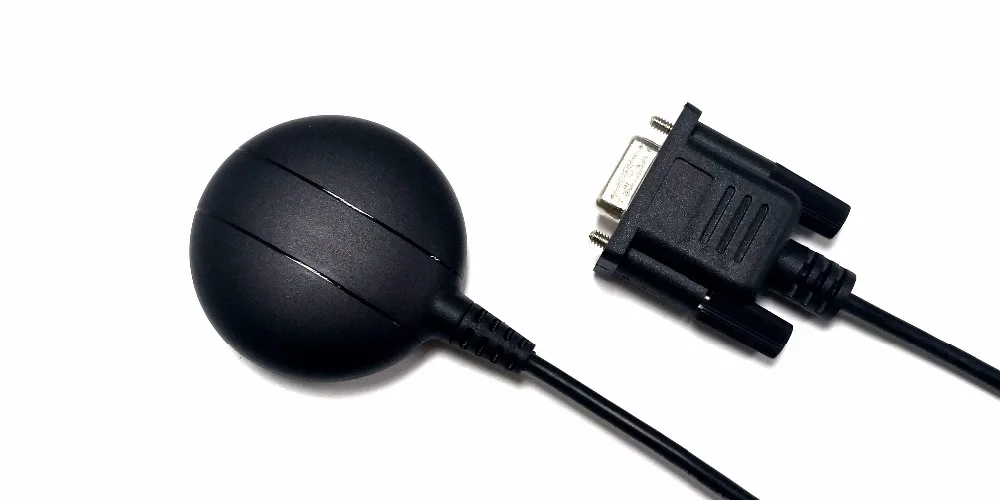

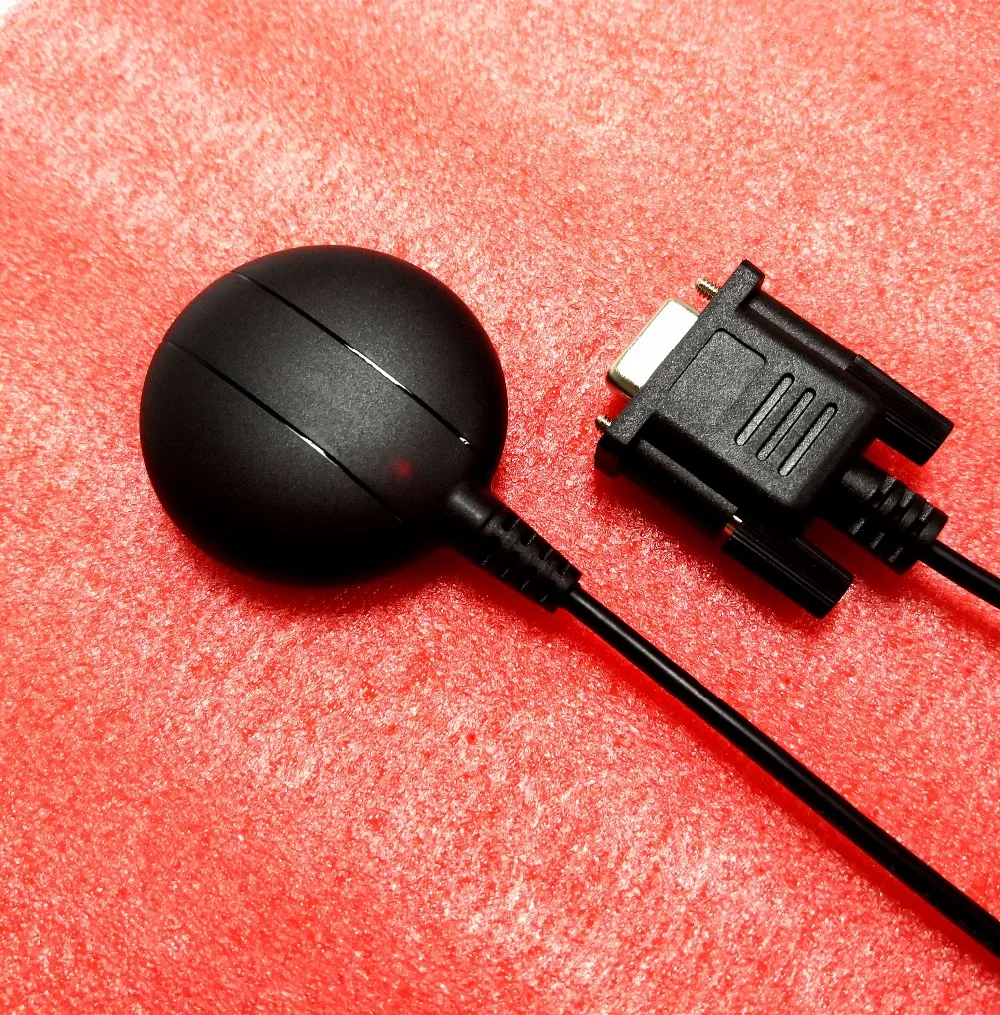

Industrial application RS232 GPS/GONASS/GALILEO module antenna GNSS200BR RS232 DB9 female connector RS 232 GNSS GPS receiver

Receiver Type

72-channel 8030 engine

GPS & QZSS:L1 C/A,1575.42MHz,

GLONASS

L1OF,

1598.0625~1605.375MHz

GALILEO/BEIDOU

B1 1561.098 MHz

SBAS: WAAS, EGNOS, MSAS

Horizontal

2.5m (Autonomous)

Position

2.0m (WAAS)

Accuracy

(including SBAS & QZSS; CEP, 50%

24hr static, -130dBm, >6 SVs)

Velocity

0.05 m/s (speed)

Accuracy

<0.3(heading)

(50%@30m/s)

Time Pulse

30ns (RMS)

Signal Accuracy

<60ns (99%)

Time Pulse

Frequency

0.25 Hz ~ 10 MHz

Time To First Fix

Hot start

Cold start

Autonomous

1.5 sec

26 sec

(50% -130dBm)

Sensitivity

(Autonomous)

-148dBm (acquisition)

-167dBm (tracking)

Navigation.

Update Rate

Max. 10Hz, GPS & GLONASS or

GPS & Beidou

Max. 18Hz, GPS only

Default 1Hz

Max. Altitude

50,000 m

Max. Velocity

<1,852 km/hr

Protocol Support

NMEA 0183 v2.3 and V4.x

UART: 9600 bps N,8,1;

GGA, GLL, GSA, GSV, RMC, VTG, TXT

SBAS Support

WAAS, EGNOS, MSAS
