Tip: The default output VOUT voltage is equal to the input VIN voltage

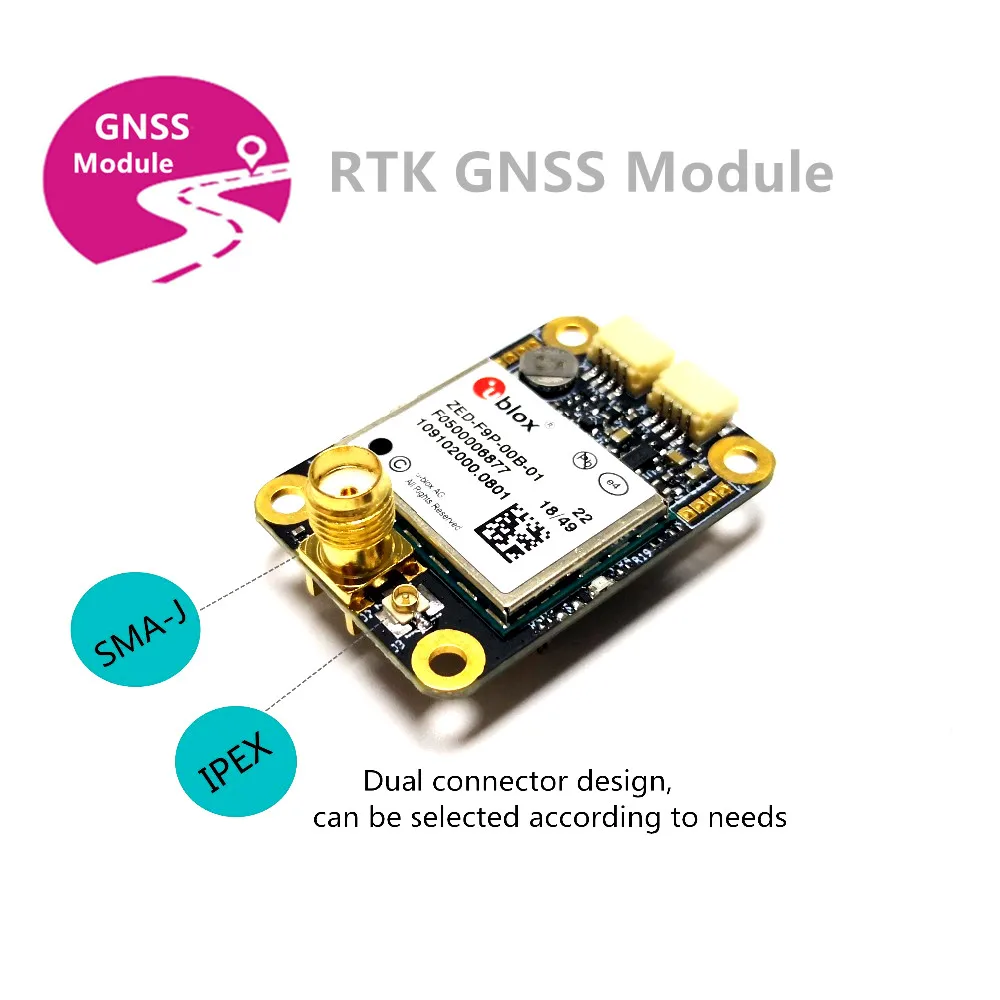

Antenna connector, SMA straight or elbow
(please note the requirements when placing an order, and we will make it according to the requirements.)
Packing list: TOP-3509P receiver 1PCS
4PIN 1.0 female to DIY connector 15Cm cable: 2PCS
Working mode: GNSS multi-satellite multi-frequency signal receiving, while receiving GPS, Beidou, GALILEO, GLONASS satellite system L1, L2 frequency.
Working level: UART (optional custom RS232, USB, consult our customer service staff)
Baud rate: 38400 (default can be set)
Refresh rate: 1HZ (default can be set 5-20H)
Can be used as RTK base station and RTK mobile station
TOPGNSS specializes in the design, development, production and sales of GNSS navigation and positioning module module receivers, and can provide a complete set of high-precision positioning solutions according to different application scenarios.
If you have special needs, please contact our customer service staff, thank you!
RTK Fixed Solution State of Mobile Station
RTK Fixed Solution State of Mobile Station
