Price:$7,599.00

Quantity:


Product Overview

Description



Good design the high quality dry shotcrete machine for tunnel for Philippines



Product Description

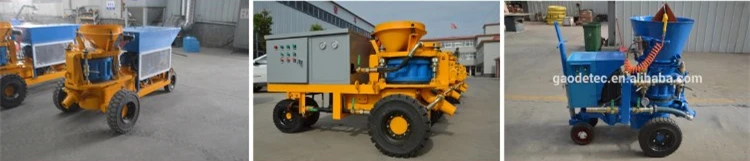

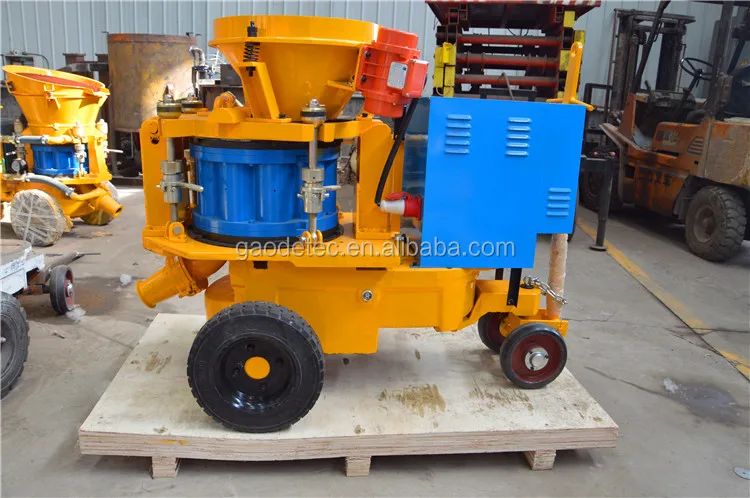

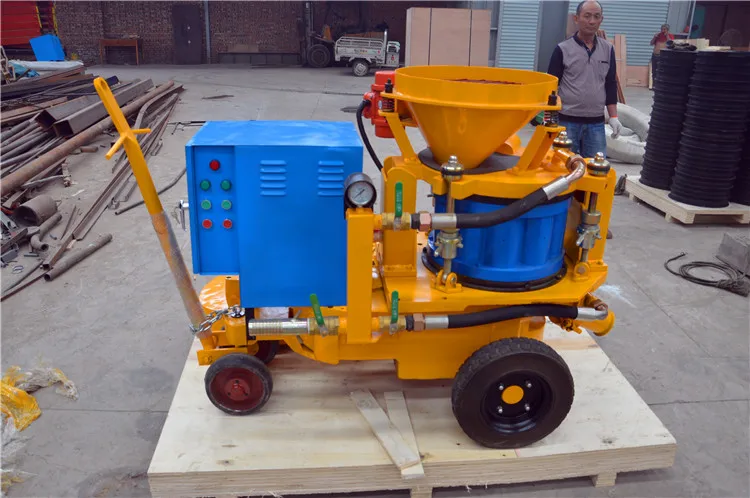

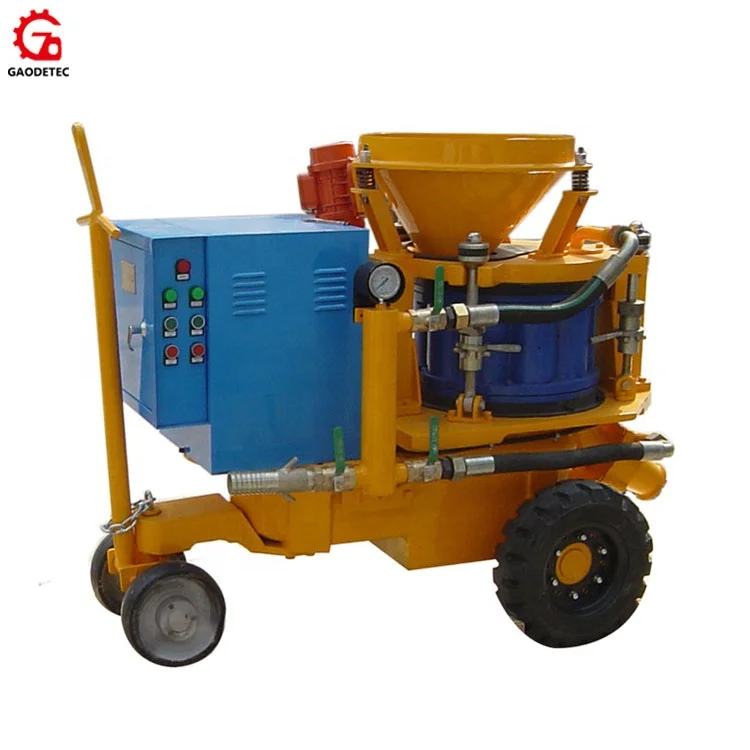

GZ-9E is electric large-sized shotcrete machine for the spraying process.


GZ-9E shotcrete machine can be used for large-section tunnel building, mine, etc.
GZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.


the high quality dry shotcrete machine for tunnel






Technology Parameter




































































Output Capacity


9m3 /h


Max. Horizontal Conveying Distance


200m


Suitable Mix Ratio(Cement/Sand)


≤1:4~5


Max. Aggregate Size


Dia.20 mm


Conveying Hose Inner Diameter


Dia.64 mm


Conveying Pressure


0.2-0.4MPa(29-58PSI)


Air Consumption


10~12m3/min(357-430CFM)


Material Charging Height


1.1m


Rotor Speed


11r/min


Electric Motor


7.5kW, Y132M-4, IP55


Vibrator Electric Motor


0.15kW, XVM-A1.5-2


Available Voltage


220V,380V, 440V,660V 50Hz/60Hz


Overall Dimension(length×width×height)


1.65×0.9×1.25m


Net Weight


900kg

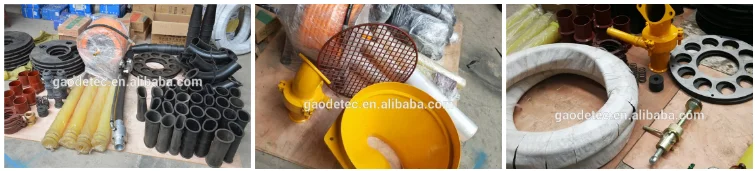

Accessories







the high quality dry shotcrete machine for tunnel









































































A complete set of GZ-9 shotcrete machine



No.


Description


Quantity


Unit


Remarks


1


GZ-9 Main Machine


1


set



2


Nozzle Assy


1


set



3


Conveying Hose, ID64mm, 50ft.Length


1


piece



4


Water hose with hose hoop


1


piece



5


Rubber Hose Joint


3


piece


Fitting


6


Quick Coupling


3


piece



7


Upper Sealing Plate


1


piece



8


Lower Sealing Plate


1


piece







Application







GZ-9E shotcrete gunning machine application




1. Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect.
2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.the high quality dry shotcrete machine for tunnel






Packaging & Shipping

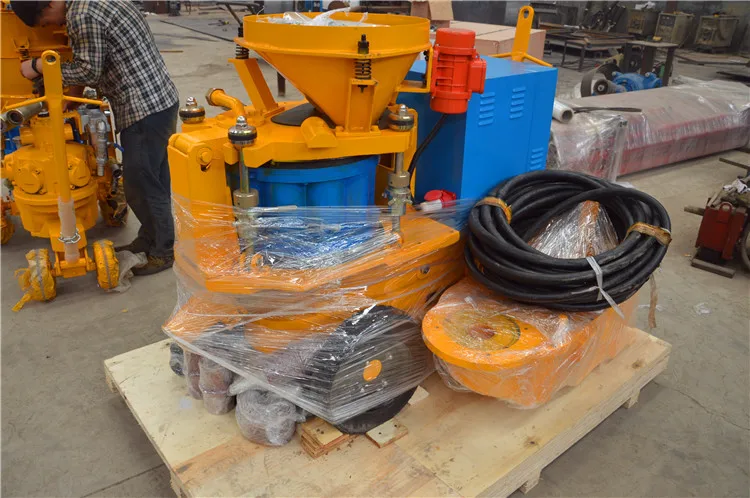

1. Plastic wrap, plywood case, free-fumigation, standard export packing. as shown below.


2. Or customised.the high quality dry shotcrete machine for tunnel
