Tricolor drinking straw making machine three color producing thermal wear paper

Share on (62380478483):


Price:

Quantity:


Product Overview

Description


Product Description

Tricolor drinking straw making machine three color producing thermal wear paper

tricolor drinking straw making machinetricolor drinking straw making machinetricolor drinking straw making machinetricolor drinking straw making machinetricolor drinking straw making machinetricolor drinking straw making machine

Product Detail

MAIN MOTOR3KW
INVERTER3.7KW
MOTORSERVO MOTOR

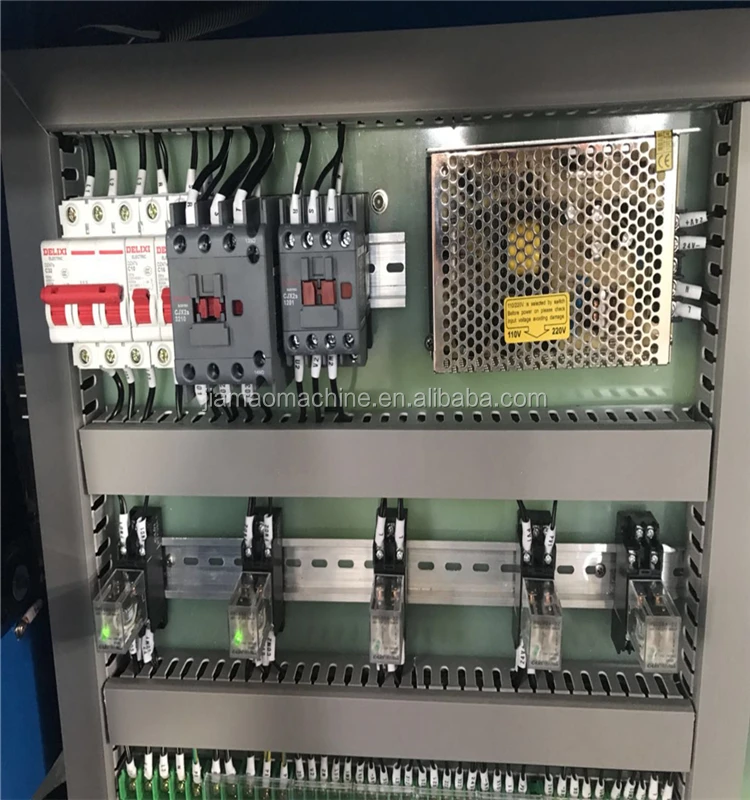

SWITCHSCHNEIDER
Product Keywordstricolor drinking straw making machine

Characteristics:

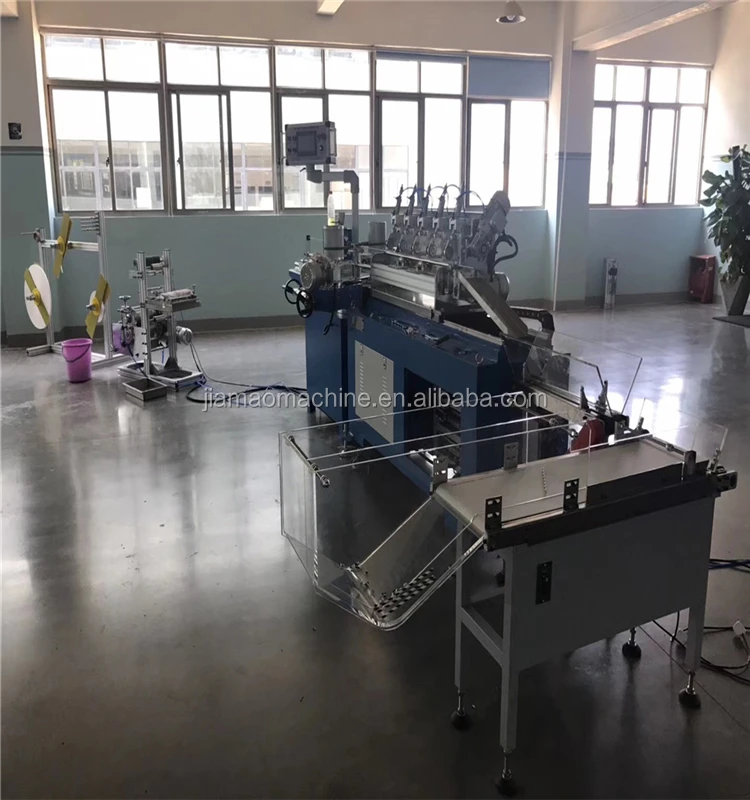

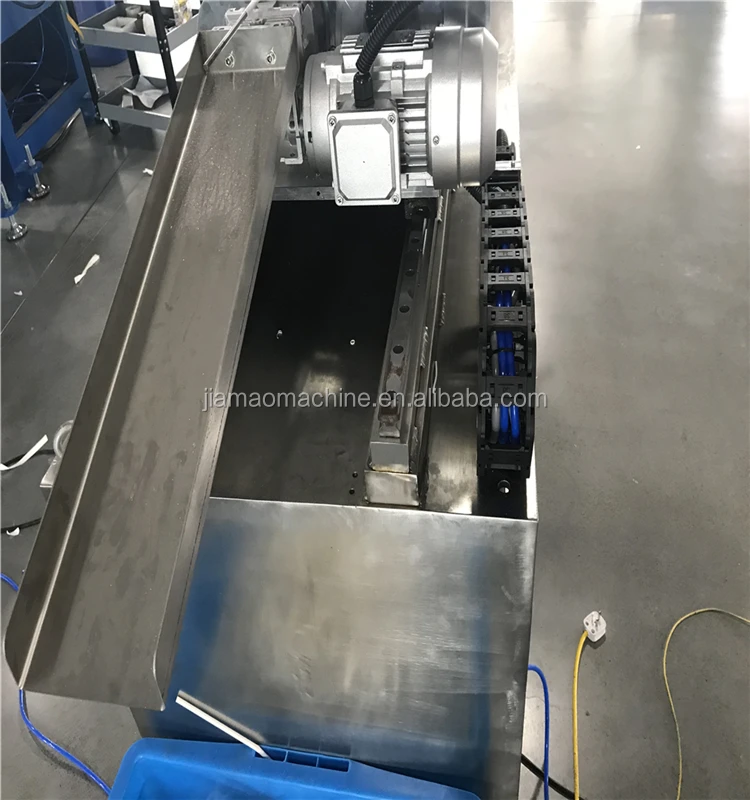

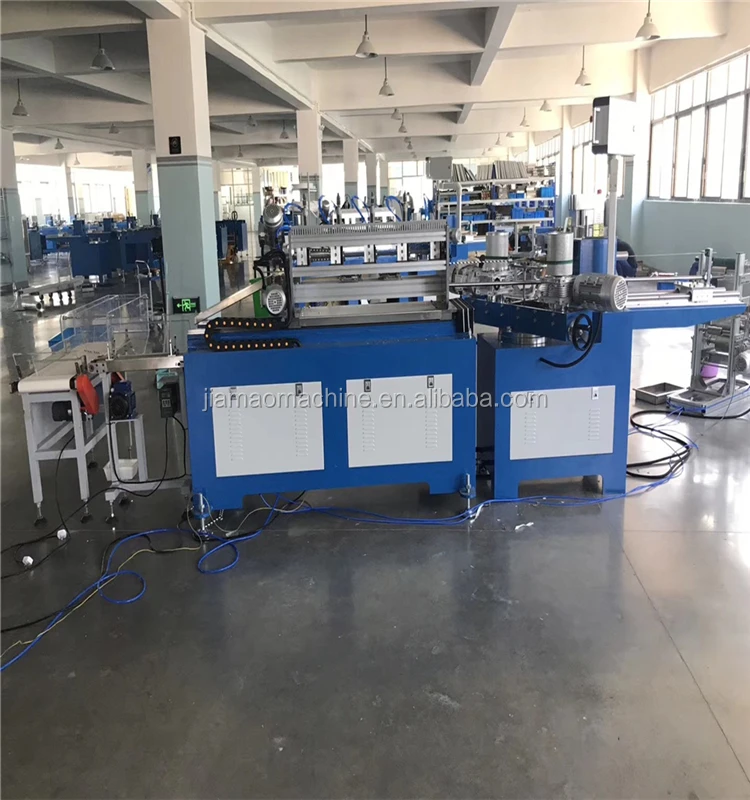

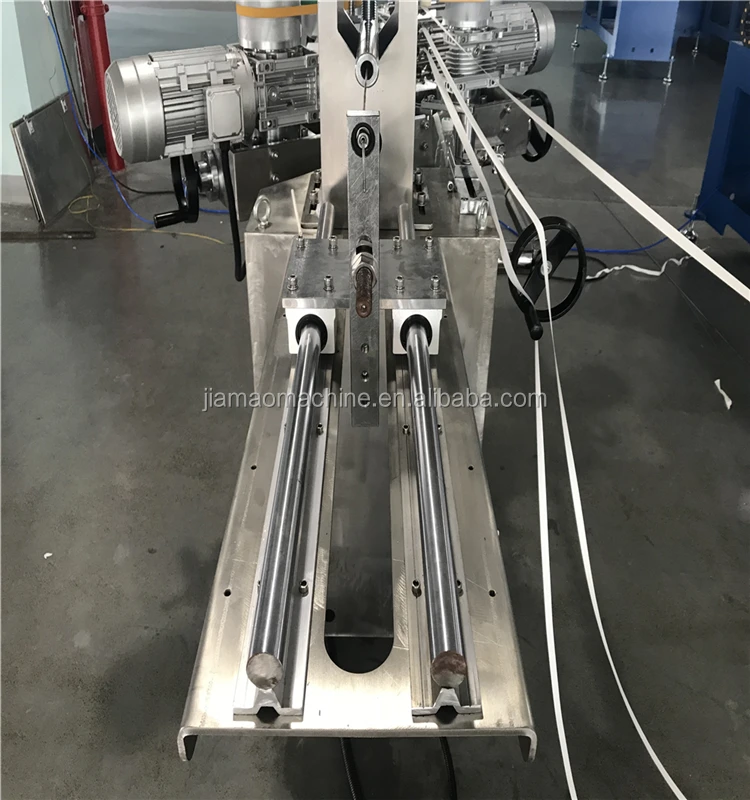

This high speed paper drinking straw making machine is suitable for small diameter paper tube production, such as paper straw, pen tube.

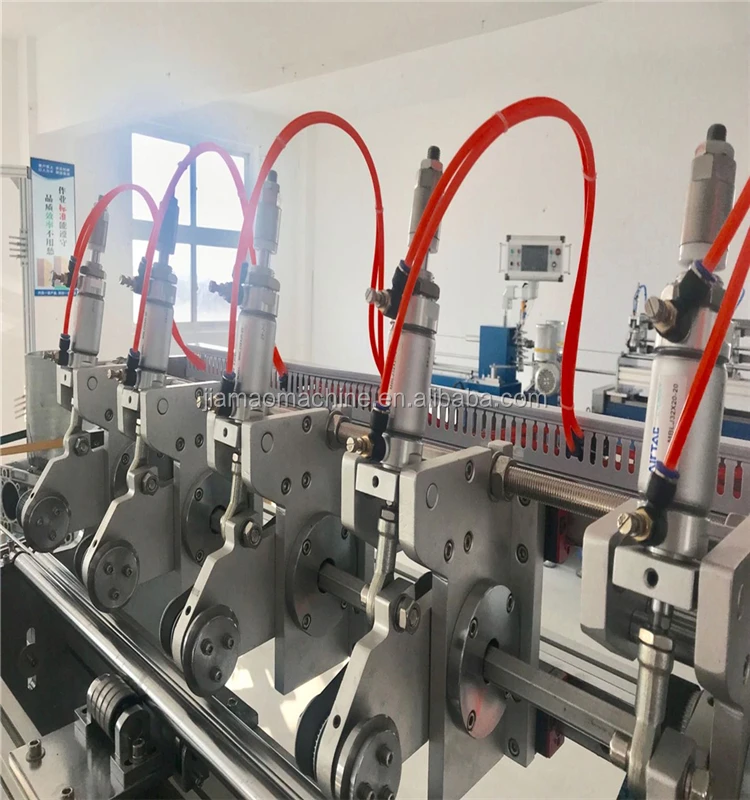

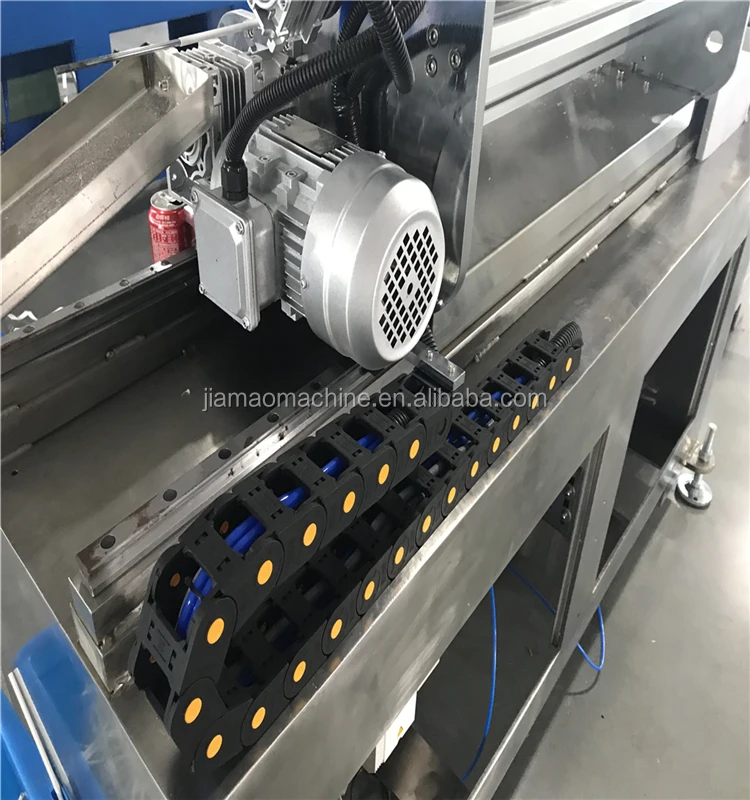

1. Numerical control servo cutter device, high precision cutting;

2. Automatically cut, automatically fall pipe, automatically change speed and revert;

3. Computer PLC control, touch screen man-machine interface operation;

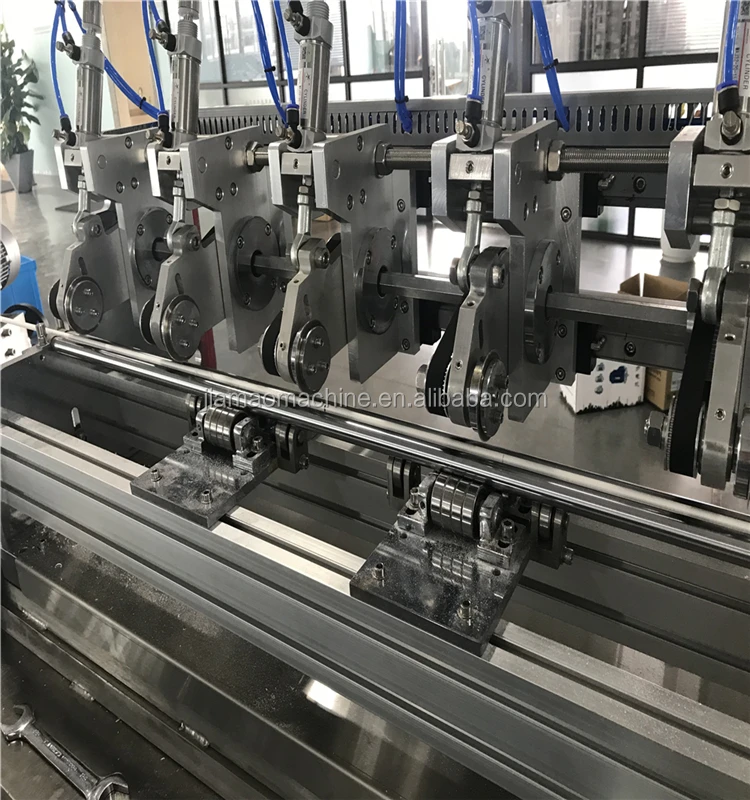

4. Round knife cutting, incision more smooth, performance more stable;

5. Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use;

6. With online multi-cut blades, no need secondary cutting, save labor and time.

7. Paper tube diameter 5 mm, stable production 20 m/min, diameter 10 mm, stable production 30 m/min.

Technical Parameter:

Model

JMDS-40

Paper Layer

3 layers

Inner Diameter

4.7-12mm

Wall Thickness

0.3-1mm

Winding Speed

30-40 meters/min

Cutting System

Multi-blades (5 pcs)

cutting system

Servo motor synchronism tracking cut

Gluing Way

Single/Double sides

Machine & Parts

Metal(Painting)

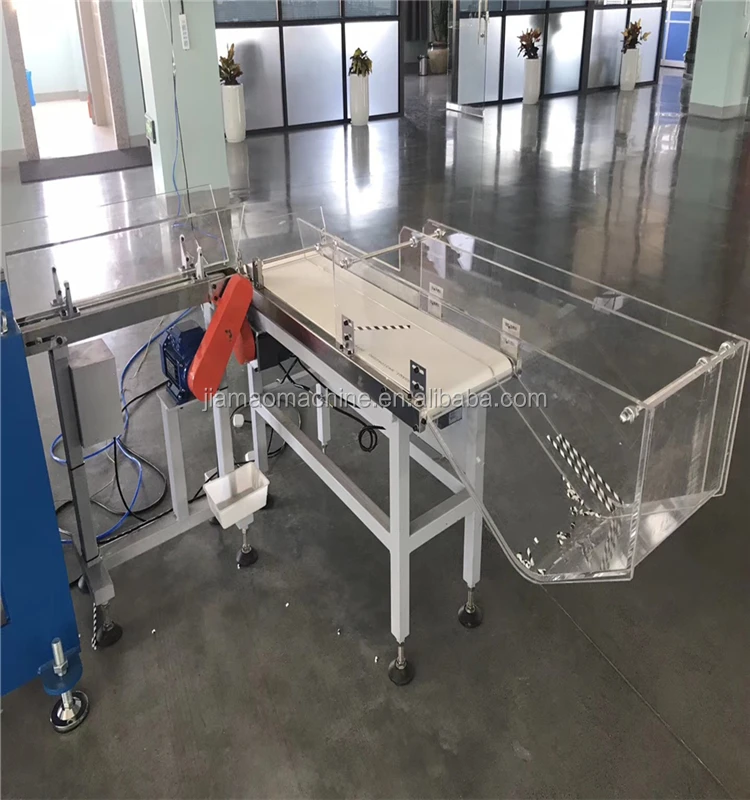

Straw Collector

Manual

Operator

1-2 person

Speed Control

By Inverter

Power Supply

380V/3Phase/50Hz

Main Motor

3.0KW

Measurement

3500*1500*1200mm

Working Space

7000*5000mm

Weight

1300kgs


Company Information
tricolor drinking straw making machine

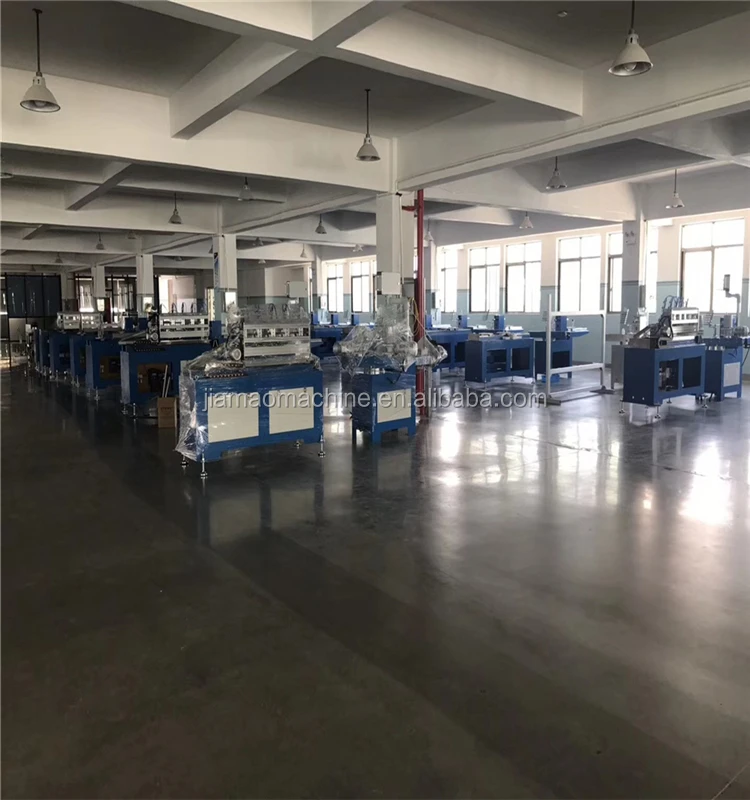

OUR FACTORY
