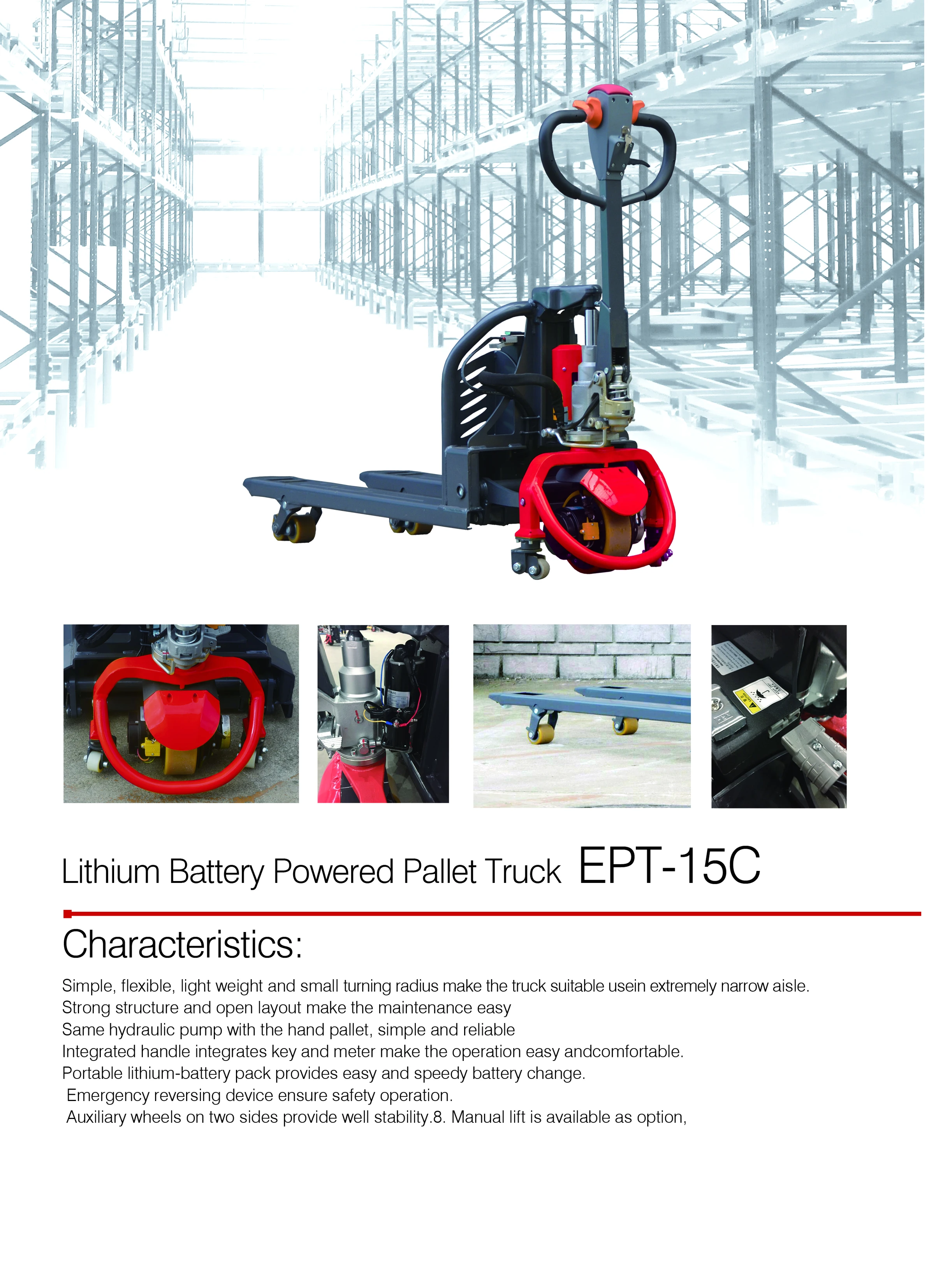

1500kg 1.5ton Lithium Battery powered Pallet Truck

Product Overview

Description

1.5ton 1500kg Lithium Battery Powered pallet Truck

	Characteristics
1	Manufacturer		WELIFT
2	Model		EPT-15C
3	Load capacity	kg	1500
4	Load center	mm	600
5	Wheel base	mm	1243
6	Operator type		Pedestrian propelled
	Wheels
7	Wheels type		PU
8	Wheel quantity  Wheels,number front/rear(x=driven)		1x+2/4
9	Driving wheel size	mm	Φ210x70
10	Loading wheel size	mm	Φ80×60
11	Track width,rear,loading side	mm	400/535
	Dimension
12	Overall length	mm	1615
13	Length to fork face	mm	465
14	Overall width	mm	550/685
15	Fork Dimensions	mm	50/150/1150
16	Width of forks	mm	550/685
17	Lowered height	mm	85
18	Aisle width with pallet 1000x1200 across forks	mm	1815
19	Aisle width with pallet 800x1200 along forks	mm	1865
20	Min.Turning radius	mm	1405
	Performance
21	Travel speed with/without load	km/h	4.2/4.5
22	Max.gradeability laden/unladen	%	5/8
23	Service brake type		Electromagnetic brake
24	Drive motor,output S2 60min	kW	0.75
25	Battery voltage/rated capacity	V/Ah	24/35
26	Battery weight	kg	7
	Others
27	Type of drive control		DC
28	Steering type		Mechanical steering
