Product Overview

Description

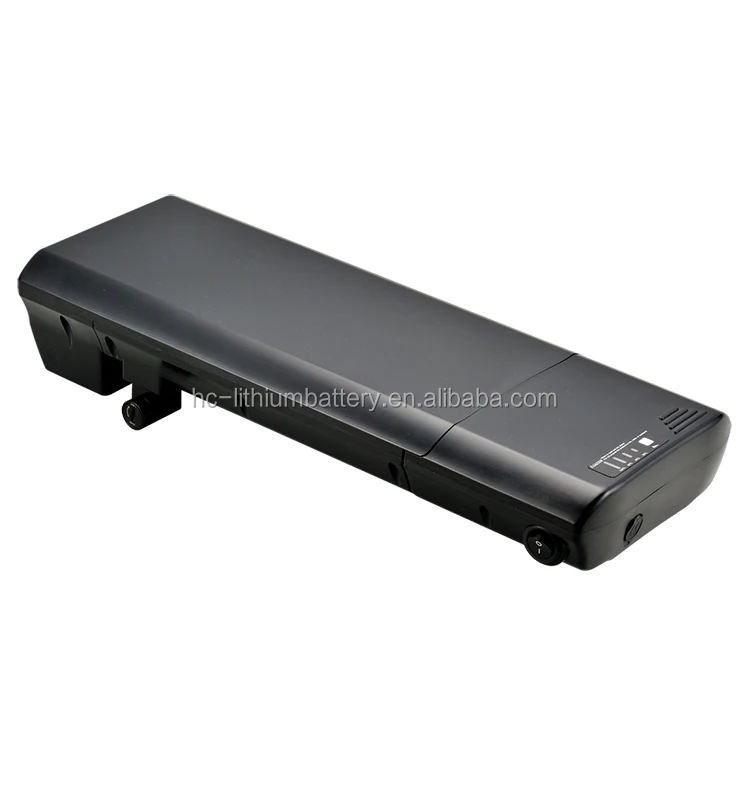

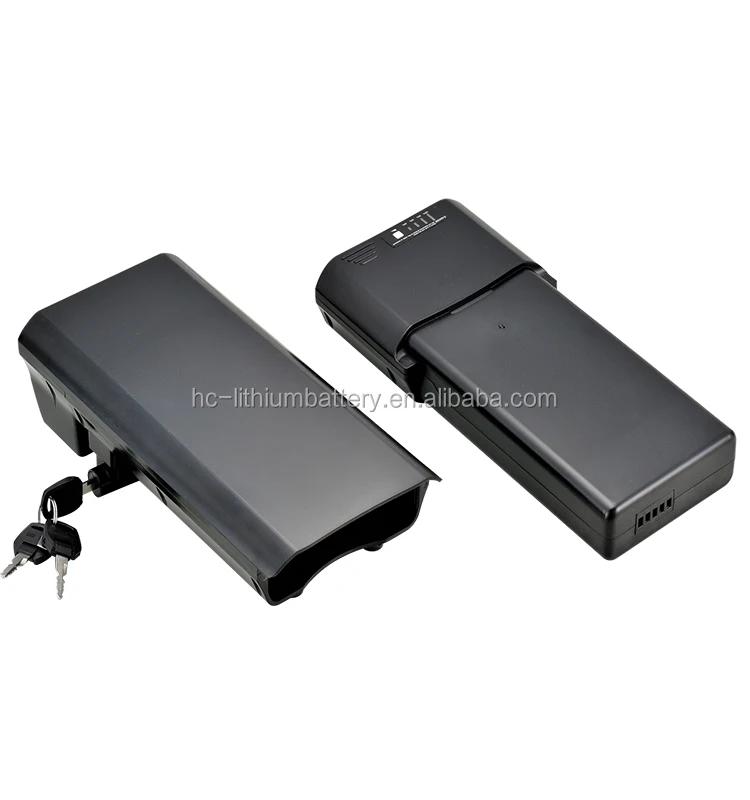

Jinhua factory directly selling 36v e bike lithium ion battery

1. Lithium ion battery configurtion:



Model NO	HC-026-A

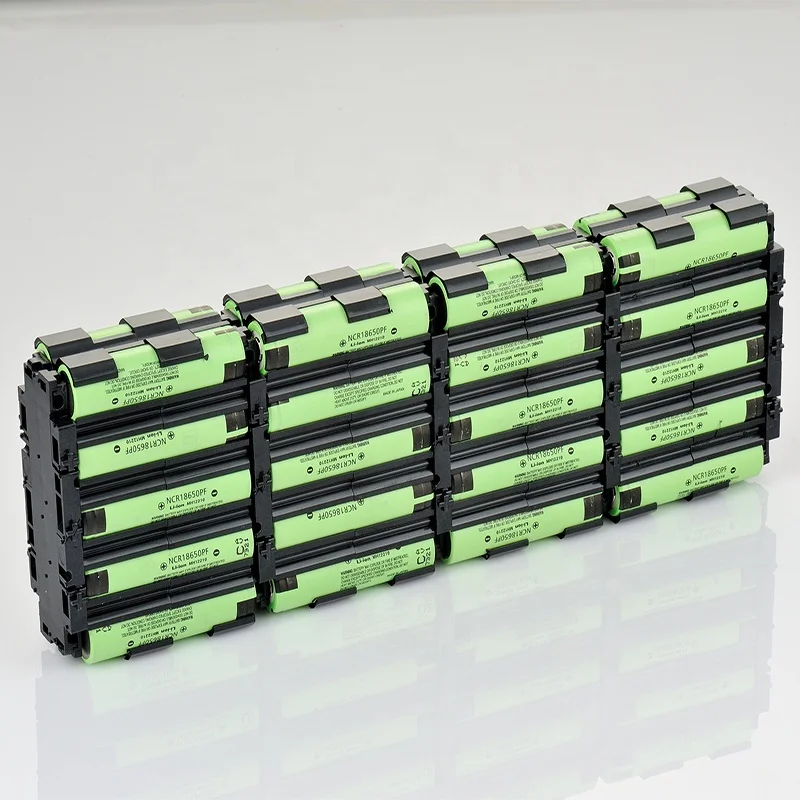

Battery chemicals	Lithium-ion 18650 10S4P
Pack combination method	10S4P
Battery dimension	416*147*68mm

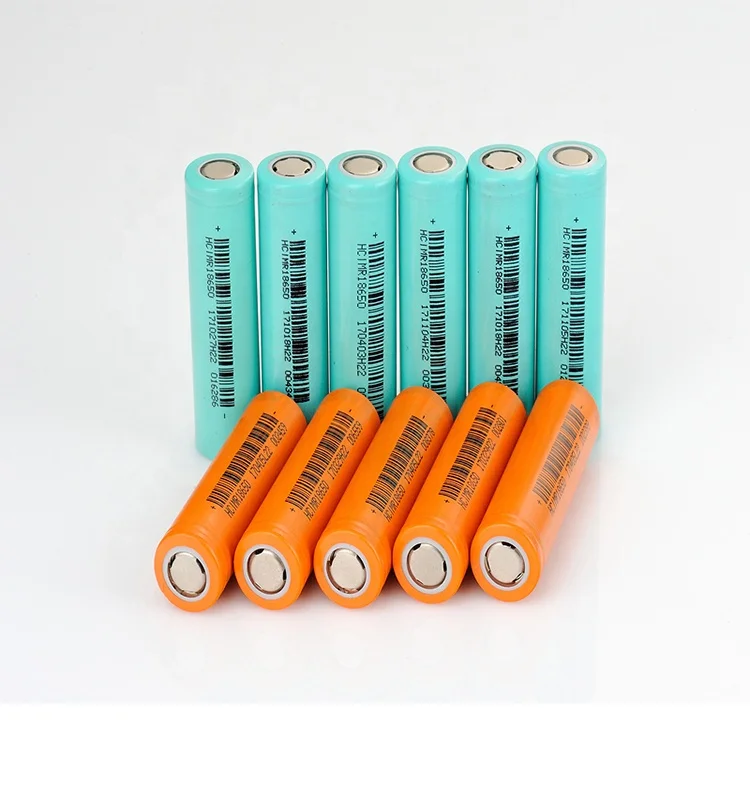

Battery cell brand	Domestic
Nominal Voltage	36V
Nominal Capacity	10.4AH
Over discharge protection	28±0.5v
Over charge protection	42±0.01V
Charging current	≤5 A
Continuous discharge current	≤15A
Transient excess current	60±10A
Attention	1.Don’t dispose in fire or heat
	2.Don’t puncture,damage an disassemble
	3.Don’t mix fresh batteries with used batteries
USB	Optional,it depends on you
Safety test	Altitude simulation/Thermal test/Vibration/Shock/External short circuit/Impact/Overcharge/Forced discharge

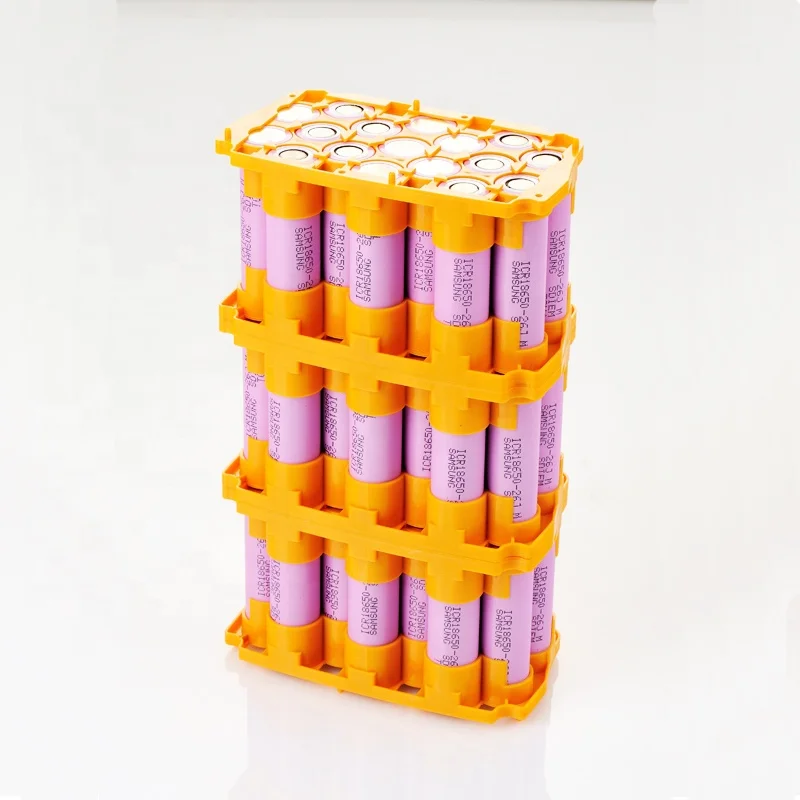

If you want other voltage or other capacity, or you want Samsung,LG,Panasonic cells, please tell us, then we will give you the new prices.



2.Lithium ion battery , we used good quality accessories:





Quality control

*Inspect and control over all incoming materials and components to make sure that only qualified supplies flow into each production run.

*Inspect and control over all of manufacturing processes.Being quality warning, very staff is called on to join efforts to maintain on going consistency and quality.And when anything goes wrong, correction is done quickly.

*In charge of all tests in QA division according to IEC standard and customer’s requirement.



Production Line:

Production Line:









Our Company:
