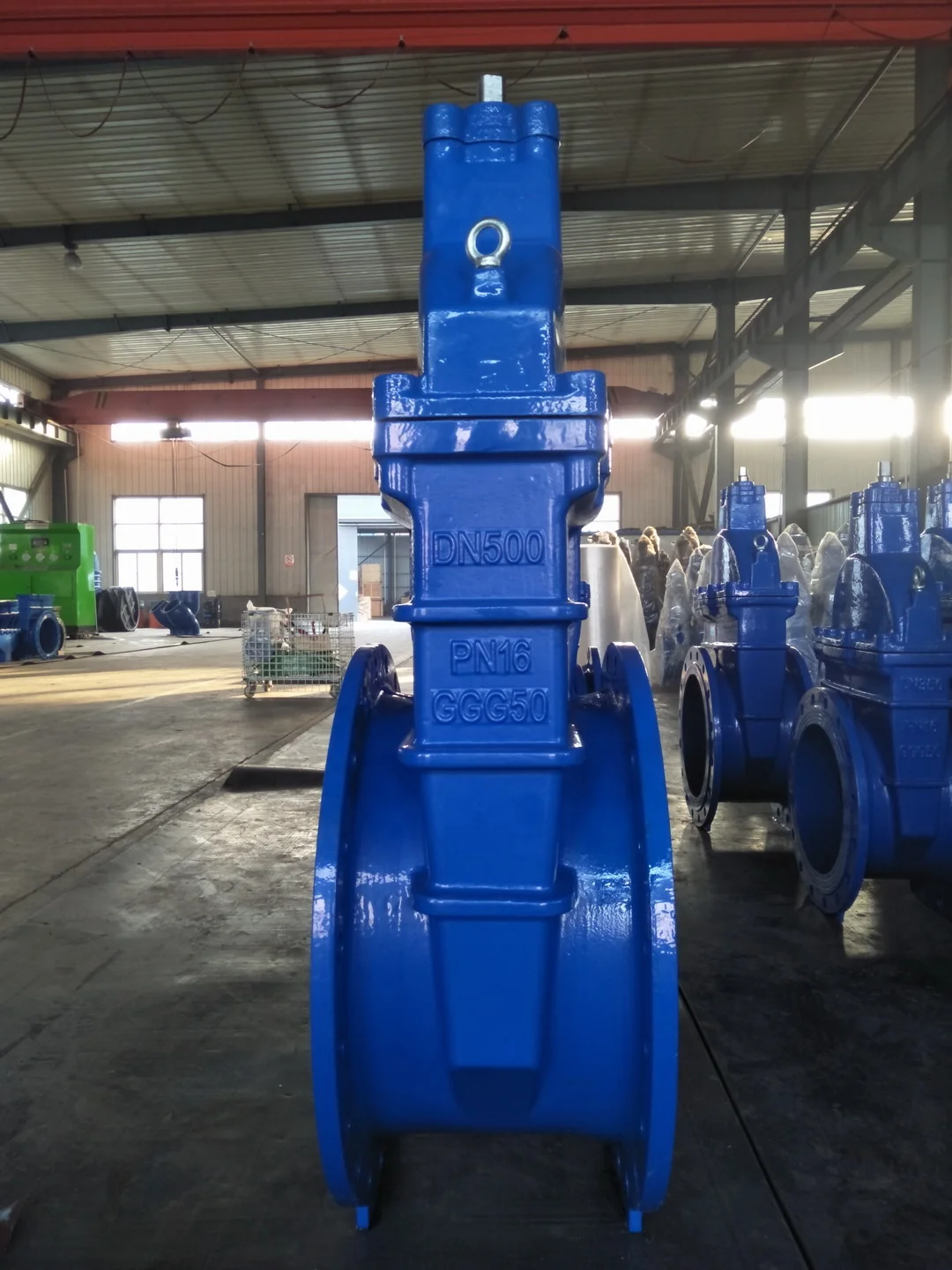

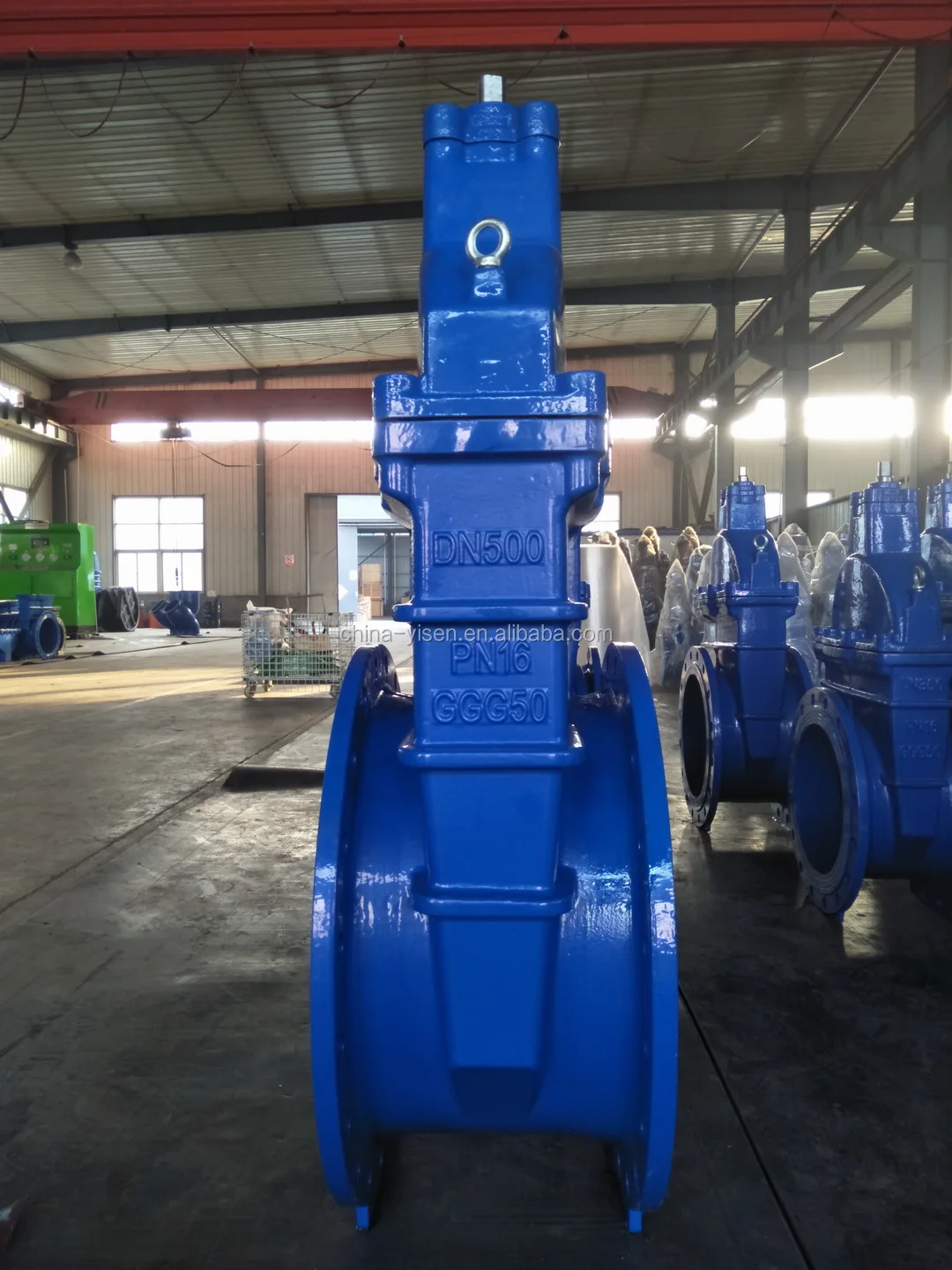

BS5163 DIN3352 F4/F5 PN10/16/25 Cast Iron GGG50 Non Rising Stem Resilient Seated 6 Inch Gate Valve
- Category: Gate Valves >>>
- Supplier: Dalian Yisen Metal Products Co. Ltd.
Share on (62380702252):
Product Overview
Description

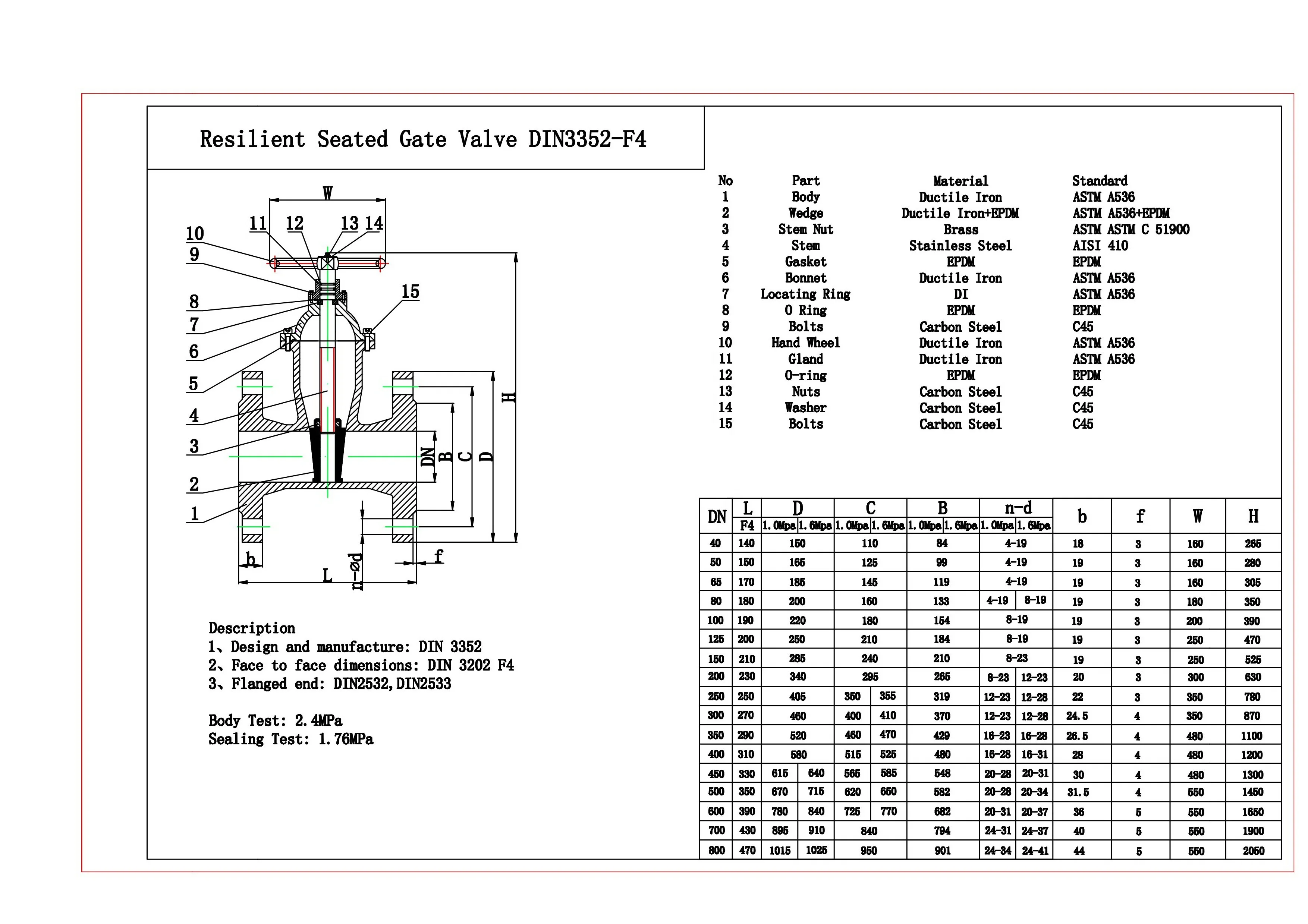

GENERAL NOTES | ||||
DESIGN STANDARD | DIN 3352 | |||
FACE TO FACE DIMENSION | DIN 3202 F4 | |||
END CONNECTION | DIN 2532 / DIN 2533 | |||
DESCRIPTION | MATERIAL | Standard | ||
BODY | DUCTILE IRON | ASTM A536 | ||
WEDGE | DUCTILE IRON & EPDM | ASTM A536 & EPDM | ||
STEM NUT | BRASS | ASTM C51900 | ||
STEM | STAINLESS STEEL | AISI 410 | ||
GASKET | EPDM | EPDM | ||
BONNET | DUCTILE IRON | ASTM A536 | ||
LOCATING RING | DUCTILE IRON | ASTM A536 | ||
O RING | EPDM | EPDM | ||
BOLTS | CARBON STEEL | AISI 45 | ||
HAND WHEEL | DUCTILE IRON | ASTM A536 | ||
GLAND | DUCTILE IRON | ASTM A536 | ||
NUTS | CARBON STEEL | AISI 45 | ||
WASHER | CARBON STEEL | AISI 45 | ||
BOLTS | CARBON STEEL | AISI 45 | ||
TEST PRESSURE | ||||
BODY | 2.4Mpa | 1125 PSIG / 79kg/cm sq. | ||
SEALING | 1.76Mpa | _ | ||
