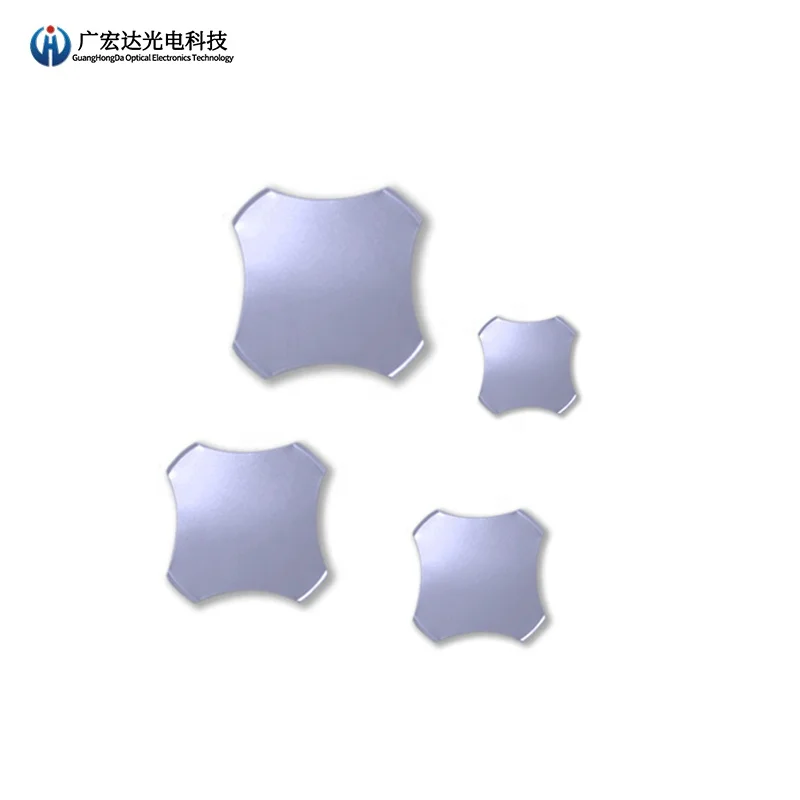

Бесплатный образец 11 мм таможни 4 ножками металлический купол с крыльями для устройства клавиатуры
- Category: Keypads & Keyboards >>>
- Supplier: Shenzhen Guanghongda Technology Co. Ltd.
Share on (62380728720):
Product Overview
Description
Specification
item | value |
Place of Origin | Guangdong,China |
Brand Name | Guanghongda |
Model Number | GHD19014 |
Application | Telecommunication Equipment |
Keypad Button Material | stainless steel SUS301 |
Metal dome Shape | 4-legged |
Metal dome Dimple | 0/1/3/4/5 dimple |
base Material | Stainless Steel |
Surface finishing | nickel,silver,gold plating |
Metal dome force | 200~600gf |
Metal dome trip | 0.12~0.6mm( custom as per requirement) |
Thickness | 0.05~0.15mm ( as per requirement) |
Life Expectancy | 100K ~ 5KK times |
Click ratio | 50+/-10% ( normal) |
Size tolerance | +0.1mm |
Product Description

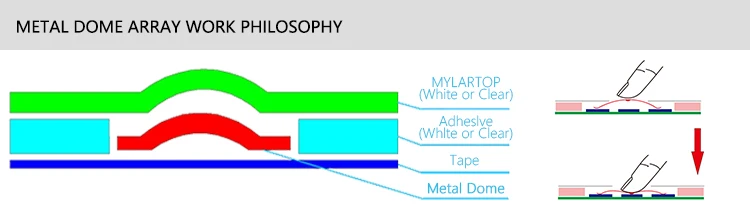

Working Principle :
The snap dome is located at the conductive part on the PCB (most of which is above the gold finger on the PCB). When pressed, the central dimple of the dome is concave and contacts the circuit on the PCB , Thus, the circuit is formed, and the current passes through, and the whole product can work successfully . With the help of the conductivity of the metal metal, it plays a role of high-quality switch between the operator and the product. The stable click ratio & longer life-time are used to provide the operator with high-quality tactile feel

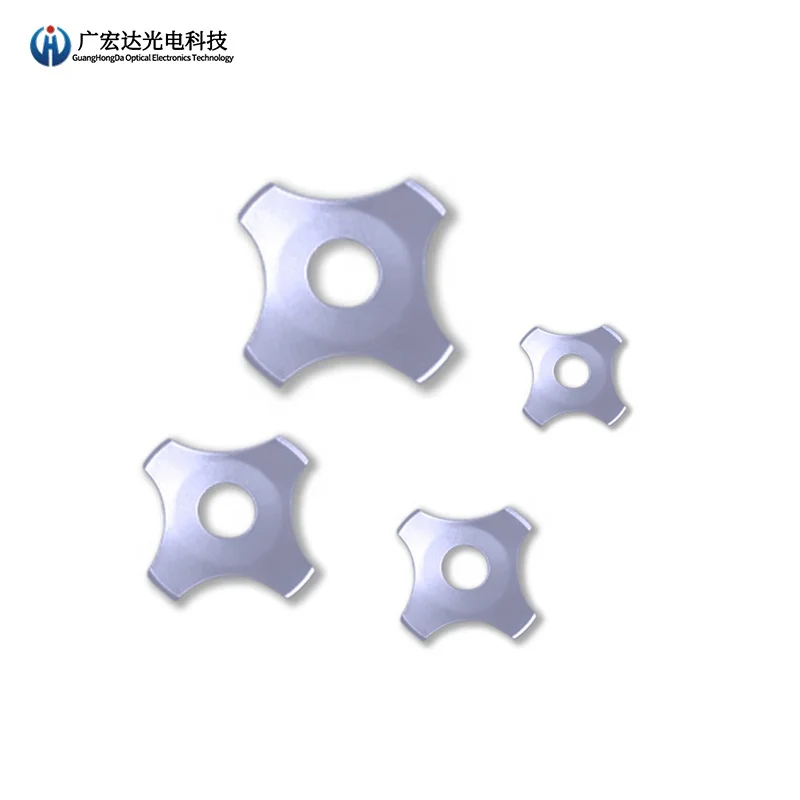

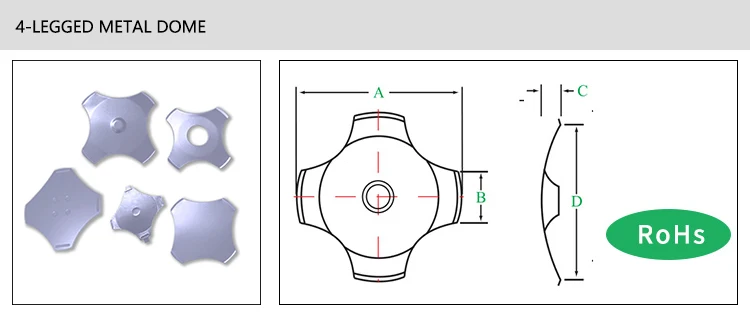

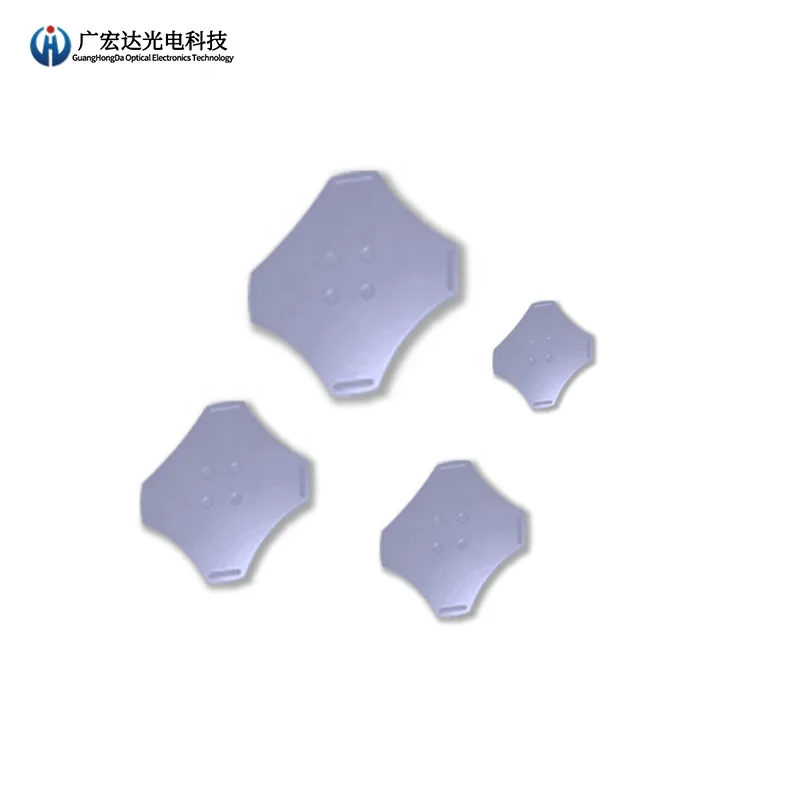

The Cross Metal dome , also called 4 LEG snap dome , can be divided into below 4 types

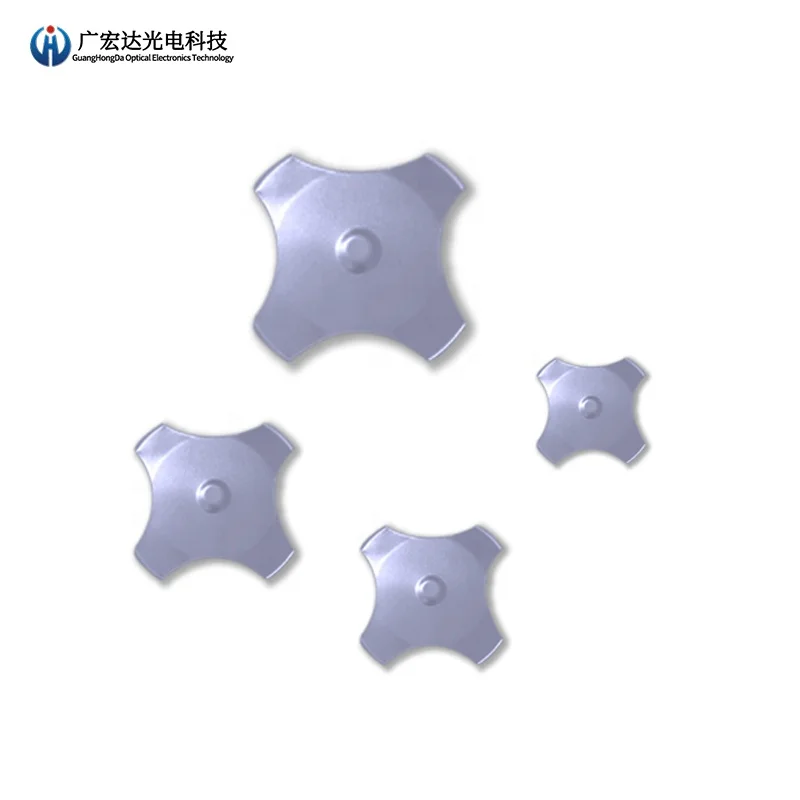

1. Dimple in the middle : DF Series
2. No dimple: NF series
3. There is a hole in the middle, which is rarely used
4. Four legs with feet, available when higher travel is needed

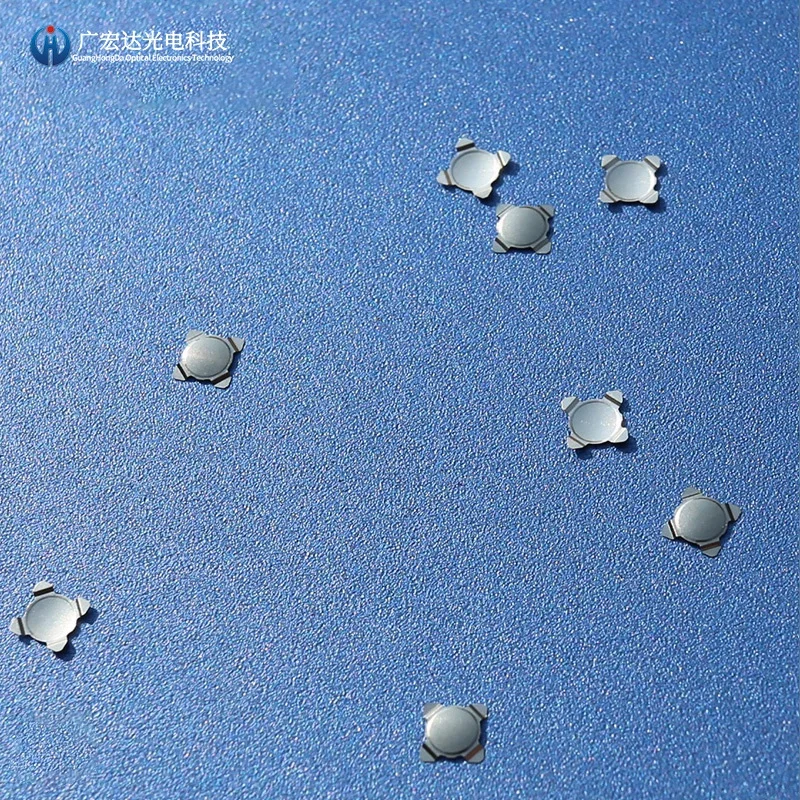

4-Legged Metal Dome : when designer reserve sufficient space & request bigger stroke travel , C-series metal dome will be prior to select to use , it’s often used in the handheld device,medical device and large banking equipment .
2. No dimple: NF series
3. There is a hole in the middle, which is rarely used
4. Four legs with feet, available when higher travel is needed
4-Legged Metal Dome : when designer reserve sufficient space & request bigger stroke travel , C-series metal dome will be prior to select to use , it’s often used in the handheld device,medical device and large banking equipment .

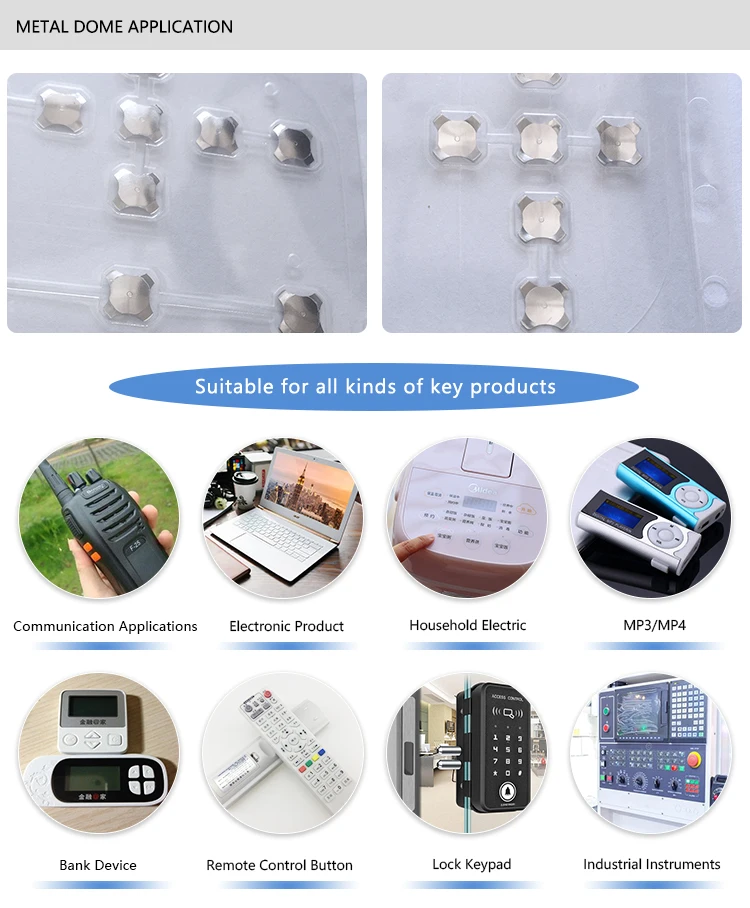

Metal Dome is mainly used for various key products,such as mobile phones,headphones,MP3 / MP4,all kinds of keyboard,remote control,bank Product keys,medical equipment,industrial instruments and other fields, where there are keys to use products, can use metal dome
Company Profile
Shenzhen Guanghongda Technology Co, Ltd has rich experience in exhibition & participation.
Through the face-to-face communication in exhibition, to strengthen our powers as an integrated set of industry and trade company.
Through the face-to-face communication in exhibition, to strengthen our powers as an integrated set of industry and trade company.

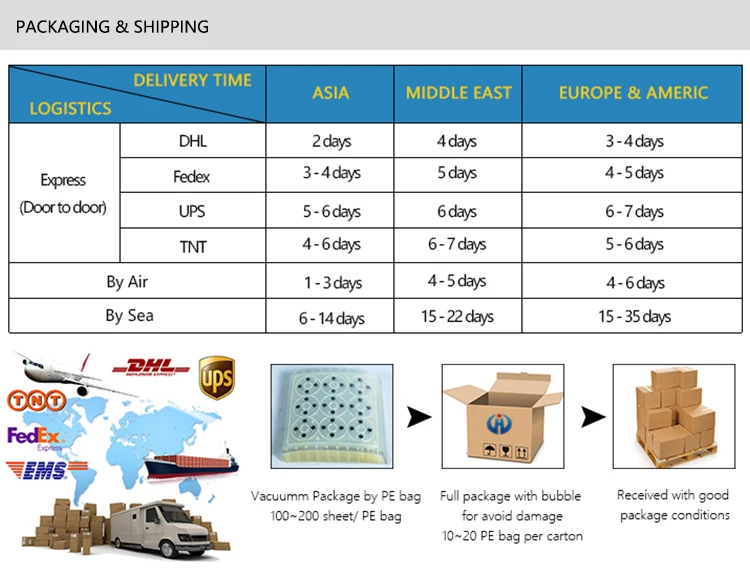

Packing & Delivery
FAQ
Q1: Are you Trading company or manufacturer ?
A: We are a Professional Trading & Manufacturer Integrated .
A: We are a Professional Trading & Manufacturer Integrated .
Q2 : Can you offer OEM Service ?
A: Surely Okay , we have Seasoned OEM service experience .
A: Surely Okay , we have Seasoned OEM service experience .
Q3: what is the Lead time of sample ?
A : It takes 2-7working days depends .
A : It takes 2-7working days depends .
Q4: How fast can i get the Quotation ?
A: I am smart to understand what customers want , reply quickly , Sometimes you can receive my email within 10mins., even in deep evening such as 11P.m or 12P.m
A: I am smart to understand what customers want , reply quickly , Sometimes you can receive my email within 10mins., even in deep evening such as 11P.m or 12P.m
Please do not hesitate to contact with us , if you have any inquires .
