working principle

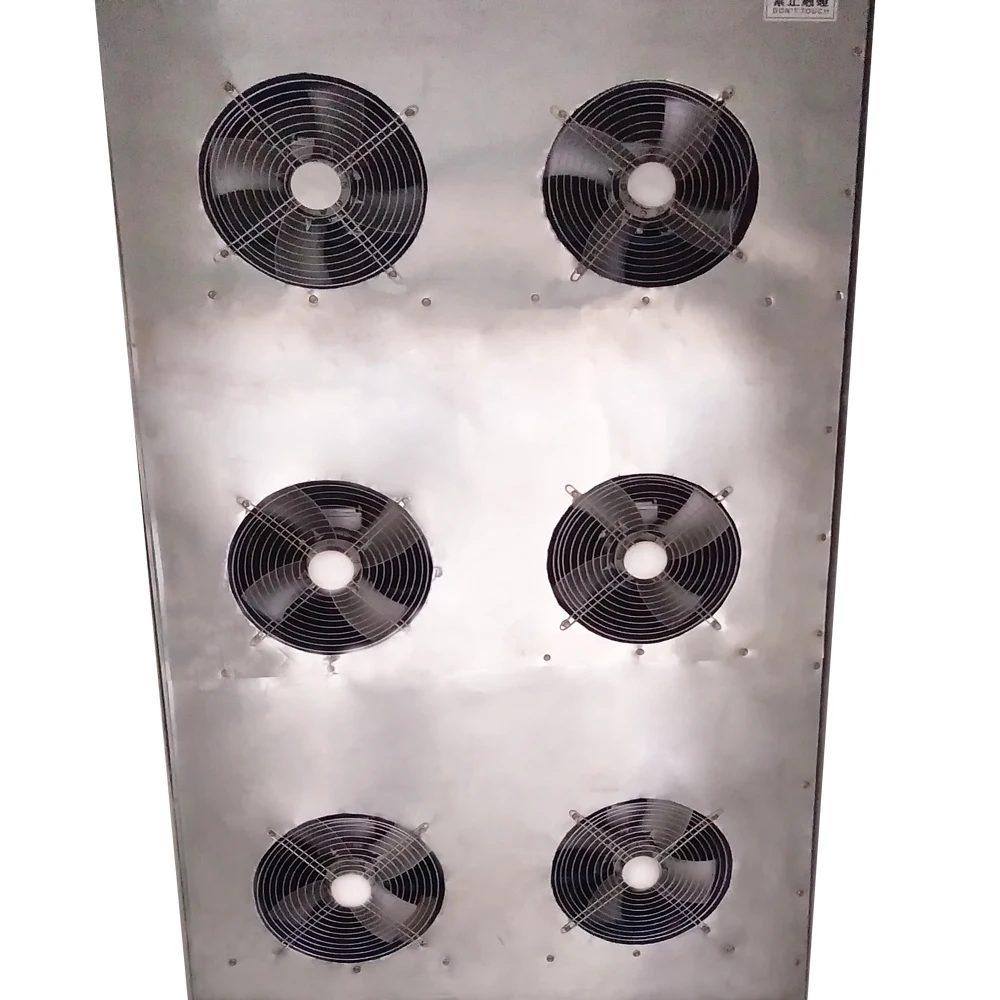

The working principle of the heat pump dryer is that the evaporator absorbs the heat of the surrounding air, through compressor becomes high temperature and high voltage gas, and then enters the indoor condenser, releases high temperature and heat into the drying room. The hot air draws out the water vapor of the materials. So as to achieve the purpose of drying.
Model | Unit | BX-17-03CH | BX-17-06CH | BX-17-10CH | BX-17-12CH |
Voltage | Kw | 380V/~220V/50hz | 380V/50hz | 380v/50hz | 380v,50hz |
Highest temperature | ℃ | 75 | 75 | 75 | 75 |
Weight | Kg | 180 | 285 | 380 | 500 |
Size | mm | 1675*860*1280 | 1760*1060*1280 | 2120*1356*1590 | 2120*1356*1590 |
Heat pump dryer is widely used and not affected by the climate, drying materials health and environmental protection, protect the quality of materials and color luster. It is mainly used for fruit and vegetable, flower, tea and traditional Chinese medicinal materials and agricultural and sideline products, seafood, paper wood, leather chemical medicine.
Henan Baixin is the largest drying equipment, food equipment research and development and production base in the Central Plains. The products are exported to more than 90 countries and regions in the world, and are deeply loved by customers.
Baixin Machinery covers an area of more than 20 mu, plant 5000 square meters, more than 200 assembly equipment. The company has more than ten years of industry practice experience,
more than 100 online employees, with advanced production technology team, marketing team, perfect after-sales team.
