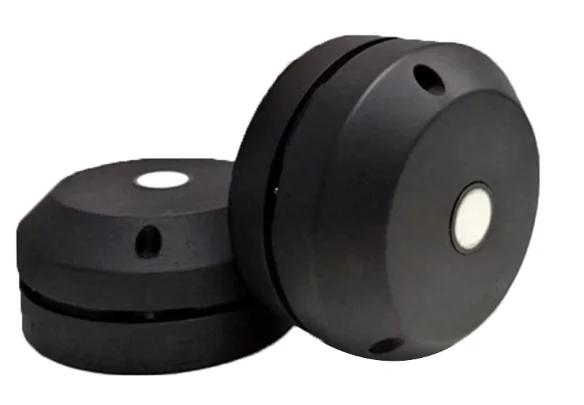

LoraWan Ultrasonic Waste Bin Detector

Product Overview

Description

 IUD47L is designed for waste bin (Trash Bin) status detection of waste Bin outside or inside used. It detect the several status for the customer of using place for the user.  Full,Empty,Flame risk,Inclined (fall) or not(Advanced version).

 With LoRaWAN® module, it transmits the pressure via gateway to networks server and application server. User can monitor the status remotely. It is optional for different frequency, such as 470Mhz (China), 868Mhz (Europe), 915Mhz(USA), 923Mhz (Australia). As it is with algorithm of low power consumption, the internal battery can work for more than 1 years for one charge (With different parameter, 3 years lifetime is realized).

Feature

1. Smart waste Bin detector is build through the LoRaWAN Module it can monitor the status given up for the user.  Customer can check its Trash Bin without visit place.

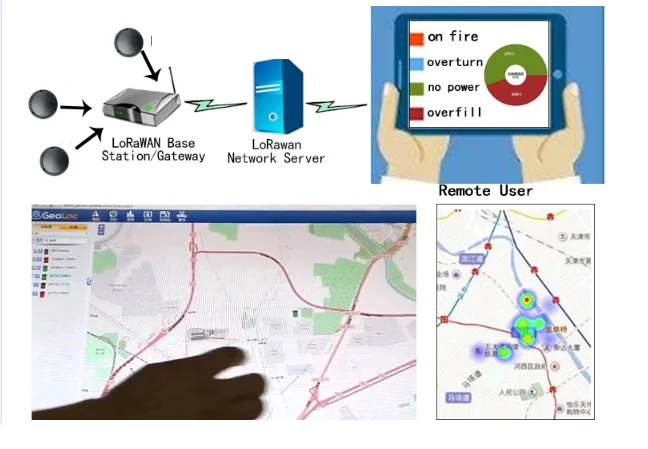

Through the built in with LoRaWAN it transmit the status via gateway to networks server and application server. User can monitor the status remotely.

2. It is optional for different frequency, such as 470Mhz (China), 868Mhz (Europe), 915Mhz(USA), 923Mhz (Australia,New Zealand).

3. Due to using of LoRaWAN Module it is very low power consumption for the uploading the data of monitor the device its internal battery life us more then 3 year. (at 4 hours interval upload interval).

4. Easy to install, suitable for covered or uncovered trash cans.

5. IP66 protection level, it can still work in the case of rain and other weather conditions.

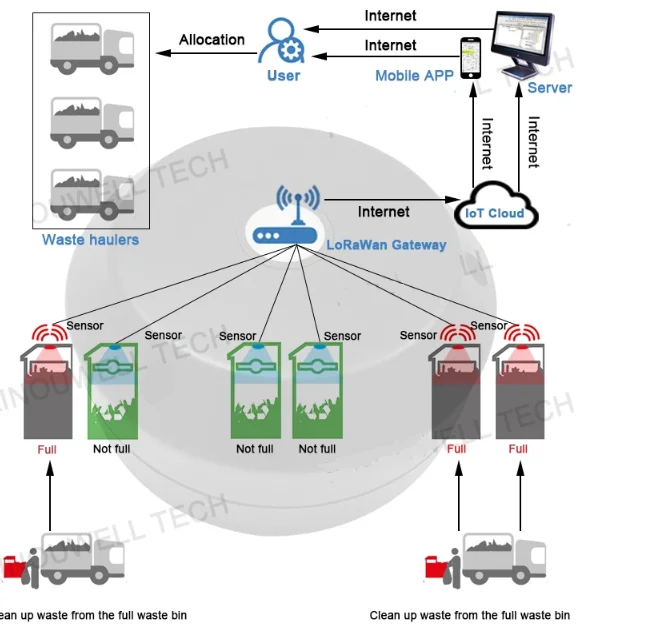

6. With the application software user can assign the collector resource work plan and route plan. Analyze task performance and find out solution to improve the system. Finally the objective of high efficiency , good environment, and low cost are achieved.

Parameters



Overview	Dimension	115*115*50mm
	Net Weight	150g
	Color	Black
	Shell Material	ABS
Detector	Principle	Ultrasonic@112kHz
	Detection Range	200cm(vertical)
	Blind area	15cm
	Accuracy of height	3mm
	Accuracy of temperature	2℃
	Accuracy of angel	2° (optional)
Controller	MCU	STM32, 32bit ARM® core controller
Radio	LoRa Module	Semtech® 1276
	Sensitivity	-137dbm@292bps (RX),5~20dbm(Tx)
	Frequency	LoRaWAN® CN470/EU868/US915/AS923Mhz
	Working Mode	Class A
	Activation	OTAA(default) or ABP activation
	Communication Distance	3km in view sight
Power	Internal Battery	Non-recharged Lithium Battery 10500mAh @ 3.6V
	Lifetime for one charge	More than 3 years at 4 hours report interval.
Environment	Operating Temperature	-20 ~ +70℃
	Storage Temperature	-40 ~ +85℃
	Protection Level	IP66
