Product Overview

Description

electric fence wire energizer for electric fence insulators Intrusion alarm system Security alarm fence



Functional characteristics

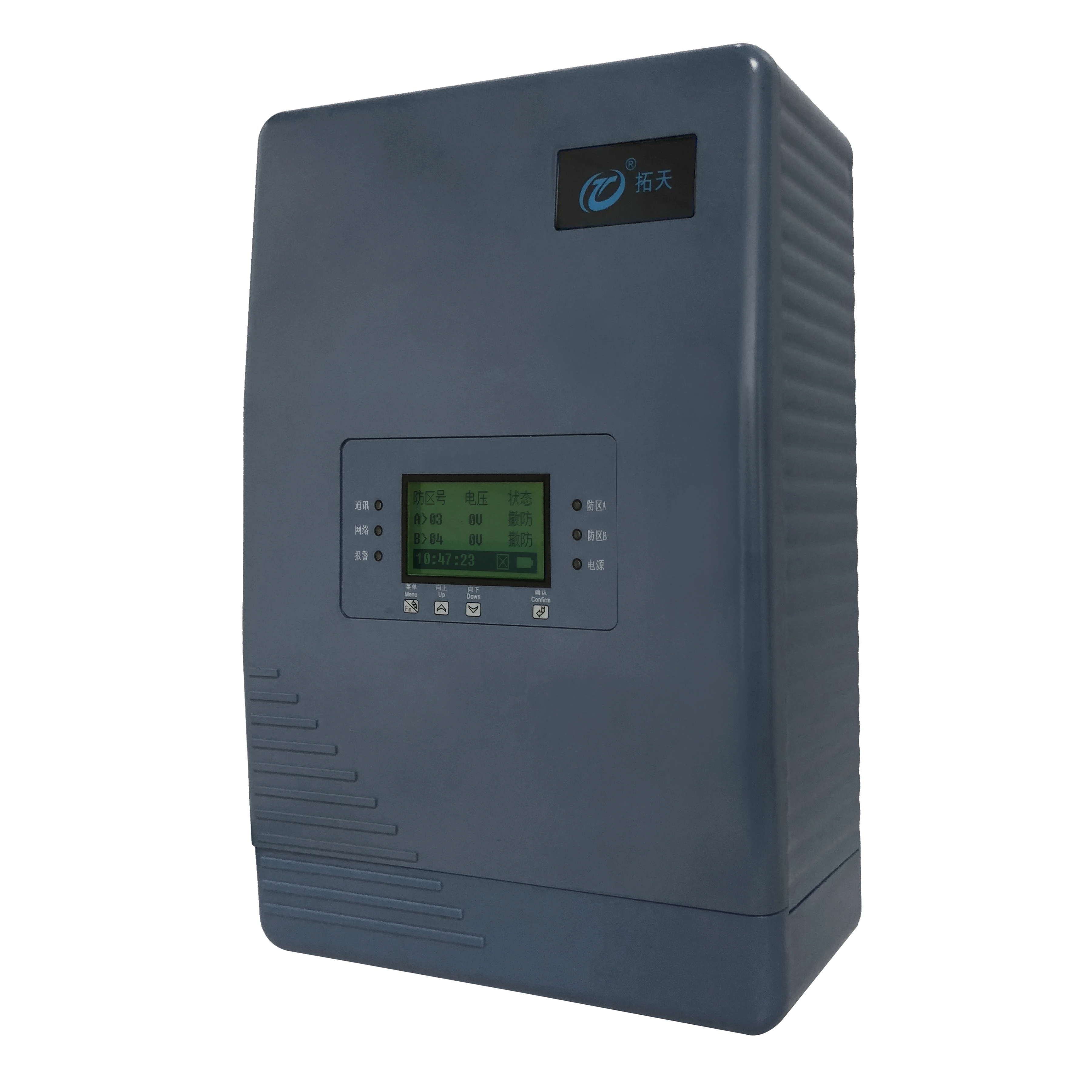

1. 3.0-inch LCD screen, which can directly reflect the operation status, operation time, defense area address and voltage value of the host;

2. RS485 and LAN communication (Network);

3. Alarm output of each defense area: switch value output and input;

4. The fence host can be separately controlled by remote control for deployment and removal of defense, with its own remote control to simplify operation;

5. High voltage and low voltage mode adjustment, adjustable voltage;

6. It can connect control keyboard and alarm host;

7. It can be connected to PC control software and totian app

8. It can be controlled remotely through server software;

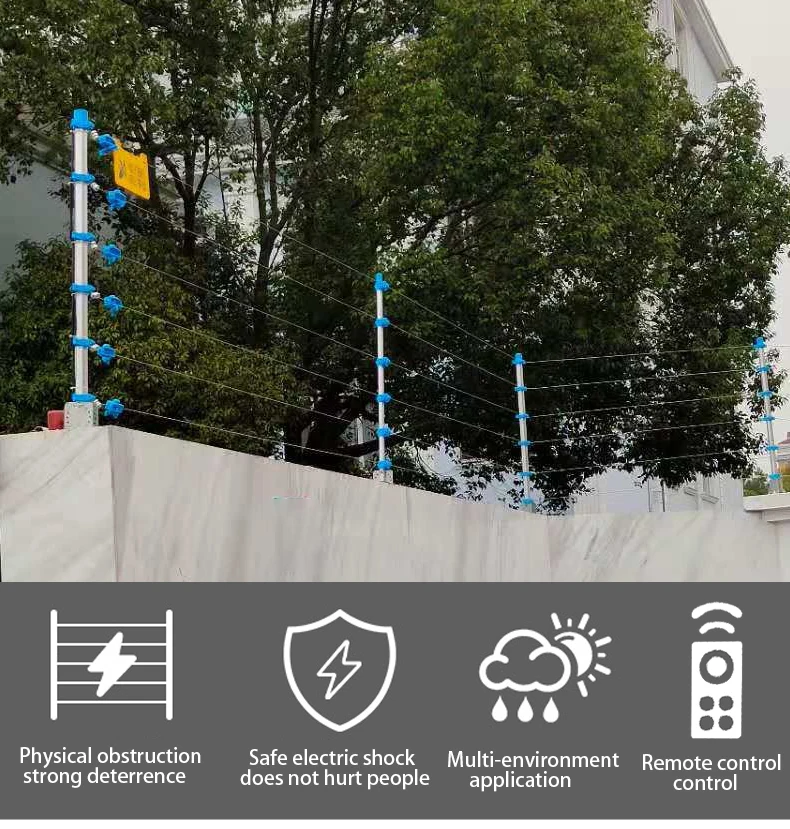

Pulse electric fence

Scope of application

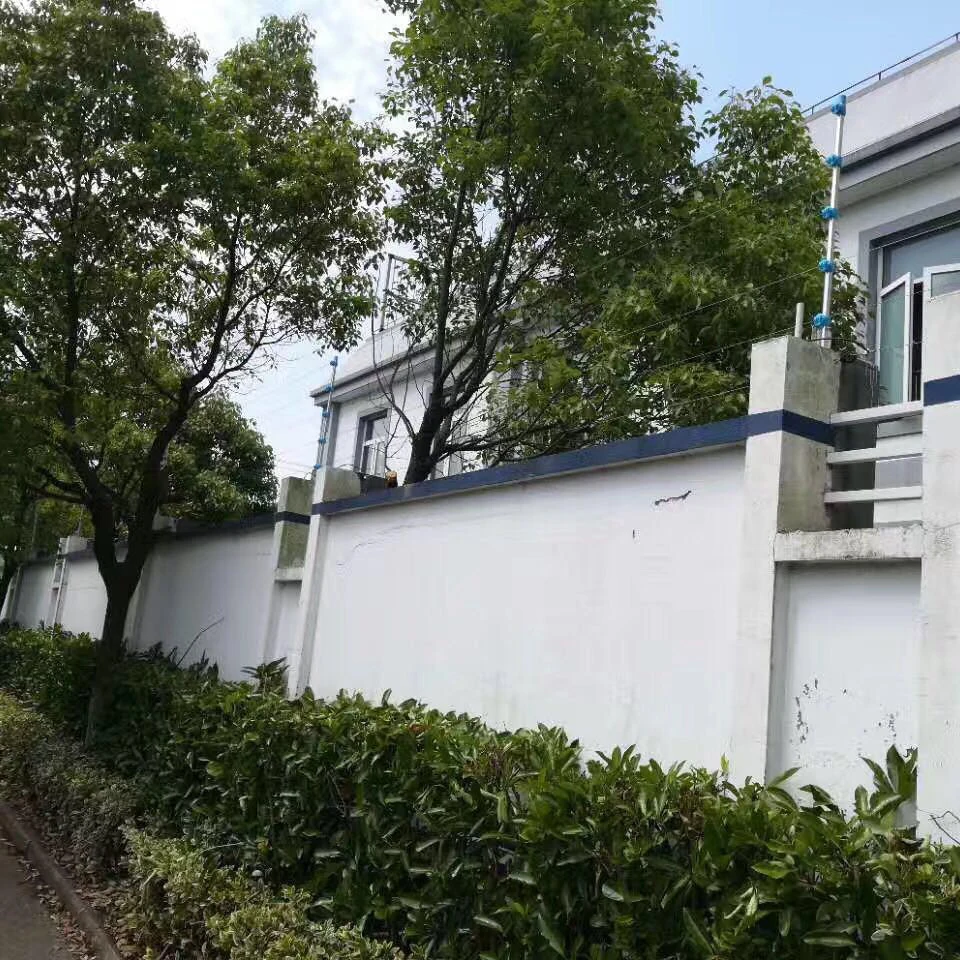

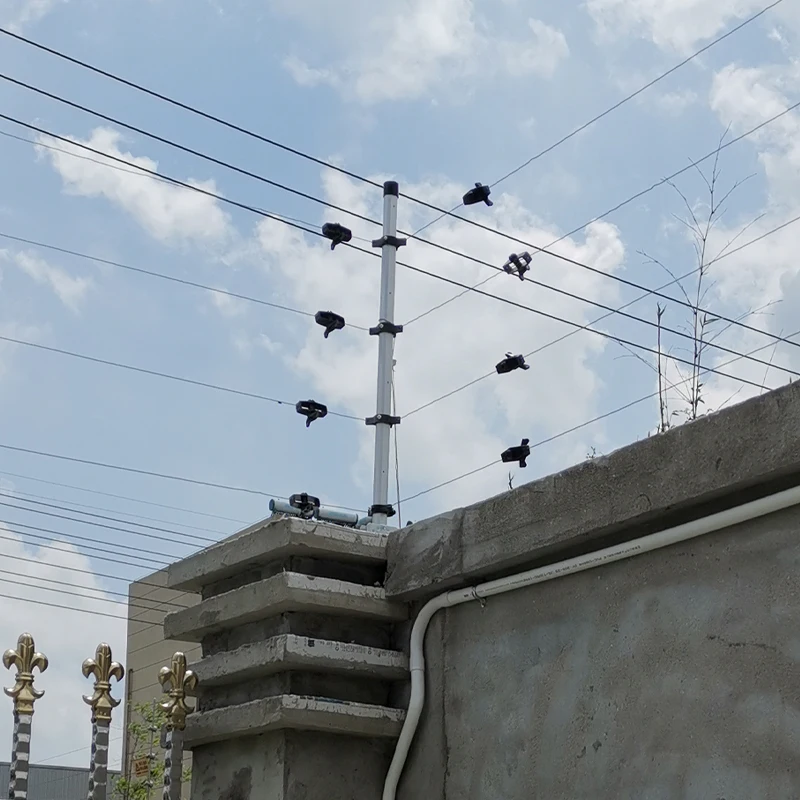

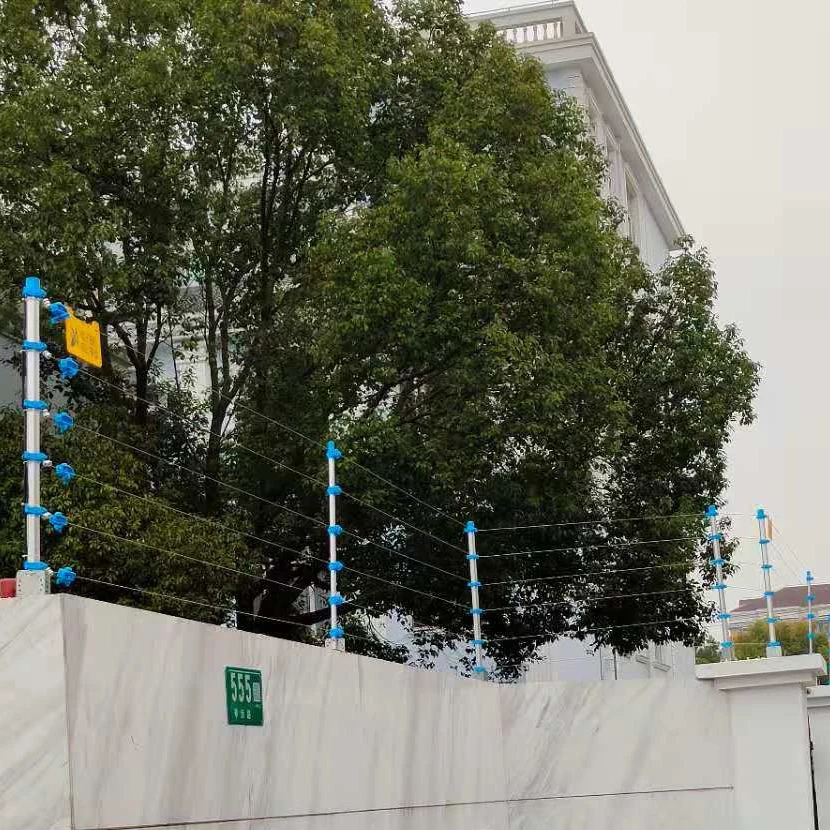

Communities, villas, factories, warehouses, schools, substations, military bases, museums, cultural relics protection areas, field camps, prisons, detention centers and other places!

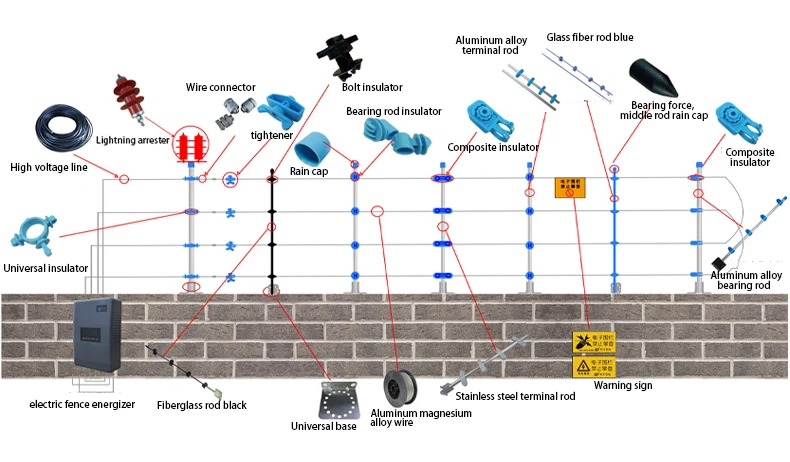

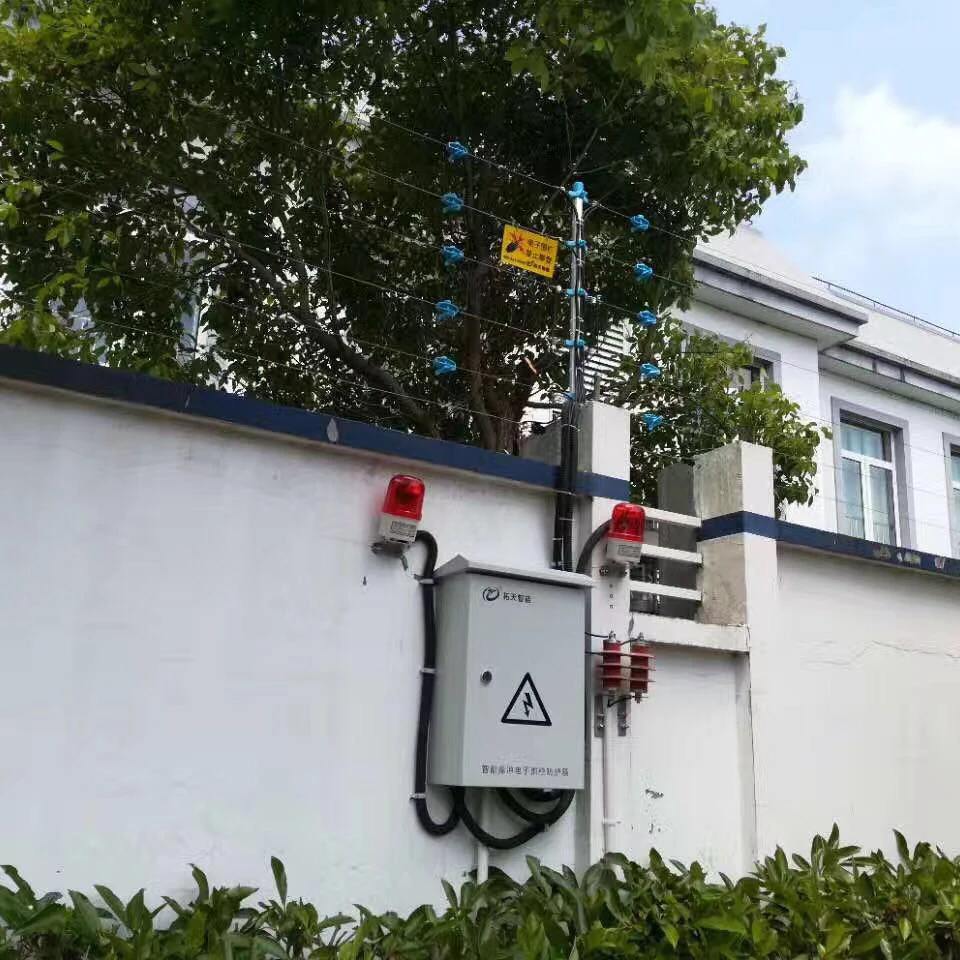

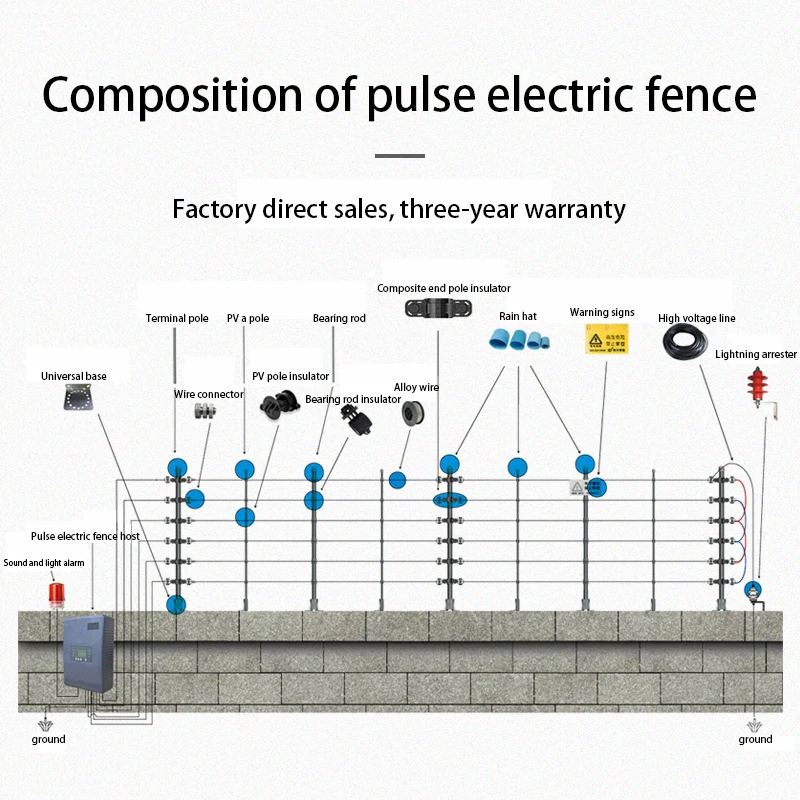

 Composition of electric fence

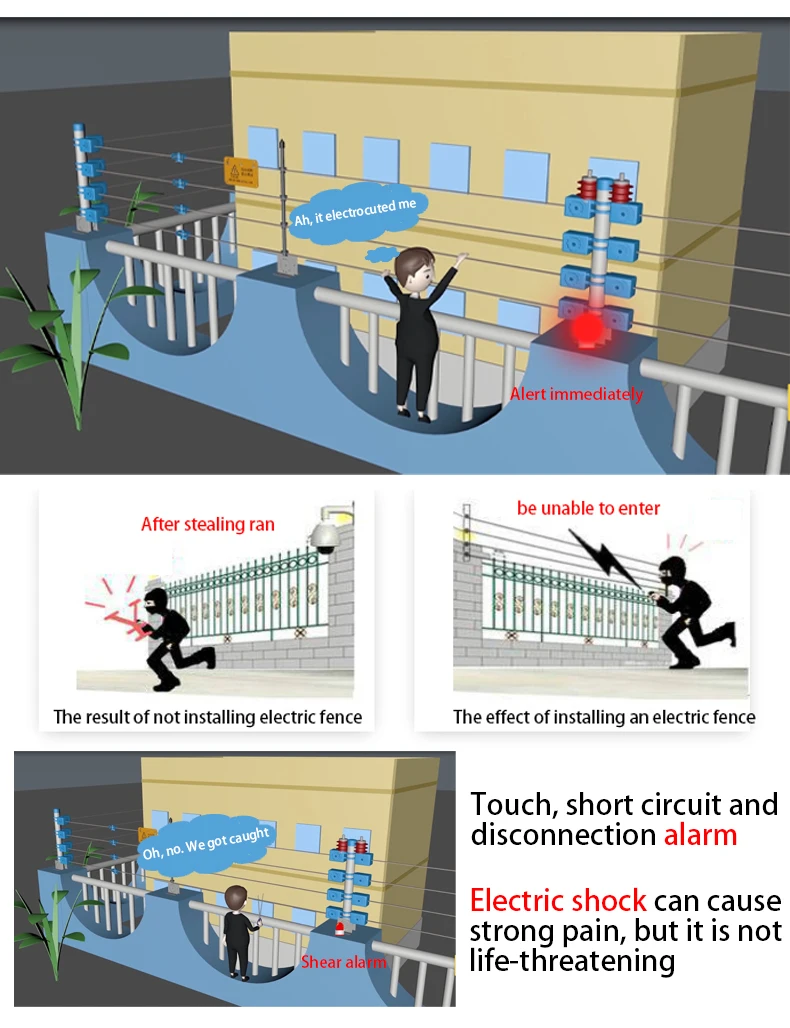

The high-voltage pulse electric fence system gives an instantaneous pulse electric shock to the intruder to deter him from crossing.



Device parameters

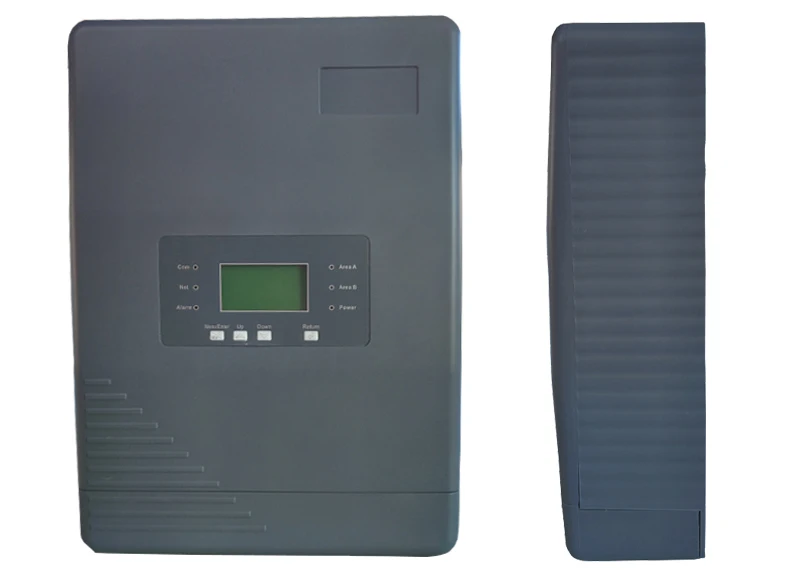

Equipment name:	High voltage pulse electronic fence
Model	TT-X3
Power supply voltage	110V~220V
Emergency power supply	Lithium battery 12.6V
Use environment	Temperature: - 25 ~ 55 ℃ humidity: ≤ 95%
High voltage output peak	4.0kv ~ 7.0kv (adjustable)
Low voltage output peak	0.6-1.5kv (adjustable)
Pulse duration	≤0.1s
Pulse interval time	1~1.5s
Maximum power output of pulse	≤2.5mc
Maximum energy of pulse output	≤5.0J
System power consumption	≤10W
