PVC fiber braided flexible hose making machine
- Category: >>>
- Supplier: Donguan Songhu Plastic Machinery Corp. Dalingshan Branch
Share on (62380984968):
Product Overview
Description
PVC/PU garden hose extrusion line / reinforced hose extruder machine

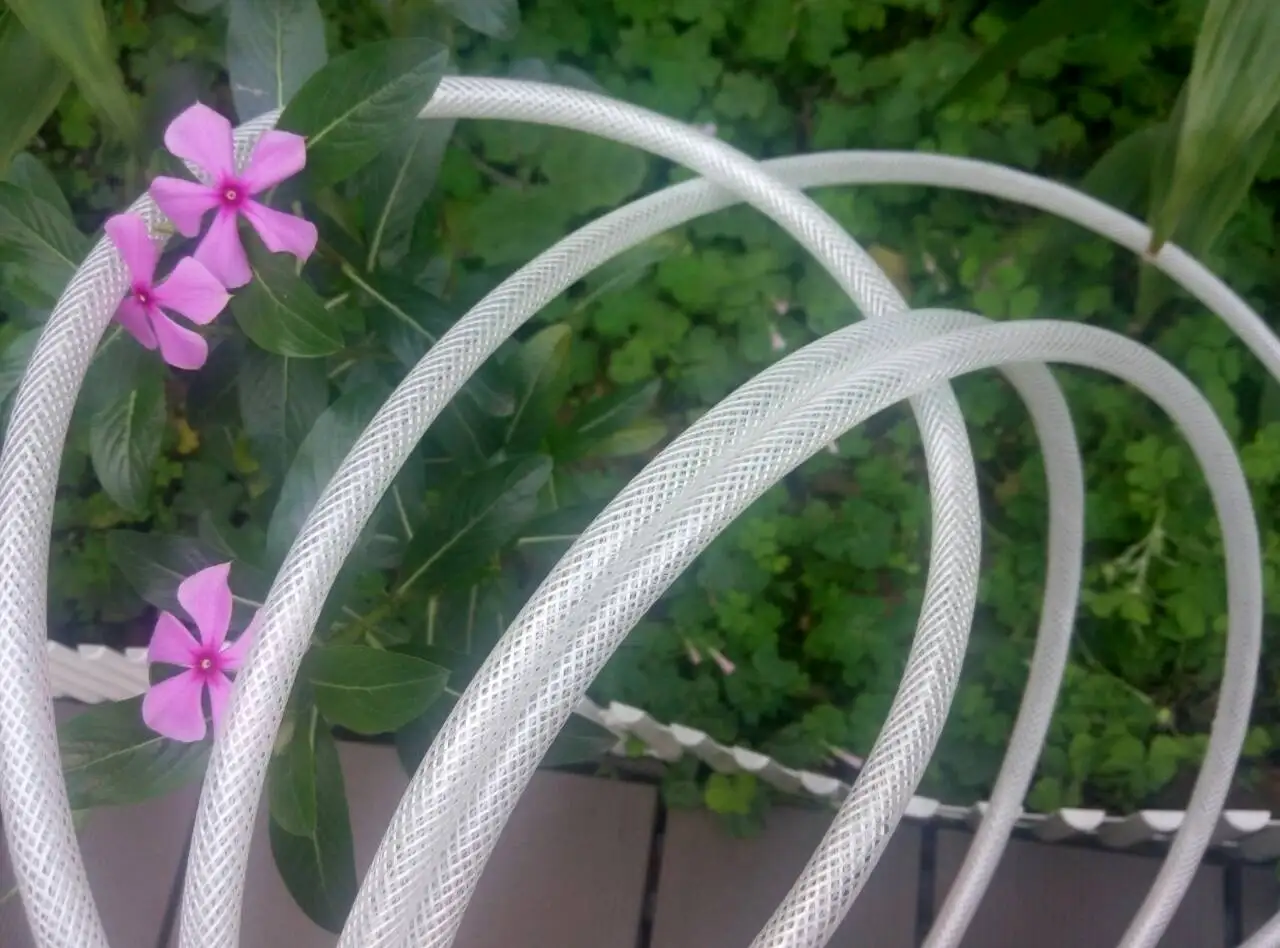

1.Application: It is applied to produce PVC fiber reinforced hose, the wall of which is three layers. Outer and inner layer are soft PVC hose, middle layer is Terylene fiber network, which has good chemical and physical property. It is mainly used for the transportation of high pressure or corrosive gas, and is widely used in the machinery; Coal mine, oil, chemical, agriculture irrigation, gas and building.pipe size range 0.5-2inch
2. MAIN TECHNICAL PARAMETER
Model | Tube size range (mm) | Screw Size(mm) | Screw L/D | Motor Power(KW) | Linear speed |
SHSJ-55 | 12-25mm | 55mm | 28:1 | 15KW | 6-8m/minute |
SHSJ-65 | 12-38mm | 65mm | 28:1 | 22KW | 6-8m/minute |

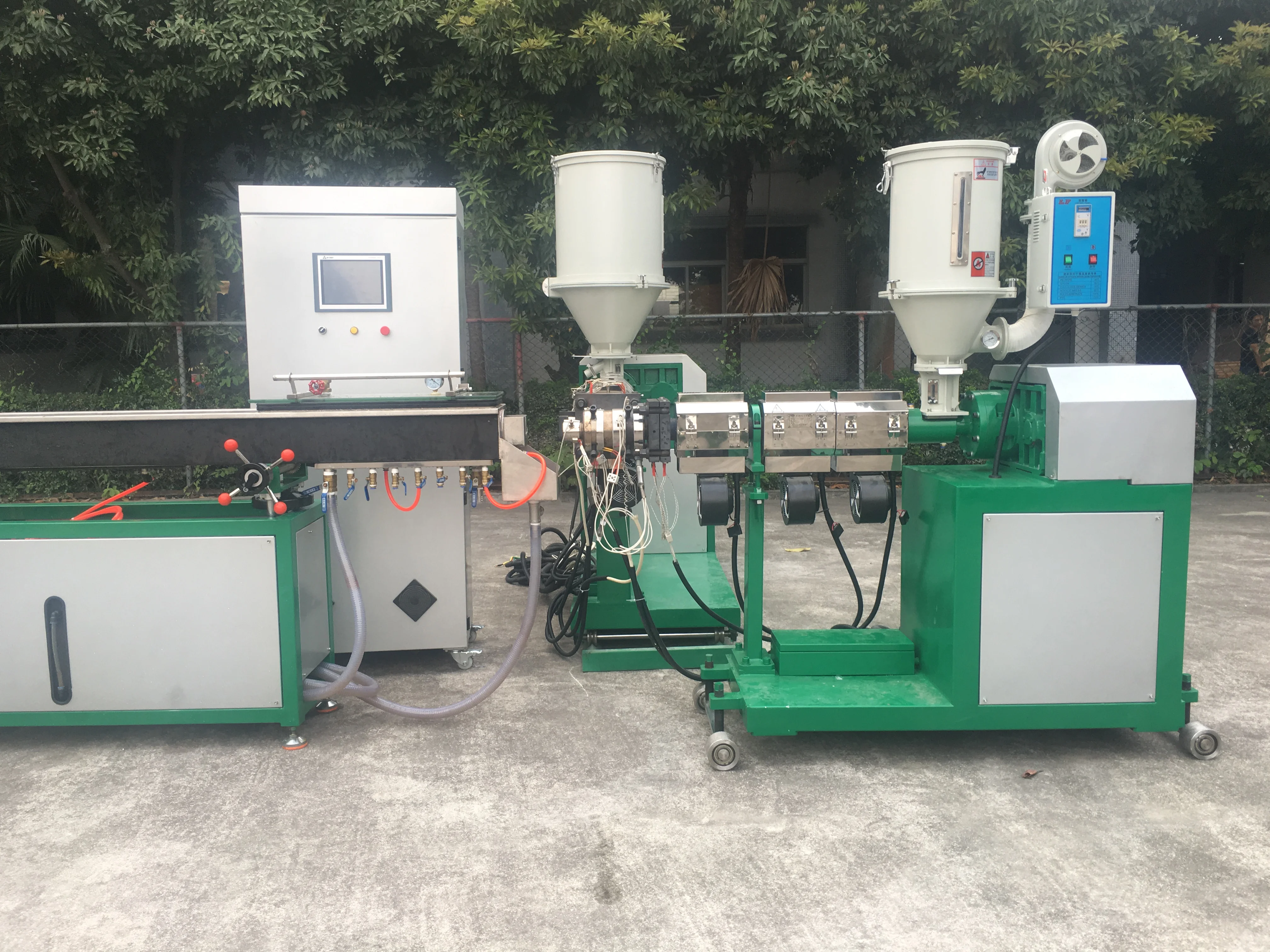

3 .PARTS LIST
No. | Parts Description | Specification | Quantity |
1 | (First) Hopper Dryer | 50kg | 1 set |
2 | First Extruder (Inner layer) | Φ55*28D | 1 set |

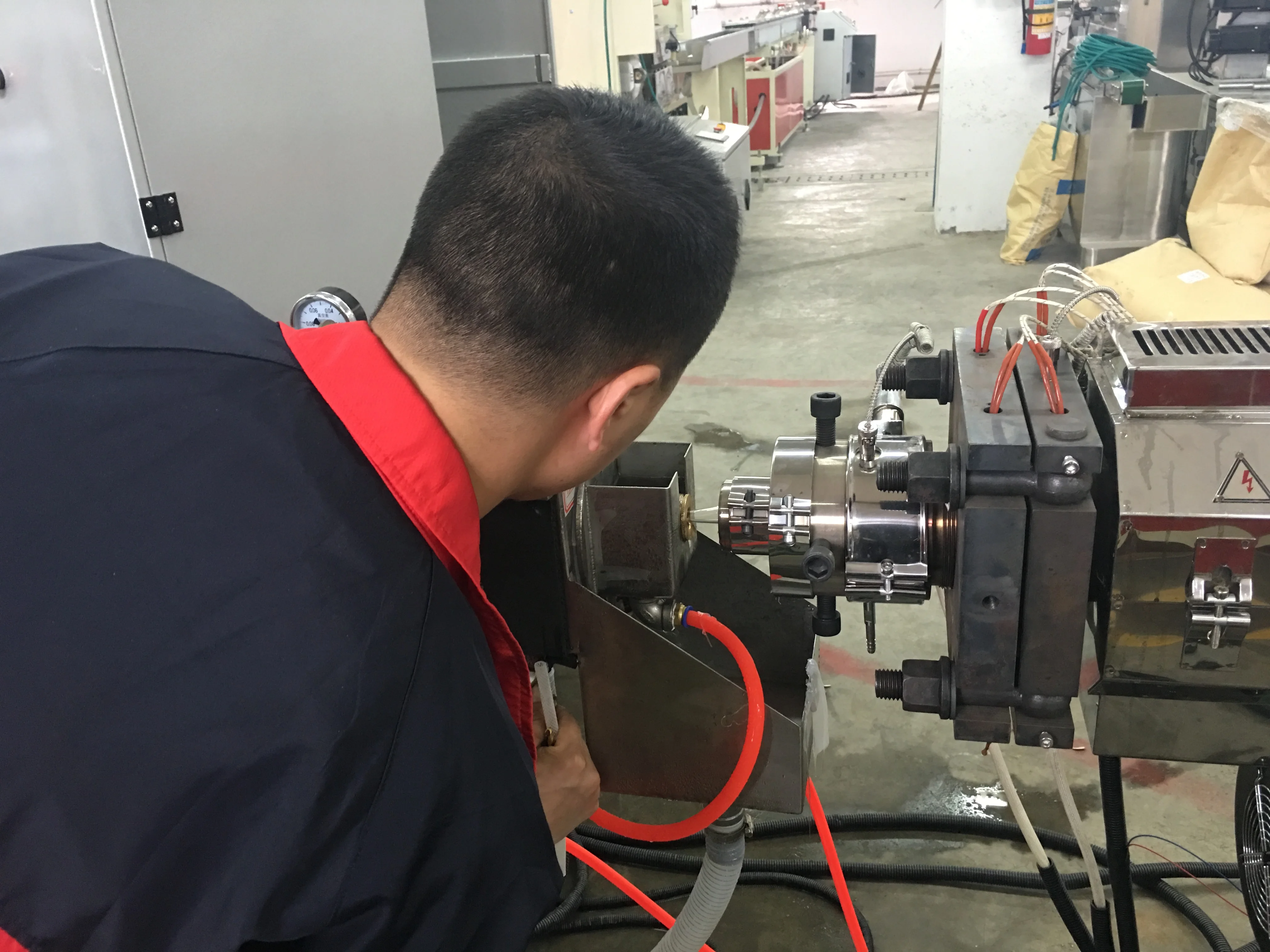

3 | Inner Pipe Die head |
| 1 set |

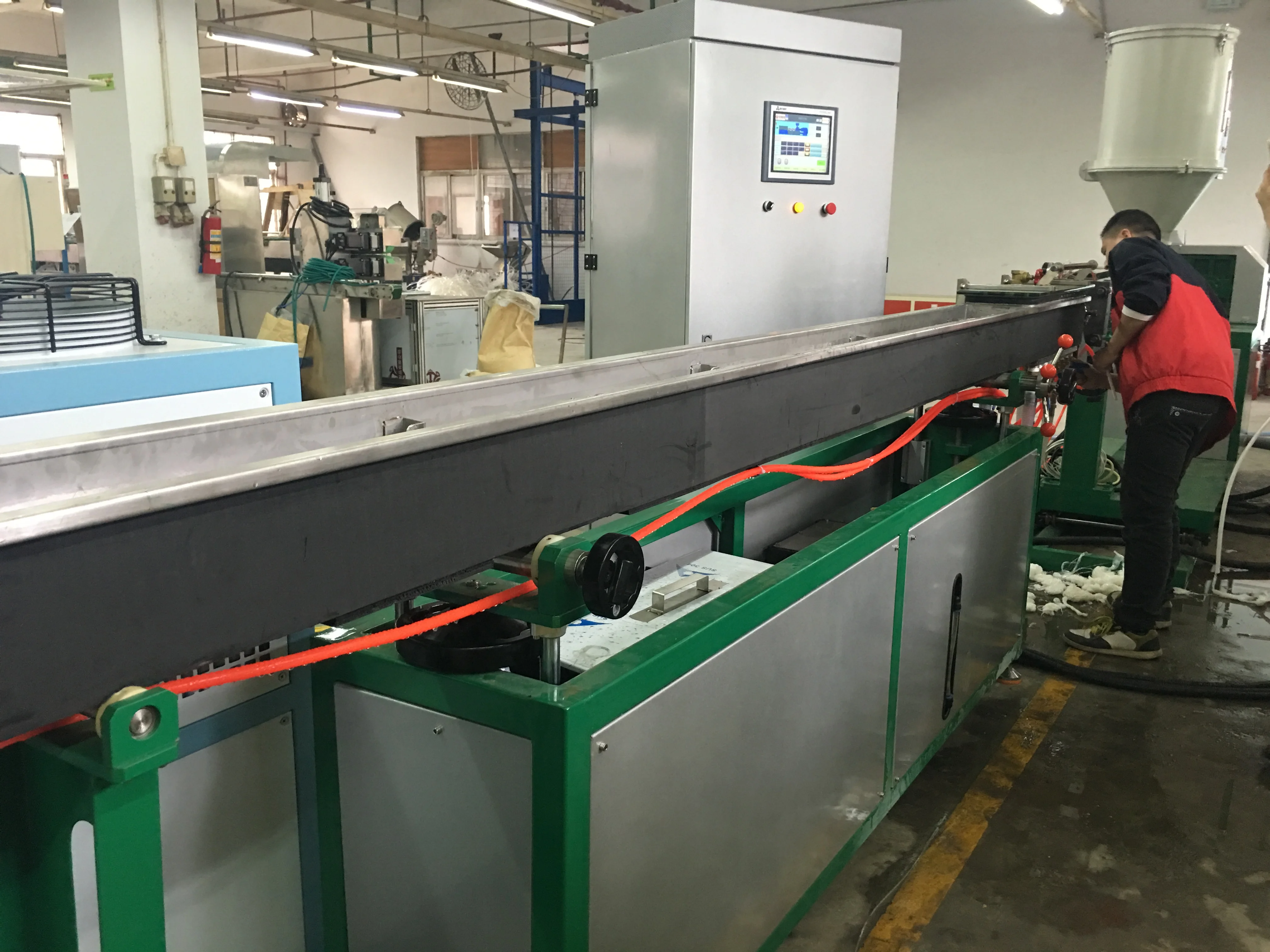

4 | (First) Water Cooling Tank | 4m | 1 set |
5 | (First)Haul-off Machine | PUwear-resistance belt | 1 set |

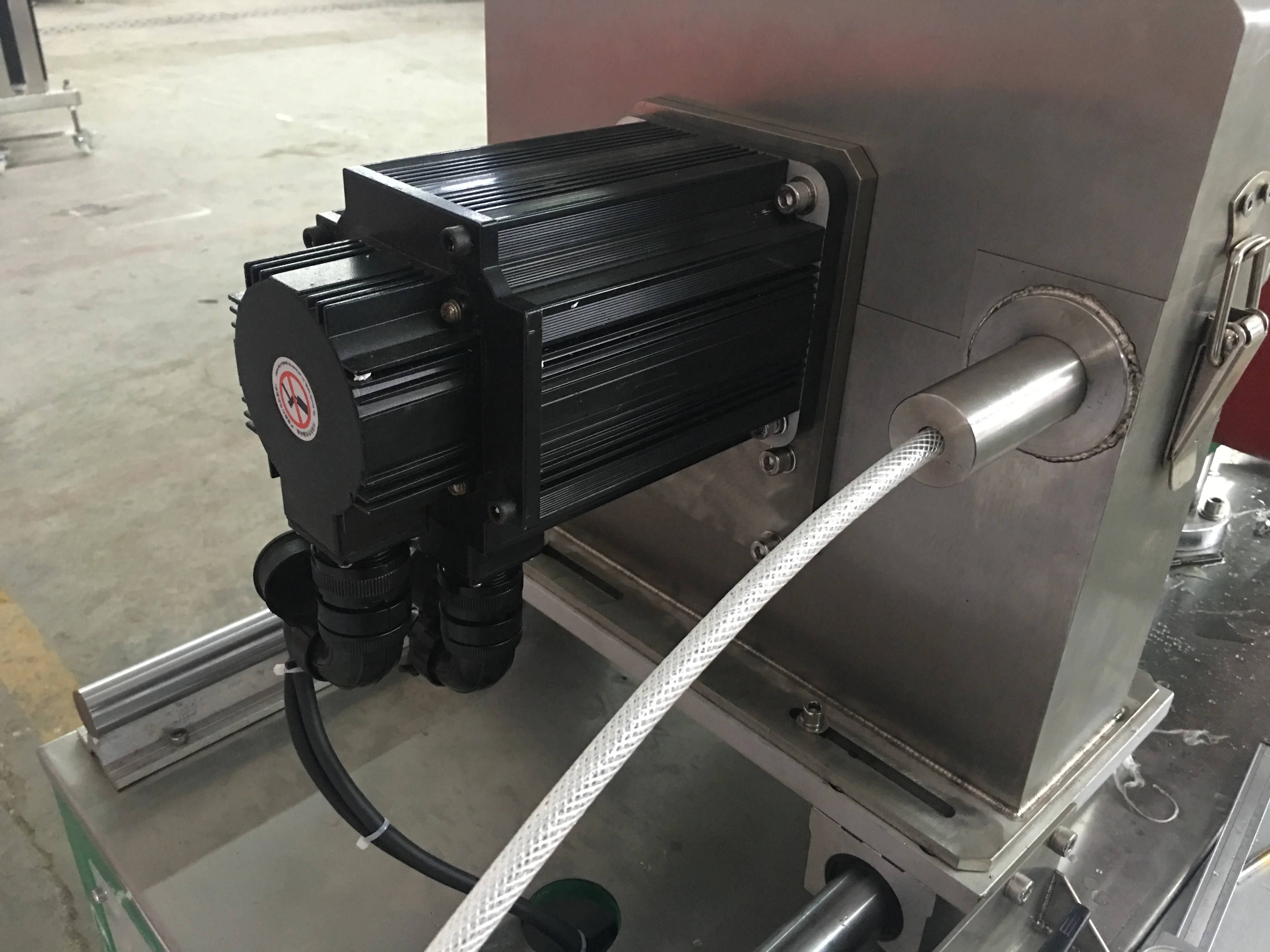

6 | Fiber braiding machine | Face to Face structure | 1 set |
7 | (Second) Hopper Dryer | 75kg | 1 set |
8 | (Second) Extruder(external layer) | Φ65*28D | 1 set |
9 | External layer Covering Die Head |
| 1 set |
10 | (Second)Water Cooling Tank | 4m | 1 set |
11 | (Second) Haul-off Machine | PU wear-resistance belt | 1 set |
12 | Dual Station winding unit | 100m | 1 set |
