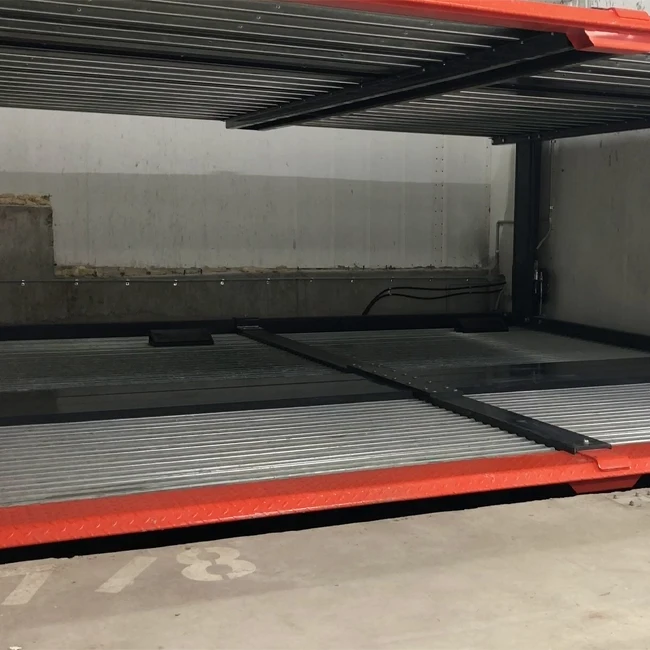

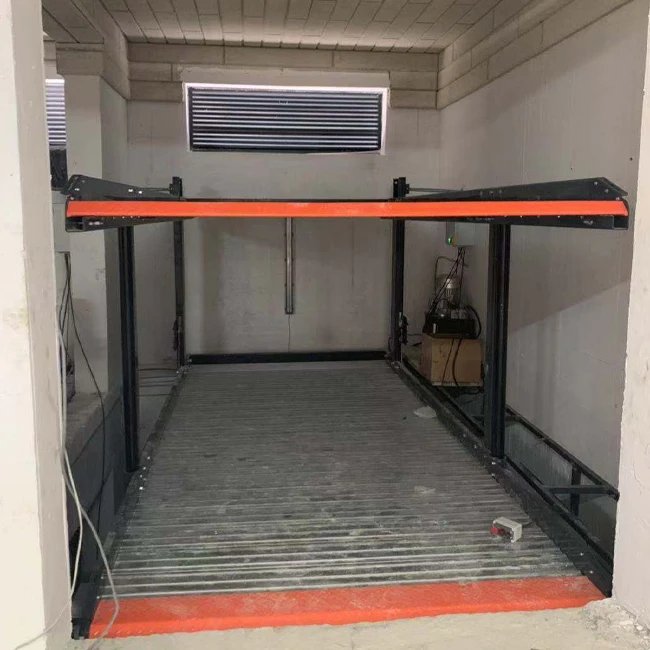

Residential Pit Garage Parking Underground Car Lift Elevator
- Category: Parking Equipment >>>
- Supplier: Qingdao Mutrade Co. Ltd
Share on (62381105305):
Product Overview
Description
Product Description
Technical Details

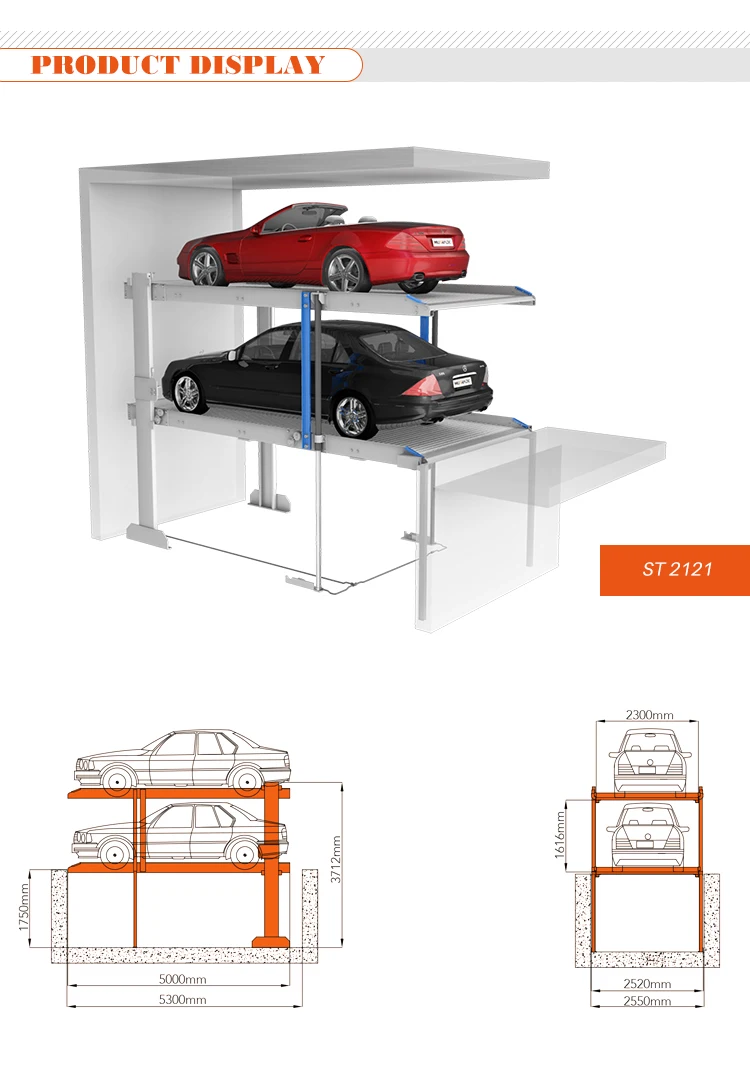

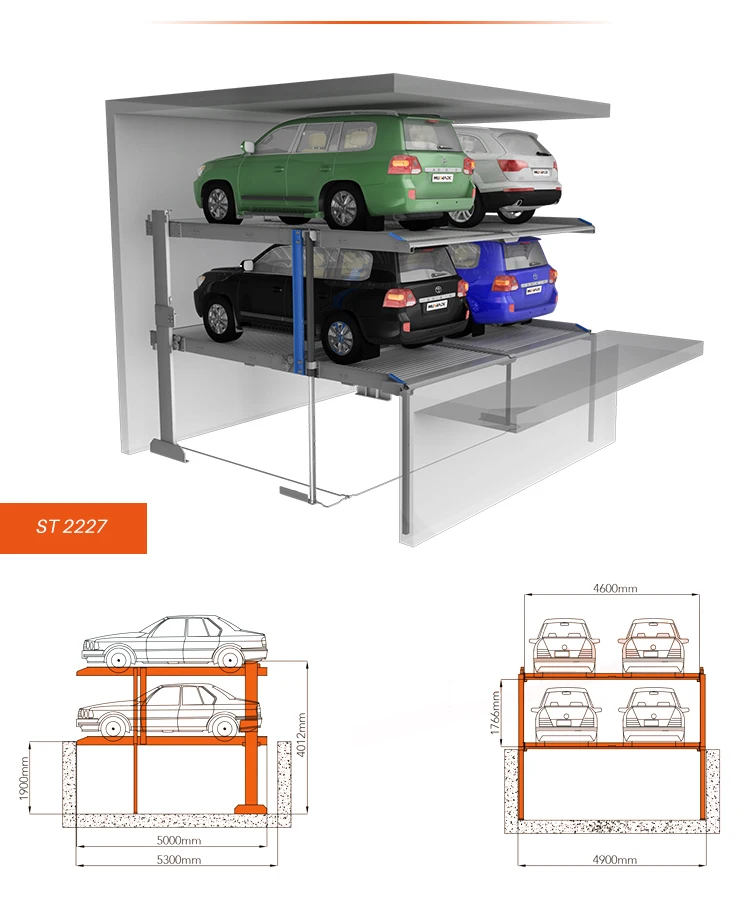

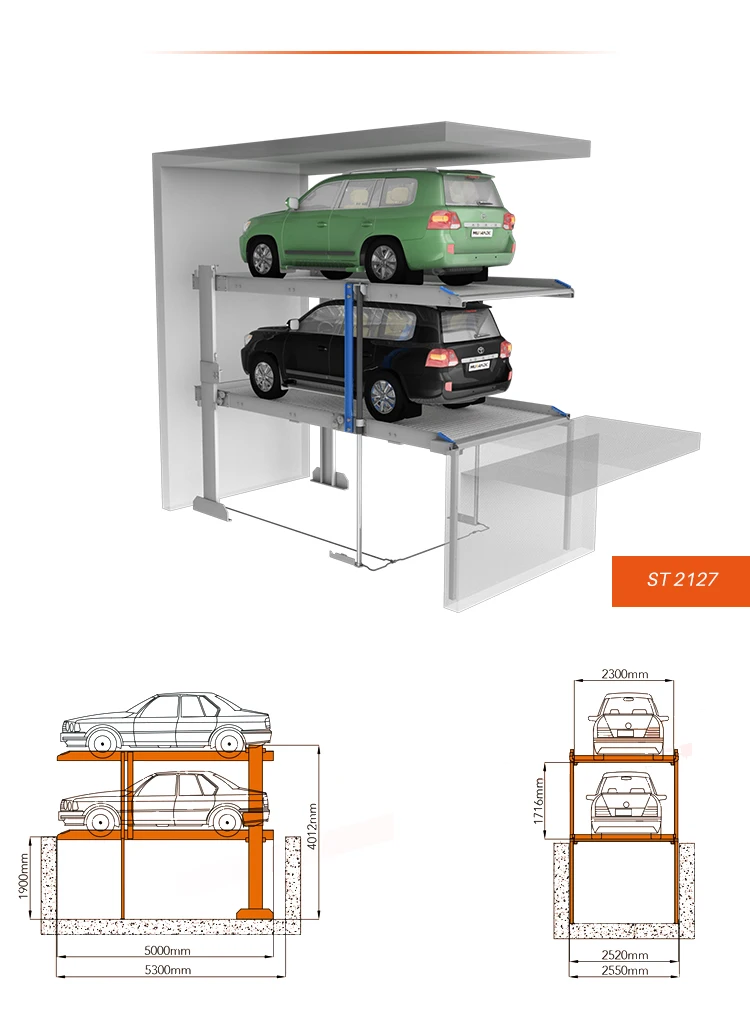

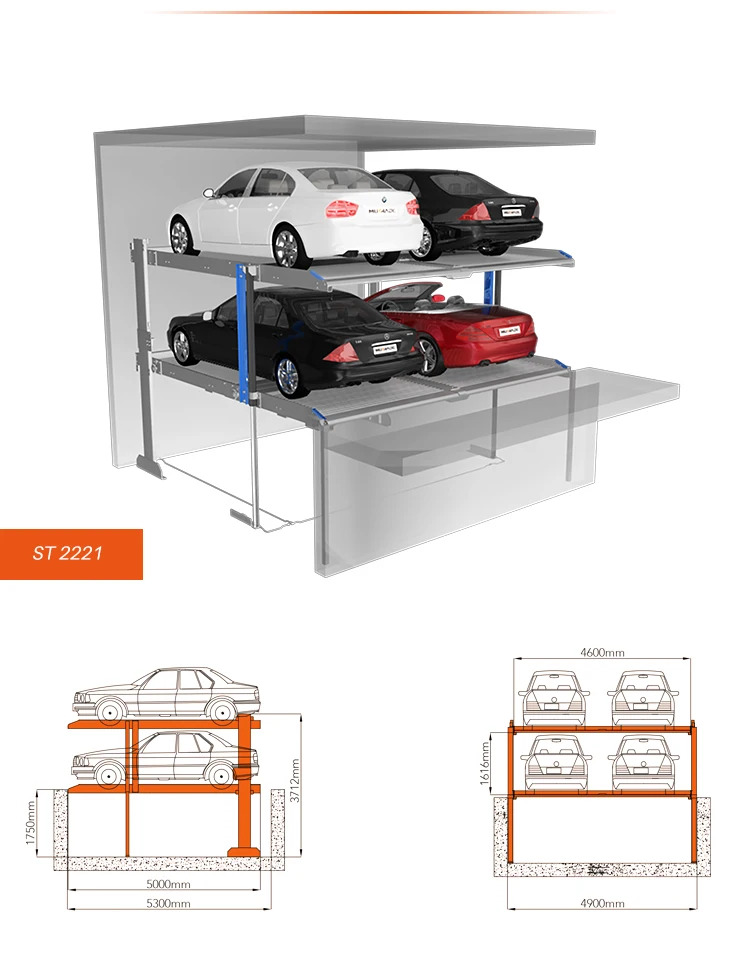

Model | Starke 2227 | Starke 2221 | Starke 2127 | Starke 2121 |
Vehicles parked per unit | 4 | 4 | 2 | 2 |
Rated capacity | 2700kg | 2100kg | 2700kg | 2100kg |
Available car length | 5000mm | 5000mm | 5000mm | 5000mm |
Available car width | 2050mm | 2050mm | 2050mm | 2050mm |
Available car height | 1700mm | 1550mm | 1700mm | 1550mm |
Waving plate | Galvanized steel sheet | Galvanized steel sheet | Galvanized steel sheet | Galvanized steel sheet |
Drive mode | Hydraulic cylinder + chains | Hydraulic cylinder + chains | Hydraulic cylinder + chains | Hydraulic cylinder + chains |
Operation | Key switch | Key switch | Key switch | Key switch |
Lifting speed | 55s | 55s | 35s | 30s |
Descending speed | 35s | 35s | 25s | 25s |
Power supply | 200–480V, 3P, 50/60Hz | 200–480V, 3P, 50/60Hz | 200–480V, 3P, 50/60Hz | 200–480V, 3P, 50/60Hz |

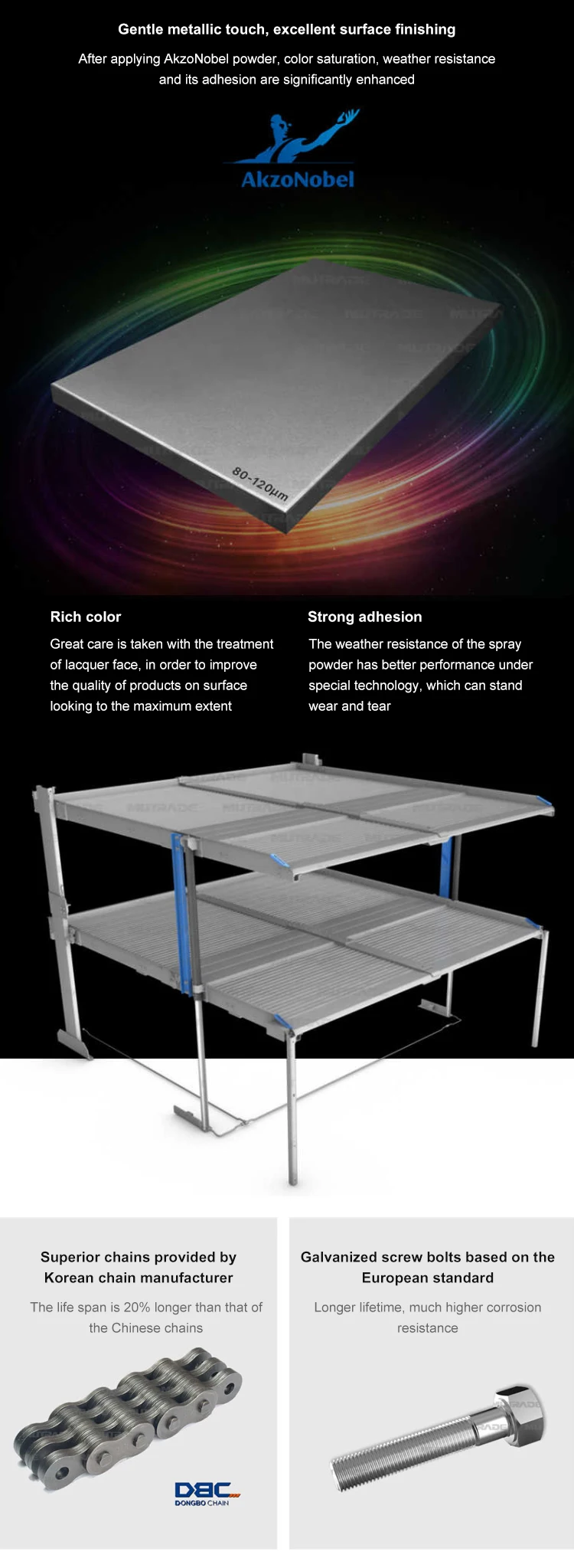

Finishing | Powder coating with Akzo Nobel powder | Powder coating with Akzo Nobel powder | Powder coating with Akzo Nobel powder | Powder coating with Akzo Nobel powder |
Project Case
Related Products
Our Company
Certifications
Customer Photos
FAQ
1. How many cars could be parked for each unit?
2 cars. One is on the ground and another is on the platform.
2. Could Hydro-Park 1123 be used for parking SUV?
Yes, the rated capacity of Hydro-Park 1123 is 2300kg, and maximum capacity is 2500kg, many types can be available.
3. Can Hydro-Park 1123 be used outdoor?
Hydro-Park 1123 is capable for both indoor and outdoor use . The fnishing is powder coating and plate cover is galvanized, with
rust-proof and rain-proof. When used indoor, you need consider the ceiling height.
4. What's the supply voltage?
Standard voltage is 220v, 50/60Hz, 1Phase. Other voltages could be customized according to clients' request.
5. Is the operation easy?
Yes. Keep holding the key switch to operate the equipment, which will stop at once if your hand releases.
6. Can this product still operate if electricity failure happens?
The platform can be descended even if there is no electricity. Firstly you need manually keep two electromagnetic lock retrieve to
release the mechanical anti-falling lock, meanwhile the solenoid valve on the power unit can be opened manually to make hydraulicoil go back to oil tank, then the platform will descend by gravity
2 cars. One is on the ground and another is on the platform.
2. Could Hydro-Park 1123 be used for parking SUV?
Yes, the rated capacity of Hydro-Park 1123 is 2300kg, and maximum capacity is 2500kg, many types can be available.
3. Can Hydro-Park 1123 be used outdoor?
Hydro-Park 1123 is capable for both indoor and outdoor use . The fnishing is powder coating and plate cover is galvanized, with
rust-proof and rain-proof. When used indoor, you need consider the ceiling height.
4. What's the supply voltage?
Standard voltage is 220v, 50/60Hz, 1Phase. Other voltages could be customized according to clients' request.
5. Is the operation easy?
Yes. Keep holding the key switch to operate the equipment, which will stop at once if your hand releases.
6. Can this product still operate if electricity failure happens?
The platform can be descended even if there is no electricity. Firstly you need manually keep two electromagnetic lock retrieve to
release the mechanical anti-falling lock, meanwhile the solenoid valve on the power unit can be opened manually to make hydraulicoil go back to oil tank, then the platform will descend by gravity
