Handheld GNSS receiver with Trimble Board for sale U22T
- Category: >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (62381335423):
Product Overview
Description

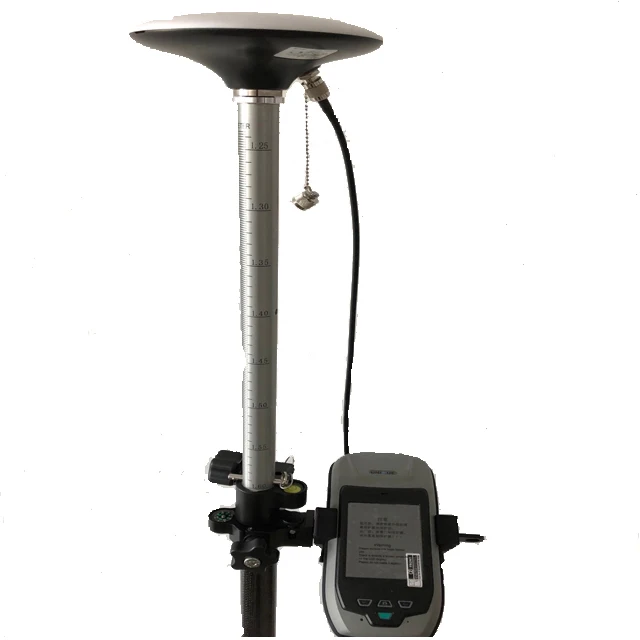

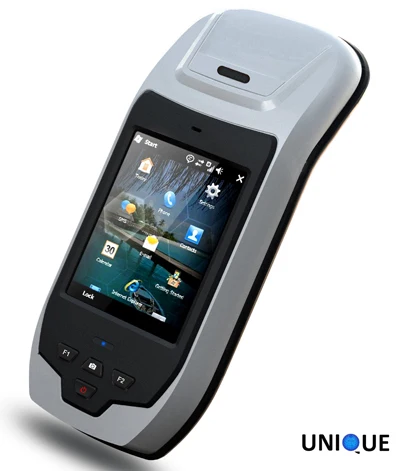

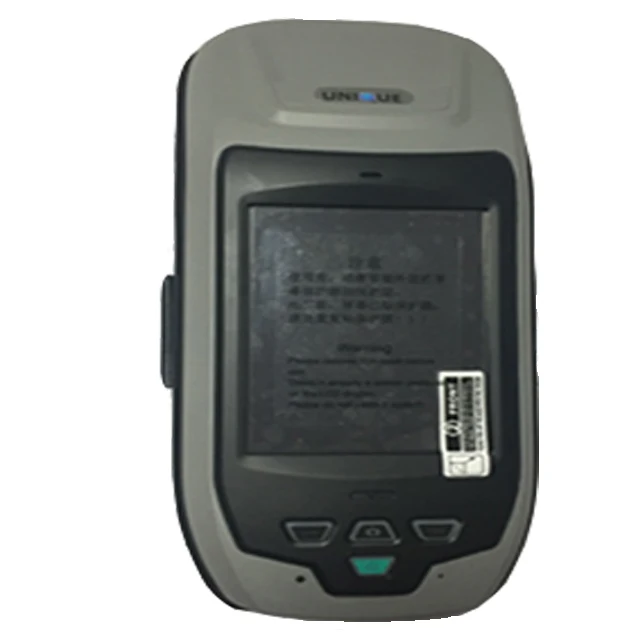

Handheld GNSS receiver with Trimble Board for sale U22T
https://www.alibaba.com/product-detail/GPS-manufacturer-surveying-RTK-GNSS-M8_62019600474.html?spm=a2700.7724838.2017115.45.23e55795NDuwu1
Applications
The U22 integrates wireless platform, professional GNSS, to facilitate data collection in any environment.
Data transfer and download is available via various communication systems.
The U22 adopts industry-leading standard design, suitable for field and low temperature operating environment,
widely used in electrical inspection, land management, forestry census, survey, supply chain management and other fields. With advanced technologies, the U22 facilitates industry information construction.
Features
The U22 handheld RTK receiver adopts Microsoft's Windows Mobile 6.X operating system,
integrating professional GNSS module, camera, 3G/2G communication, HD touch screen, Bluetooth and WiFi, RS232 port, to achieve real-time data acquisition and processing without time/space restriction.
The U22 features compact and light, ergonomic design, easy to use and carry,
IP65 industrial grade protection, 1.2 meter drop protection, rugged.
Product Description
| System | Windows Mobile 6.x |
| Chinese/English/French/Japanese/Russian etc | |
| High speed 800MHz,32-bit ARM processor,256M DDR RAM,1GB storage. | |
| Latest variable frequency and voltage regulation technology,low power consumption. | |
| 5MP HD camera,speaker and microphone,convenient data collection in field at any time | |
| Replaceable 6200mAh Li-ion batteries,long working hours | |
| GNSS Performance | Professional GNSS moduleand and measurement level GNSS Antenna,support external antenna |
| GNSS GPS L1/L2 | |
| GLONASS L1/L2 | |
| RTK(level) Built-in antenna accuracy:less than 10cm | |
| External antenna accuracy:2cm+2ppm | |
| Post-processing accuracy Less than 5cm(built-in antenna) | |

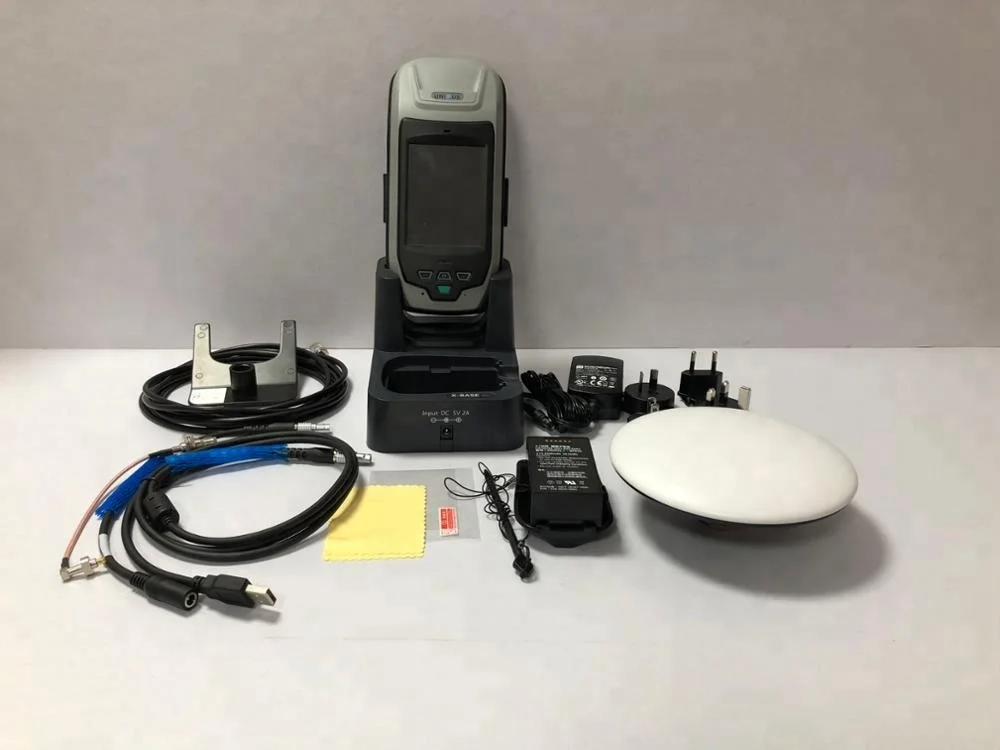

| Standard Accessories | Large-capacity Li-lon batteries(6200 mAh,3.7V) |
| Professional kits | |
| Professional touch pen,USB data cable | |
| AC charger(Input:110-240V,Output:5V,1000mA) | |
| 4G,TF card | |
| Cradle charger,serial cable | |
| Communication | Bluetooth/WIFI,RS232 |
| 3G/WCDMA, compatible 2G(850/900/1800/1900,850/2100 HSPA+) | |
| Physical | Dimension:210mm×95mm×45mm |
| Weight:575g(including battery) | |
| Environment | Operating Temperature:-20~+60°C |
| Storage Temperature:-30~+70°C | |
| IP Protection: IP65,1.2.0m free-fall drop | |
| Position accuracy is directly related to the surrounding environment.Blocking,large reflecting surface and electromagnetic interferenetic will affect the position accuracy. |
Our Services
1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
