Lithium ion Polymer Battery 955565 3.7V 5000mAh Li polymer Battery
- Category: >>>
- Supplier: Dongguan Fly Energy Technology Co. Ltd.
Share on (62381923219):
Product Overview
Description
Product Description

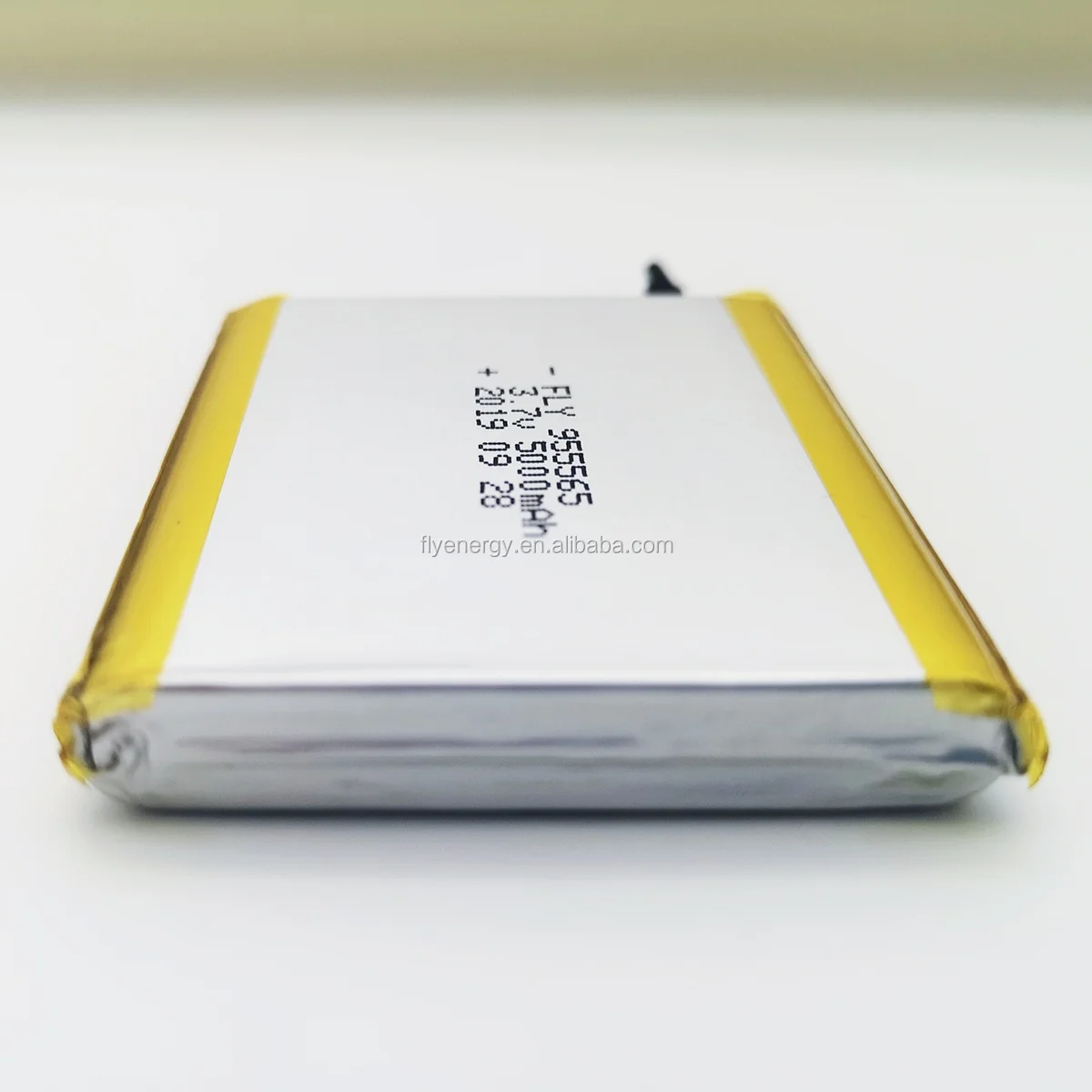

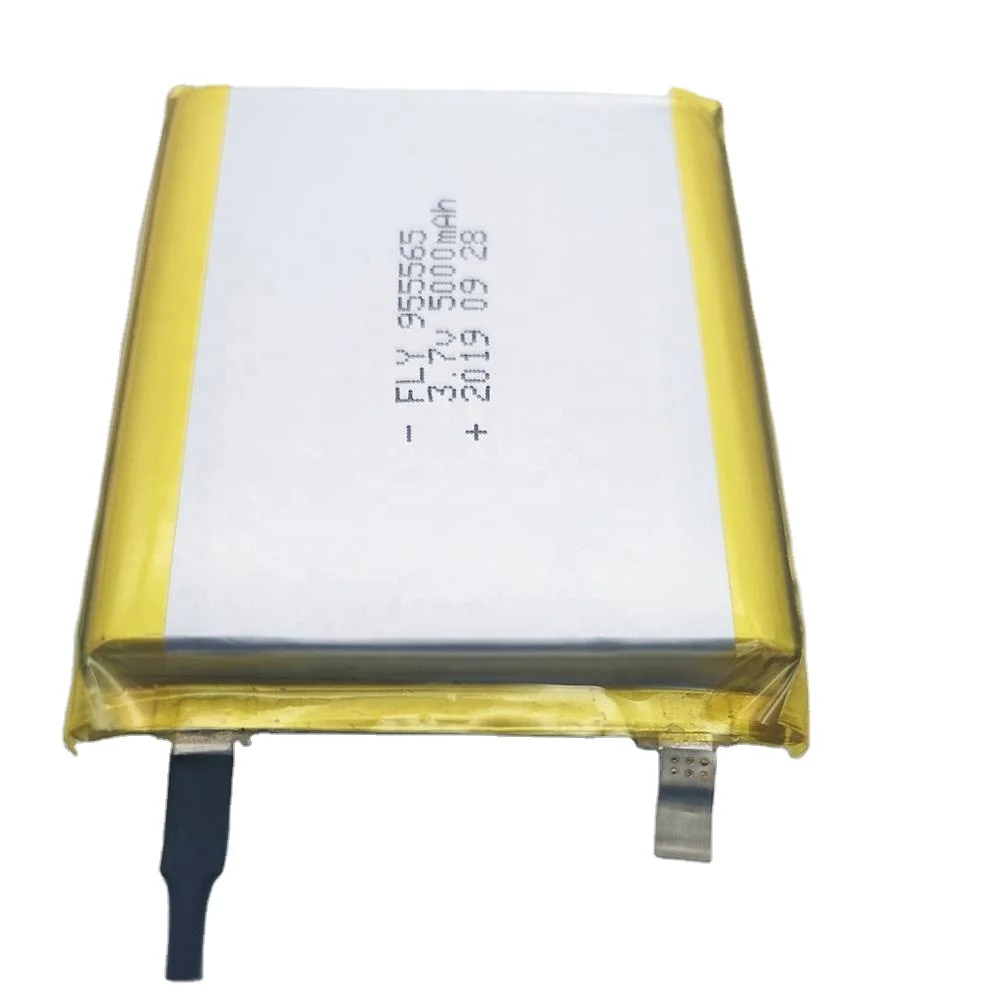

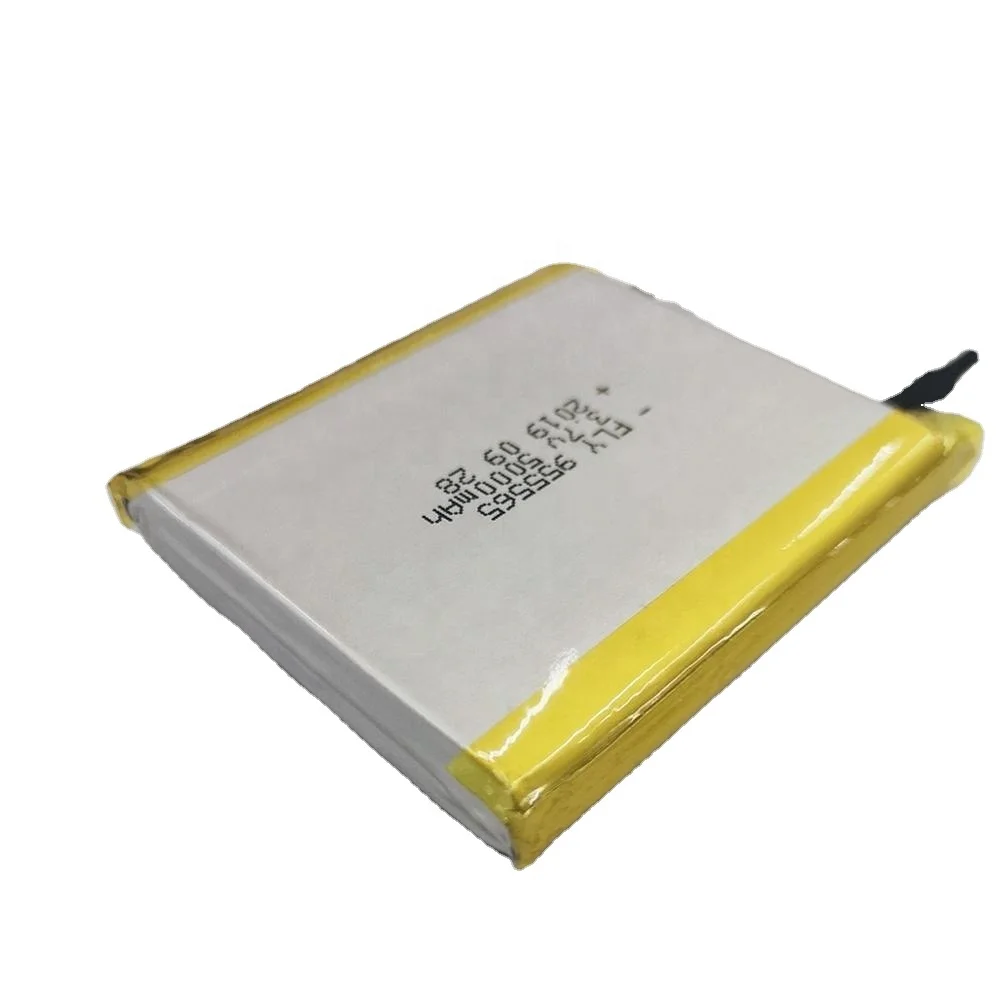

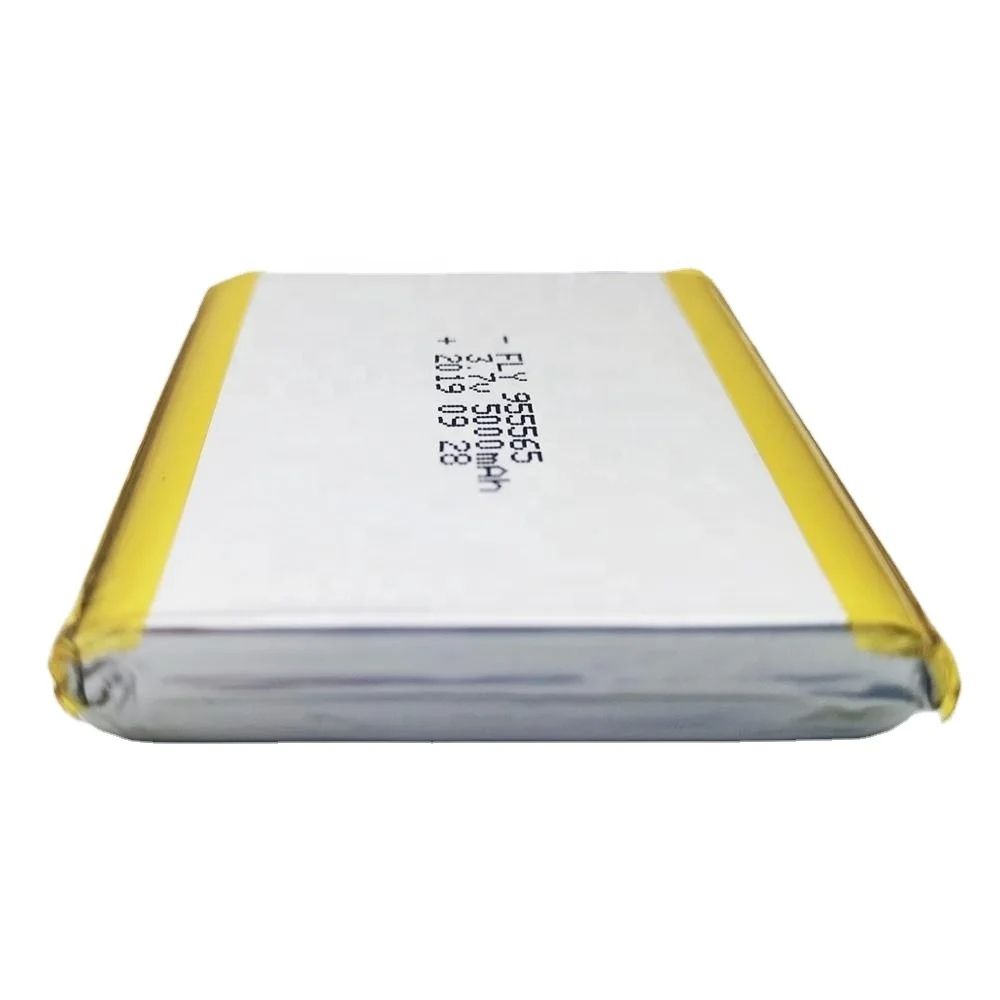

Lithium ion Polymer Battery 955565 3.7V 5000mAh Li-polymer Battery
| Item | Nominal Parameter | Note | |||||||||||||||||||||||||||||||
| 1. Model | 955565 | ||||||||||||||||||||||||||||||||
| 2. Nominal Capacity | 5000mAh | ||||||||||||||||||||||||||||||||
| 3. Nominal Voltage | 3.7V | ||||||||||||||||||||||||||||||||
| 4. Resistance | ≤35mΩ | ||||||||||||||||||||||||||||||||
| 5. Charging Voltage | 4.2V | ||||||||||||||||||||||||||||||||
| 6. Discharging Voltage | 3.0V | ||||||||||||||||||||||||||||||||
| 9. Standard Charging Current | 500mA | 0.2C5mA, About 6H. | |||||||||||||||||||||||||||||||
| 10. Max Charging Current | 5000mA | 1.0C5mA, About 1.5H. | |||||||||||||||||||||||||||||||
| 11. Standard Disharging Current | 500mA | 0.2C5mA | |||||||||||||||||||||||||||||||
| 12. Max Discharging Current | 5000mA | 1.0C5mA | |||||||||||||||||||||||||||||||
| 13. Cycle Life | 300 | ≥80% of Nominal Capacity | |||||||||||||||||||||||||||||||
| 14. Operating Temperature | Charge | 0~45℃ | |||||||||||||||||||||||||||||||
| Discharge | -20~60℃ | ||||||||||||||||||||||||||||||||
| 15. Storage | Less than 3 months | -10~40℃ | |||||||||||||||||||||||||||||||
| More than 3 month | -20~35℃ | ||||||||||||||||||||||||||||||||
| 16. Weight | |||||||||||||||||||||||||||||||||
| 17. Energy | 7.4Wh | ||||||||||||||||||||||||||||||||
| 18. Dimension | Cell | 9.5mm(T)*55mm(W)*65mm(L) | |||||||||||||||||||||||||||||||
| Battery-With PCM | 10mm(T)*55mm(W)*66.5mm(L) | ||||||||||||||||||||||||||||||||
Company Information
Related Products
Certifications
FAQ
Q. What tests will you do on the batteries before shipment?
A: We will do the following things before shipment:
Step 1. Select capacity and check the appreance of the battery
Step 2. Measure the voltage
Step 3. Measure the inner resistance
Q: What's your payment and delivery terms?
A: Payment terms: By T/T, 50% for deposit, and balance all before shipment. For small
amount orders, we also accept payment via PayPal.
Q: What company will be used for making the shipments? DHL? UPS or others?
A:Normally, we ship our battery via DHL/UPS for small Qty orders.
Q: Is OEM/ODM acceptable?
A: Yes, our factory has over 12 years' experience of R&D and production of lithium battery.And we have over 30 patents of battery technology. We believe that we could meet your requirement on battery.
