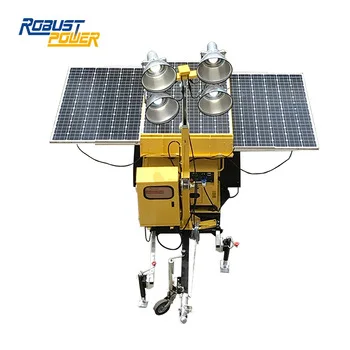

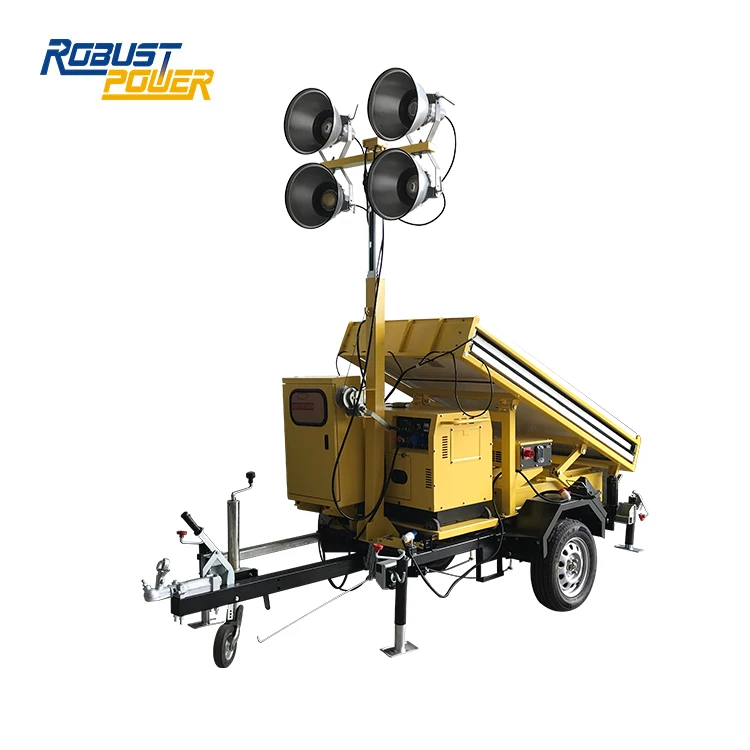

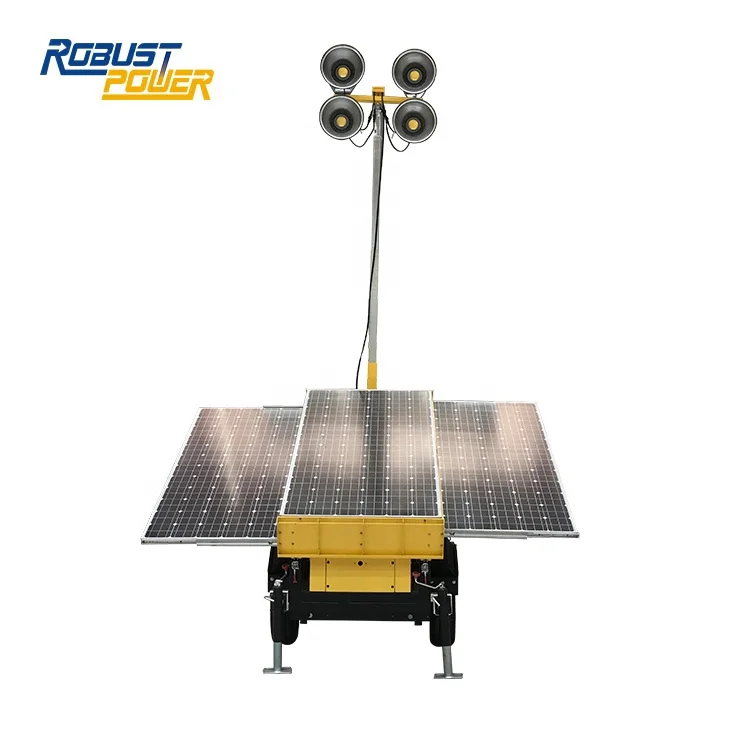

Battery Solar Mobile LED Trailer Light Tower for surveillance camera CCTV rechargeable lithium

Product Overview

Description

Solar lighting tower portable solar trailer optional backup diesel generator manual,hydraulic or pneumatic mast pole 6m~12m



-8 meters max.height when fully extended,

-Lights operate at any height

-Photocell system for automatic Start/ Stop

-POWER SYSTEM

-48V DC/300AH Gel battery

-Charging way by The solar energy converter

-Three 300W Solar power panel

-48V Solar power voltage,current 15A

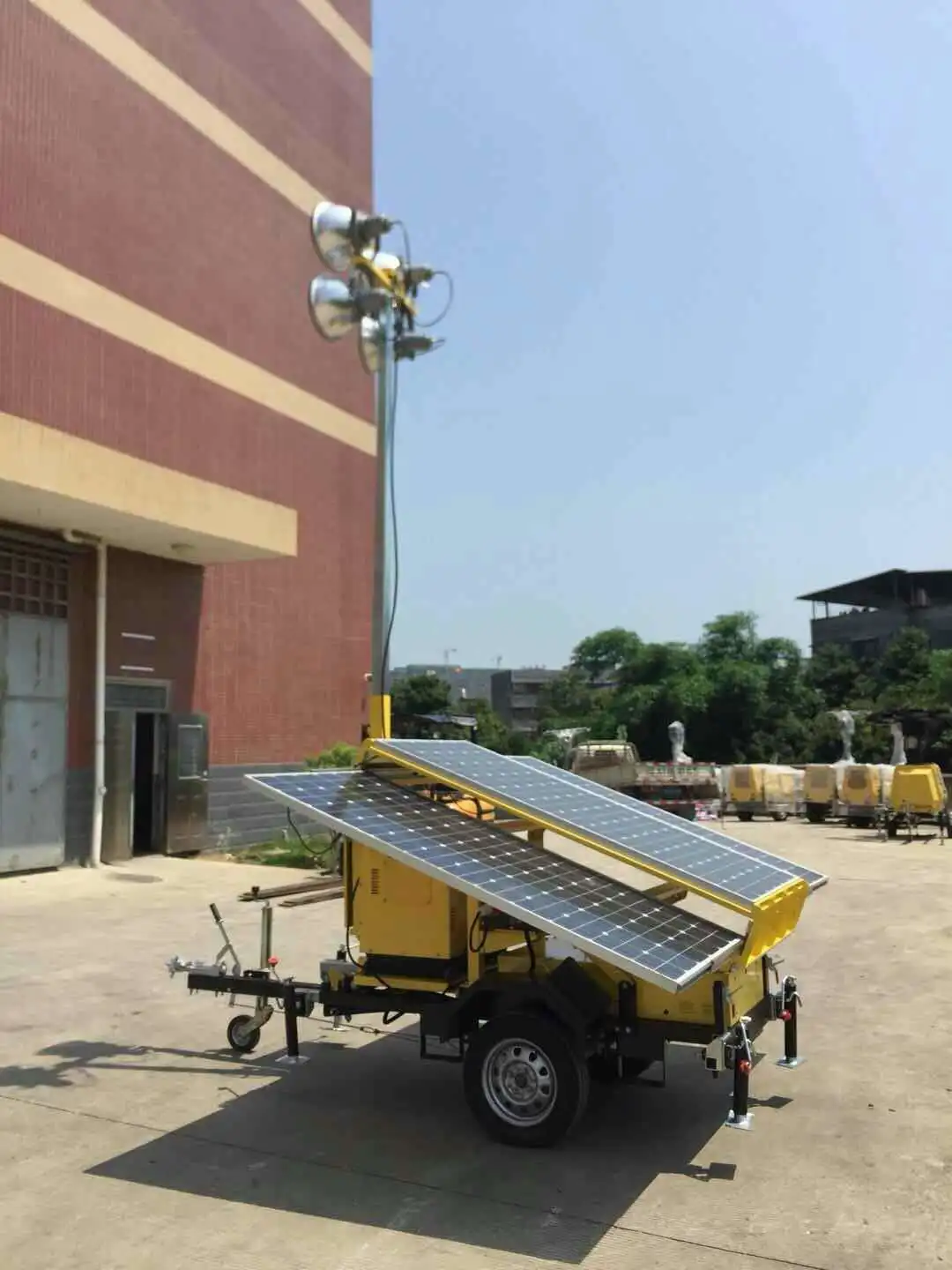

 RPLT-4800

Technical Specifications

Maximum extention of telescopic mast	8~9 meter
Raising/lowing mast	Hydraulic
Stages	6~7 sections
Lamp
Power	4*160W LED flood/project lights,Cree chip,round or square
Voltage	DC 48V
Luminous flux	4*24000lm
Housing Material	Aluminium
Certificates	CE,SAA
Battery pack system
Battery material	Lithium interchangeable battery
Battery capacity	16*3.2V*200AH
Working hours for Lighting	>12 hours
The battery voltage	DC 48V
Charging way	The solar energy /The power converter
The solar energy
Power of Solar panels	3X320W
Solar power voltage	DC 48V
Current	20A
Trailer
Tow hitch	Ball or ring hitch
Tire Size	52 cm
Anti-wind capacity	100 Km/h
Axle	Single
Packing Dimension
Storage	4020*2080*2250mm
Working	4020*2080*10250mm
Container Load (20GP)	6 units

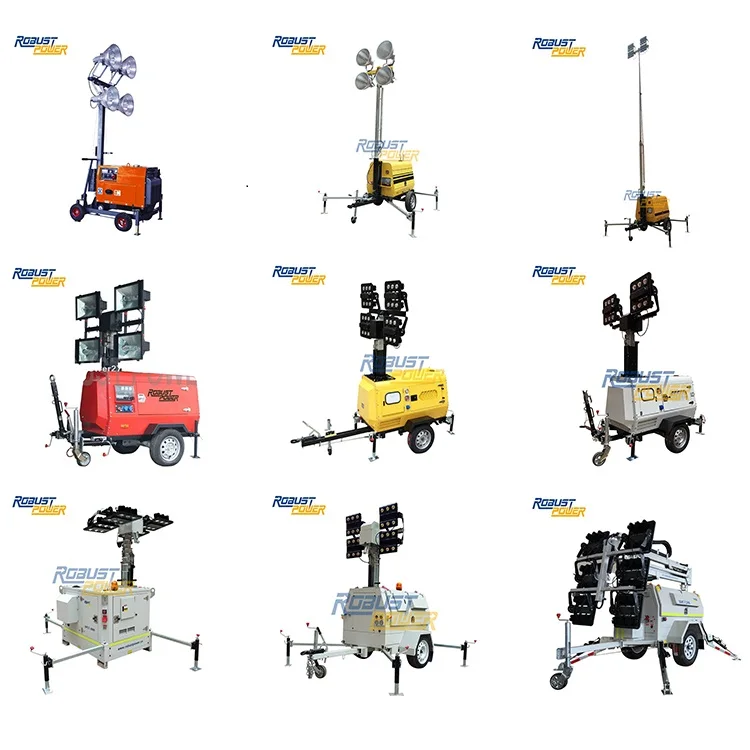

More Robust Power Models:



No.	Model	Mast	Power of Lamps	Engine Model
1	RPLT1600	4.8M Manual	4*400W Metal Halide Lamp	RP186FA
2	RPLT1600	4.8M Manual	4*160W LED	RP186FA
3	RPLT1600	4.8M Manual	2*1000W Metal Halide Lamp	RP186FA
4	RPLT6000	9M Manual	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
5	RPLT6000	9M Manual	4*240W LED	Kubota D905 (Japan)
6	RPLT6800	8.6M Hydraulic	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
7	RPLT6800	8.6M Hydraulic	4*1500W Metal Halide Lamp	Kubota D1105 (Japan)
8	RPLT6800	8.6M Hydraulic	4*480W LED	Kubota D905 (Japan)
9	RPLT3800	7M Hydraulic	4*480W LED	Kubota Z482 (Japan)
10	RPLT6900	8.5M Hydraulic	4*480W LED	Kubota D1105 (Japan)
11	RPLT7200	10M Hydraulic	6*480W LED	Kubota D1105 (Japan)
12	RPLT7200	10M Hydraulic	4*720W LED	Kubota D1105 (Japan)
13	RPLT7600	9M Hydraulic	6*480W LED	Kubota D1105 (Japan)
14	RPLT7600	9M Hydraulic	4*720W LED	Kubota D1105 (Japan)
