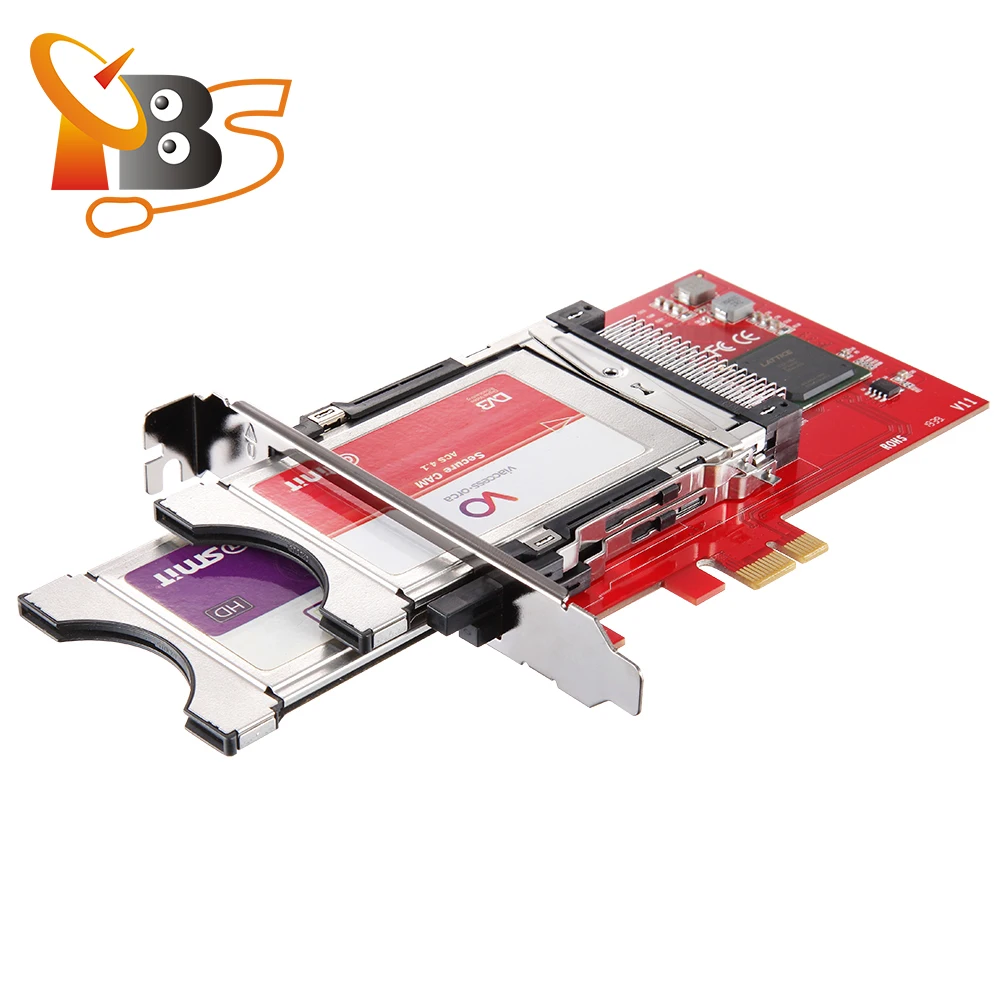

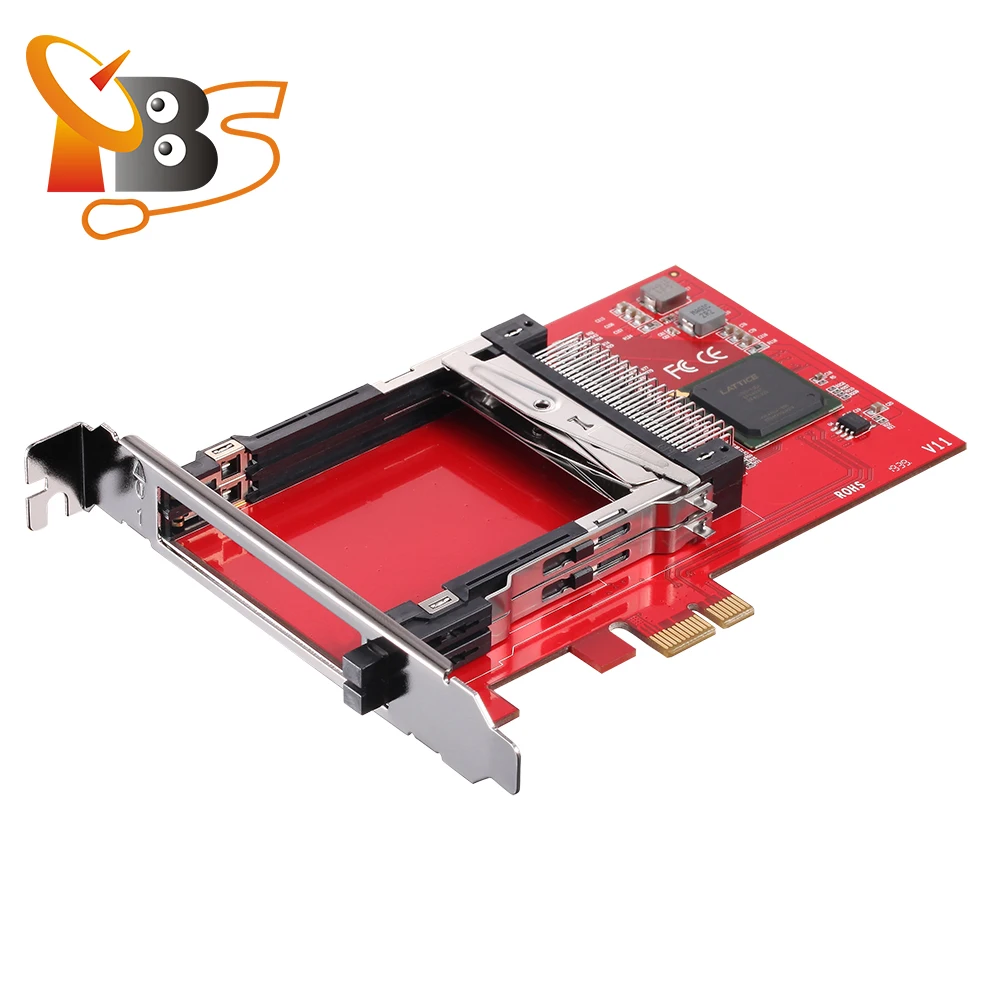

TBS6900 is a DVB network PCI-E card with two common interface slots, where you can insert 2 CAM inside to decrypt the pay channels. With a PCI-e slot, it can use with any PC or server （based on linux）which has PCI-e slots, receive signals from IP (udp/rtp/http) , after decryption and remux , will output FTA channels to IP (udp/rtp/http).
Description:
TBS6900 totally compatible with TBS tuner cards and servers , this means you can use it with our tuner cards with all DVB standard or streaming server together , it can be used in DVB-IP gateways, satellite Internet systems, home theaters and other solutions.

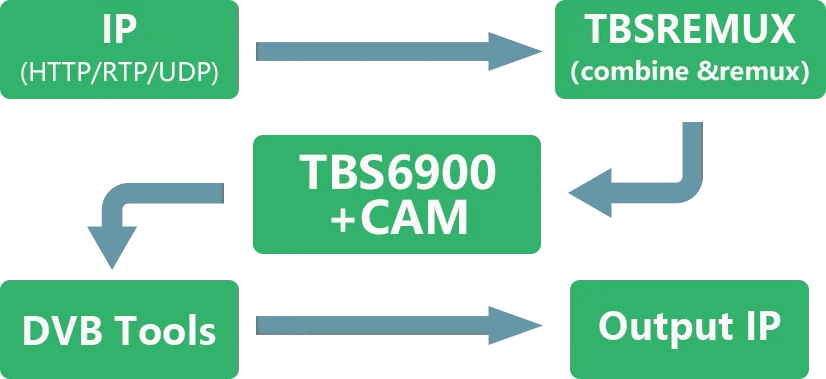

How it works ? Based on our software TBSREMUX, which can receive MPEG TS streams from multicast (udp/rtp) or http and combine them into one multiple program stream that is suitable for outputing as /dev/dvb/adapterx/secy (x=0-16, y=0,1), then use DVB tools like DVBLAST, TVHEADEND,ASTRA to scan the transponder, then output to network via udp/rtp/http protocol.
How to use it with other TBS products ?
TBS6900 compatible with all TBS tuner cards and server products , supports to install in MOI pro AMD or MOI-V , this is especially good in systems with a limited number of free slots and have lots of channels need to decrypted. For example, you can use 2 TBS6909 (means you can receive from 16 transponders) for eceiving the signals in MOI Pro AMD, and then use 2 TBS6900 for decryption.
Inputs
IPTV streams (udp/rtp/http) unicast or multicast
Outputs
IPTV streams (udp/rtp/http) unicast
Max bit rate
80Mbps/per channel
Power
12V/10w
System Requirements
Linux (Ubuntu 1604 1804, Centos 7)
Available PCI Express x1, x4, x8 or x16 slot
Package Contents
1 x TBS6900
Card Size
130mm*92mm
Gift Box Size
17.7*16*3CM
G.W
0.5KG
