semi auto tin can labeler tuna cans glass jar labeling machine for all round product paste label
- Category: >>>
- Supplier: Guangzhou Transocean Advanced Equipment Co. Ltd.
Share on (62382105709):
Product Overview
Description

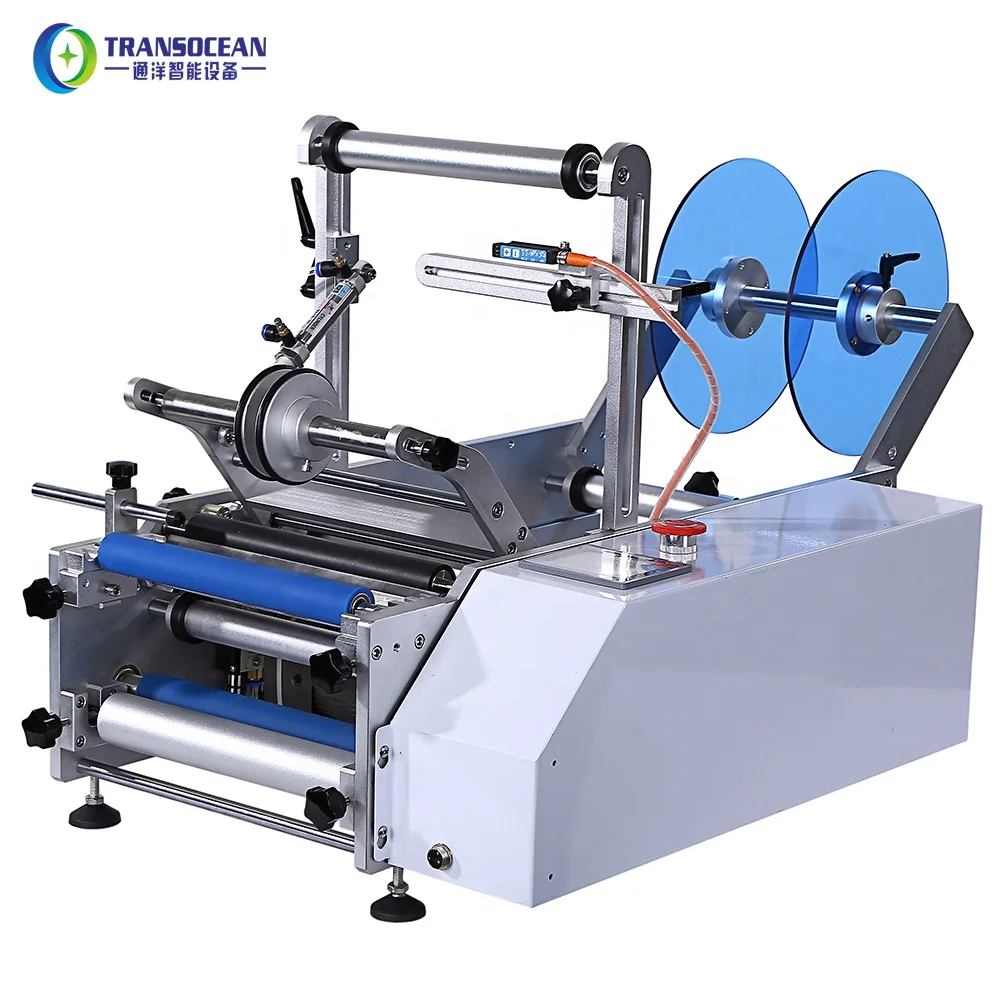

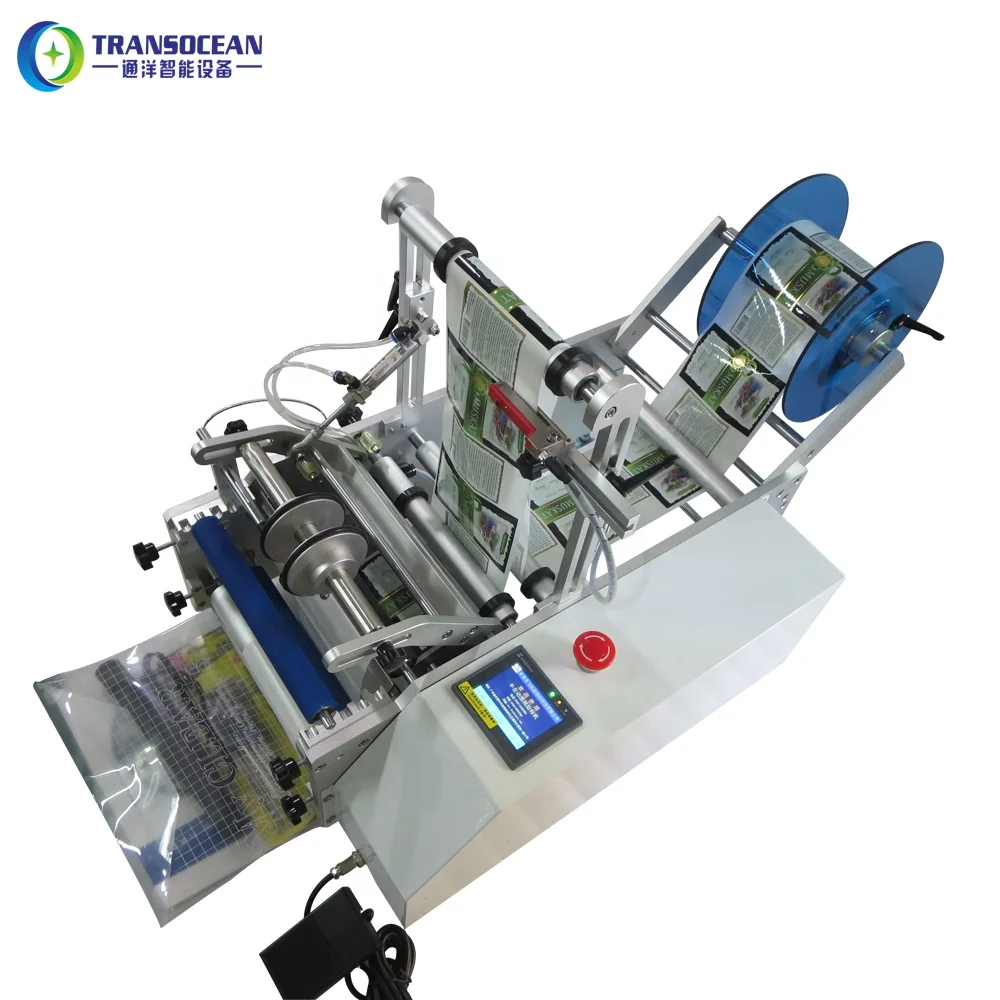

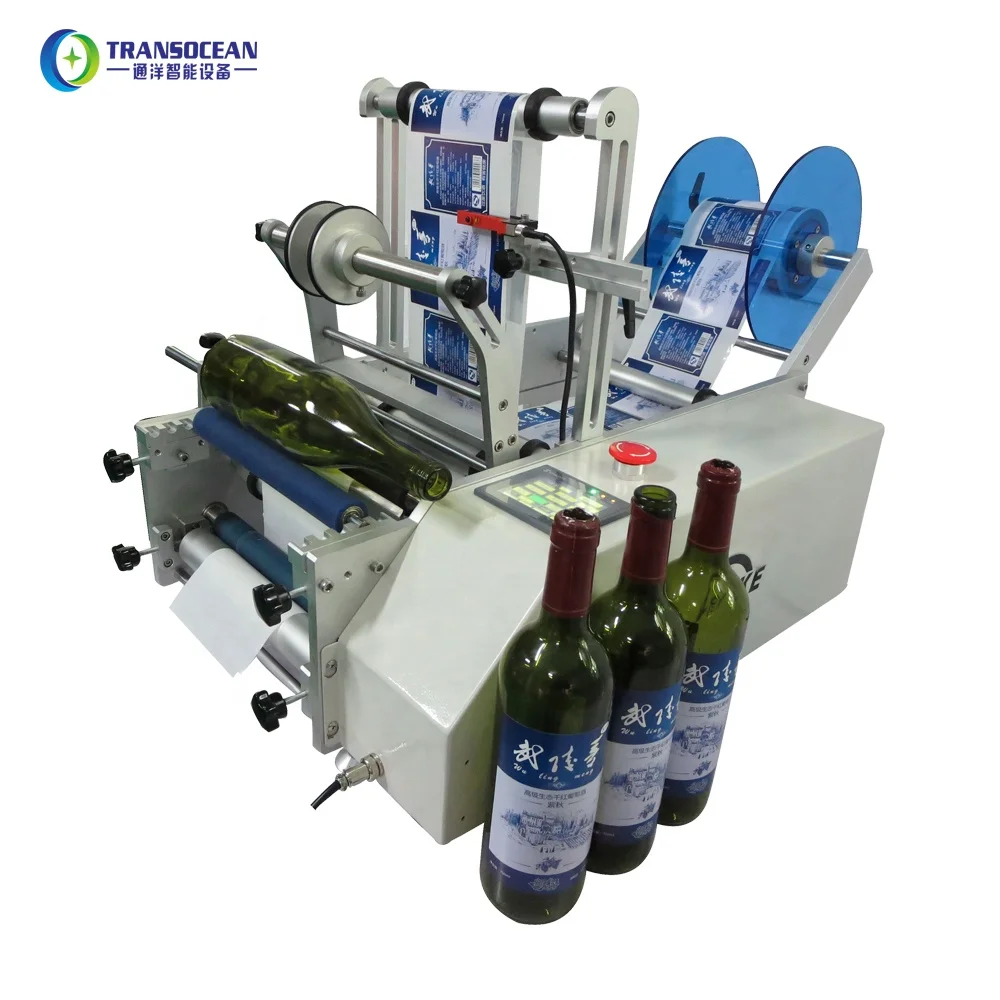

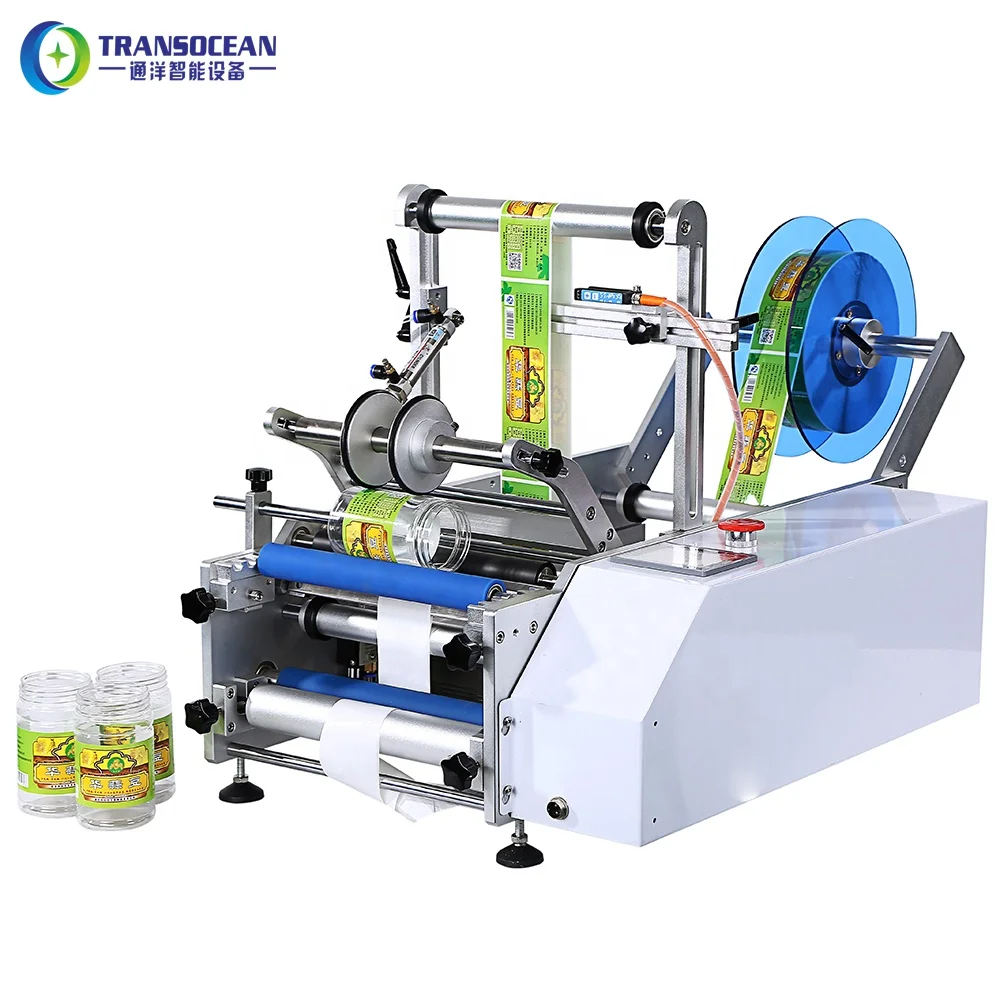

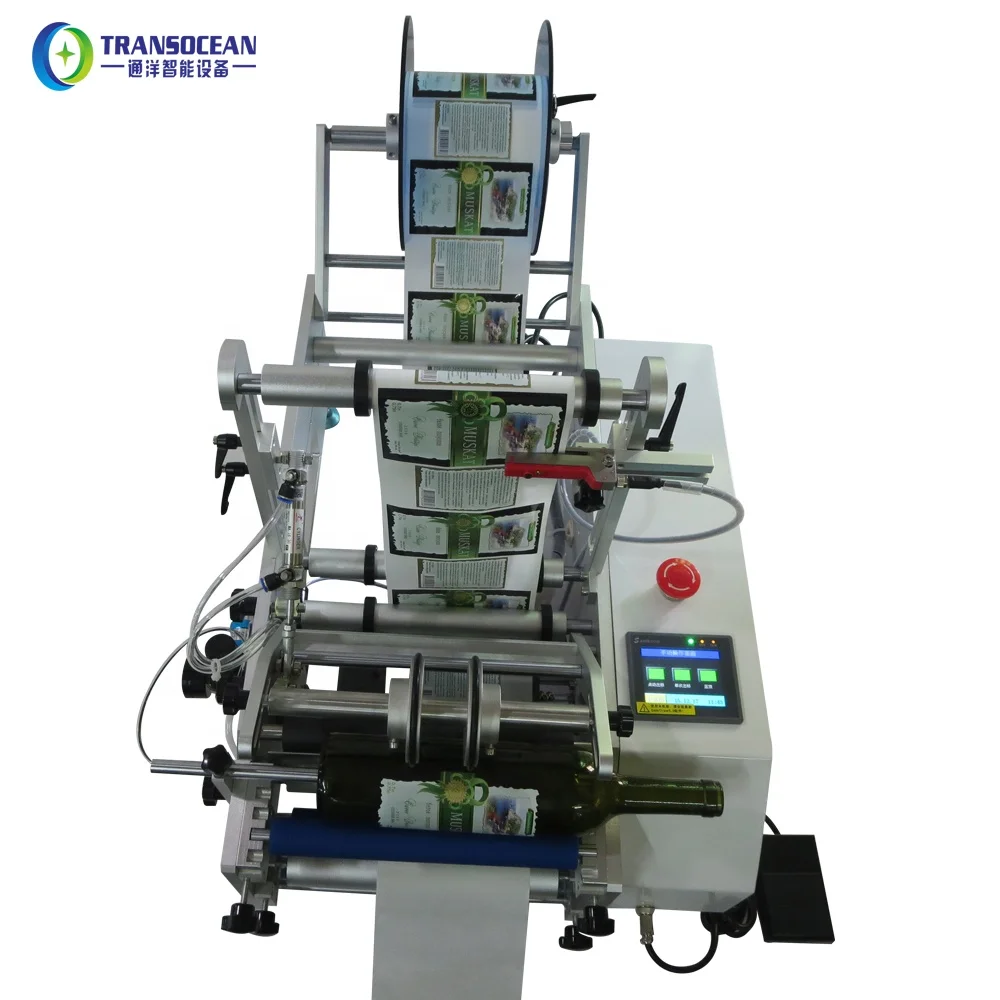

TY-601 semi auto tin can labeler tuna cans glass jar labeling machine for all round product paste label
1. Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.
2. It apply to any kind of round bottle or cylindrical objects, such as: Xylitol, cosmetics round bottles, wine bottles and so on.
3. Can paste one label wrap around the bottle body, or two labels for front side and back side.
SPECIFICATIONS | ||||||
Labeling accuracy | ±0.5mm (excluding products, labels, error) | Labeling speed | 15--35 pcs/min( depend on the size of product and label) | |||
Apply the product diameter | 15--150mm;(Can be customized) | Apply label size | Length:20 -380 mm; Width: 20 -220 mm (Can be customized) | |||
Applicable to the power supply | 220V/50HZ (Need to add a voltage converter, according to the local voltage of different country) | Apply labels inside diameter | 76mm | |||
Apply labels outside diameter | 240mm | Voltage | 220V | |||
Power consumption | 120W | Air pressure | 0.3---0.6Mpa | |||
Net size (length*width* height) | Machine size: 950*490*560 mm | Weight | NW: 50KG GW: 72Kg | |||

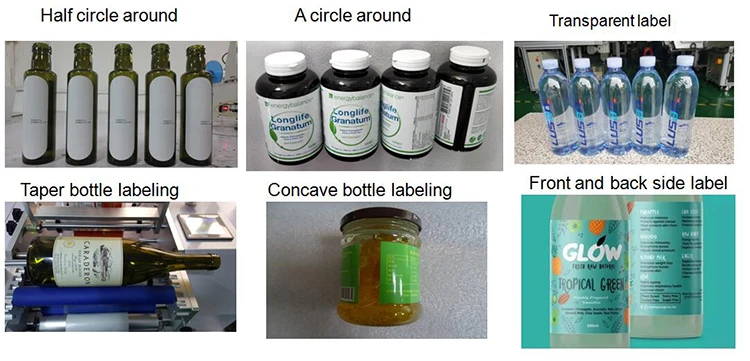

Labeling sample

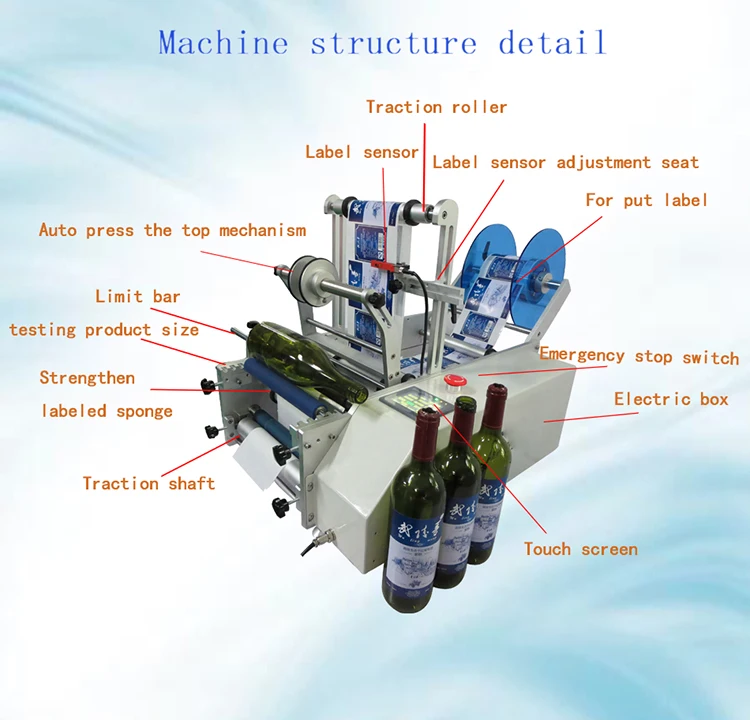

Detailed Images
STRONG COMPATIBILITY
Wide range of applications, can labeling the round proudct diameter: 10-150mm. support customized, if it is beyond this range.
IMPORT LABEL SENSOR
1. Germany Sick and Italy Data logic of self-adhesive label sensor.(standard model)
2. Germany Sick and LEUZE all-powerful sensor not only can use for self-adhesive label, but also can use for transparent label.（price calculated separately）.
TOUCH SCREEN IN ENGLISH
Simple operation, PLC control, more stable, do not need high-quality technical workers, easy to get started.
Other languages available, such as: Spanish, Arabic, French. and so on.
ELECTRICAL AND CIRCUIT SEPARATE
The inside of machine to keep dry, use longer. it connect electric and air compressor. working pressure: 0.3-0.6 MPA
DETECTION PRODUCT SENSOR
Import Japan Panasonic testing label sensor, more accurate.
PRESS THE TOP OF THE BOTTLE MECHANISM
Simplify the pressure top action, pneumatic automatic control, the release of your hands.
STANDER MODEL IN STOCK
After order, it can send out machine immediately.
SPARE PART AND ENGLISH MANUAL BOOK
MACHINE NET SIZE
Available function(customized type)
HOT CODING MACHINE
1. code content usually be:
MFD(manufacture date)
EXD(expiry date)
BATCH( batch lot)
can printing 3 lines content, Area can not be greater than length: 3.5cm, width:2.5cm.
2. Ribbon specifications: 30*100mm-2 rolls
3. Number character 0-9 freely. But English alphabet, punctuation should be customized, Price calculation separately.
For example: a, A, E, /, =, -, &. And so on.
MFD(manufacture date)
EXD(expiry date)
BATCH( batch lot)
can printing 3 lines content, Area can not be greater than length: 3.5cm, width:2.5cm.
2. Ribbon specifications: 30*100mm-2 rolls
3. Number character 0-9 freely. But English alphabet, punctuation should be customized, Price calculation separately.
For example: a, A, E, /, =, -, &. And so on.
THERMAL TRANSFER PRINTER
The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
POSITIONING DETECTING DEVICE
The circumferential positioning detecting device can be added, and labeling can be performed at a specified position on the circumferential surface.
Payment terms and service
PAYMENT TERMS.
L/C at sight, T/T, alibaba trade assurance(BOLETO, Mastercard, Visa, e-Checking, PAYLATER). 40% deposit, 60% balance pay before
send out the good or see the scan bill of lading.
L/C at sight, T/T, alibaba trade assurance(BOLETO, Mastercard, Visa, e-Checking, PAYLATER). 40% deposit, 60% balance pay before
send out the good or see the scan bill of lading.
PRE-SALES SERVICE
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AFTER-SALES SERVICE
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24
hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We
will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AFTER-SALES SERVICE
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24
hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We
will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
Packing & Shipping
Packing.
Export wooden box
Export wooden box
1) Deduct & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules Into Plywood Cases
4) Wrap Modules With Plastic Film
5) Packing Modules Into Plywood Cases
6)mark Shipping Mark In The Cases if Any Special Requirements, We Will Pack It As Requested.
Shipping.
Upon receipt of payment , delivery date will be in 5-7 days, standard model with in stock.
By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
Shipping.
Upon receipt of payment , delivery date will be in 5-7 days, standard model with in stock.
By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
