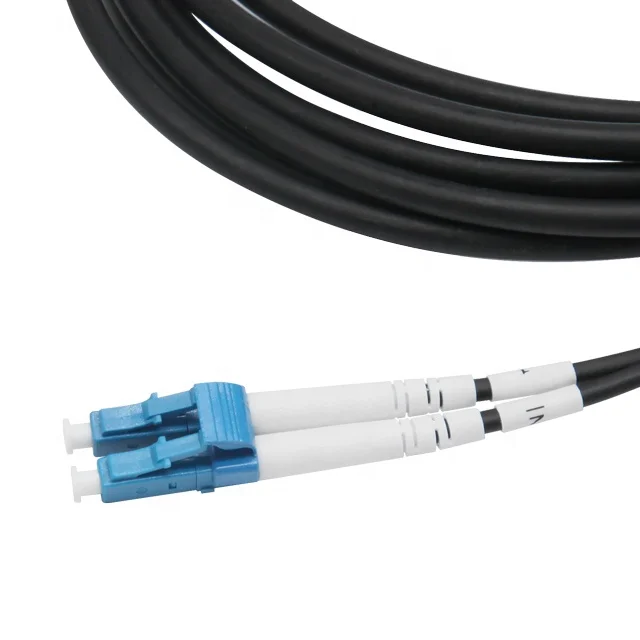

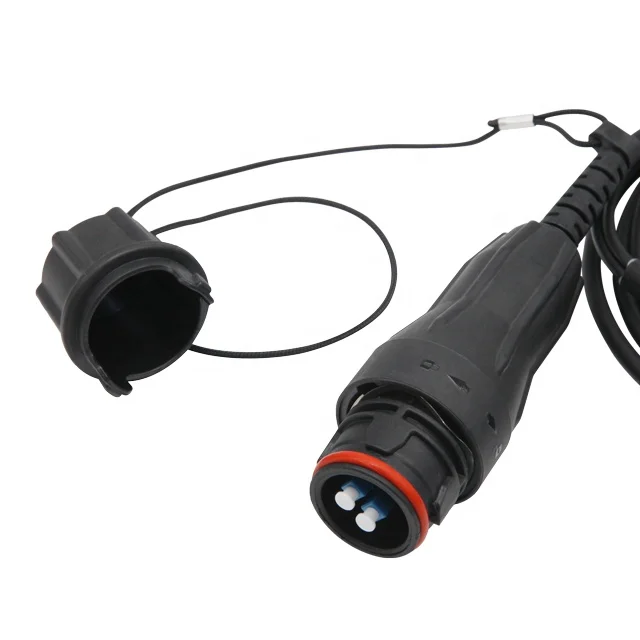

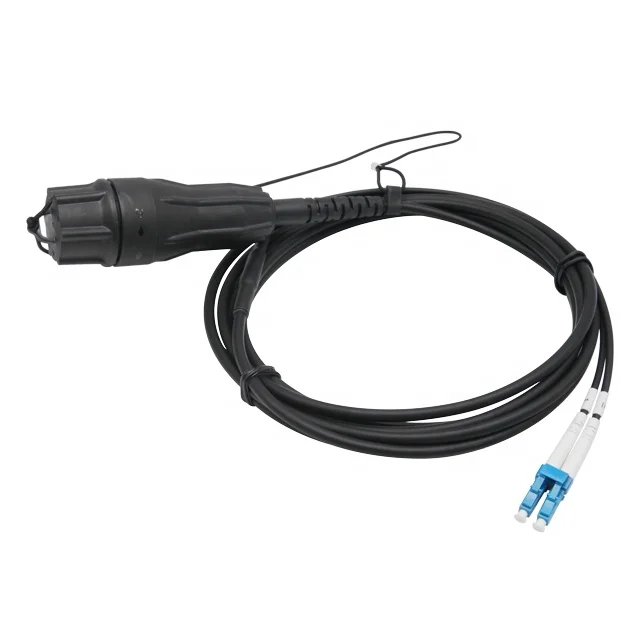

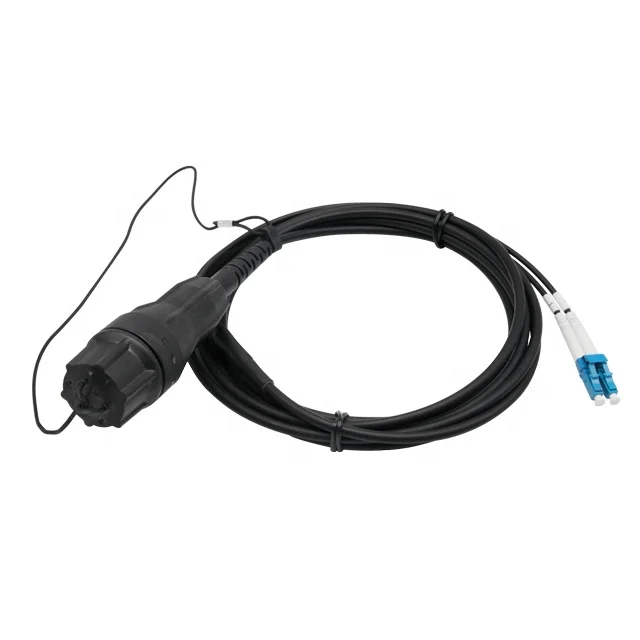

Outdoor FTTA waterproof Fullaxs duplex LC CPRI optical armored fiber cable with grounding cable for BBU to RRU
- Category: >>>
- Supplier: Dongguan Qingying Industry Co. Ltd.
Share on (62382151586):
Product Overview
Description
SM Armored Cable Duplex NSN DLC IP68 Waterproof Connectors Military Tactical Fiber Optical Armour Patch Cord For Broadcast
Products Description
Features
Armored fiber optic cable consists of a cable surrounded by a steel or aluminum jacket which is then covered with a polyethylene jacket to protect it from moisture and abrasion. It may be run aerially, installed in ducts, or placed in underground enclosures with special protection from dirt and clay intrusion.
Two armored fiber cable types exist: interlocking and corrugated. Interlocking armor is an aluminum armor that is helically wrapped around the cable and found in indoor and indoor/outdoor cables. It offers ruggedness and superior crush resistance. Corrugated armor is a coated steel tape folded around the cable longitudinally. It is found in outdoor cables and offers extra mechanical and rodent protection.
Features of Indoor Armored Fiber Cable
* Good mechanical property and environment property.
* Soft, agility, convenience for connecting.
* Flexible and Easy to Handle
* Cables with Improved Attenuation Available
* Adapt to harsh environments and man-made damage.
* Good mechanical property and environment property.
* Soft, agility, convenience for connecting.
* Flexible and Easy to Handle
* Cables with Improved Attenuation Available
* Adapt to harsh environments and man-made damage.
Applications
Specifications
2×Tight Buffer(0.9mm)+Kevlar+Jacket OD=4.8mm
Type1 | ||||||||
Item Name | Unit | Parameter | ||||||
Fiber Count | --- | 2 | ||||||
Outside Diameter | mm | 4.8 ± 0.1 | ||||||
Weight | kg/km | 27 | ||||||
Tensile Strength | Short term | N | 700 | |||||
Long term | N | 350 | ||||||
General Attenuation | Singlemode | 1310nm | dB/km | ≤0.4 | ||||
1550nm | dB/km | ≤3.0 | ||||||
Multimode | 850nm | dB/km | ≤0.3 | |||||
1300nm | dB/km | ≤1.0 | ||||||
Minimal Bending Radius | D | 20 | ||||||
Storage Temperature | ℃ | -20～+70 | ||||||
Type2 | ||||||||
Item Name | Unit | Parameter | ||||||
Fiber Count | --- | 2 | ||||||
Outside Diameter | mm | 4.8 ± 0.2 | ||||||
Weight | kg/km | 37 | ||||||
Tensile Strength | Short term | N | 1200 | |||||
Long term | N | 600 | ||||||
General Attenuation | Singlemode | 1310nm | dB/km | ≤0.4 | ||||
1550nm | dB/km | ≤3.0 | ||||||
Multimode | 850nm | dB/km | ≤0.3 | |||||
1300nm | dB/km | ≤1.0 | ||||||
Minimal Bending Radius | D | 20 | ||||||
Storage Temperature | ℃ | -20～+70 | ||||||
2×Tight Buffer(0.9mm)+Kevlar+Inner Jacket+Kevlar+Jacket OD=4.8mm
Type3 | ||||||||
Item Name | Unit | Parameter | ||||||
Fiber Count | --- | 2 | ||||||
Outside Diameter | mm | 4.8 ± 0.2 | ||||||
Weight | kg/km | 32 | ||||||
Tensile Strength | Short term | N | 1200 | |||||
Long term | N | 600 | ||||||
General Attenuation | Singlemode | 1310nm | dB/km | ≤0.4 | ||||
1550nm | dB/km | ≤3.0 | ||||||
Multimode | 850nm | dB/km | ≤0.3 | |||||
1300nm | dB/km | ≤1.0 | ||||||
Minimal Bending Radius | D | 20 | ||||||
Storage Temperature | ℃ | -20～+70 | ||||||

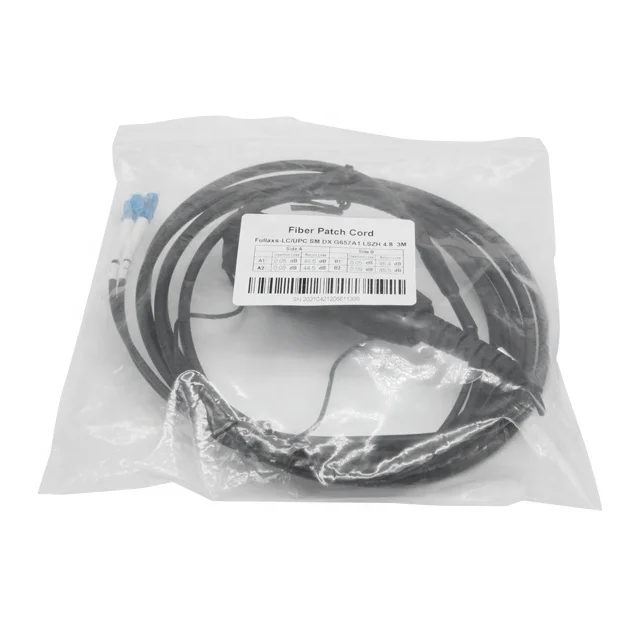

Packing
Recommend Products
Company Briefing
Founded in 2010, Dongguan Qingying Industrial Co., Ltd (QY) is a sophisticated fiber company located in two cities, Dongguan and Chongqing, in China. With more than 10,000m2 plant area, QY is now a company with integrated capability of R&D, production, trading and international sales.
QY is an ISO9001:2015 certified company with hundreds of customers in Europe, America, Southeast Asia and Australia. Our main products are fiber optic field installable connector (fast connector), patch cord, armored patch cord, pigtail, PLC splitter, attenuator, and many other FTTH products.
With 10-year experience in fiber optic industry, QY believes learning, cooperating, and sharing with customers is the best way to grow with customers. In the coming decade, QY will aggressively develop new products per customers’ demand, and improve quality of existing products for customers. All QY’s employees are looking forward to serving and co-working with customers for fiber business in the future.
QY is an ISO9001:2015 certified company with hundreds of customers in Europe, America, Southeast Asia and Australia. Our main products are fiber optic field installable connector (fast connector), patch cord, armored patch cord, pigtail, PLC splitter, attenuator, and many other FTTH products.
With 10-year experience in fiber optic industry, QY believes learning, cooperating, and sharing with customers is the best way to grow with customers. In the coming decade, QY will aggressively develop new products per customers’ demand, and improve quality of existing products for customers. All QY’s employees are looking forward to serving and co-working with customers for fiber business in the future.
After-sales service
Return Window | Exchange Window | Warranty Period | Notes |
30 Days | 30 Days | 1 Year | In the case of not affecting secondary sales, a 30-day return is available for in-stock items (excluding customized products). |
