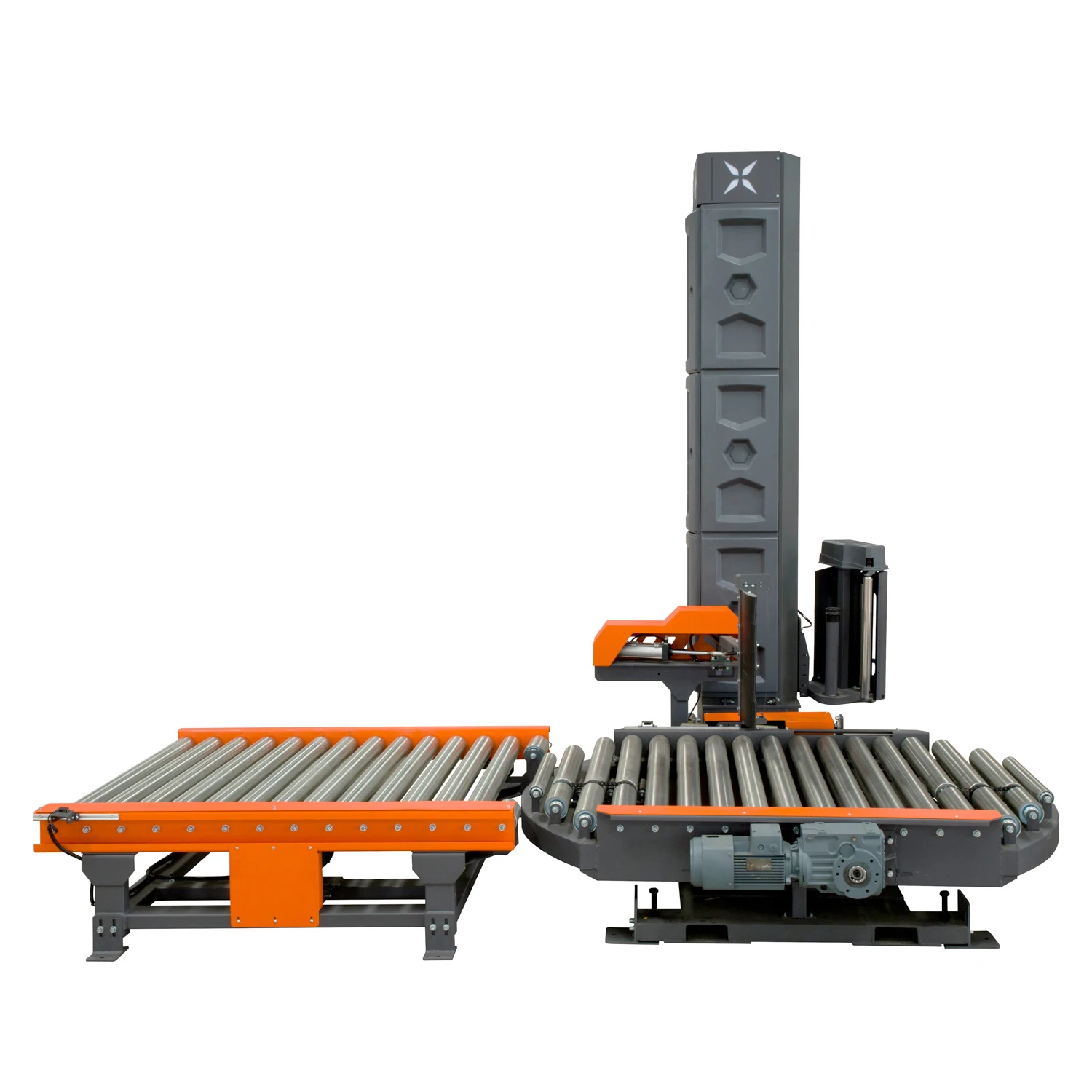

Online fully auto pallet stretch wrapper pallet wrapping machine with cutting clamping film automatic stretch wrapping machine
- Category: >>>
- Supplier: Suzhou Jiajun Packing Machinery Co. Ltd.
Share on (62382202219):
Product Overview
Description
Product Description
Model | Smart Wasp S300 | Spare Parts | Brand | |
Maximum wrapping speed | 30-40 loads/hour (1x1.2x1.8 m 2 layer NOT include loading and Unload time) | Inverter | SIEMENS(Germany) | |
Load Size Diagonal | 1680mm | Position sensor | SICK(Germany) | |
Maximum Wrapping Height | 2400mm(for pallet height:2300mm +100mm over top)/2800mm Optional | PLC | SIEMENS | |
Turntable Speed | 0-16RPM(Adjustable) | Travel Switch | OMRON(Japan) | |
Turntable Size | 1800mm Length Size | Motor | SEW | |
Turntable Drive | 1.5PH | Relay | OMRON(Japan) | |
Film Cut | Automatic (Heat type) | Touch screen | SIEMENS | |
Max Load Weight | 2000KG | Switch | Schneider | |
Standard Film Width | 500mm | Photoelectric sensor | Autonics | |
Constant Film Delivery Force | Standard | Terminal block | Weidmuller(Germany) | |
Standard Pre-Stretch | 250% | |||
Film Capacity | 250mm Diameter | Special Process | ||
Film Delivery System | Power Roller-Stretch Plus | Frame | ABS Steel+ABS | |
Fix Film on Pallet | Manual | Printing | Metallic paint | |
Roping system | Have | Fall-proof | Anti-drop system | |
Muti-layer function | Have | Cutting | Laser | |

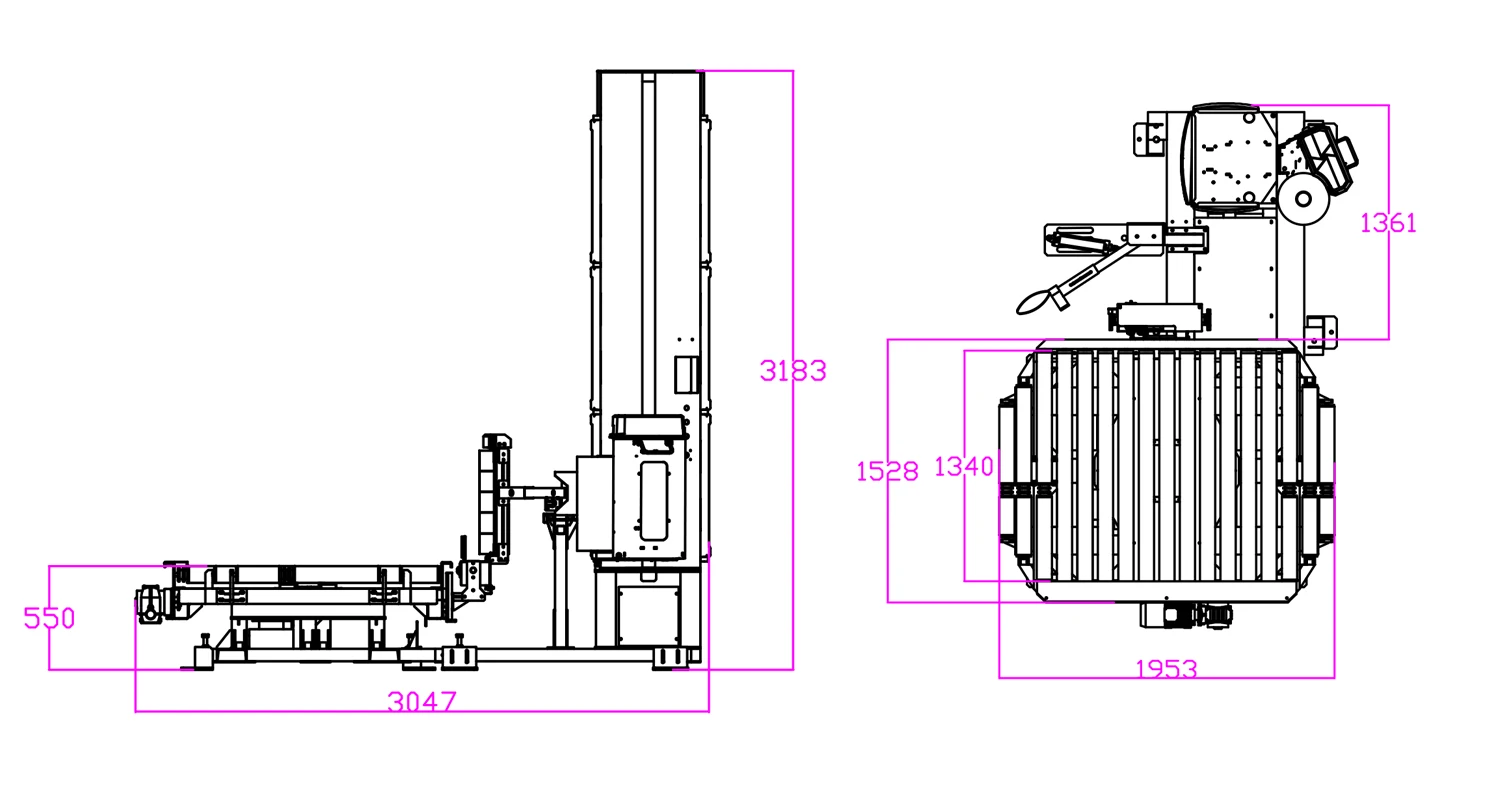

Machine Size | 3*1.8*3.2m | Up and Down Drive | Belt | |
Machine weight | 1200KG | |||
Voltage | 220V/380V/60HZ | |||
Detailed Images
Variable Wrapping Force System
Automatic adjust wrap force according to pallet shape 1.let every part of the pallets be wrapped tightly 2.protect the corner of
the loads ,avoid the corner concave. 300% Pre-stretch rate , save 30% film compared to traditional pallet wrapping machine.
the loads ,avoid the corner concave. 300% Pre-stretch rate , save 30% film compared to traditional pallet wrapping machine.

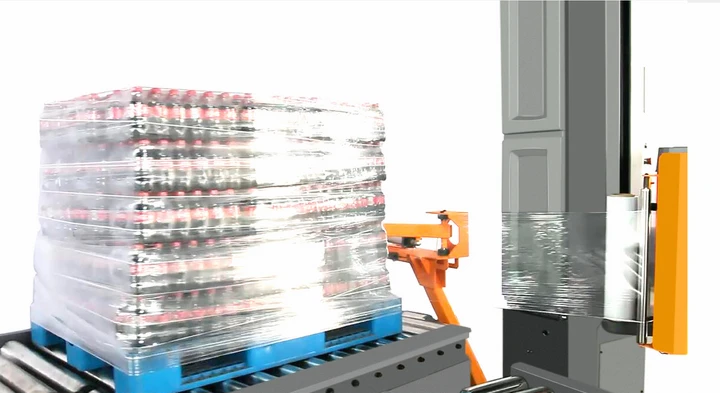

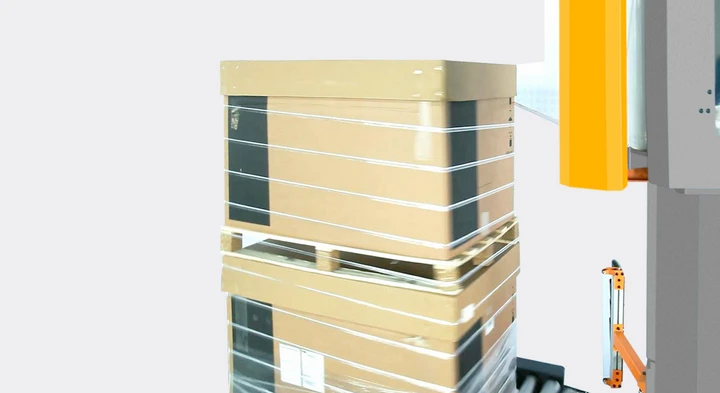

Pallet Grip System
Pallet grip system: film bottom narrowed to become film rope , film rope grip to pallet & products during wrapping. 1.during
transport ,no need worry the products fall down when the pallets get violent vibration 2.if the truckfork damage the film on the
bottom of pallet ,the film do not breach . 3.pallet bottom grip and whole journey grip can replace the horizontal strapping
machine
transport ,no need worry the products fall down when the pallets get violent vibration 2.if the truckfork damage the film on the
bottom of pallet ,the film do not breach . 3.pallet bottom grip and whole journey grip can replace the horizontal strapping
machine
Intelligent Touch Screen

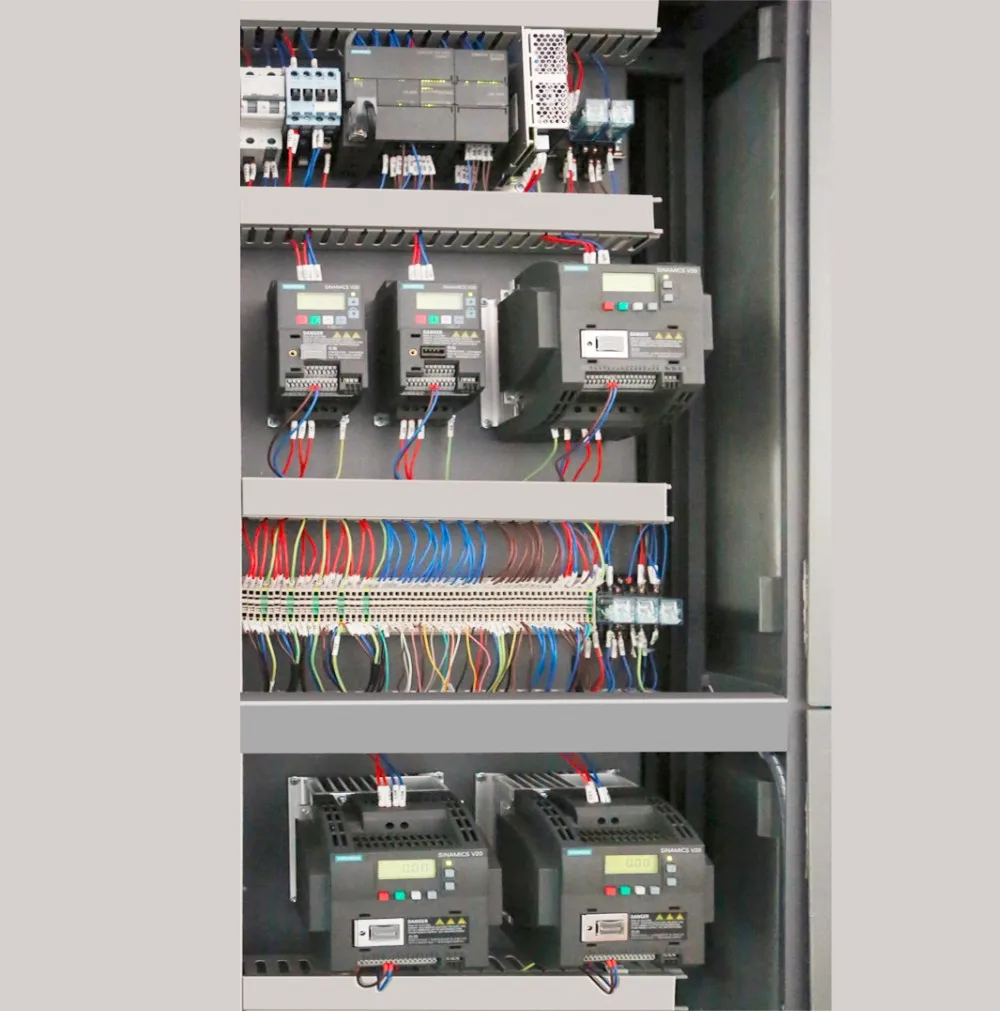

We all use Siemens Touch Screen, Siemens Inverter and Siemens PLC. Do not use cheaper brand spare parts that may cause
lots of trouble to our customers in the future.
lots of trouble to our customers in the future.

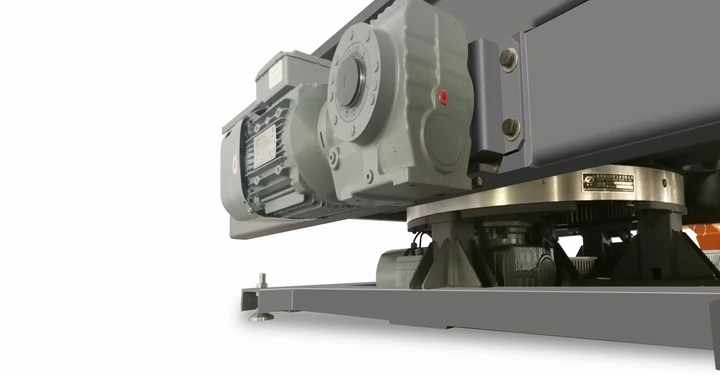

Smart Wasp online pallet wrapper use the slewing bearing turntable ,max load weight 3000KG ,more quiet and lower vibration compare
with the chain drive turntable.
with the chain drive turntable.

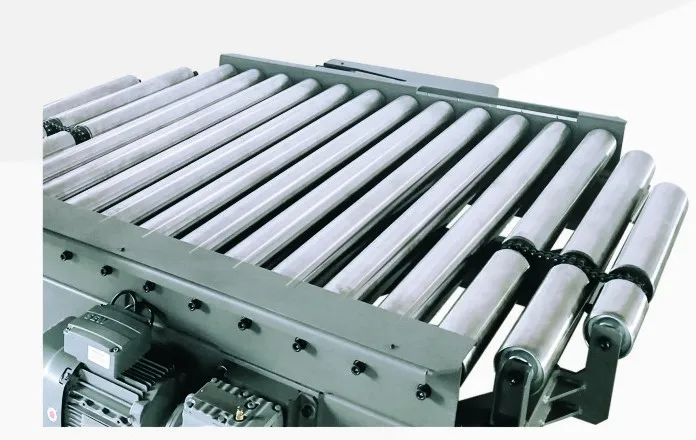

Durable Conveyor
input&output conveyor also use chain drive.
So that the pallet can be moved from the conveyor to wrapper smoothly

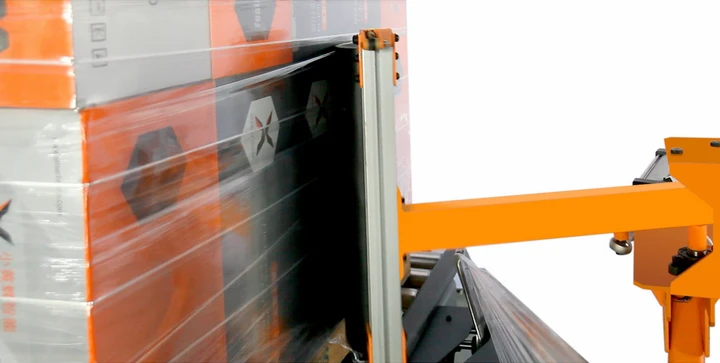

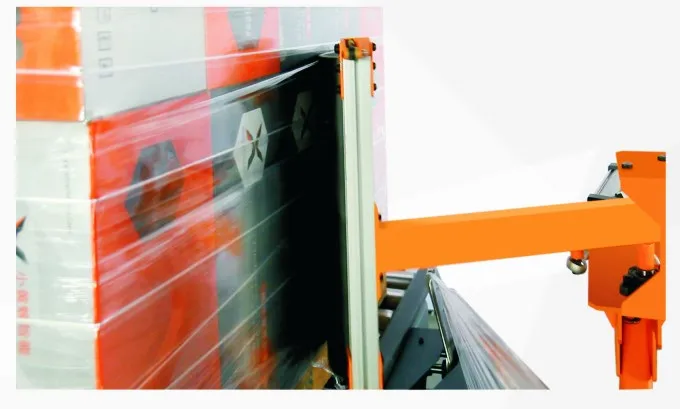

Auto Cut & Clamp Film System
Smart Wasp new design cut and clamp system, after finishing wrapping, machine will automatically cutting the film and the tail will be sealed on the pallet perfectly by the brush.

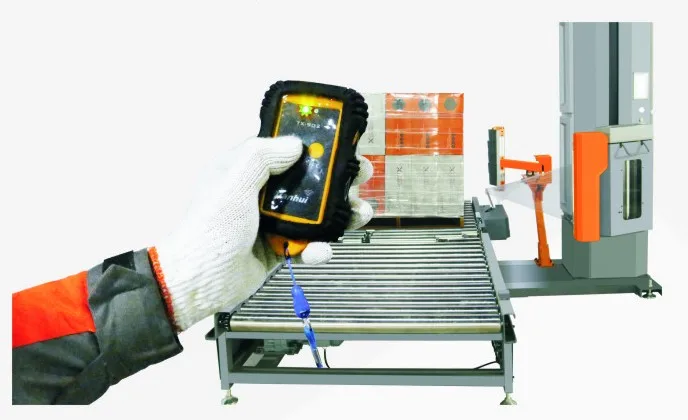

Intelligent operation Guiding system
1. Machine with LED indicator on top cover.
Ready for work--Blue color
Working--Green color
Alarm--Red color
2.Touch screen guide you how to operate machine. If alarm appears, touch screen will show you how to solve problem
CUSTOMER CASES
SMART WASP standard machine series include the x0ms X0ps X1 X100 X3 X300 X5 X500
All series machine will provide you with all the wrapping solution
SMART WASP have provide automatic wrapping solution for LG ,Sharp.Heineken ,china tobacco ,we sue our professional design and rich experience let our customer use reliable automatic wrapping machine
WE PACK MACHINE MORE SAFETY
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Shipping Type | 1set machine/crate (size/weight) | Mix packing (just for FLC shipping type) |
LCL Shipping | 3.3x2.06x1.3m 2000KG | Machine /crate Conveyor/crate |
Quantity crates in 20 FT | 2sets | 2sets |
Exhibition
WELCOME TO VISIT US
SMARTWASP Attend Exhibition in JAPAN UKRAINE THAILAND MALAYSIA GERMANY POLAND MEXICO..Over 10 countries And attend China Professional Exhibition Every Year
2021 SMARTWASP EXHIBITION LIST
The 27th China International Exhibition on Packaging Machinery & Materials ProPak China
Time： 2021/6/23-25
Address: National Exhibition Convention Center (Shanghai), China
The 17th China (Qingdao) International Packaging Industry Exhibition CIPI
Time：2021/7/18-22
Address：Qingdao red island international convention and exhibition center
Time：2021/7/18-22
Address：Qingdao red island international convention and exhibition center
The 22nd Asia International Logistics Technology and Transportation Systems Exhibition CeMAT
Time：2021/10/26-29
Address：Shanghai New International Expo Center
OUR TEAM
SMART WASP Team have 210 people ,we have over 30 mechanical engineer and electric engineer ,SMARTWASP international team in Ukraine Thailand Mexico Malaysia USA Ireland Poland Panama ..for promoting and doing service for Smart wasp machine .we hope more and more partner join us .

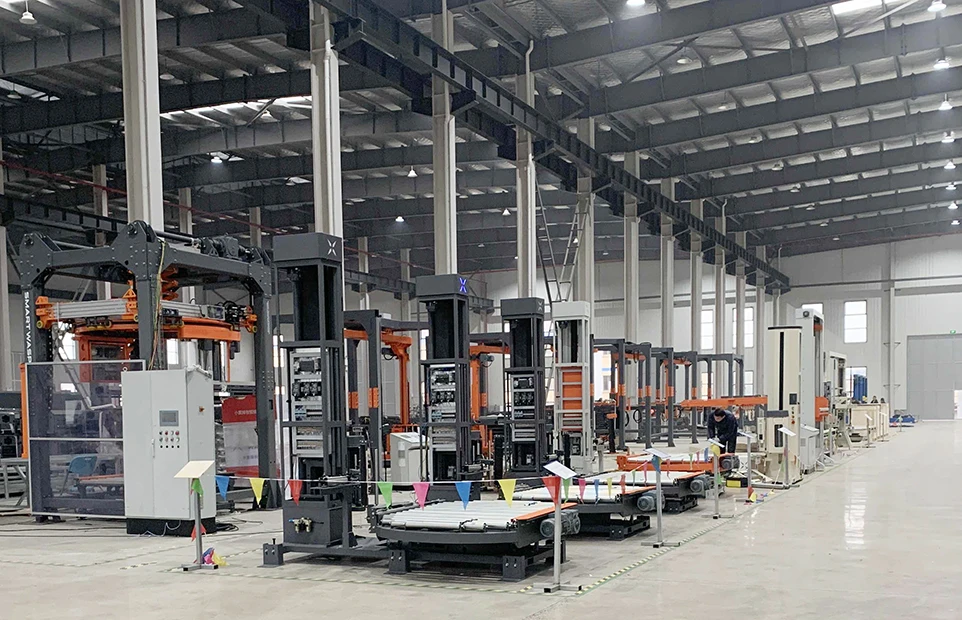

Smart Wasp Intelligent Technology (Suzhou) Co., Ltd., specializing in designing, researching and manufacturing intelligent pallet
