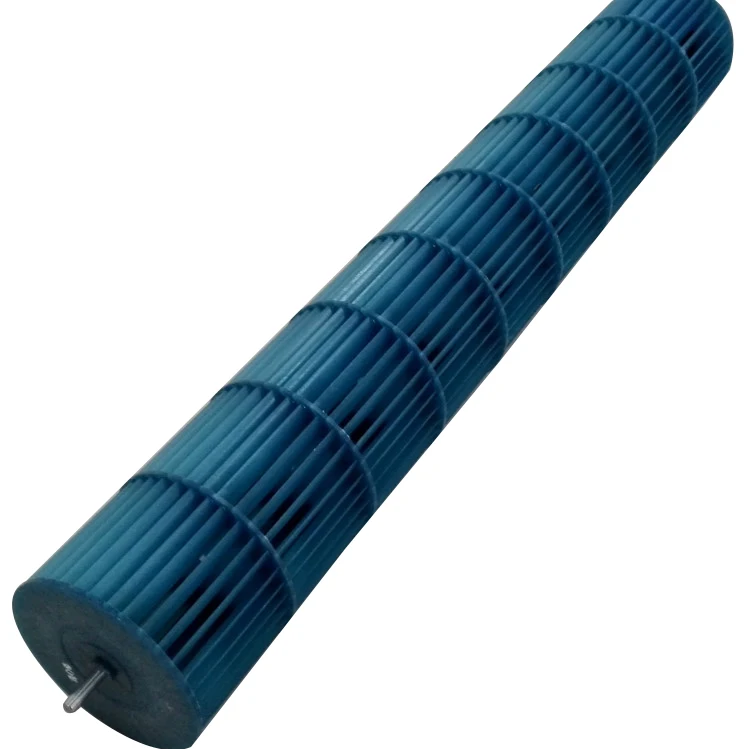

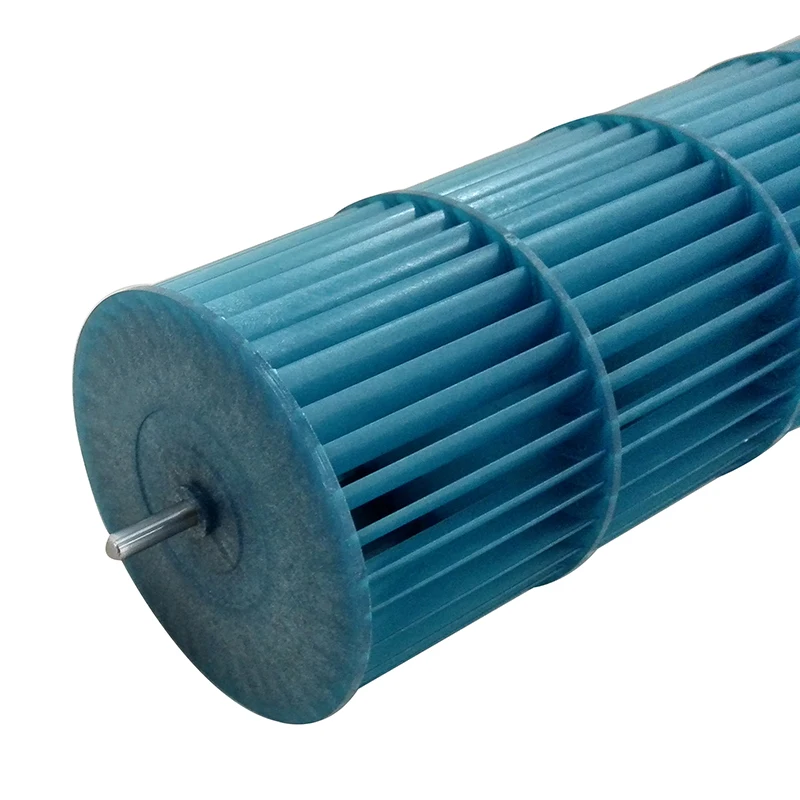

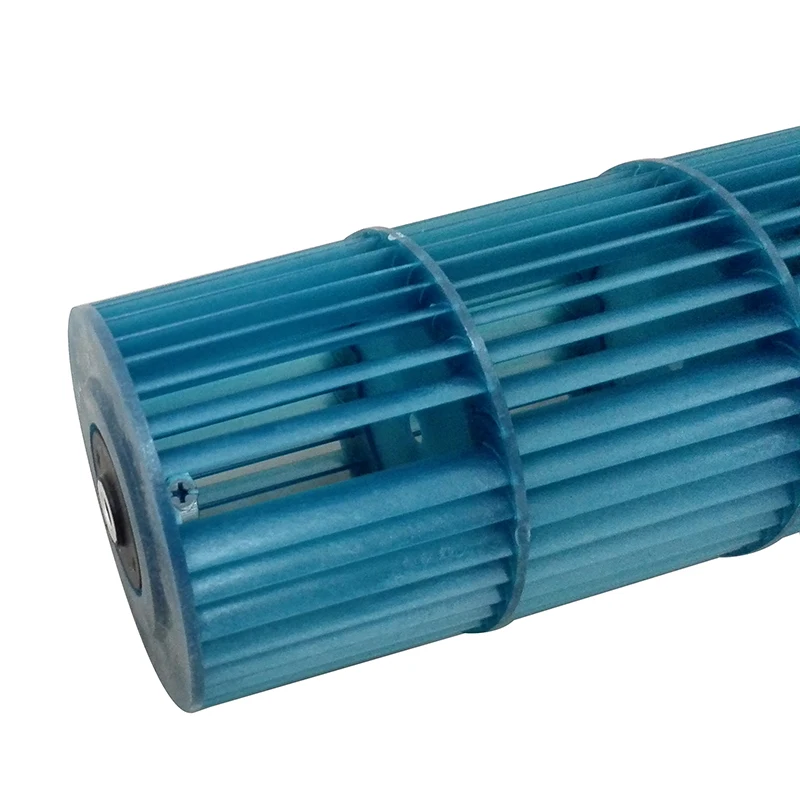

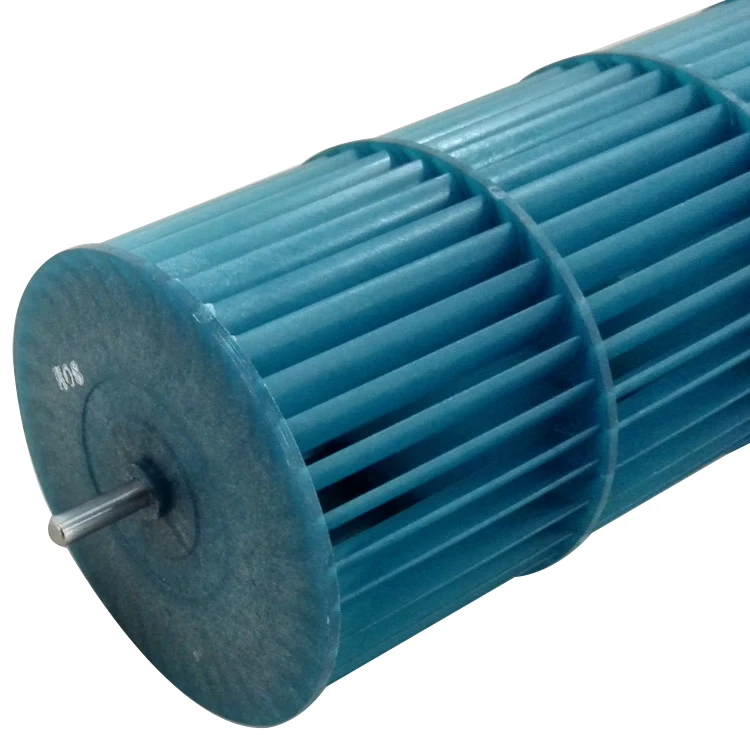

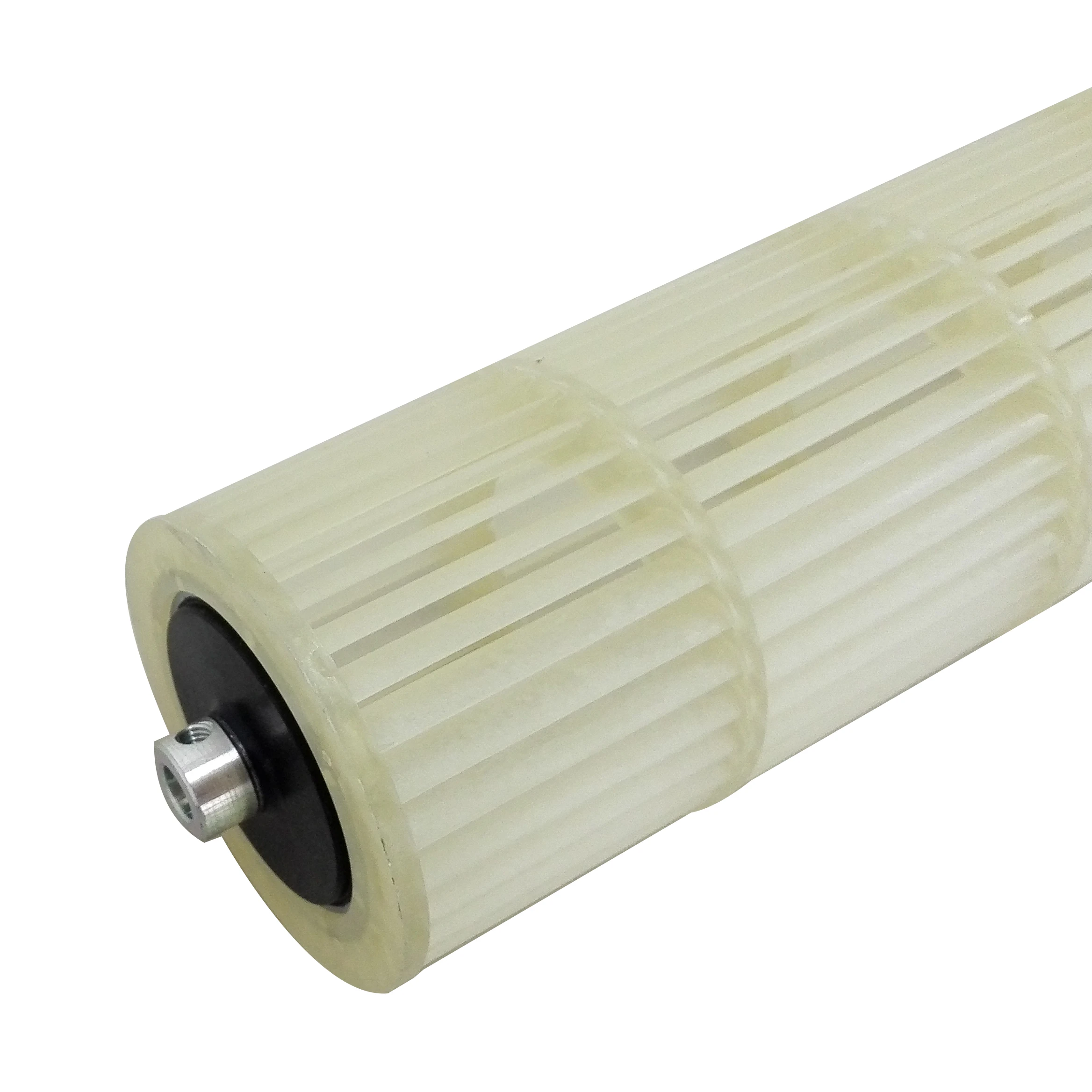

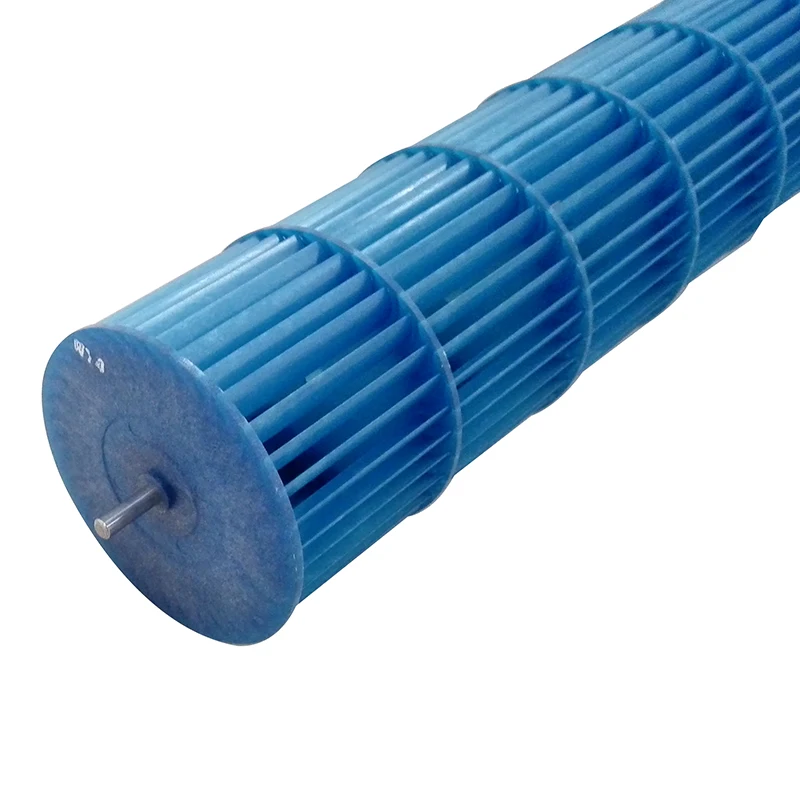

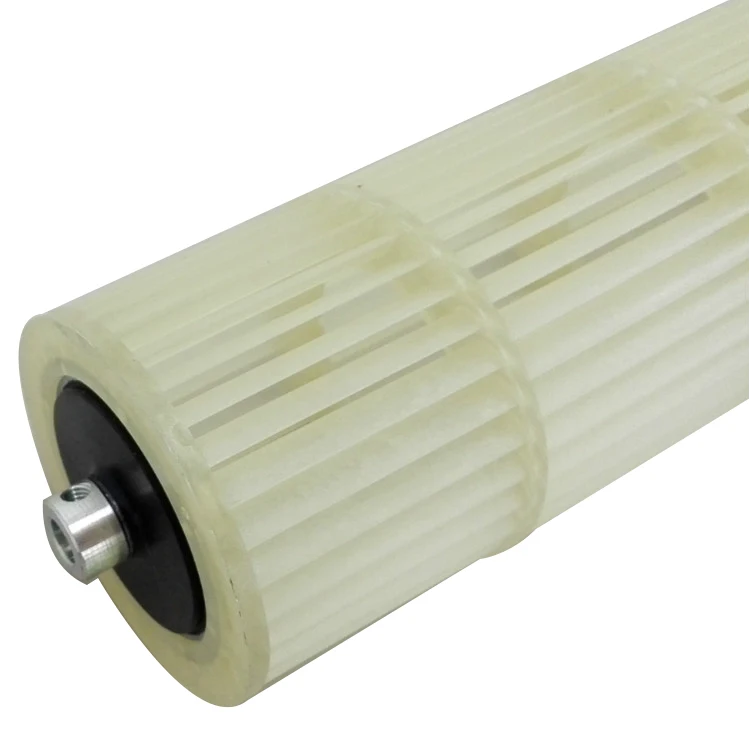

Reliable reputation dc air purifier cross flow fan wheel

Product Overview

Description

Reliable reputation dc air purifier cross flow fan wheel

Diameter-A	Length-L1	Shaft		Shaft Sleeve		color	Blades Q'ty	Rotation	Screw Hole
mm	mm	Shaft Diameter-C (mm)	Shaft Length-L2 (mm)	Shaft Sleeve ID-B (mm)	Shaft Sleeve Length-D (mm)			See from shaft End
Ø61	≤685	4,6,8,10,12mm	≤50mm	4,6,8,10,12mm	in /out≤35mm	Black/Nature/Blue /Green/Yellow/ other colors available as per customer's requirement	30	CCW	M4,M5,M6
Ø71							35	CCW
Ø81							35	CCW
Ø85	≤900						35	CCW
Ø90.4							35	CCW
Ø92							35	CCW
Ø93.5							35	CCW
Ø96							35	CCW
Ø97							35	CCW
Ø101.5	≤1000						35	CCW
Ø102							35	CCW
Ø104							35	CCW
Ø106	≤1020						35	CCW
Ø107							35	CCW
Ø108							35	CCW
Ø121	≤1100						35	CCW
