Price:$26.00 - $35.00

Quantity:


Product Overview

Description


TOPGNSS GN-8603G GLONASS.jpgGN-8603G GALILEO RECEIVER.jpgTOPGNSS GNSS RECEIVER.jpg

Product Description



support:

Xp/Win7/Win8/win10

LED light: to find the signal

LED flashing: positioned

Protocol: USB

Model: GN-8603G

Performance replacement BU-353S4 GMOUUSE BU-353

Applications
       Track record of data acquisition
Automatic vehicle location
Driving recorder
Navigation
GPS clock and digital camera
Child/elderly/personal locator and security system
Features
Multi-satellite positioning systems support
GPS/QZSS/GLONASS(GN-8603G)
GPS/GLONASS/GALILEO(GN-8603L)
GPS/QZSS/Beidou
Based on 8030 low power single chip
Sensitivity
Acquisition: -148dBm
Tracking: -167dBm
Low power: 40mA at continuous tracking
SBAS (WAAS, EGNOS, MSAS) support
Higher update rate option (default 1Hz)
RTCM 2.3 support
A-GPS support, OMA SUPL/3GPP TS25.171 (GSM/UMTS) compliant
Easy to use: built-in patch 25*25*4mm antenna
Backup battery support for faster position fix
LED for position fix indication
Windows location sensor support






Receiver Type

72-channel 8 engine

GPS & QZSS:L1 C/A,1575.42MHz,

GLONASS

L1OF,

1598.0625~1605.375MHz

BEIDOU

B1 1561.098 MHz

SBAS: WAAS, EGNOS, MSAS

Horizontal

2.5m (Autonomous)

Position

2.0m (WAAS)

Accuracy

(including SBAS & QZSS; CEP, 50%

24hr static, -130dBm, >6 SVs)

Velocity

0.05 m/s (speed)

Accuracy

<0.3(heading)

(50%@30m/s)

Time Pulse

30ns (RMS)

Signal Accuracy

<60ns (99%)

Time Pulse

Frequency

0.25 Hz ~ 10 MHz

Time To First Fix

Hot start

Cold start

Autonomous

1.5 sec

26 sec

(50% -130dBm)

Sensitivity

(Autonomous)

-148dBm (acquisition)

-167dBm (tracking)

Navigation.

Update Rate

Max. 10Hz, GPS & GLONASS or

GPS & Beidou

Max. 18Hz, GPS only

Default 1Hz

Max. Altitude

50,000 m

Max. Velocity

<1,852 km/hr

Protocol Support

NMEA 0183 v2.3 and V4.x

UART: 9600 bps N,8,1;

GGA, GLL, GSA, GSV, RMC, VTG, TXT

SBAS Support

WAAS, EGNOS, MSAS






high-quality GNSS receiver, GN-8603G support GPS GLONASS, GPS BEIDOU dual mode combination mode. Built-in FLASH, you can change the NMEA data output format and refresh rate. Products to your satisfaction, please give us 5 points praise, look forward to our long cooperation!

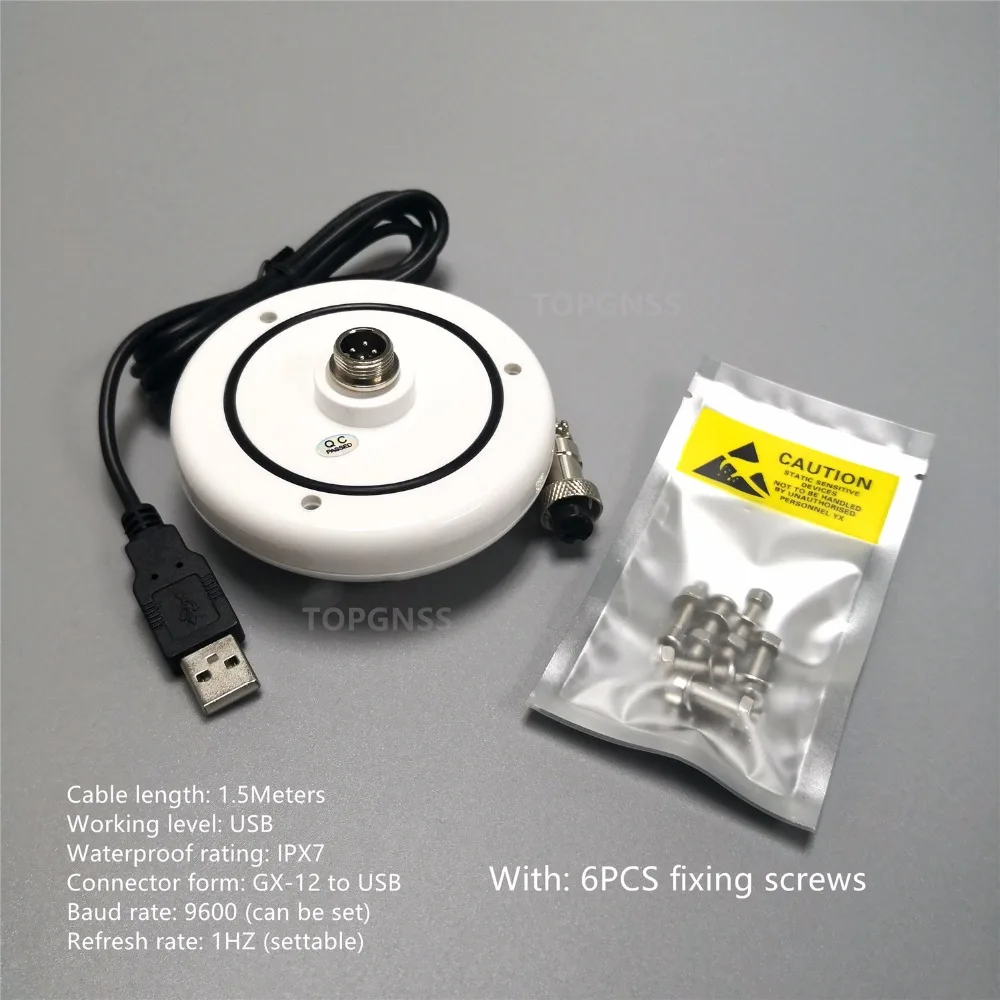

Waterproof rating IPX7,  8030 multi-mode GNSS chip design, support windows XP win7 win8 win10

Default USB communication protocol

GN-8603G is an easy to use, ultra-high performance, low power GNSS smart antenna module with patch antenna for AVL/handheld applications. The built-in u-blox8chip and our experienced design provide fast acquisitions and excellent tracking performance.
GN-8603B supports multiple satellite positioning systems -GPS, GLONASS, GALILEO,Beidou, QZSS and SBAS.GPS, GLONASS, Beidou, QZSS and SBAS.

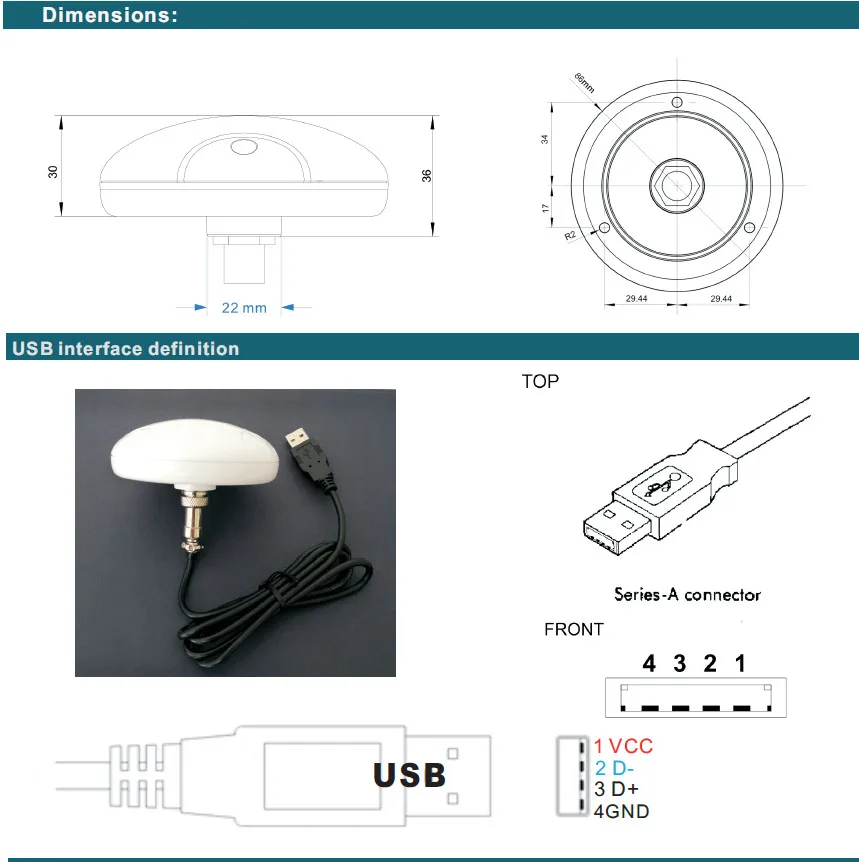

Dimensions:86 * 36 mm

GPS+GLONASS+GALILEO



Features

  • Multi-satellite positioning systems support

GPS/QZSS/GLONASS(GN-8603G

GPS/QZSS/Beidou (GN-8603B

  • Based on u-blox8 low power single chip
  • Sensitivity

      Acquisition: -148dBm

    Tracking: -167dBm

  • Low power: 40mA at continuous tracking
  • SBAS (WAAS, EGNOS, MSAS) support
  • Higher update rate option (default 1Hz)
  • RTCM 2.3 support
  • A-GPS support, OMA SUPL/3GPP TS25.171 (GSM/UMTS) compliant
  • Easy to use: built-in patch antenna & 6-pin wire to

board connector w/ pitch of 1.25mm

  • Backup battery support for faster position fix
  • LED for position fix indication
  • Promotion 1000PCS, products make you satisfied, please give us 5 points evaluation, thank you for your trust and support!
  • USB communication protocol support operating system: VistaXP,CE Windows10
    Support: XP, win7, win8, win10 (support for all series windows system drive)

  • USB GPS GLONASS GNSS driver and test star software, can be downloaded from our server. (we have more than one version of the test software can choose)
  •     You encountered in the use of any questions or you need to buy more quantity, please contact with us
    We can provide professional OEM or ODM services.
