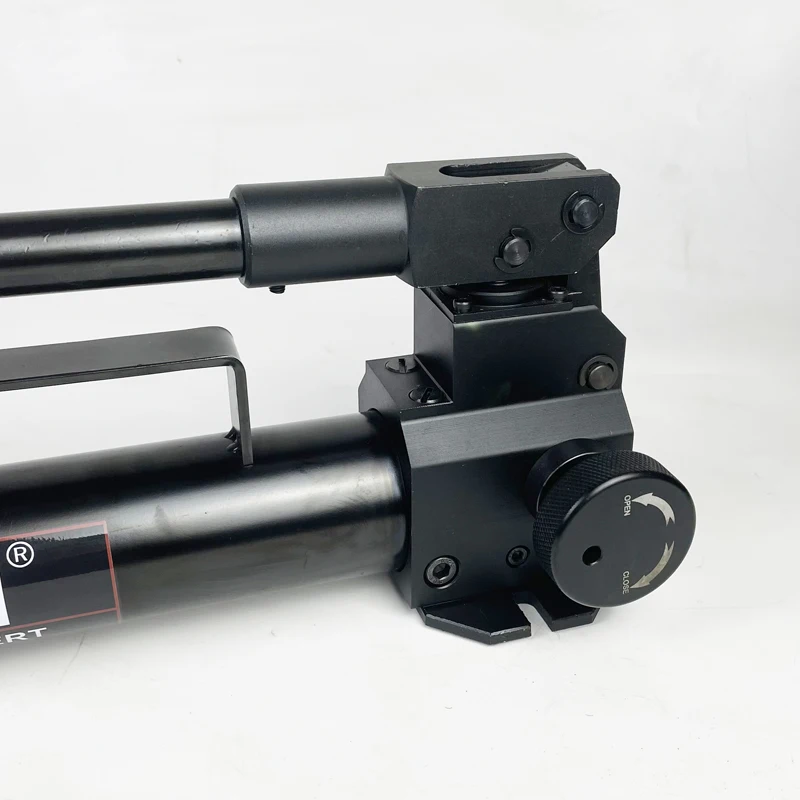

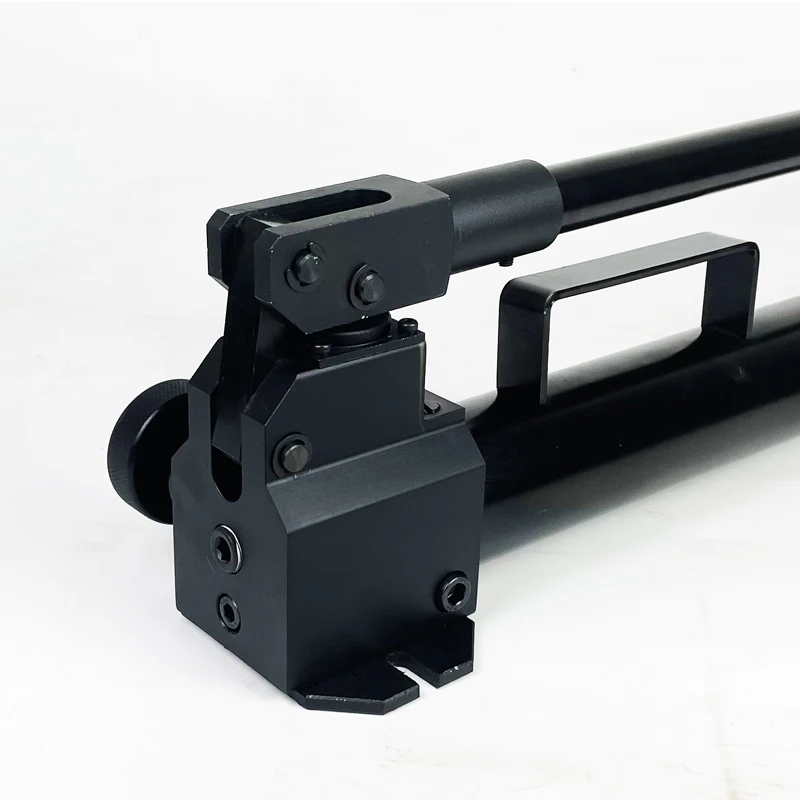

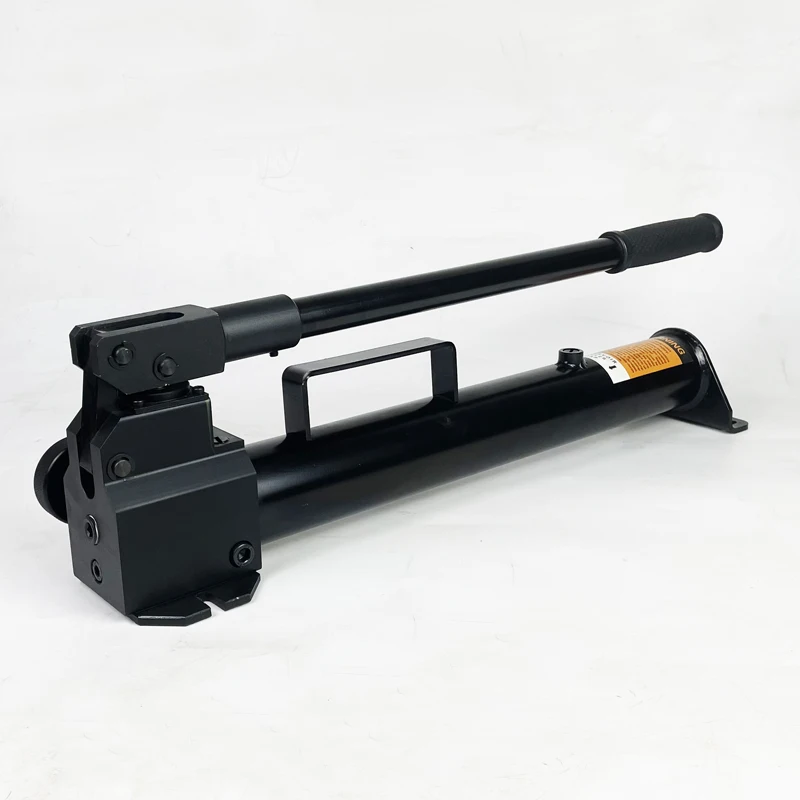

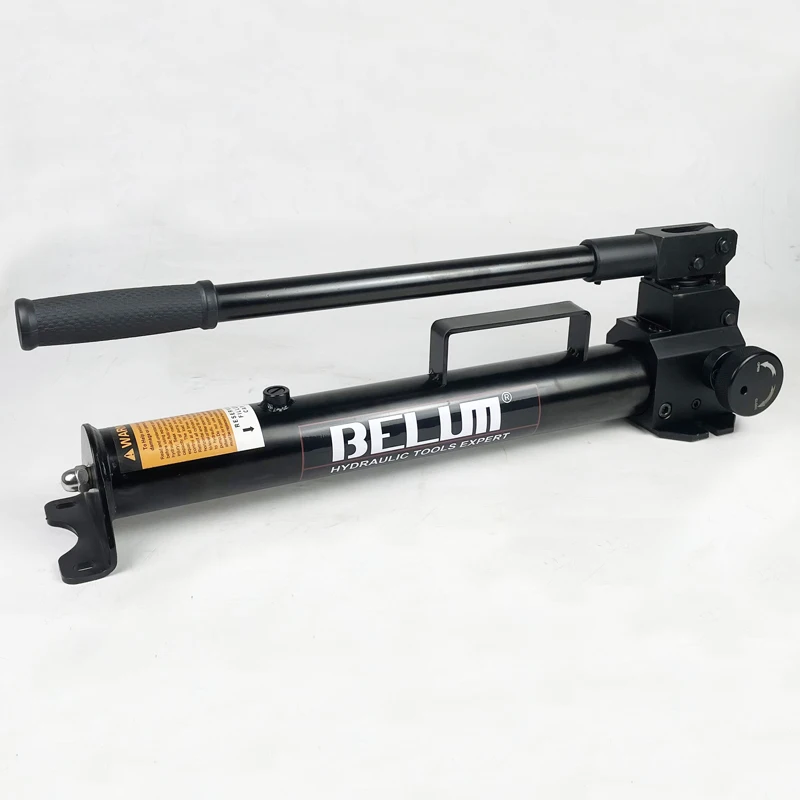

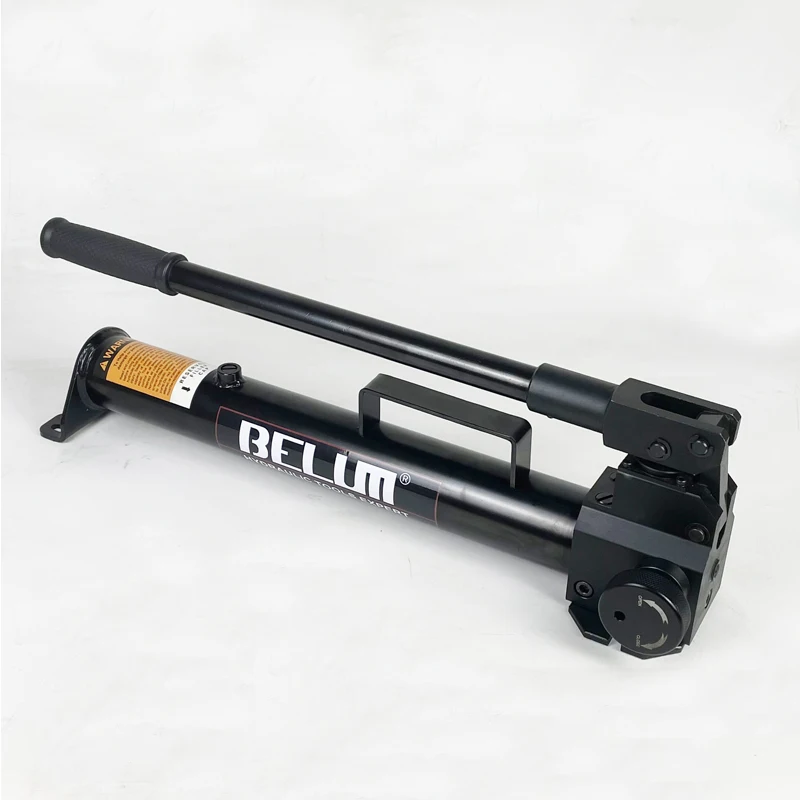

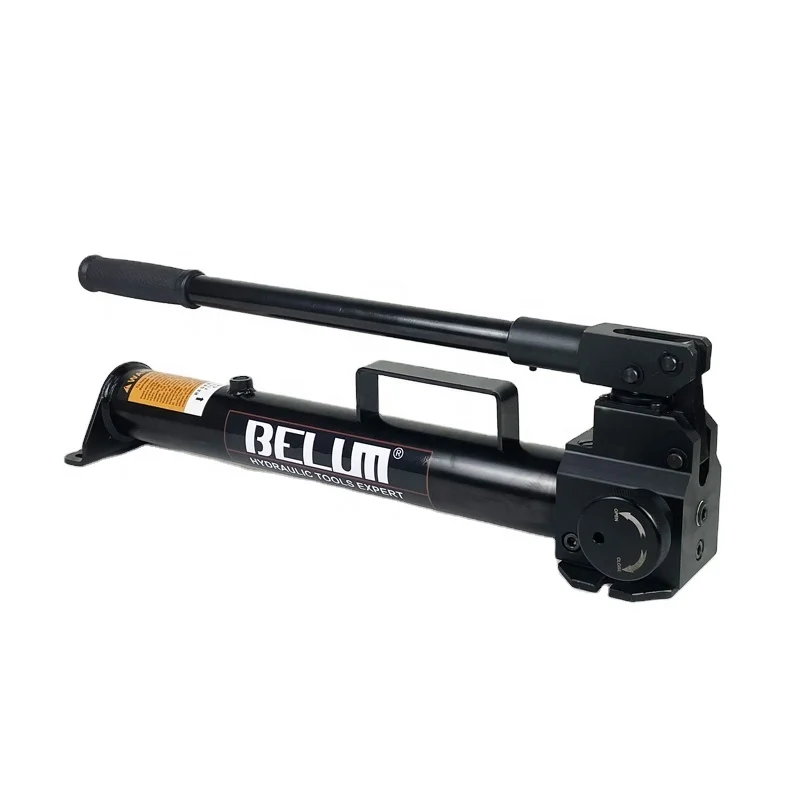

BP 900A 700BAR / 10000PSI Manual Operated Single Acting Hydraulic Cylinder Hand Pump
- Category: >>>
- Supplier: Hangzhou Fuyang Tengmin Machinery Co. Ltd.
Share on (62383173990):
Product Overview
Description
Product Description
| MODEL | BP-900A |
| MAX. PRESSURE | 700 BAR/ 10000 PSI |
| OIL CAPACITY | 900 ML |
| FLOW RATE | 33ML/STROKE@ 1ST STAGE, 3.3ML/STROKE@ 2ND STAGE |
| WEIGHT | 7.2KG |
BP SERIES 700 Bar/ 10000Psi Hydraulic Manual Operated Hand Pumps
FEATURES
- High strength alloy steel construction for increased durability.
- Compact Design, easy to carry and operate.
- Two speed designed hand pumps, improve work efficiency.
- Relatively lower handle foce to press, save labor.
- Internal safety valve for pressure overload protection.
- * BP-280 is an all aluminum-made hand pumps
SPECIFICATIONS
| MODEL | CYLINDER TYPE | SPEED | USABLE OIL VOLUME | PRESSURE RATING | OIL FLOW RATE PER STROKE | HANDLE FORCE | PORT THREAD | ||
| 1ST STAGE | 2ND STAGE | 1ST STAGE | 2ND STAGE | ||||||
| CM3 | BAR | BAR | CM3 | CM3 | KG | ||||
| BP-280 * | SINGLE ACTING | TWO | 330.0 | 14.0 | 700.0 | 7.8 | 0.8 | 35.0 | 3/8-18NPT |
| BP-900A | 900.0 | 25.0 | 700.0 | 33.0 | 3.3 | 49.0 | 3/8-18NPT | ||
| BP-2300A | 2300.0 | 25.0 | 700.0 | 33.0 | 3.3 | 49.0 | 3/8-18NPT | ||
| BP-4500 | 4500.0 | 25.0 | 700.0 | 26.0 | 2.9 | 51.0 | 3/8-18NPT | ||
| BP-7500 | 7500.0 | 25.0 | 700.0 | 125.0 | 5.8 | 51.0 | 3/8-18NPT | ||
| BPD-900A | DOUBLE ACTING | 900.0 | 25.0 | 700.0 | 33.0 | 3.3 | 49.0 | 3/8-18NPT | |
| BPD-2300A | 2300.0 | 25.0 | 700.0 | 33.0 | 3.3 | 49.0 | 3/8-18NPT | ||
| BPD-4500 | 4500.0 | 25.0 | 700.0 | 26.0 | 2.9 | 51.0 | 3/8-18NPT | ||
| BPD-7500 | 7500.0 | 25.0 | 700.0 | 125.0 | 5.8 | 51.0 | 3/8-18NPT | ||
DIMENSIONS AND WIEGHTS
Single Acting Double Acting
| MODEL | A | B | C | D | E | F | G | H | WEIGHT |
| MM | MM | MM | MM | MM | MM | MM | MM | KG | |
| BP-280 | 375.0 | 290.0 | / | 80.0 | 110.0 | 67.0 | / | 143.0 | 2.2 |
| BP-900A | 582.5 | 505.5 | 47.0 | 108.0 | 130.0 | 82.0 | 82.0 | 165.0 | 6.8 |
| BP-2300A | 739.0 | 508.0 | 47.0 | 125.0 | 138.0 | / | 82.0 | 161.0 | 10.1 |
| BP-4500 | 580.0 | 608.0 | 163.0 | 275.0 | 315.0 | 250.0 | - | 267.0 | 22.5 |
| BP-7500 | 800.0 | 904.0 | 211.0 | 275.0 | 315.0 | 250.0 | - | 315.0 | 30.0 |
| BPD-900A | 582.5 | 505.5 | 29.0 | 108.0 | 108.0 | 82.0 | 82.0 | 165.0 | 8.8 |
| BPD-2300A | 739.0 | 508.0 | 29.0 | 125.0 | 108.0 | / | 82.0 | 161.0 | 11.6 |
| BPD-4500 | 580.0 | 608.0 | 163.0 | 275.0 | 315.0 | 250.0 | - | 267.0 | 22.5 |
| BPD-7500 | 800.0 | 904.0 | 211.0 | 275.0 | 315.0 | 250.0 | - | 315.0 | 30.0 |
