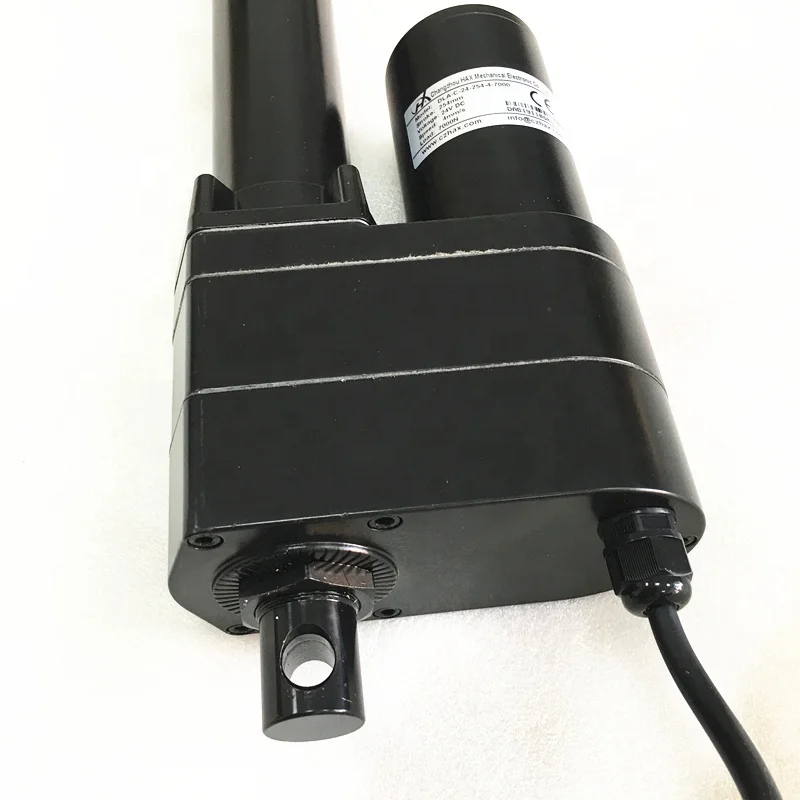

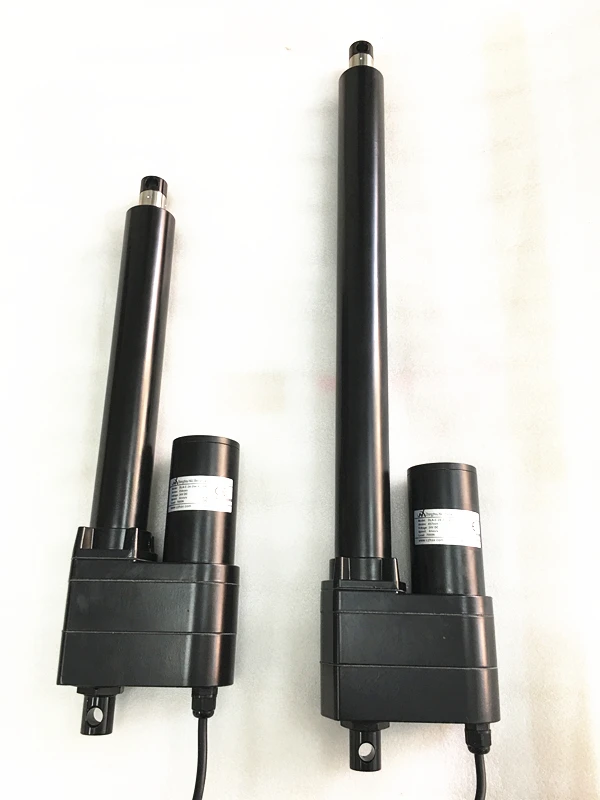

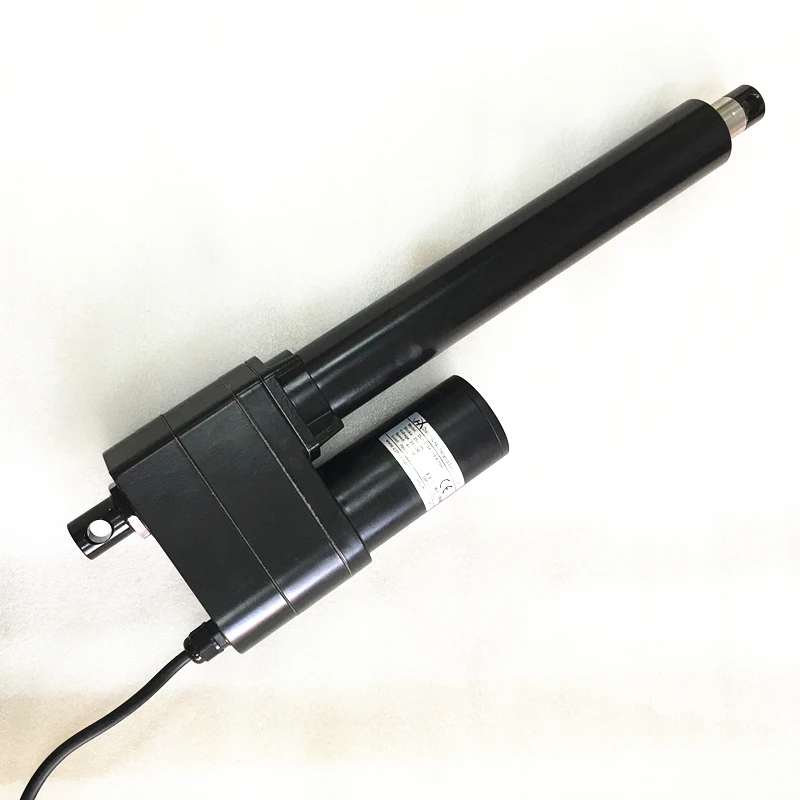

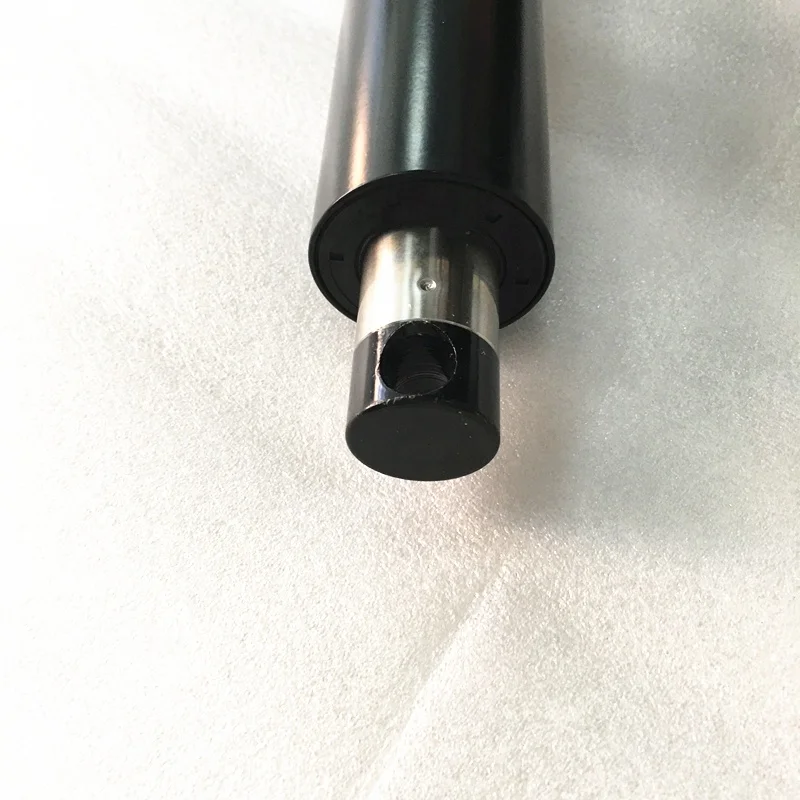

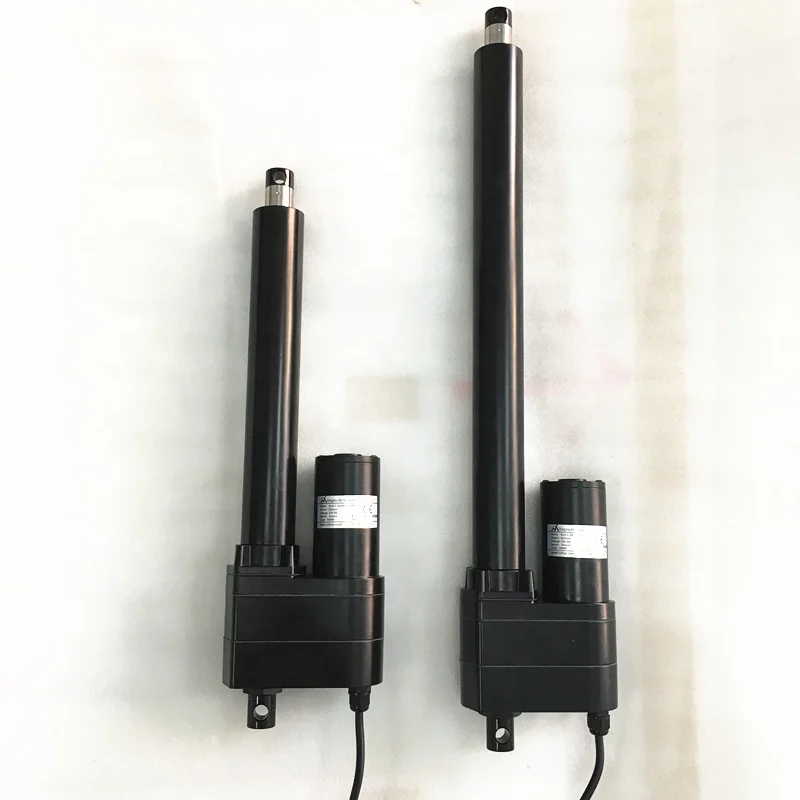

electric linear actuator 12v Electric hydraulic cylinder 5000N
- Category: >>>
- Supplier: Changzhou Hax Mechanical Electronic Co. Ltd.
Share on (62383176383):
Product Overview
Description
Product Description

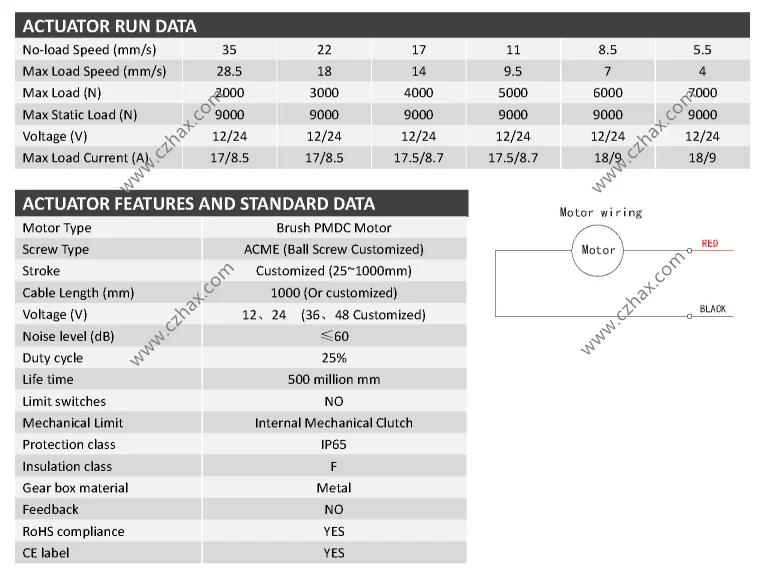

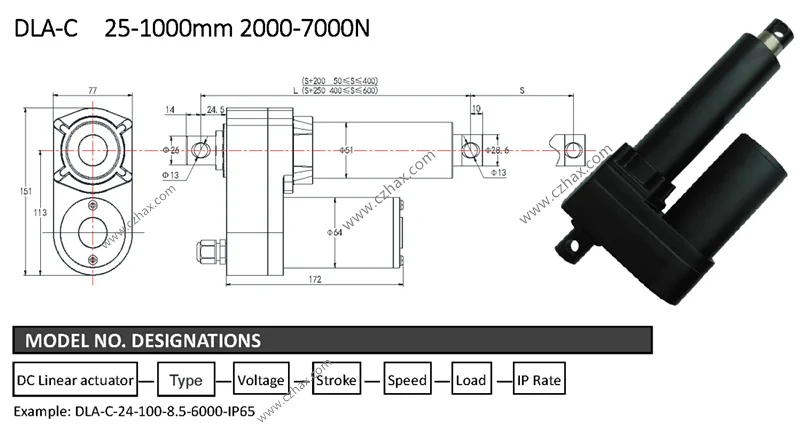

DLA-C model linear actuator
| motor type | brush PMDC motor |
| screw type | ACME (ball acrew customized) |
| stroke | customized |
| cable length | 1000 or customized |
| voltage | 12,24,36,48V |
| noise level db | below 60db |
| duty cycle | 25% |
| life time | 500 million mm |
| limit switch | no |
| mechanical limit | internal mechanical clutch |
| gearbox material | metal |
Company Information
ABOUT US
CUITURE
Changzhou HAX Mechanical Electronic Co., Ltd Founded in 2011 in Changzhou City, Jiangsu Province,Chinais mainly produce all kinds of DC linear actuators, AC linear actuators, servo linear actuators, electric cylinder, servo sliding rail actuator etc. We have the professional engineer team to provide the complete technical solution and design.
Our products have more than 1000 models, more than 90% customized according to customer’s requirement. More than 80% of the products are exported to Europe, America, Australia, Southeast Asia, Africa and other 28 countries and regions.
Welcome to consult us anytime, HAX will provide you with the best service and products!
Exhibition
Advantages
Hard chromium plating on the surface to make linear actuator parts more durable.
Plastic gear or metal gear optional, long life, low noise
Professional engineer team provides complete technical solution design
SGS test, 100% factory inspection
Smooth operation and good environmental adaptability
Factory price, quick delivery
Excellent After-sales Service
The linear actuator with a voltage of 12V, 24V, 36V and 48V has thrust from 5kg to 500kg, strokefrom 10mm to 1000mm, and speed from 3mm / s to 35mm / s.
Certifications
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
