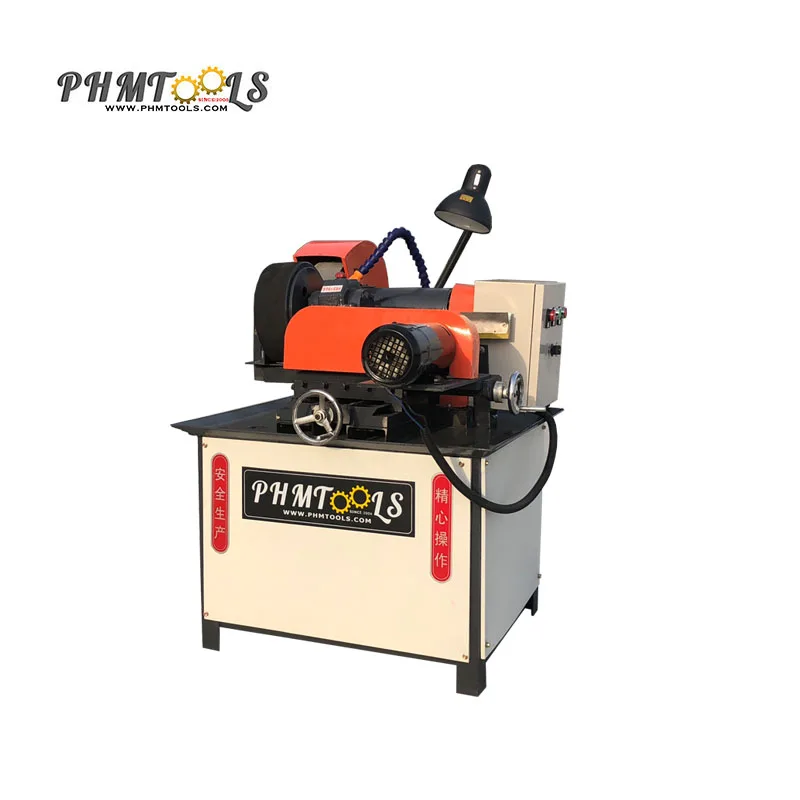

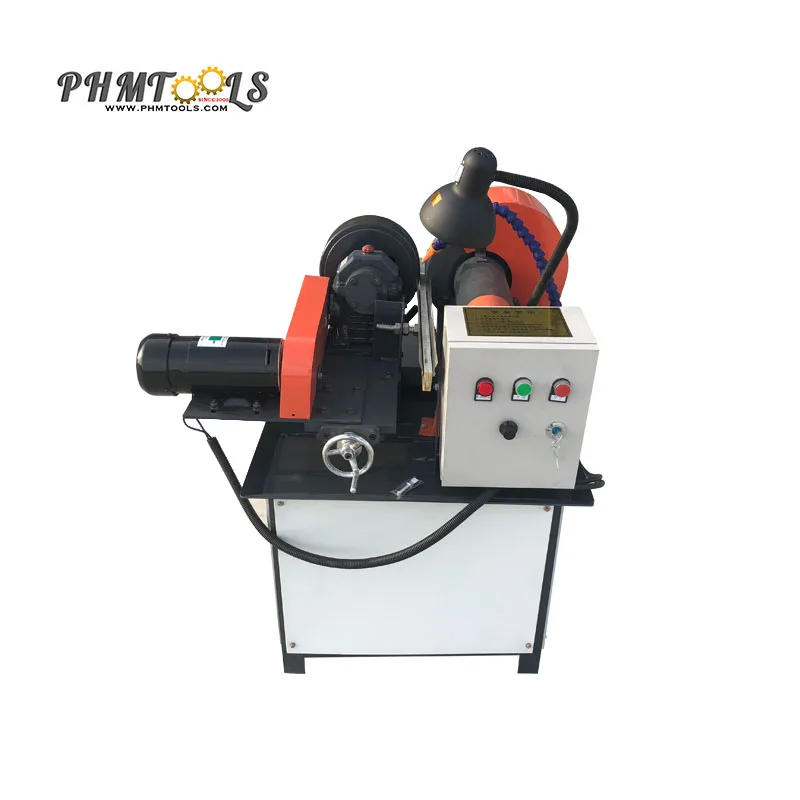

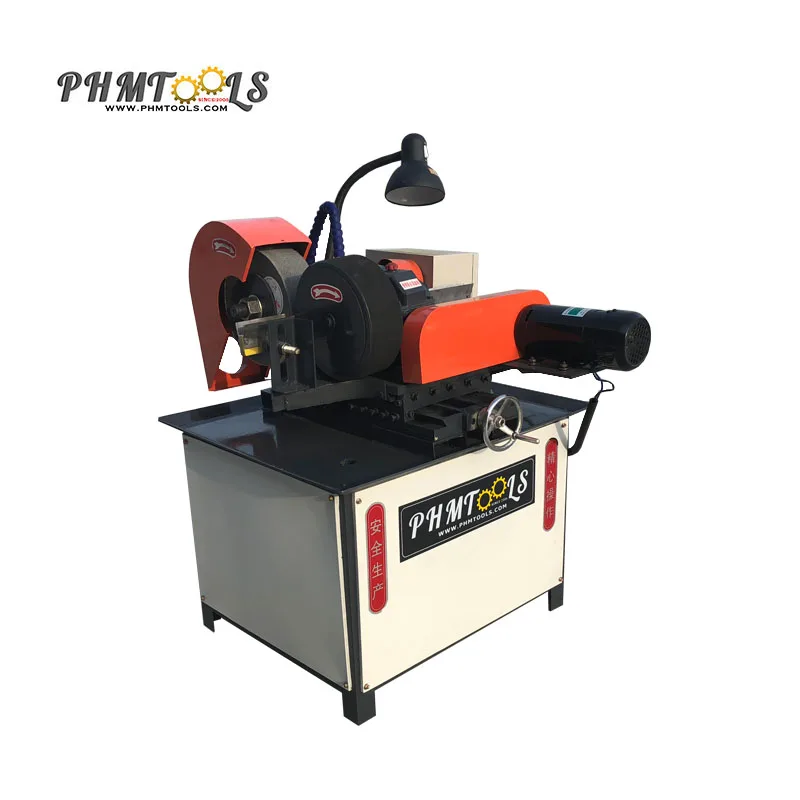

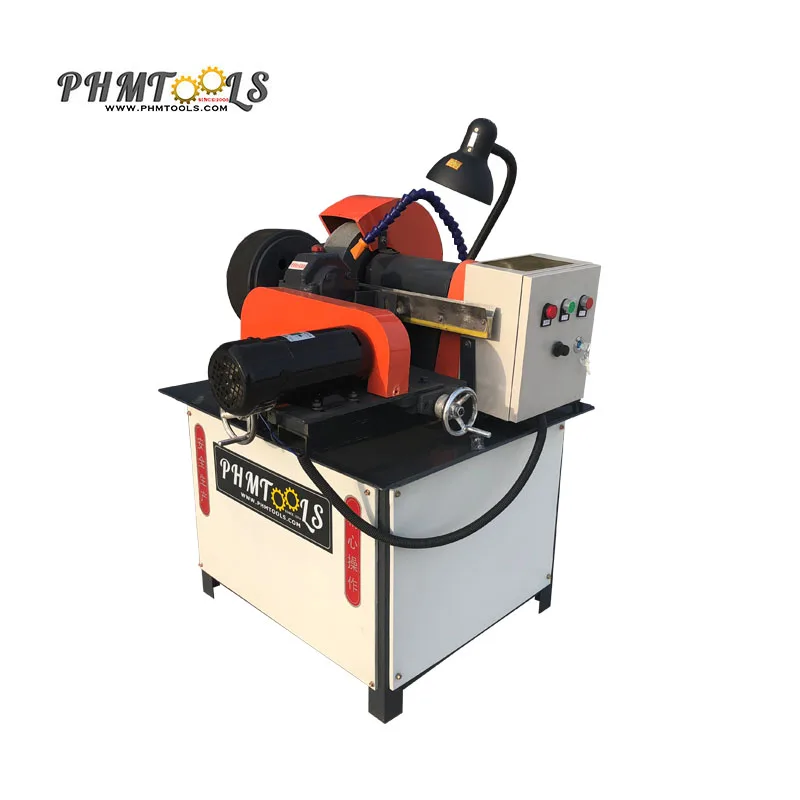

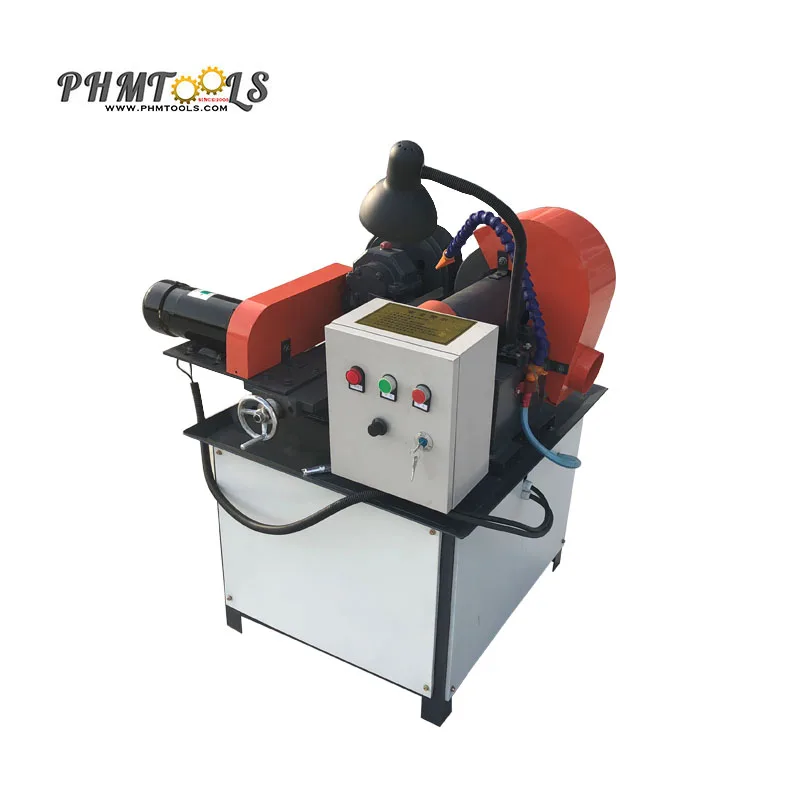

round tube polishing machinery /Small centerless grinder

Product Overview

Description

round tube polishing machinery /Small centerless grinder

1.Use of Stainless Steel Automatic Pipe Polishing Machine

CX series centerless cylindrical polishing machine (grinding machine) is an independent research and development of our factory's technology combined with market demand. The machine has high efficiency, high brilliance, and can choose various kinds of grinding tools to wait for points.

The machine is mainly used in hardware, electroplating, steel-wood furniture, standard parts, auto parts and other manufacturing industries, can be a variety of shaft, rod, stainless steel, boiler tubes, high precision tube, titanium alloy rod, engineering Hydraulic rods for machinery, shock absorber rods for automobiles and motorcycles, valve rods, oil pumped polished rods, all kinds of metals, non-metallic rods, tubes, plastics, rubber tubes, aluminum tubes, textile machinery polished rods, cylindrical surfaces for various wire fittings Polished, ground, descaled, derusted, polished, mirror polished.



This machine can be customized according to customer requirements

can be reduced diameter

can choose to install the cooling system



2.working principle

Grinding wheels, thousands of impellers, and polishing wheels are used as grinding tools. The typical centerless cylindrical grinding technology is used to work together with the grinding wheels (thousands of impellers/buffing wheels), driving guide pulleys and pallets (or idlers) to realize the cylindricality. Grinding and polishing.Change the material, granularity, hardness and hardness of the grinding wheel (thousands of impeller / polishing wheel), and the contact method can achieve coarse grinding, fine grinding or polishing. Long-term linkage can improve processing efficiency. Main features of this machine: Adjustable guide wheel speed, suitable for different sizes and diameters the polishing of the workpiece.



3.main parameters of Pipe Polishing Machine

Model	Grinding diameter mm	Processing diameter mm	Processing length mm	Precisionmm	Main motor kw	Introduction Motor kw	Processing efficiency mm/s	cooling system	Size mm	Weight kg
CX-80	250	2-80	Arbitrary	0.005	3.0	0.75	20-60	choose	780*750*860	320
CX-80C	250	2-100	Arbitrary	0.005	4.0	DC	20-60	choose	980*850*950	400
CX-80B	250	2-80	Arbitrary	0.005	3.0	DC	20-60	choose	860*780*850	360
CX-150	250	2-150	Arbitrary	0.005	4.0	....	20-60	choose	950*900*900	450

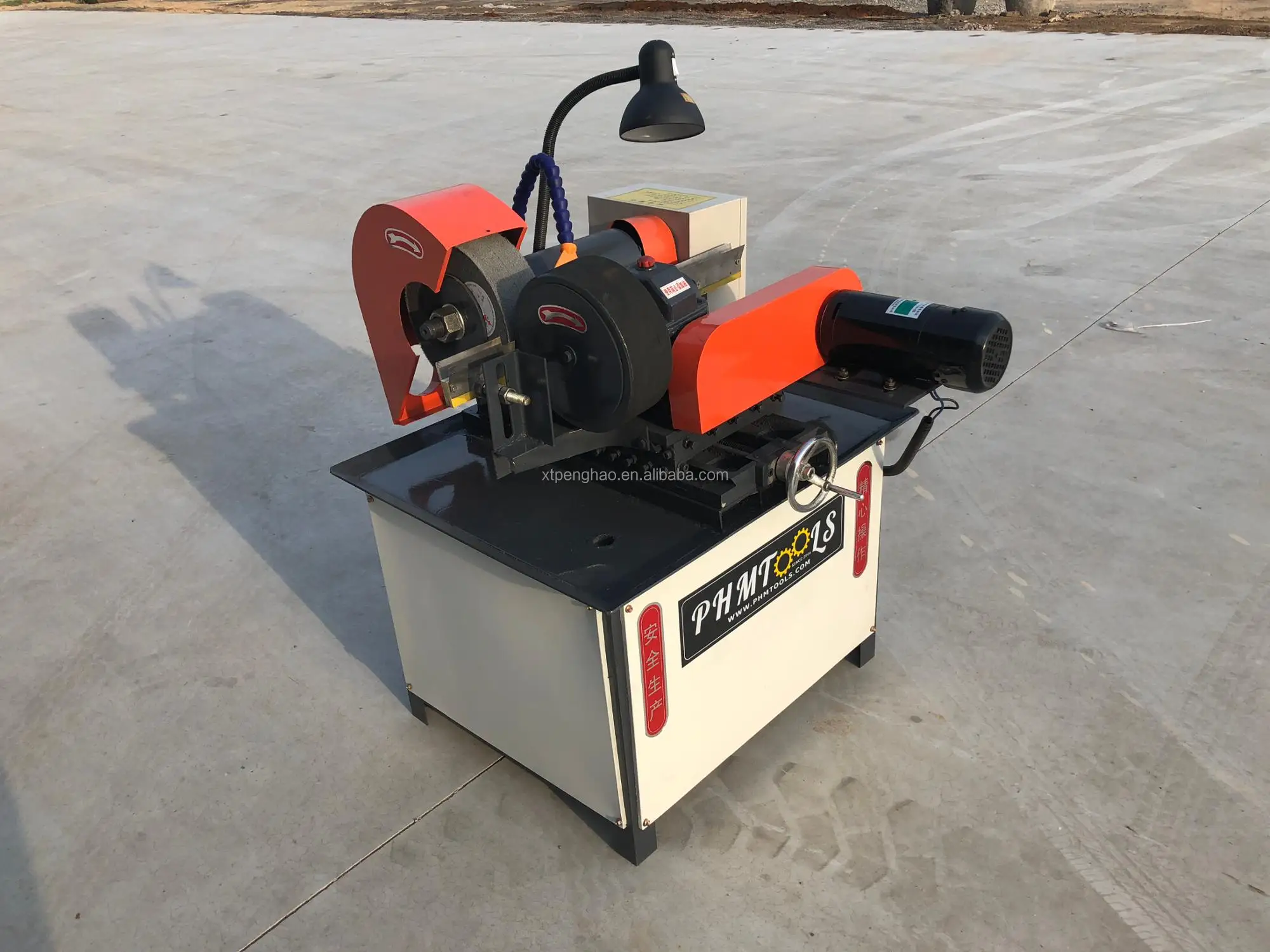

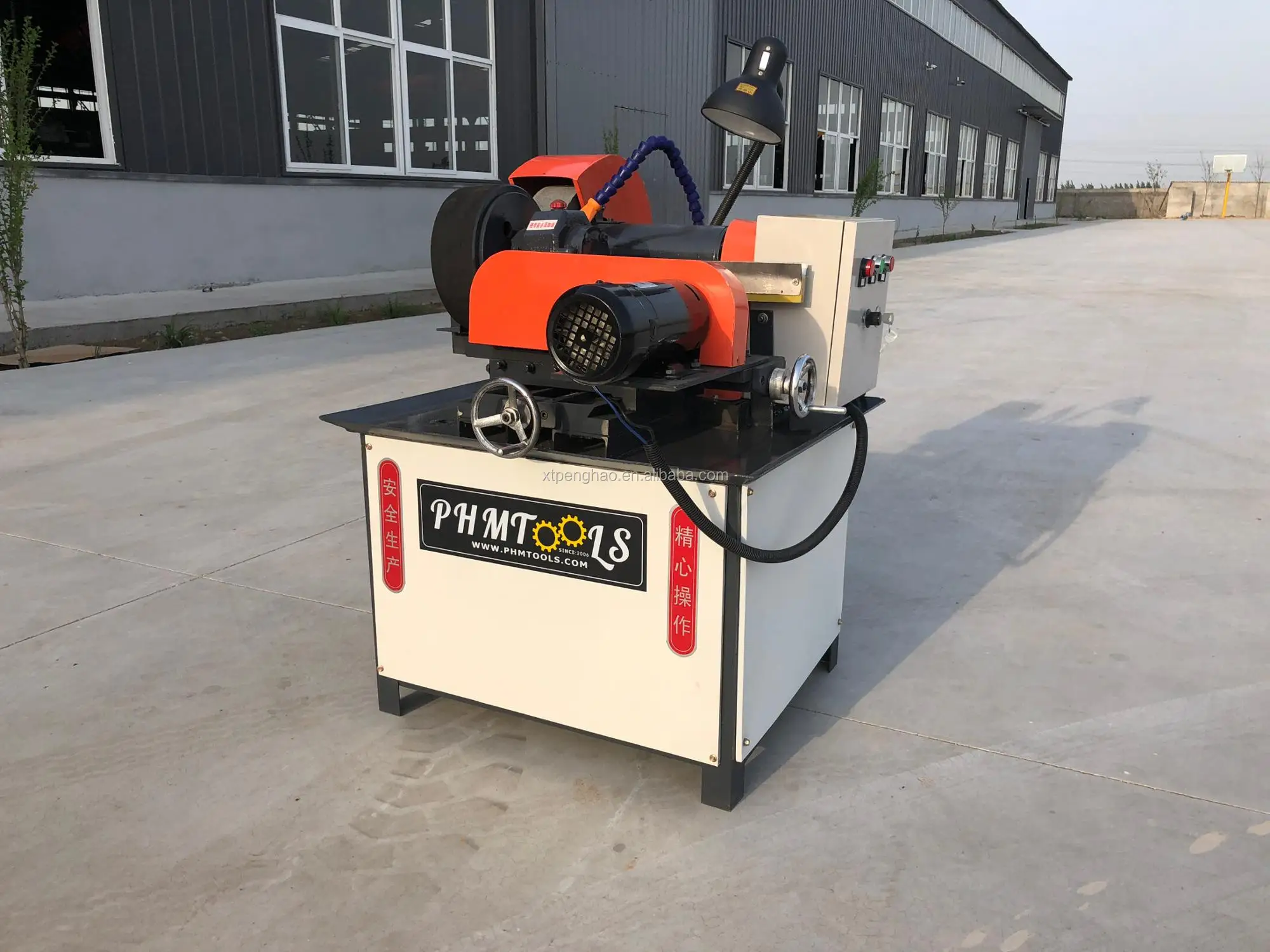

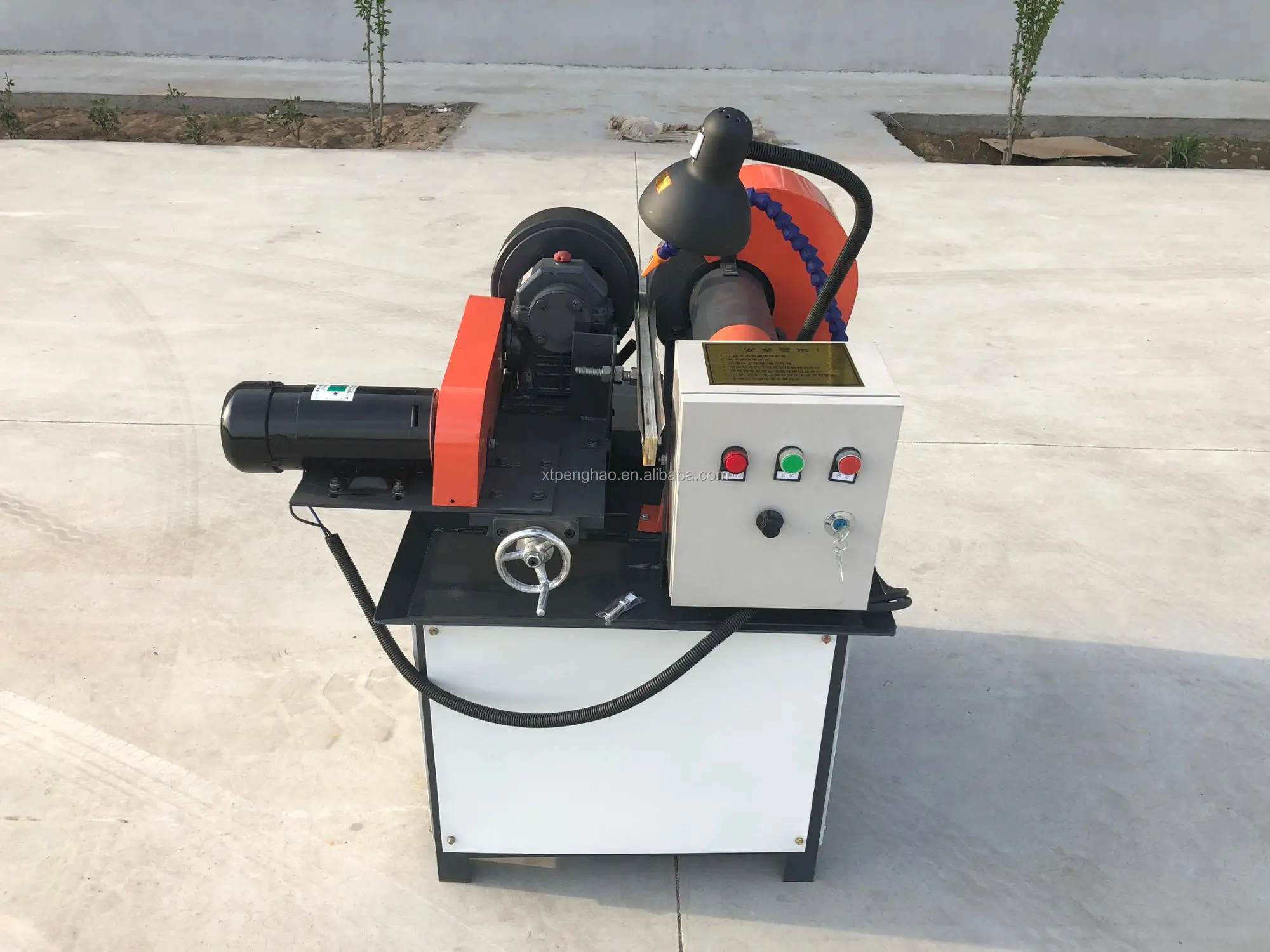

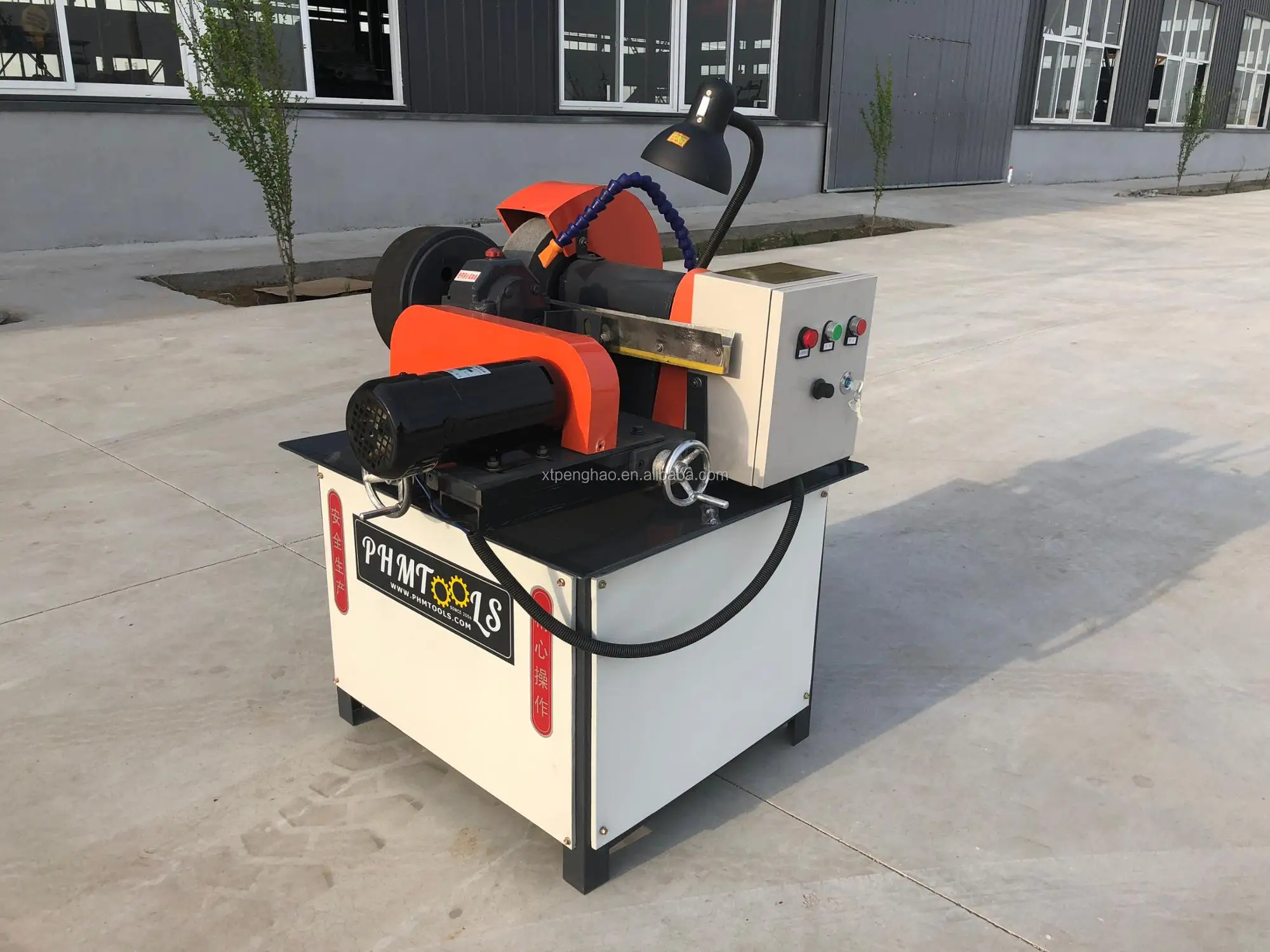

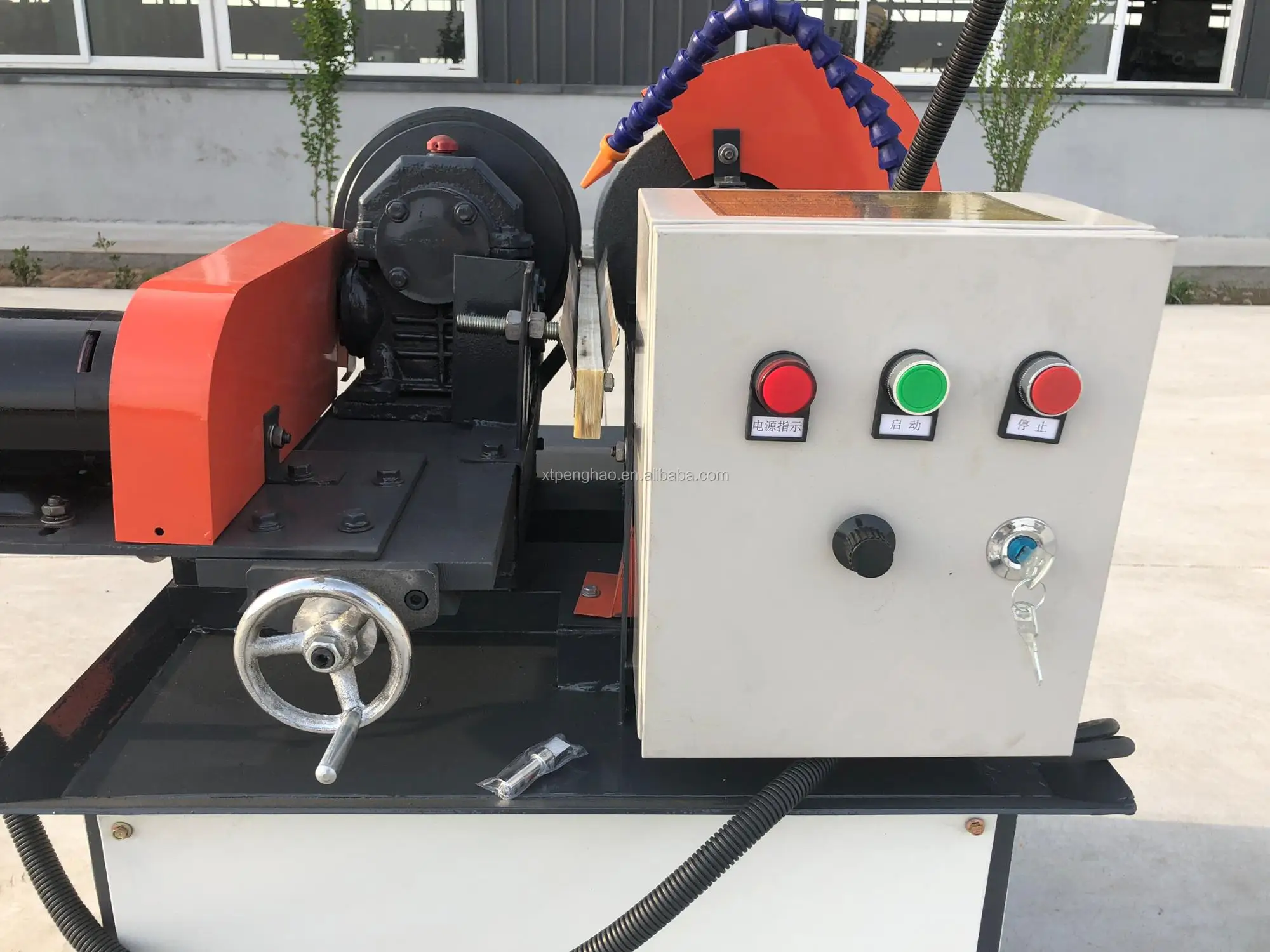

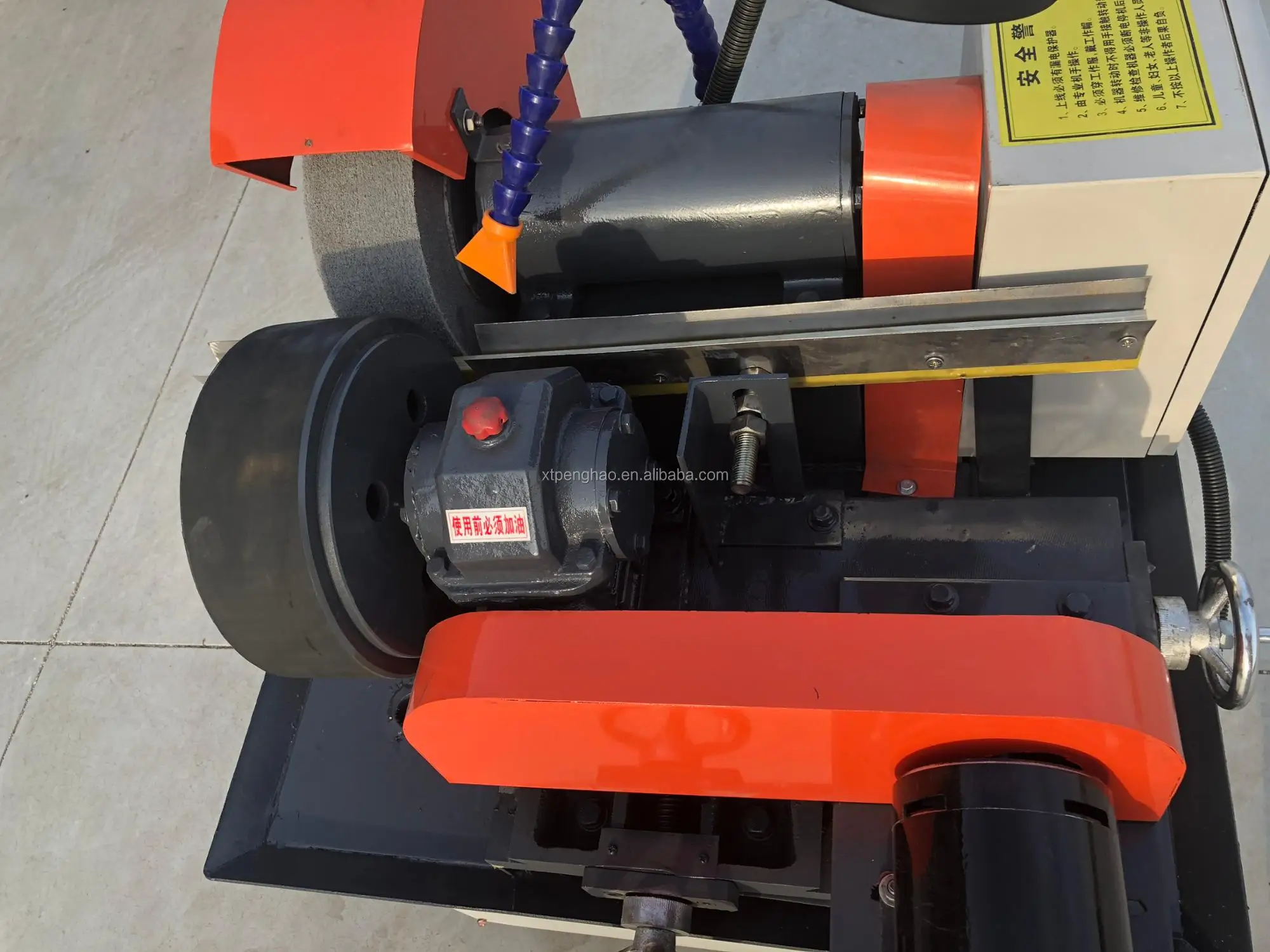

4.display of stainless steel piple polishing machine

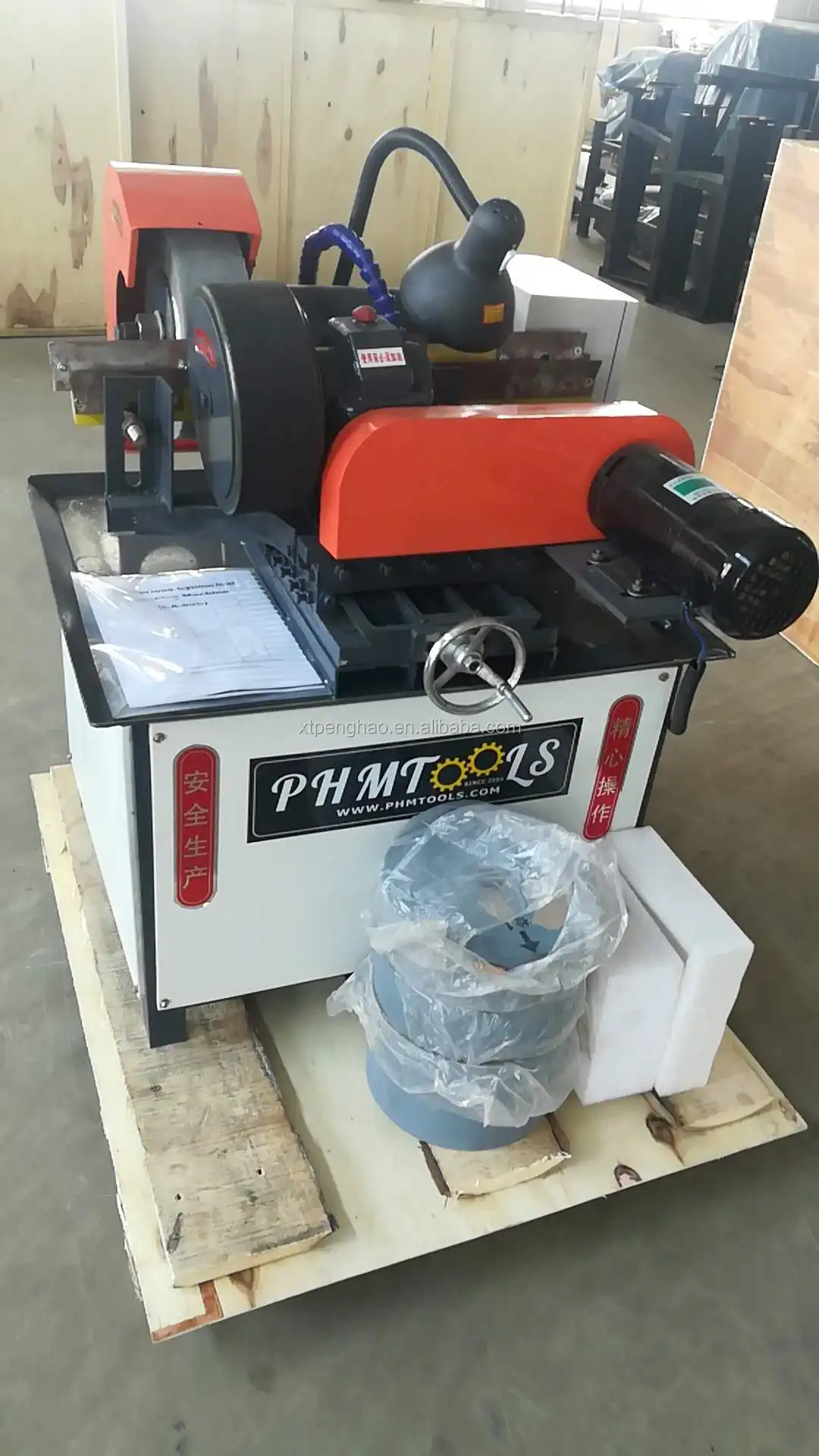

5.Packaging:Our company uses fumigation-free standard wooden boxes for all machine packages.

Shipping: It can be selected according to customers' wishes. Usually exports are CIF. FOB.CFR. DDU etc.by sea or by air.

You can tell us your port name or airport name. We will check the freight for you for free.

6.service

 Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the fitest machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you .
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for a year.
2.Quality problem,we will sent you the accessories.
3.Free repair whole using life(without the freight and accessories charge.
4.Send you the easy broken part of rebar stirrup bending machine for free.



Our certificate

GB/T 19001-2008/ISO 9001:2008 standard with CE CERTIFICATE
