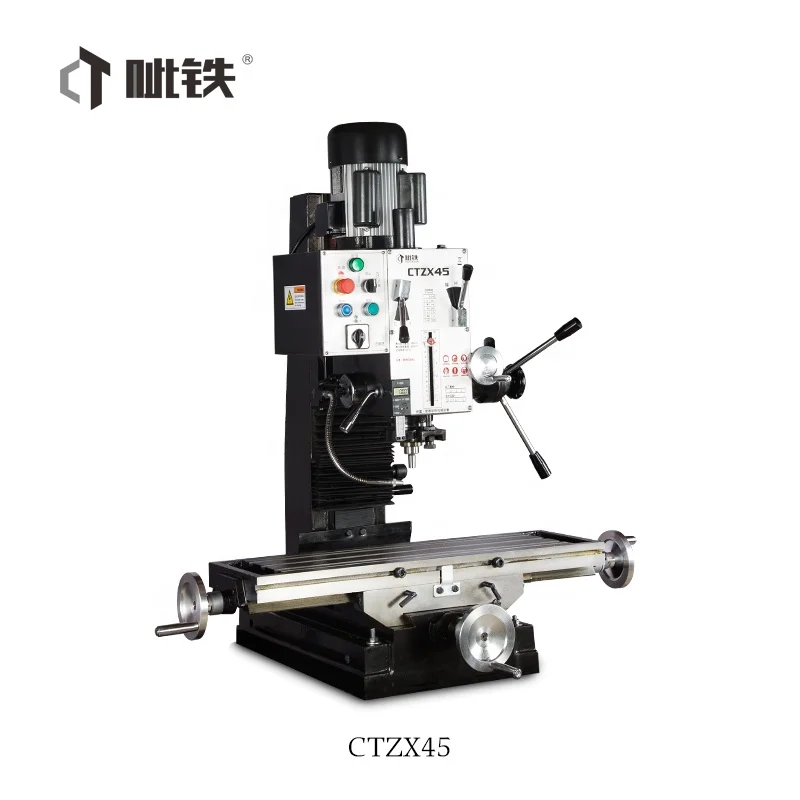

CTZX45 Mini Drilling and Milling Machine Lathe 220 or 380V,220V or 380V CE ISO 1500w with DRO for Sale Cheap Price 1.5 Years 325
- Category: >>>
- Supplier: Anhui Citie Technology Co. Ltd.
Share on (62383303557):
Product Overview
Description
Quick Details
| Condition: | New | Type: | Drilling & Milling Machine | Power Source: | Electric |
| Place of Origin: | AnHui, China (Mainland) | Brand Name: | CTMACH | Model Number: | CTMACH-1001 |
| Dimension(L*W*H): | 845*910*1020mm | Weight: | 325kg | Voltage: | 220v |
| MOQ | 1 set | Certification: | ISO | Warranty: | One year |
| marketing mode: | directly selling | Manufacturer | OEM is welcome |
Packaging & Delivery
| Packaging Details: | Wooden Box package |
| Delivery Detail: | 1-10 Days |
Descriptions:
- Industrial grade drilling and milling and tapping three use
- Industrial grade machine tool can do 45 steel, cast iron, aluminum, stainless steel, and other non-ferrous metal processing.
- The machine is of high quality, excellent performance and easy operation, and can be operated by unskilled workers.
Applications:
- Suitable for home workshop DIY handicrafts
- maintenance of cars and motorcycles in the workshop
- teaching demonstrations used by schools, science and technology centers and research institutes
- small and medium-sized factory small batch parts cut machining and repair.

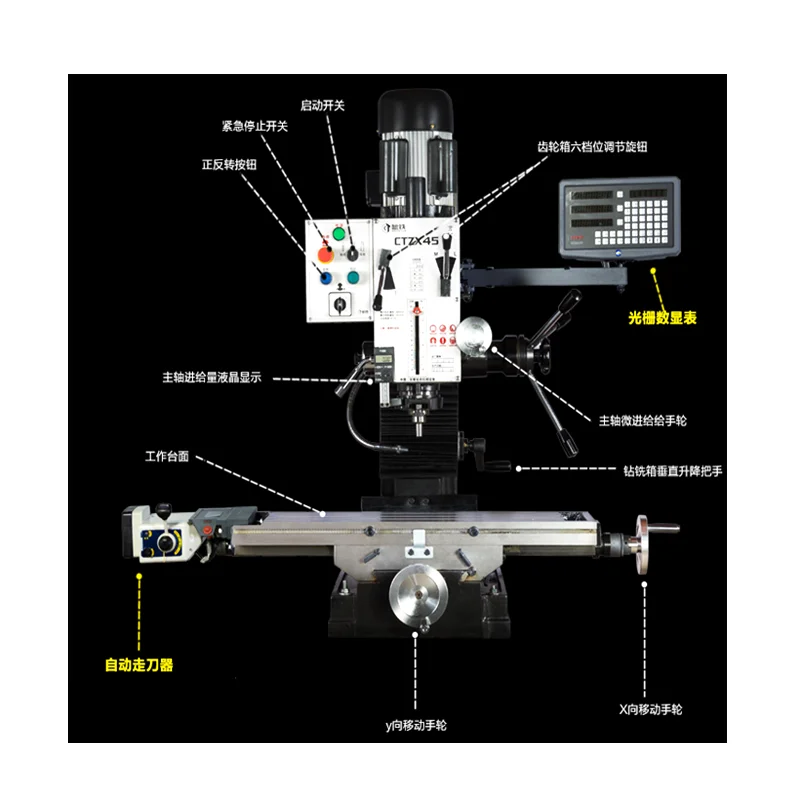

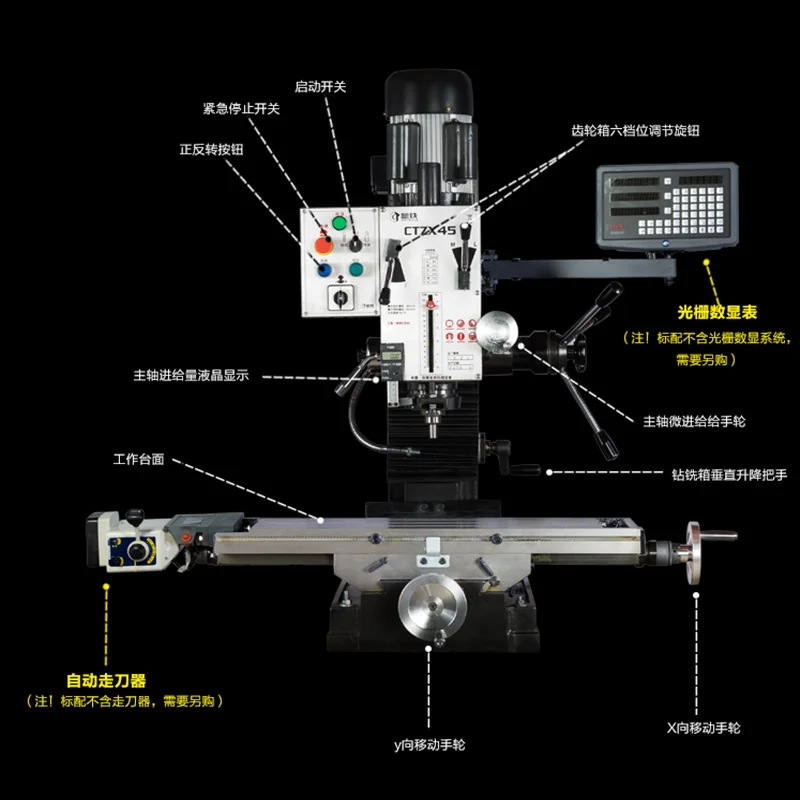

CTZX 45 Drilling and Milling Machine with Grating digital display & automatic knife (CTMACH-1001)
Technical Specifications
Maximum drilling diameter | 45mm |
Maximum face milling cutter diameter | 80mm |
Maximum end mill diameter | 32mm |
Maximum tapping capacity | M16 |
Spindle travel | 130mm |
Maximum distance from the spindle end to the table (Z stroke) | 450mm |
Headstock swing angle | +-90 |
Spindle taper | M.T.4 |
Minimum distance from spindle axis to column surface | 260mm |
Workbench area | 800*240mm |
Workbench Y trip | 200mm |
Workbench X stroke | 580mm |
Spindle speed | 50HZ 80-1250RPM |
main motor power | 1.5KW(2HP) |
Dimensions | 845*910*1020mm |
Body weight | 325kg |
Box size of package | 910*850*1020mm |
Product Show
Primary Competitive Advantages:
- Industrial grade drilling and milling and tapping three use
- High precision and stable milling
- High strength, easy to drilling
- Limit automatic reversal tapping
- Spindle feed depth digital display
- Spindle feed depth limit
- Imported SKF bearings with high precision, not afraid of heat, ultra-low wear, long life.
- Motor optional: 220V single item, 380V three items
- If you can't find your details,Please contact with me,then We can provide professional sevice.
- It would be better send us your drawing or CAD pictures for specialized design,then we can do better!
Our Services:
1. We are a direct manufacturer and our priority is your complete satisfaction.
2. OEM or ODM is abailable.
3. We take care of each order from start to finish. All emails will be answered in 1 day
4. No matter what's your order quantity, we will offer the same attention to our quality and service
5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 1-3 days, depending on the quantity.
Standard accessories
Cross screwdriver
Slotted screwdriver
Hook head wrench
Hook head wrench
3 hexagonal wrenches
Drill chuck key
Cooling water tank
Toolbox
Drill chuck connecting rod
Spindle pull rod
Instruction manual
Special accessories
The following special accessories, if you need, please click on the picture to choose to buy
Milling chuck MT3 ER25
Mounted at the end of the milling machine spindle for clamping the collet of the milling cutter.
Clamping range: 3-16mm
End mill
Face milling cutter
For milling flat planes
Heavy duty self-tightening drill chuck
Used to hold drill holes, it can be installed on lathes, milling machines, drilling machines, wood planers, hand drills, impact drills.
Specification: B16 1-13

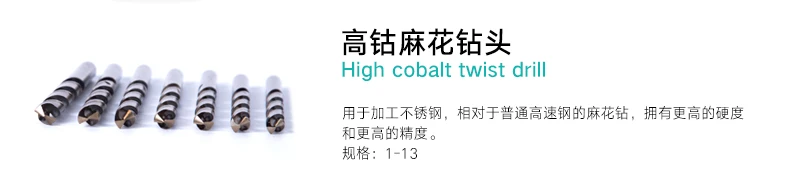

High cobalt twist drill head
It is used for processing stainless steel and has higher hardness and higher precision than twist drills of ordinary high speed steel.
Specification: 1-13

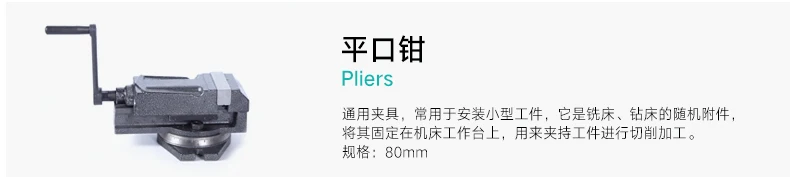

Flat pliers
Universal fixture, commonly used for small workpieces. It is a common fixture for milling machines and drill presses. It is fixed on the machine table to clamp the workpiece for cutting.
Specification: 80mm

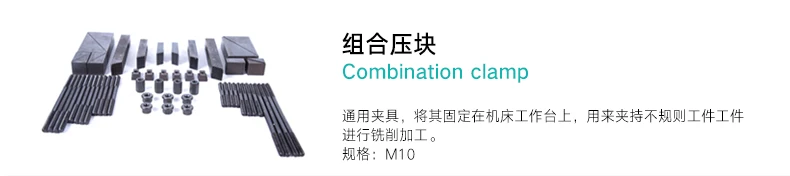

Combination briquet block
A universal fixture that is attached to the machine table to hold irregular workpieces for milling.
Specification: M10
Four-jaw single-action chuck
For clamping right angle or irregular workpieces
BS100 indexing head
It is used to divide the workpiece into any equal parts of the machine tool. With the indexing ring and the cursor, the positioning pin and the indexing plate and the exchange gear, the circumference can be divided into any equal parts. Auxiliary machine tools use a variety of different shapes of tools for machining various grooves, spur gears, Spiral spur gear, Archimedes spiral cams, etc.
Rotat worktable
When the table is rotated during machining, the arc surface and the arc groove can be machined.
Specification: TA200
