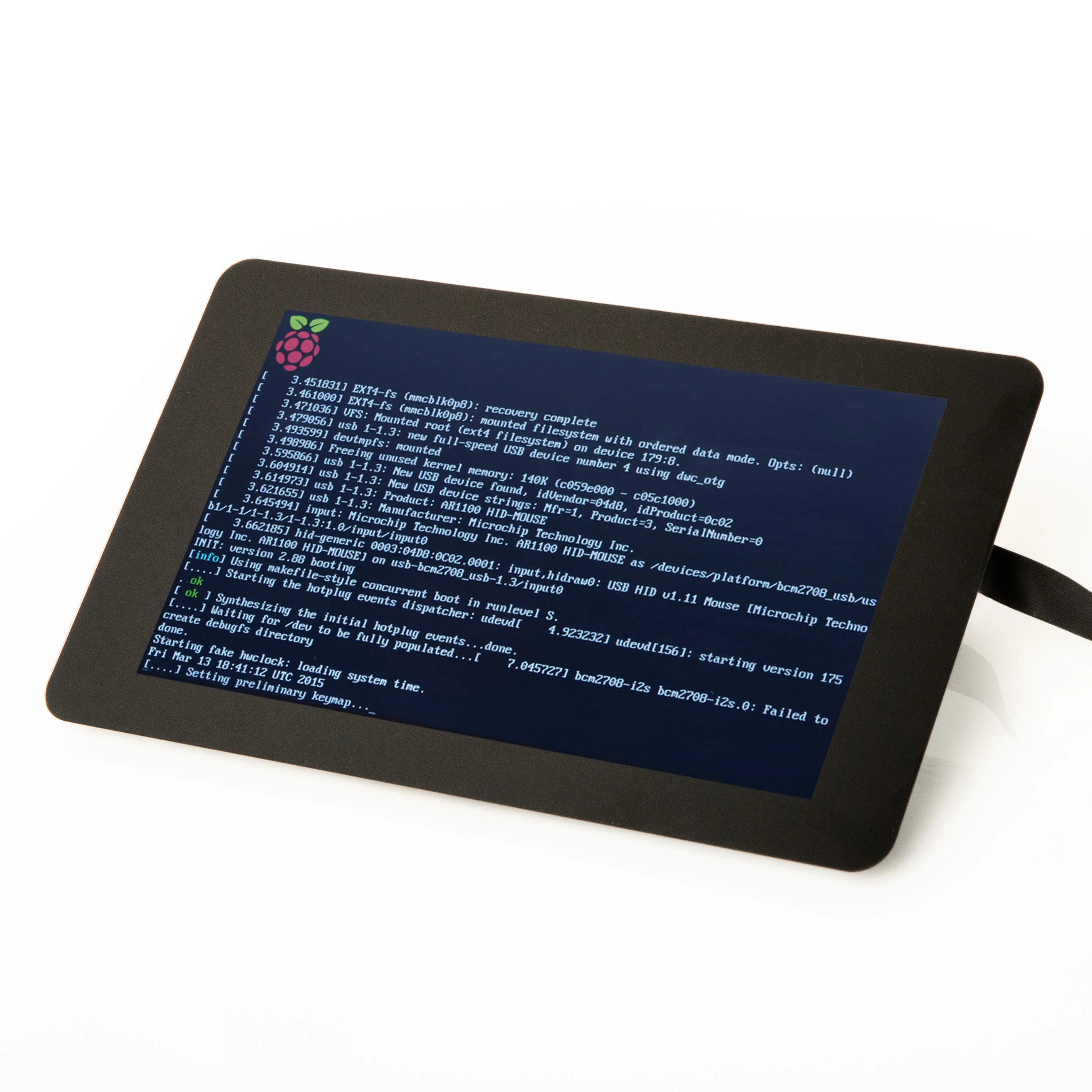

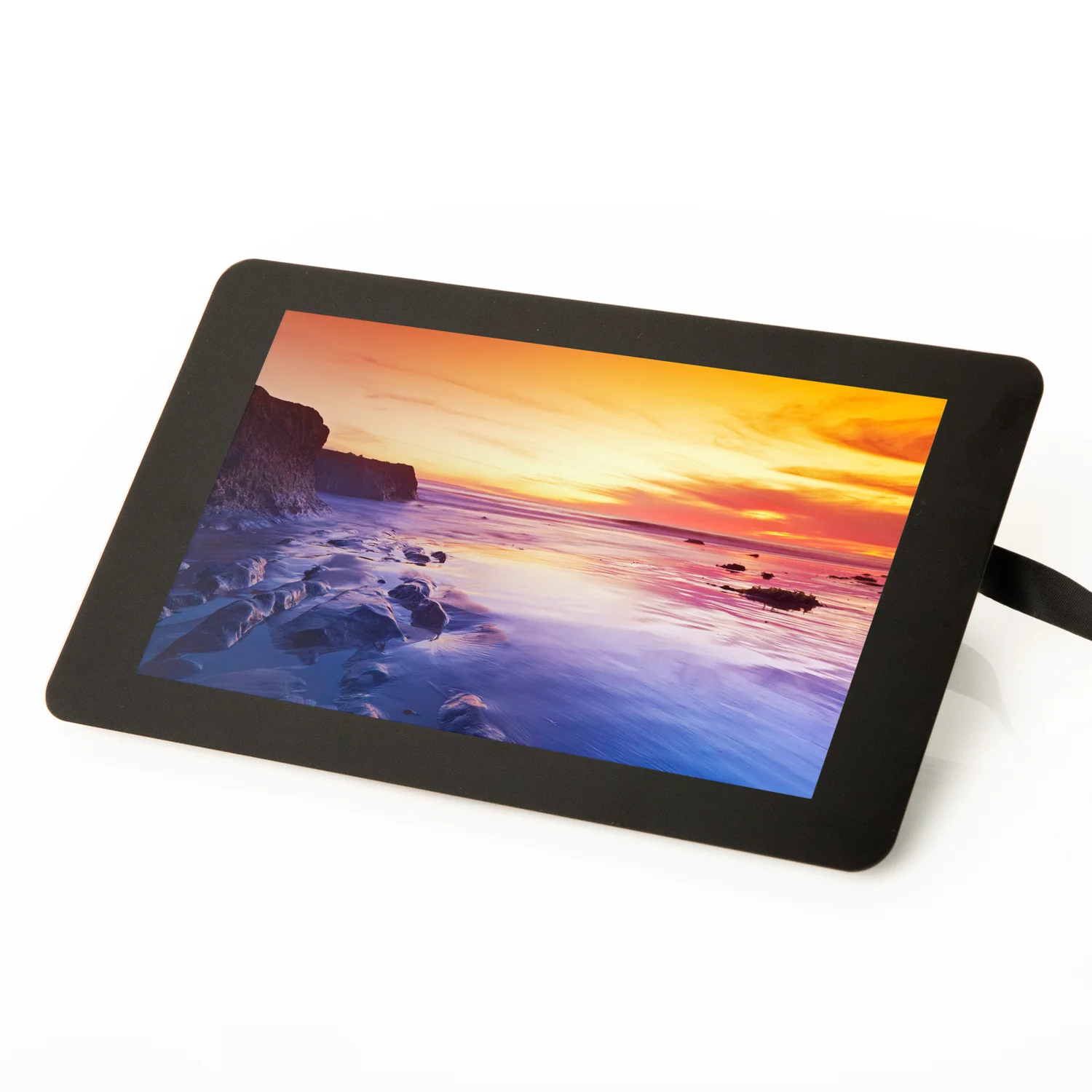

7 inch 800x480 MIPI DSI interface TFT LCD panel Capacitive Touch Screen Display module for Raspberry Pi 3B/3B /4B
- Category: >>>
- Supplier: Etouch Technology Co. Limited
Share on (62383418706):
Product Overview
Description
Product Description
Original 7 inch 800x480 MIPI DSI interface TFT LCD panel Capacitive Touch Screen Display module for Raspberry Pi 3B/3B+/4B
General Information | Contents | Unit |
LCD Display Size (Diagonal) | 7" | Inch |
Module Structure | LCD Display + CTP Touch + PCB | |
LCD Display Type | TFT/POSISTIVE/TRANSMISSIVE | |
LCD Display Mode | Normally Black | |
Viewing Direction | 6 | o’clock |
Module size (W×H×T) | 192.96*110.76*5.96 | mm |
Active area (W×H) | 154.08*85.92 | mm |
Number of pixels (Resolution) | 1024RGB×600 | pixel |
Module Interface Type | LCD Display DIS+CTP Touch USB | |
System Support | Win7/Win8/Win10/Android/Linux | |
Power Supply | 5 | V |
Module Power consumption | 2 | A |
Color Numbers | 16.7M | |
Backlight Type | White LED |

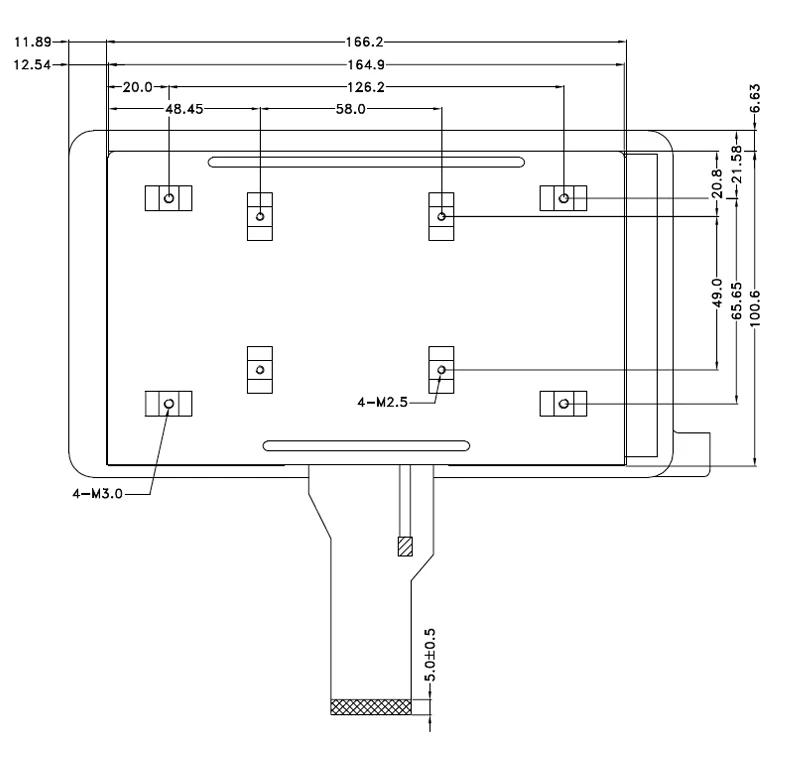

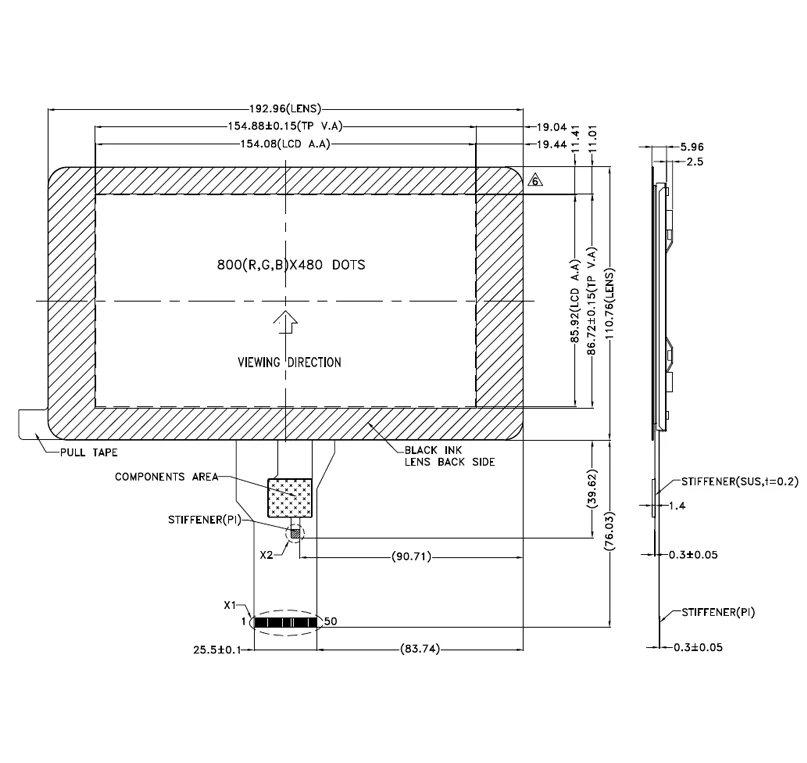

Original Raspberry Pi 7 inch 800x480 MIPI DSI interface TFT LCD panel Capacitive Touch Screen Display module for Raspberry Pi 3B/3B+/4B Drawing

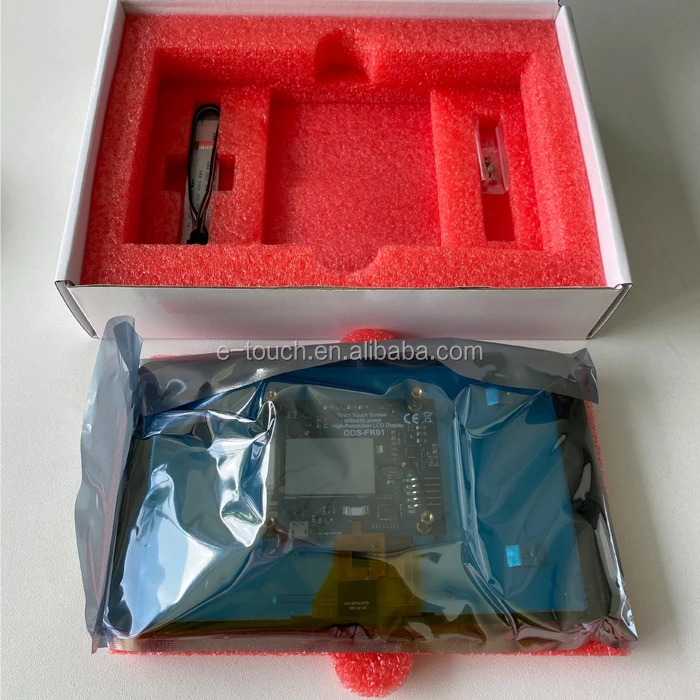

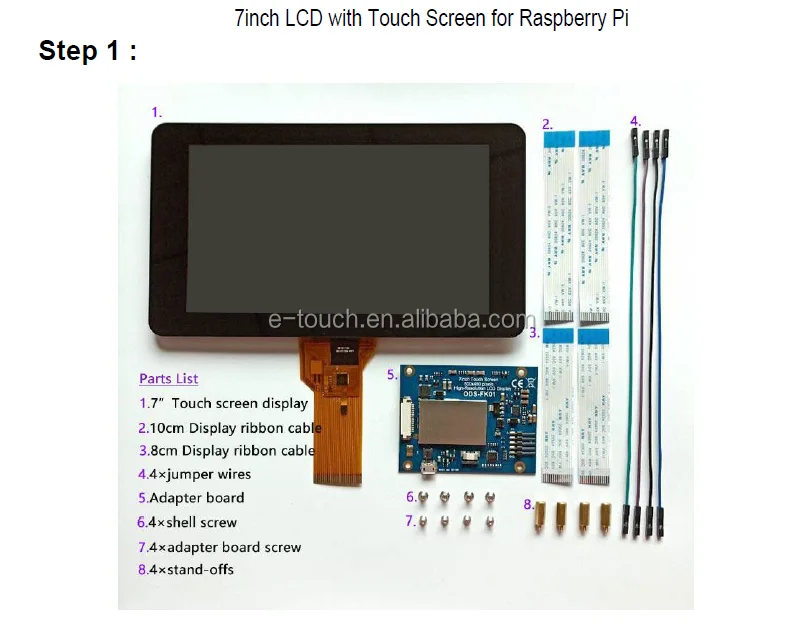

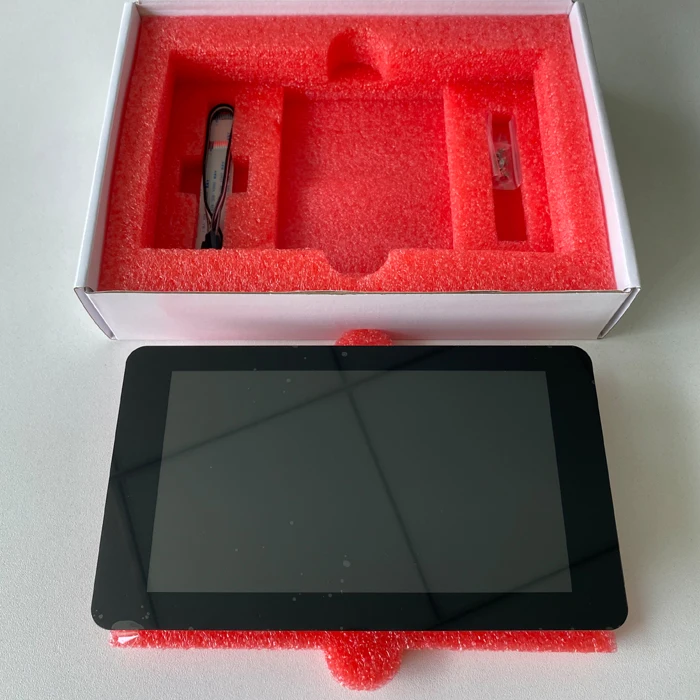

Kit Contents:
⚫ 7” Touchscreen Display
⚫ Adapter Board

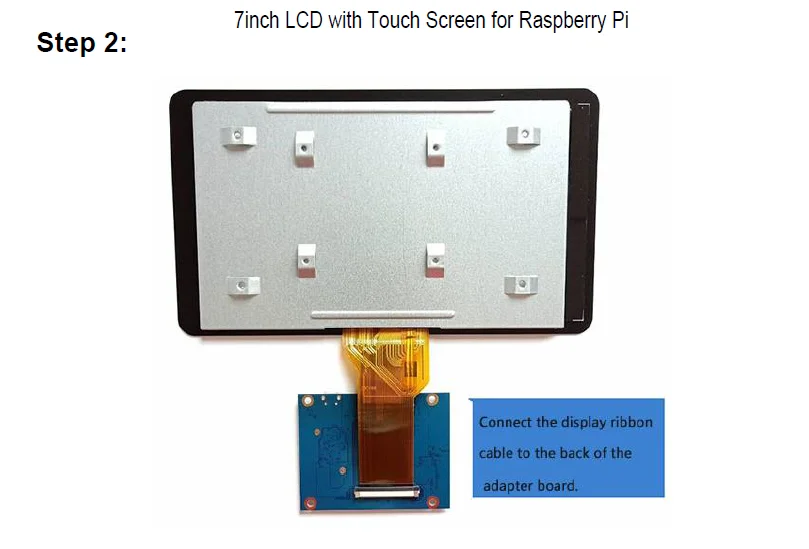

⚫ DSI Ribbon cable

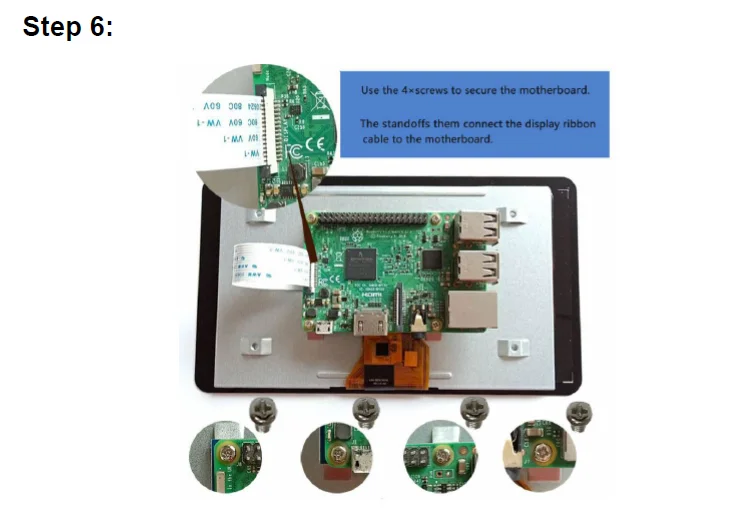

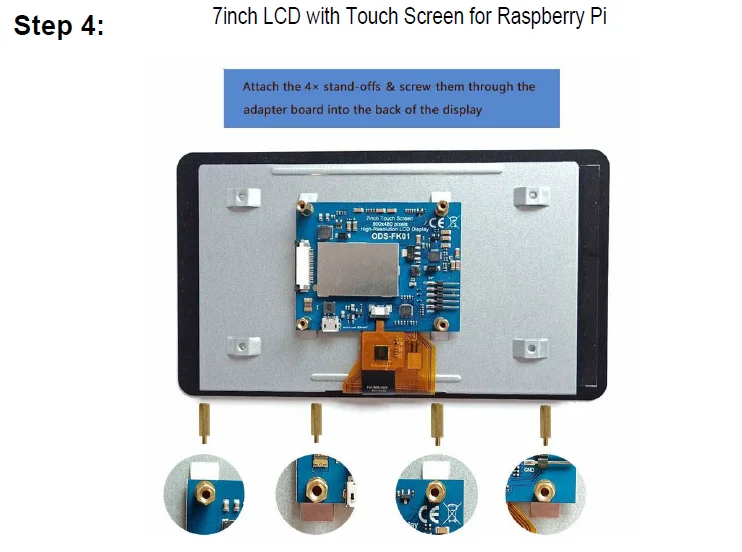

⚫ 4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display)

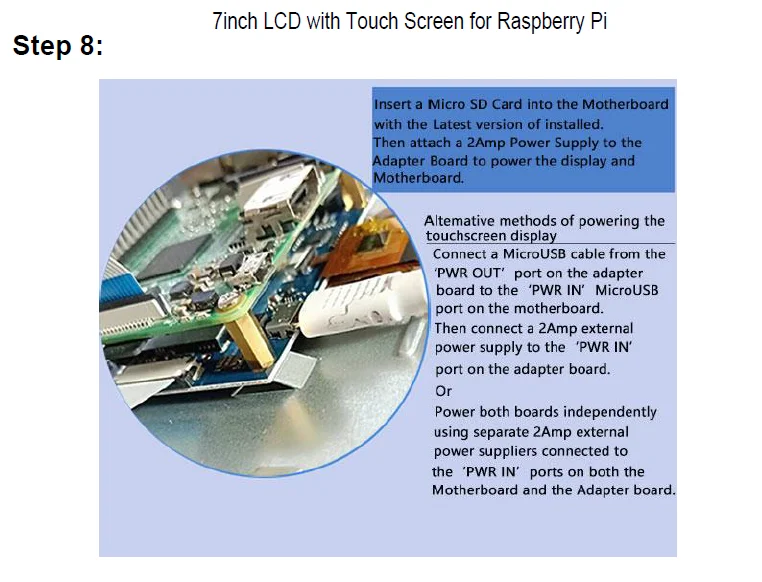

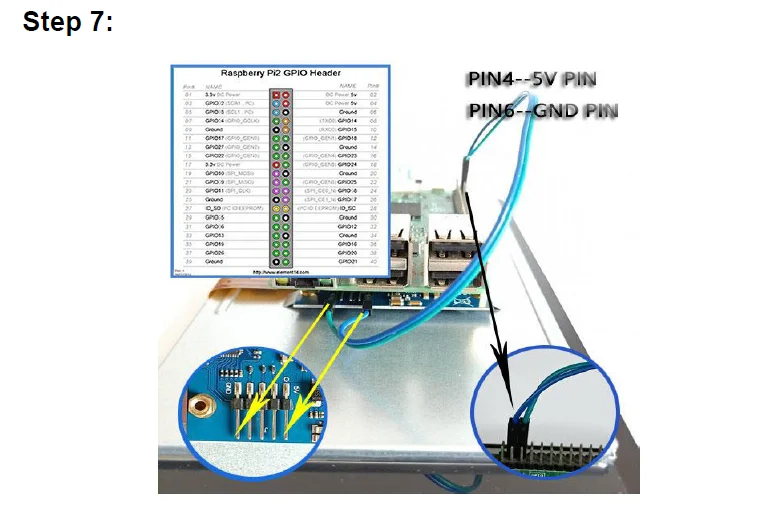

⚫ 4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units)
NOTE: THE RASPBERRY PI BOARD AND POWER SUPPLY ARE NOT INCLUDED.
Technical Specification:

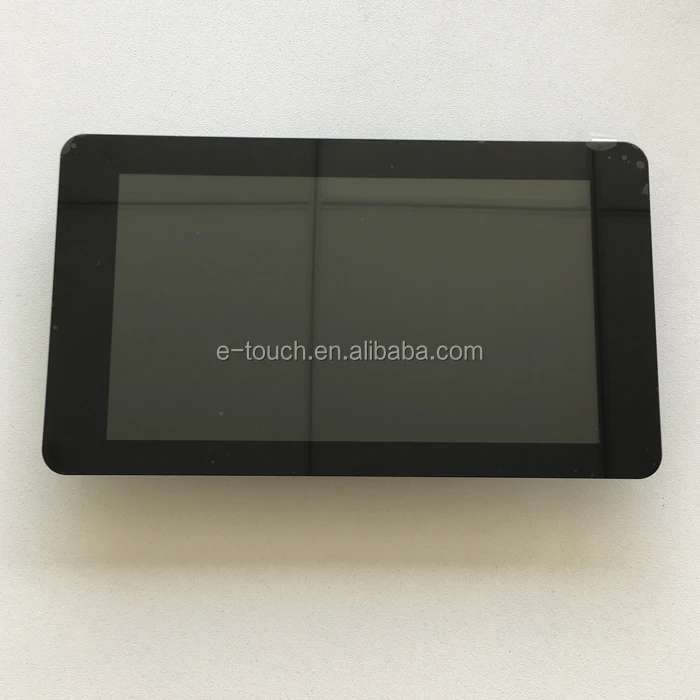

⚫ 7” Touchscreen Display
⚫ Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)
⚫ Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)
⚫ Viewable screen size: 155mm x 86mm
⚫ Screen Resolution 800 x 480 pixels
⚫ 10 finger capacitive touch

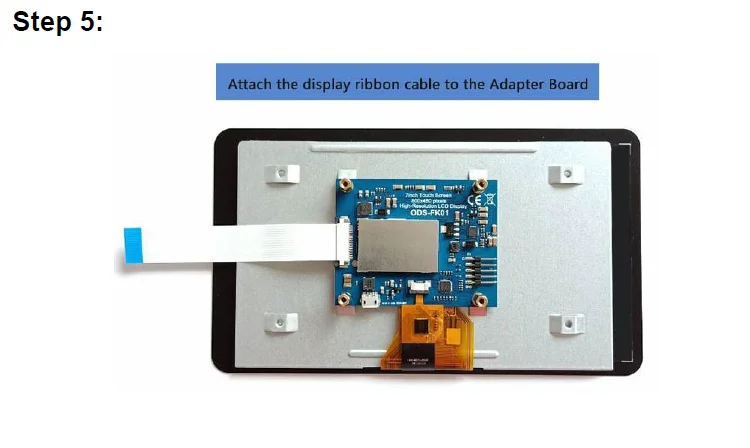

❖ Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port;

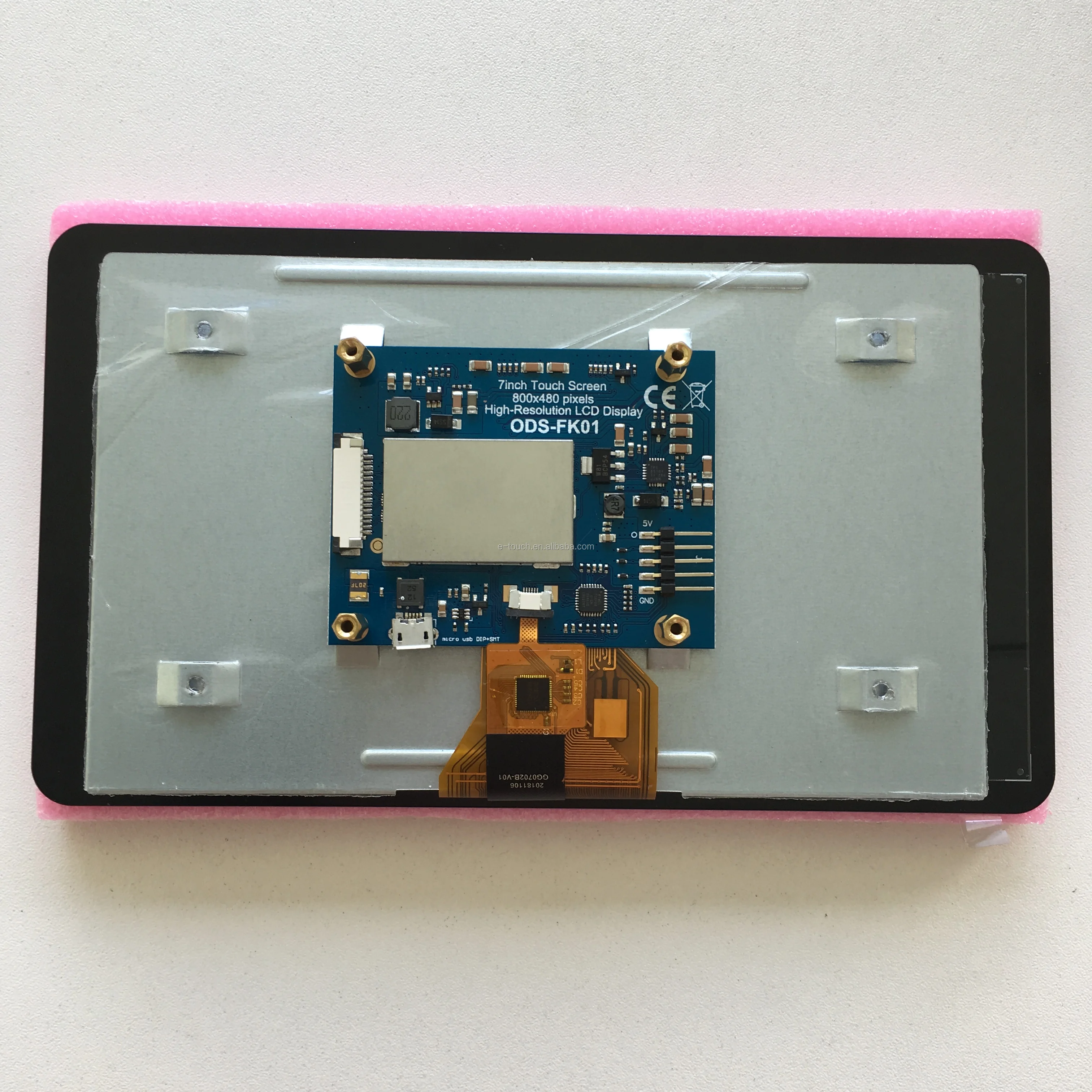

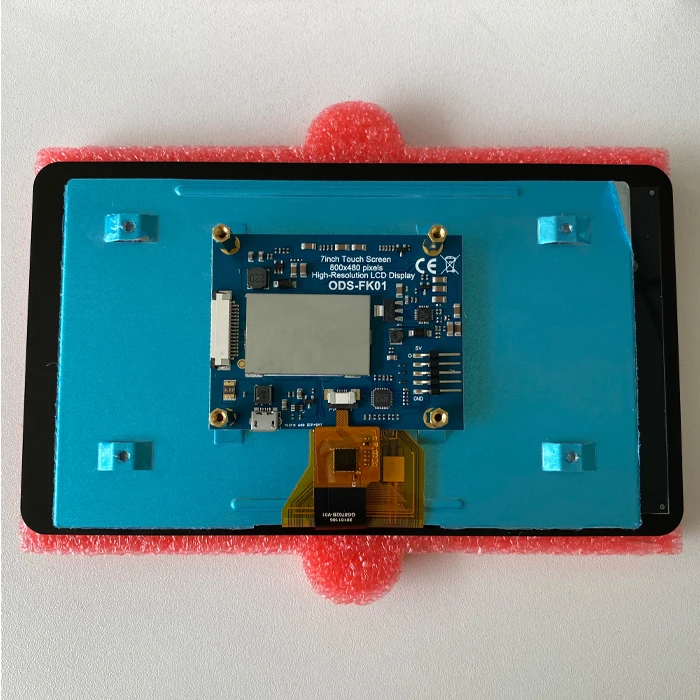

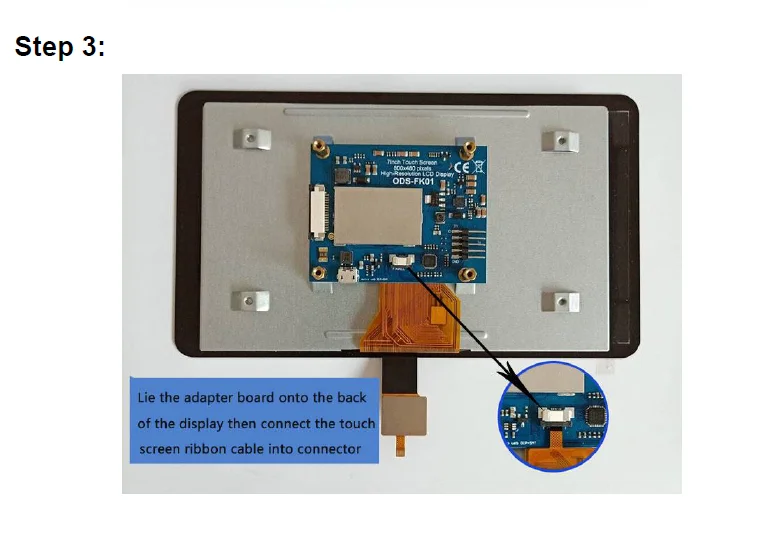

❖ Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi;

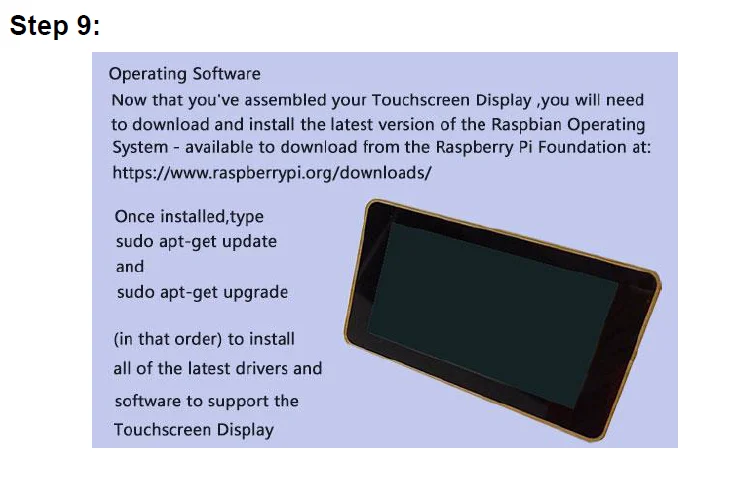

❖ Will require the latest version of Raspbian OS to operate correctly.
Etouch Technology Co., Limited
7inch LCD with Touch Screen for Raspberry Pi
❖ Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi;
❖ Will require the latest version of Raspbian OS to operate correctly.
Etouch Technology Co., Limited
7inch LCD with Touch Screen for Raspberry Pi
Features and Benefits
Turn your Raspberry Pi into a touch screen tablet, infotainment system, or standalone device.
Truly Interactive - the latest software drivers will support a virtual ‘on screen’ keyboard, so there is no need to plug in a keyboard and mouse.
Make your own ‘Internet of Things’ (IoT) devices including a visual display. Simply connect your Raspberry Pi, develop a Python script to interact with the display, and you’re ready to create your own home automation devices with touch screen capability.
A range of educational software and programs available on the Raspberry Pi will be touch enabled, making learning and programming easier on the Raspberry Pi.
Truly Interactive - the latest software drivers will support a virtual ‘on screen’ keyboard, so there is no need to plug in a keyboard and mouse.
Make your own ‘Internet of Things’ (IoT) devices including a visual display. Simply connect your Raspberry Pi, develop a Python script to interact with the display, and you’re ready to create your own home automation devices with touch screen capability.
A range of educational software and programs available on the Raspberry Pi will be touch enabled, making learning and programming easier on the Raspberry Pi.
