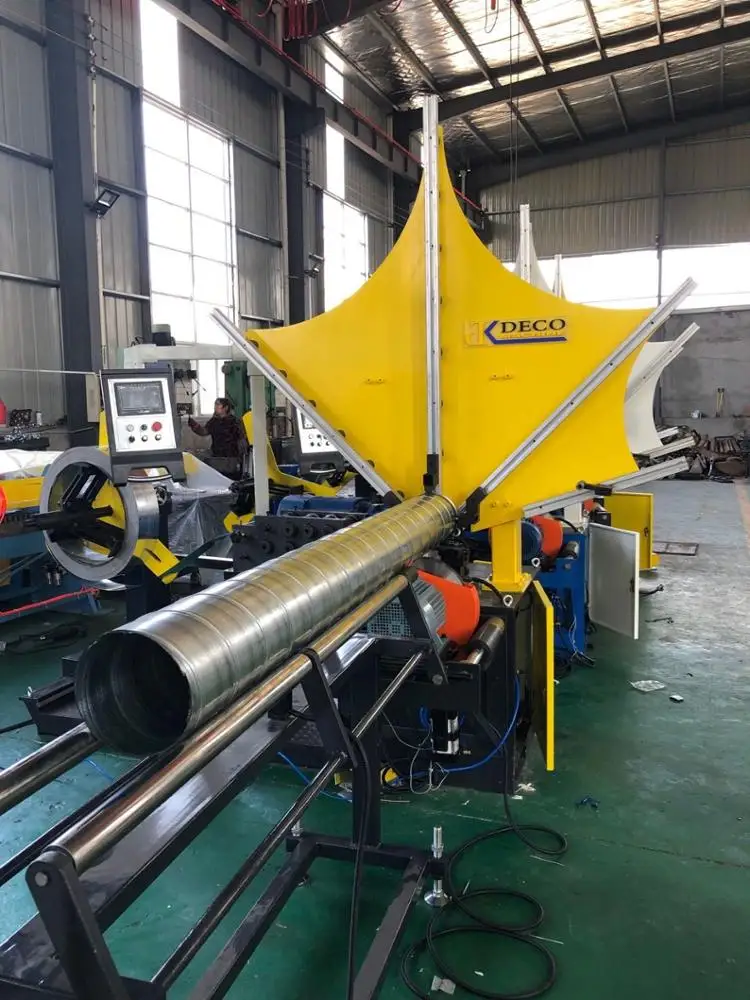

Spiral round tube forming machine air duct spiro machine

Product Overview

Description

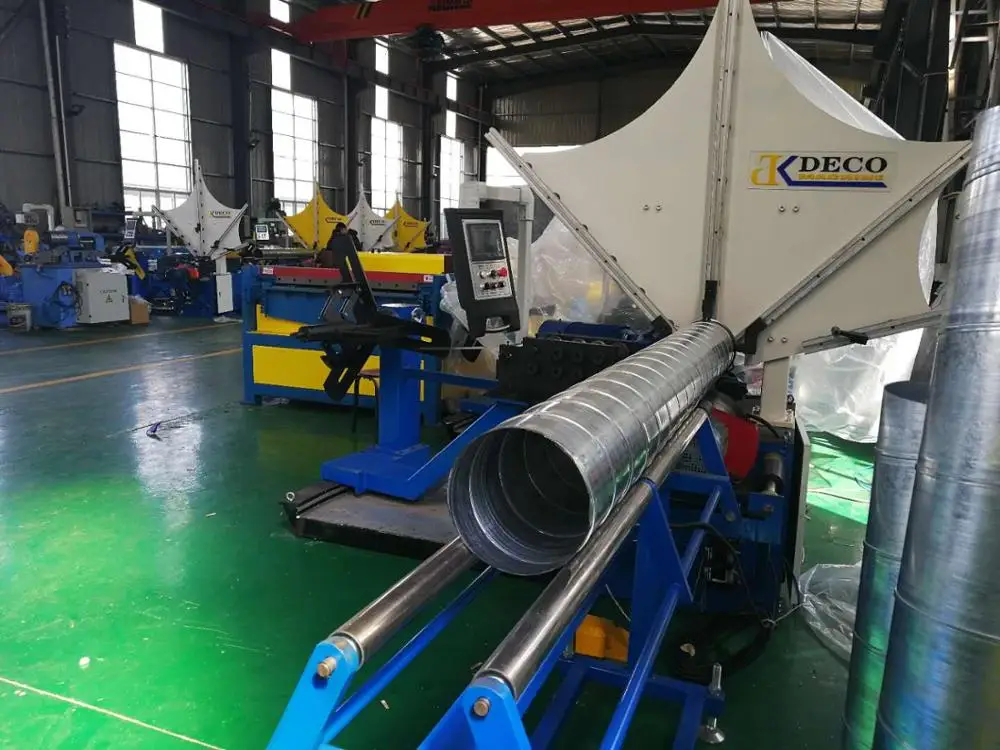

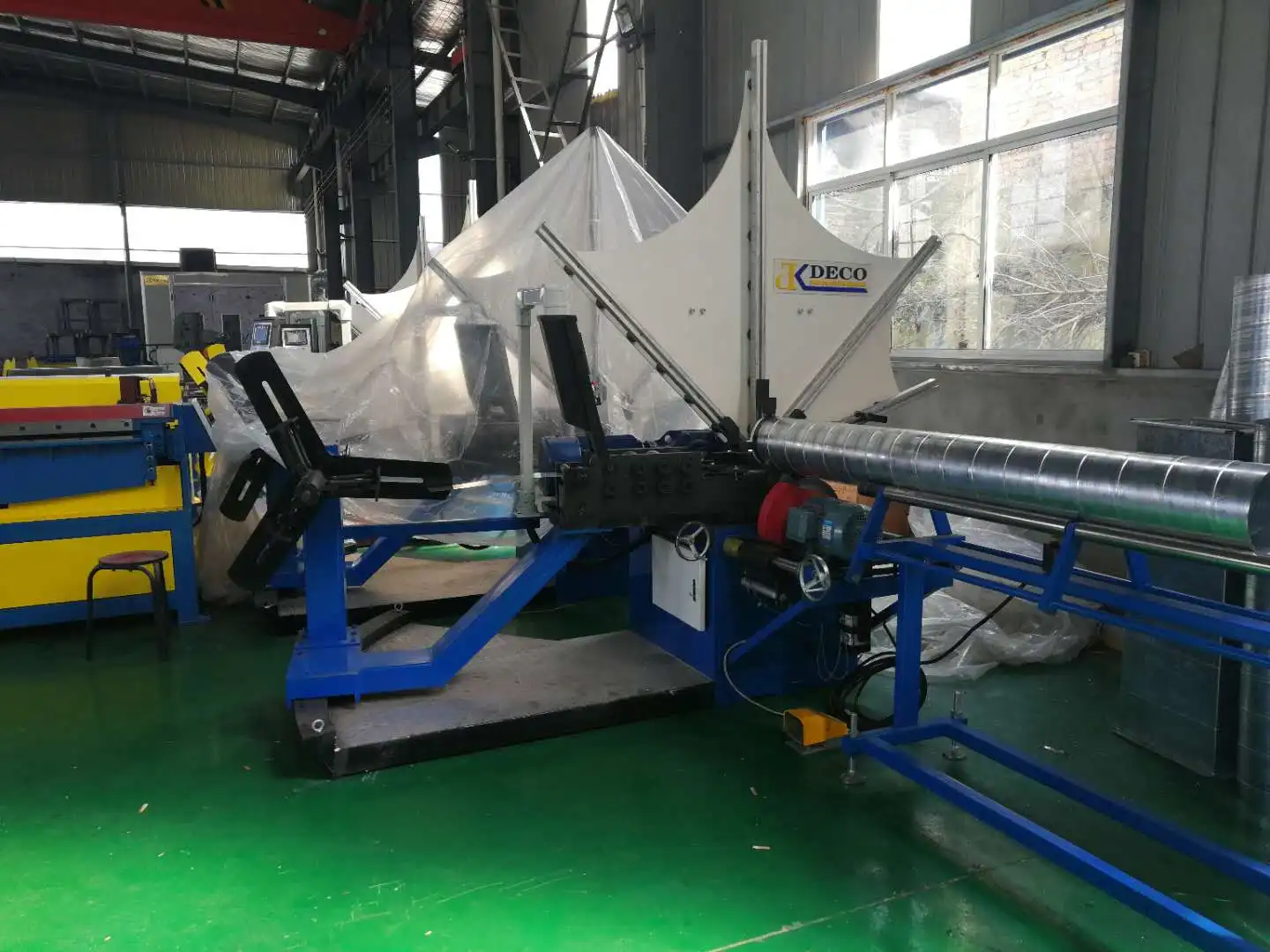

Spiral round tube forming machine air duct spiro machine



FEATURES:

spiral duct making machine is used for producing HVAC round duct. Owing to its excellent performance and low cost, Spiral ductwork has been widely promoted in ventilating and air conditioning systems. It features low wind resistance, high effect, fine rigidity, and convenient installation, thus adapts to the application for large ductwork locations.

1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials

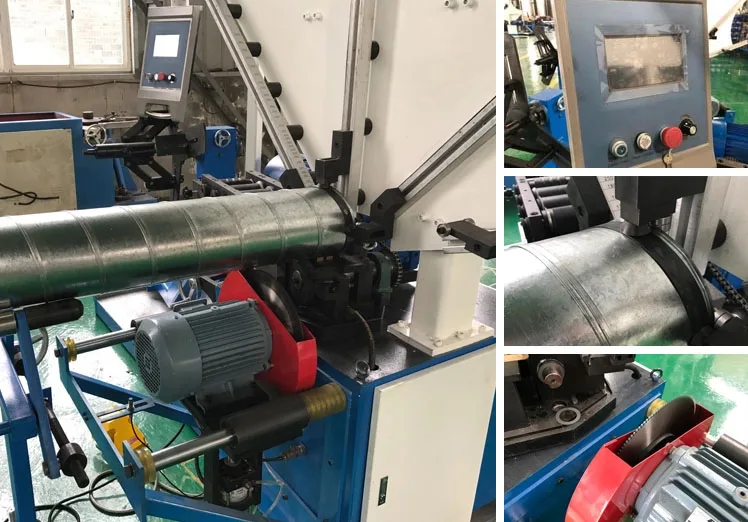

2, high-speed synchronous cutting system

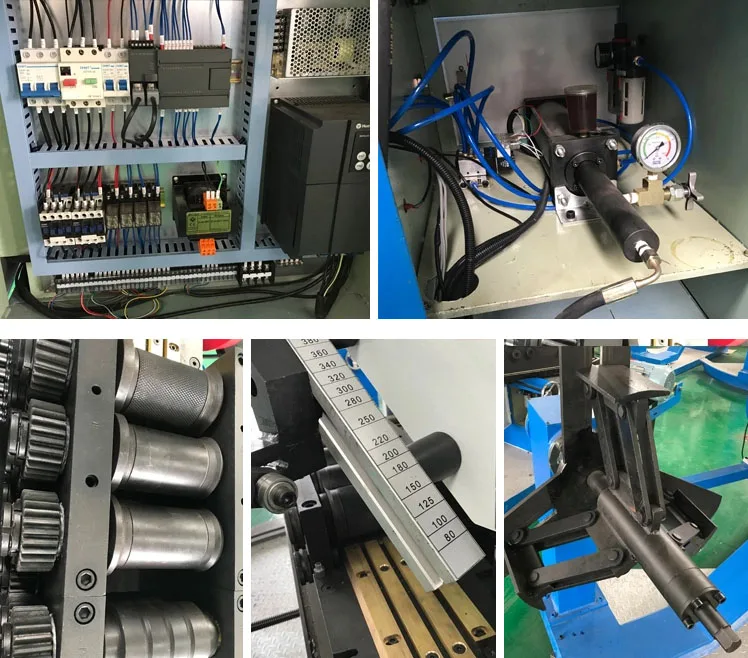

3, PLC control

4, can be on-site construction

5, can be adjusted

6, high-quality products, high-quality services

7, the system can handle galvanized sheet, aluminum

8, automatic roll out of equipment

9, can produce a variety of different diameter spiral tube



Main Technical Parameters:

Type	LXFG-1500
Diameter range	Φ80-Φ1500mm
Tube length	125-6000mm
Strip width	137-140mm
Lock seam	Outside tube on the inside on request
Material	Galvanization	0.4-1.2mm
	Stainless	0.4-0.8mm
	Aluminum	0.4-1.2mm
Strip speed	Max: 38m/min
Dimensions	2900*1980*2050
Weight	3T
Control system	PLC
Main motor power	5.5Kw
The power of cutting motor	4Kw
Electrical	220V/380V/440V
Working pressure	0.5-0.7Mpa
