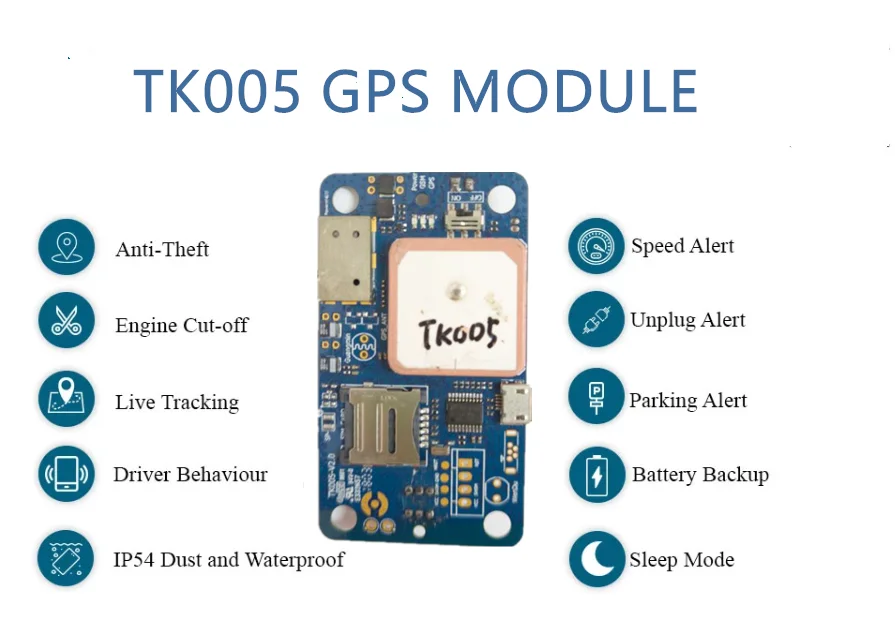

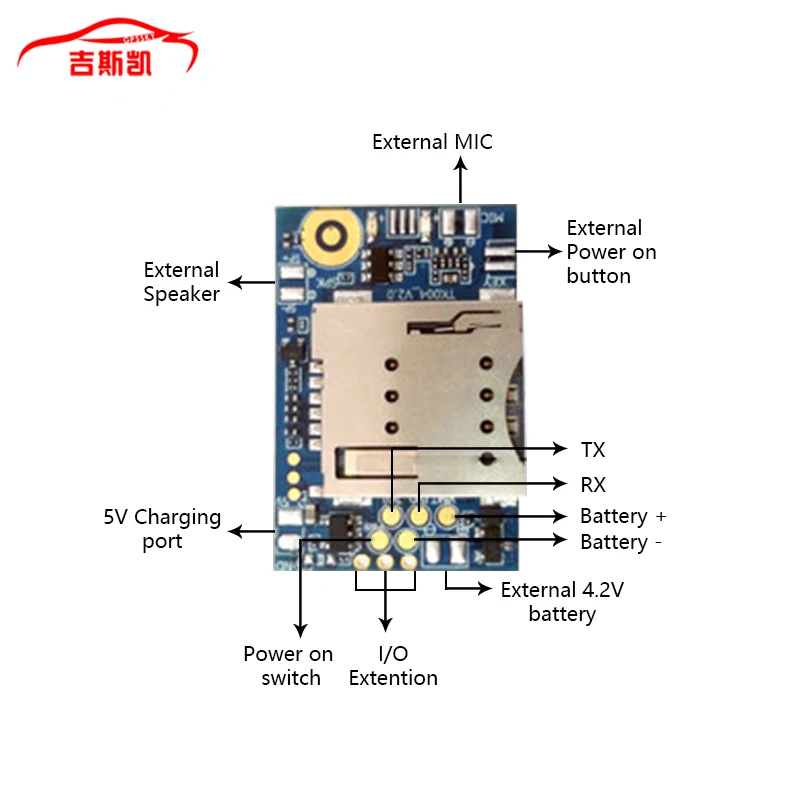

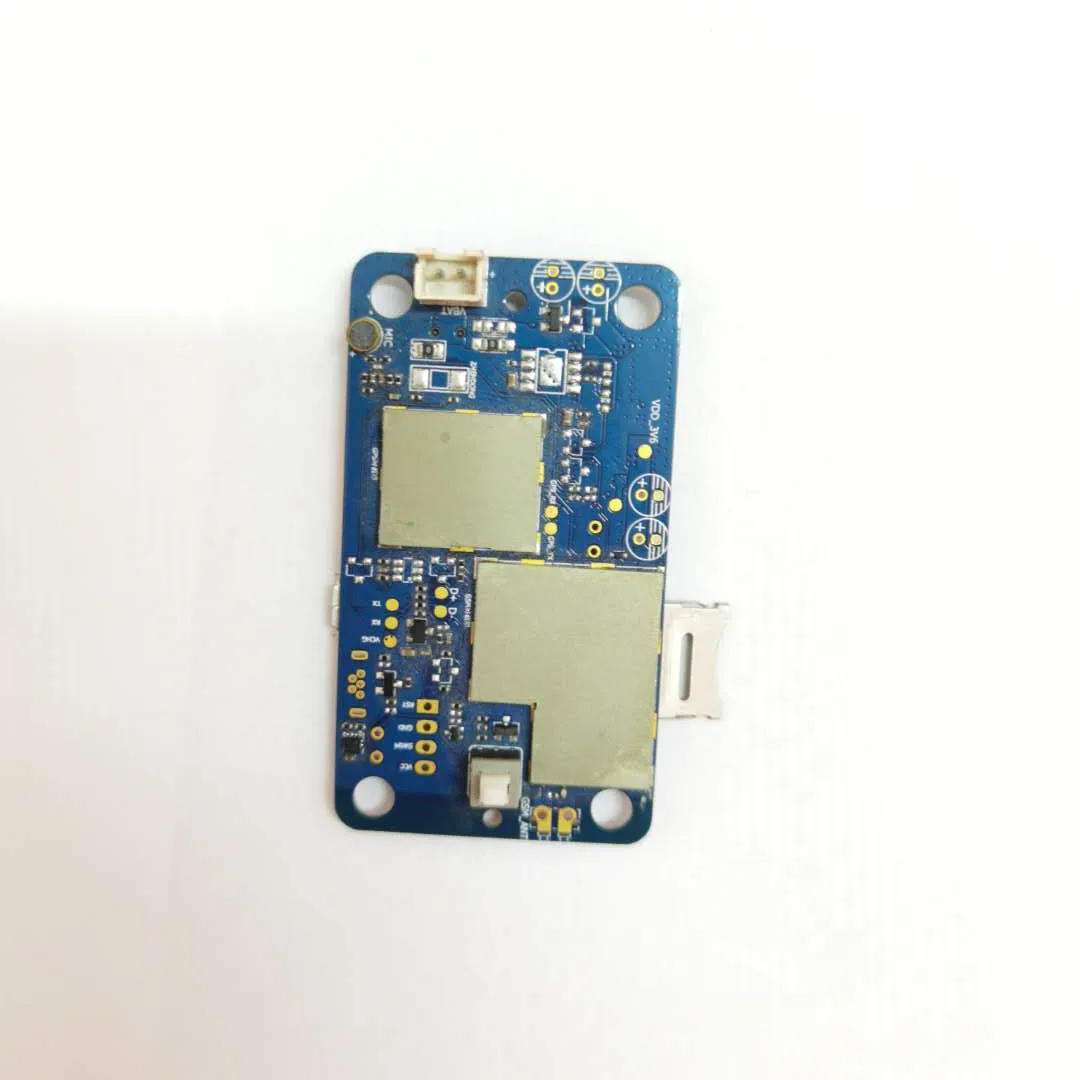

SOS Panic Alarm Remote Control TK005 GPS Tracking Module PCB
- Category: >>>
- Supplier: Shenzhen Jingwei Xingyun Technology Co. Ltd.
Share on (62383699243):
Product Overview
Description
Product Description
Features
1, GSM+GPRS System;
2, BeiDou+GPS+LBS Multi Positioning system;
3, Real time positioning track;
4, Burglar Alarm;
5, Power off Alarm
6, Blind Area Supplement;
7, Bend compensation;
8, GEO Fence/ Boundary Violation Alarm;
9, Multiple Tracking ways (SMS TEXT,APP,Web server);
10,365 days trajectory history playback (can customize to be 3 years or more.);
11. battery low power alarm
12. Power save mode, can use SMS and app or server to set
Timing feedback
Timing wake up to work
(E.g: 8:00am~10:00am, 5:00pm~7:00pm), other time is sleep mode.
13. SOS emergency auto dailing and voice monitor (two way call);
TK004 Personal GPS tracking device PCB | ||||||
GPRS frequency | 850MHz/900MHz/1800MHz/1900MHz | |||||
Working voltage | DC9-40V | |||||
working temperature | -20°C-70°C | |||||
Chips module | MT6261D(MTK CPU)+AP5200(AIROHA PA)+ MT3333(MTK GPS)+MP1584 (power control chip) | |||||
storage temperature | -30°C-85°C | |||||
working humidity | -20°C-70°C | |||||
Positioning frequency | sensitivity:-160dbm positioning accuracy:less then 10m | |||||
GPS location time | Support AGPS, cold reboot less than 3s (open sky) | |||||
Tracking platform
The item support our XY07 protocol, which can be shared to anybody who wanna develop their own personal GPS Tracker.
Tracksource platform.
platform: //www.18gps.net
App download link:
//www.18gps.net/app/yunzhixing/mobiledownload_en.html
Demo account for server and app: 027021460670, password: 123456
We support ODM/OEM service
If you have any good idea please come to us
If you have any issues during using our products please come to us.
Best regards
Sinda Dai
Company Link://www.gpsskychina.com
