ZJS A небольшой автоматический счетчик капсул счетчик таблеток машина

Product Overview

Description

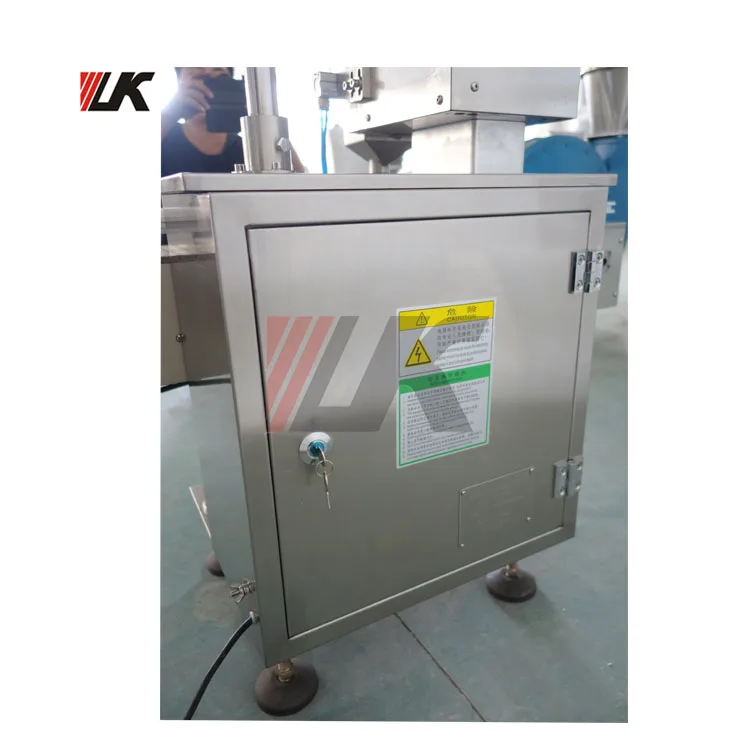

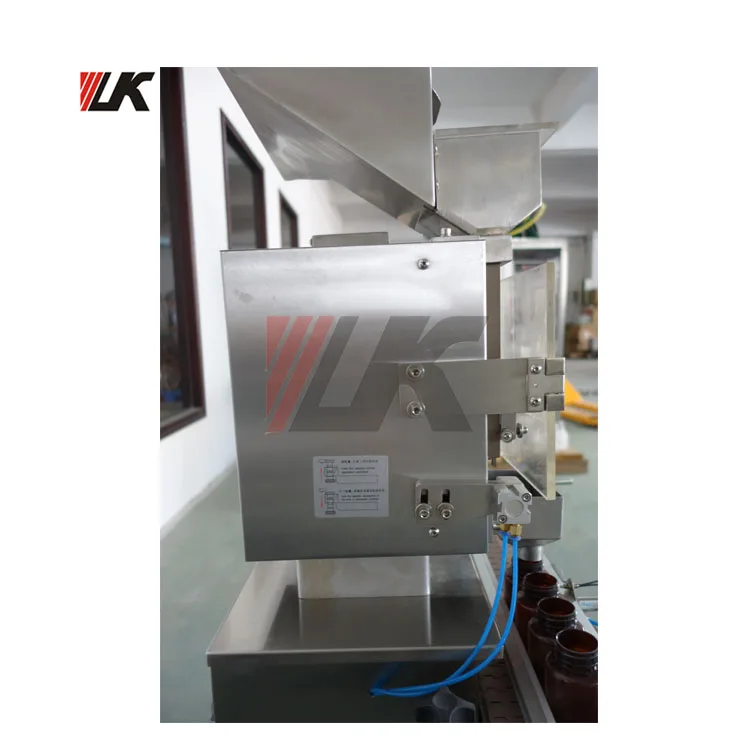

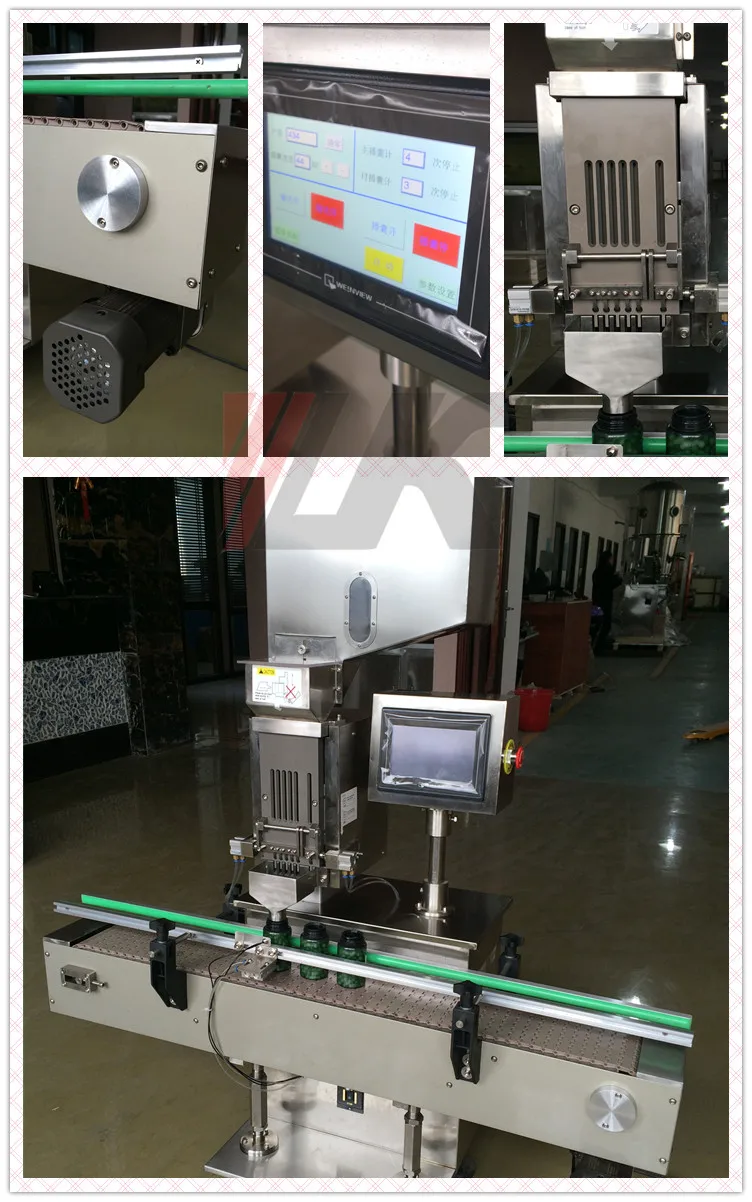

ZJS-A Small Automatic Counter Capsule Counter Tablets Machine



Features:

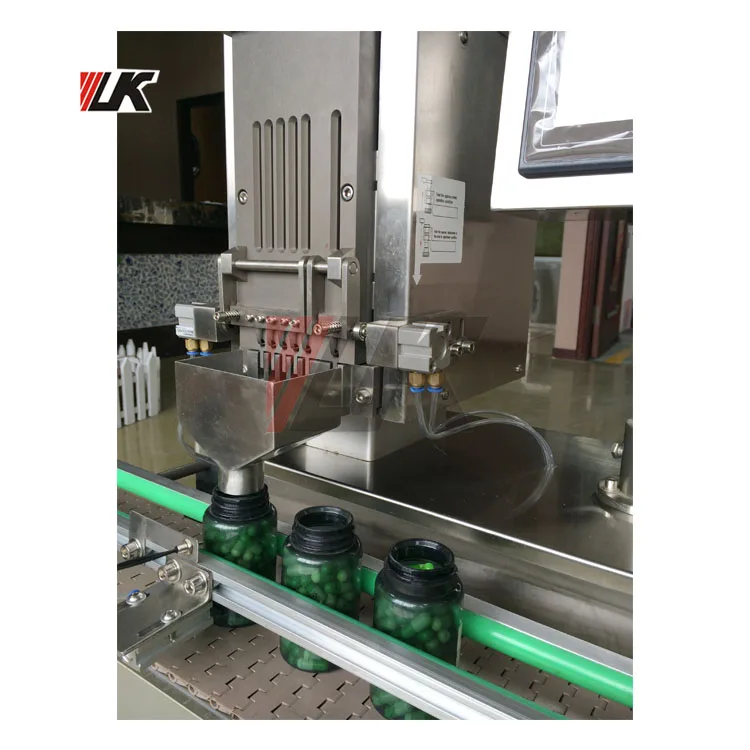

1) Vertical pathway compensated type counting(patented technology), the counting precision can reach up to 100%, which avoids the big error for counting precision in the traditional vibrating or rotating type.
2) Vertical pathway compensated type counting(patented technology), it can realize the set of any capsule bottle filling number without changing the mould for the same size capsule, so it is very convenient and fast.
3) The main machine adopts frequency control, which can realize soft start speed adjusting, it is reliable and steady and can bare pretty big starting torque.

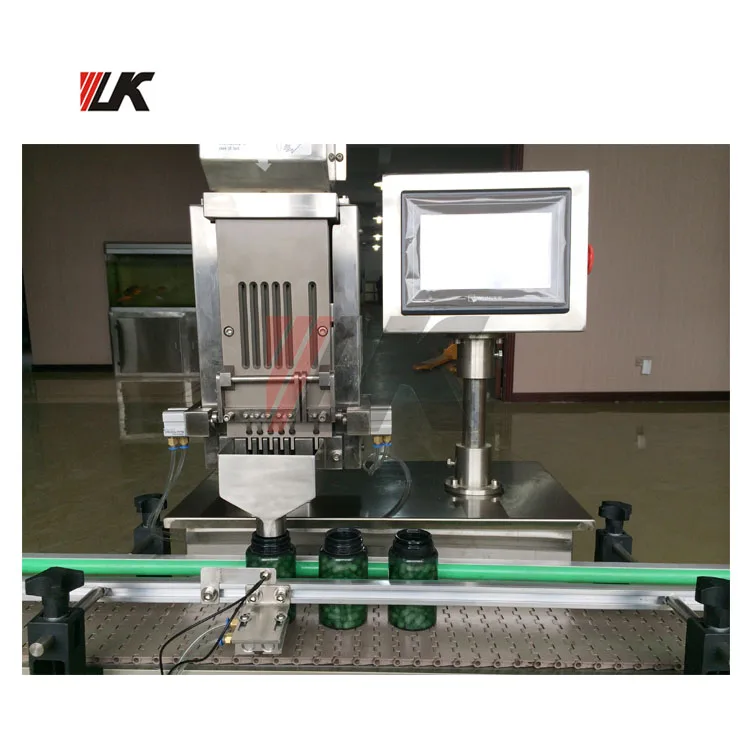

4) The bottle conveying is the conveyor type, which reserves the connector for customer in the future to the auxiliary equipment( such as bottle unscramber, capping machine etc)

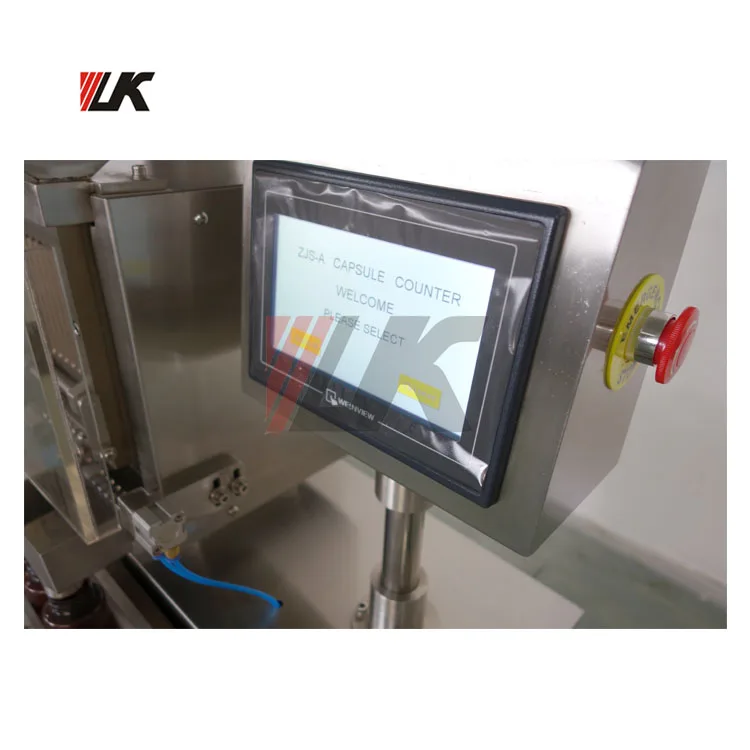

5) The control adopts touch screen and PLC, which can set any parameters in a short time.
6) The optical control technology to automatically inspect if there is bottle lacking or bottle turnover, which helps to reduce the capsule wasting by auto alarming.
7) All the moulds adopts cylindrical pin design, it only needs around 5 minutes to change the mould among different capsule size, which is fast and convenient.
8) All the parts contact with medicne adopts SS304, which meets with GMP strictly.



Main Technical Parameter

Model	ZJS-A
Power Supply	220V 50HZ, 1.2KW
Compressed Air	0.03m3/min 0.7Mpa
Capacity	20000-40000pcs/hour
Mould Changing Time	5 minutes
Counting Accuracy	100%
Applicable Capsule Size	#000, #00L, #00, #0L, #0, #1, #2, #3, #4, #5
Max. Bottle Diameter	130mm
Machine Size	1300*600*1400mm
Packing Size	1400*680*1100mm
Weight	220KG
