ZCUT 10 Automatic Folding Tape Dispenser/tape cutting machine
- Category: >>>
- Supplier: Kunshan Xuxin Industrial Equipment Co. Ltd.
Share on (62384184540):
Product Overview
Description

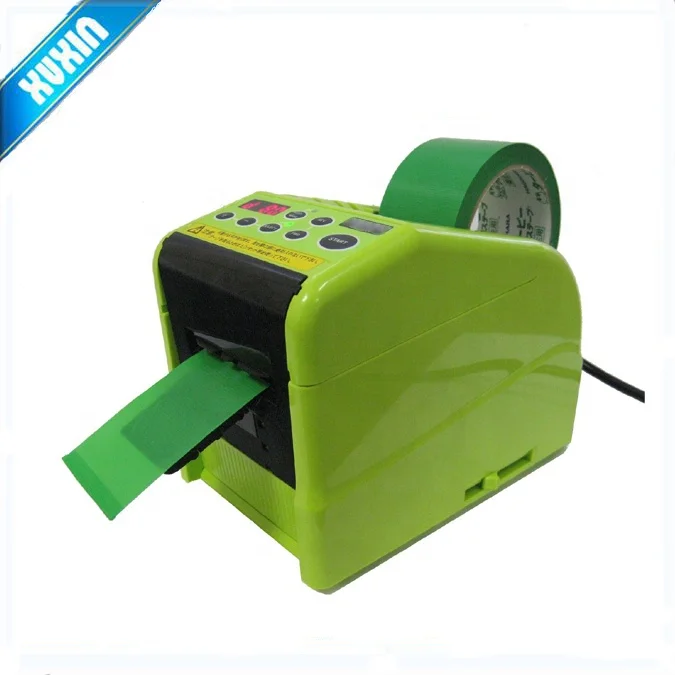

ZCUT-10 Automatic Tape Dispenser with FOLD function
Product Description
Feature

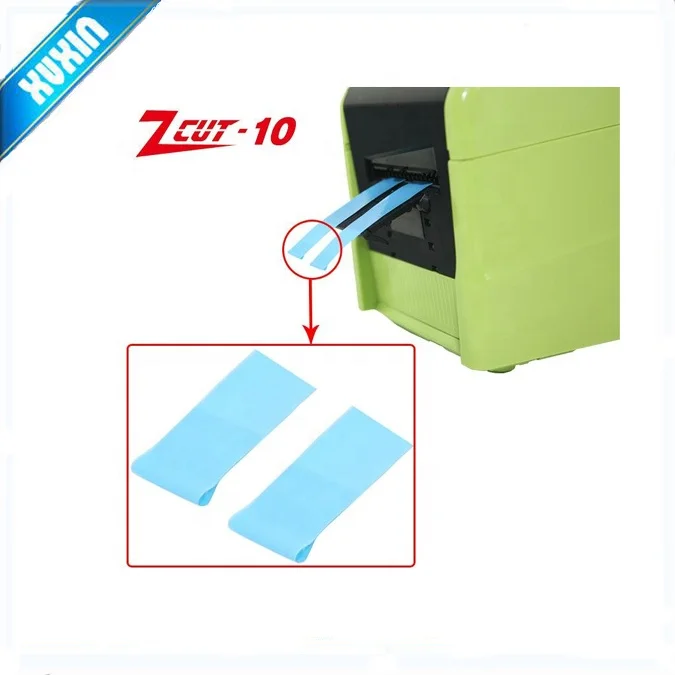

| 1. This mode get a front part of the tape about 8mm by FOLDING. |
| 2. This mode calls an input memory level sequentially and cuts tape. |
| 3. Can cut the cut length of the tape 2-6 kind each to be different. |
Specifications
| * Tape Width: | 6-60mm |
| * Tape Length : | 5-999mm |
| * Usable Tapes: | Acetate / Glass Cloth, Double-Sided, Normex, Filament, Kapton, Electric, and more. |
| * Usable Non Adhesive Material: | Protection Film, Aluminum / Copper Foil, Tube, Plastic Band, Tape, ribbon, and more. |
| * Feeding Speed: | 200 mm /sec. |
| * Max. Outside Dia. of Roll: | 300mm |
| * Accessories: | Separator (for two rolls),Tweezers, Blade Oil |
| * Power Requirement: | Free Volt (80-350V possible) |
Instruction
Instruction
| * By the auto feed mechanism, if you remove the tape by at the tape outlet, |
| * the next tape at the length will come out automatically and cut. |
| * Can put any size of roll without using bobbin. |
| * Can cut from 5mm to 999mm in length. |
| * Safety function and design. |
| * Memory function (Can set 6 different length before use). |
| * Can cut protection film, Aluminum Foil, Copper Foil, Insulation material and more . |
| * Can hold the film or tape by using flexible tape support. |
| * Preset and loop counter. |
| * Compact body answers to cell-system. |
| * Can be used 2 rolls at a time. |
| * Dual photo sensor. |
| * Build-in tweezers, oil and separator for easy to use. |
