Professional Factory Supply flammable and explosive goods pipelie and oil tank portable waterjet cutting machine
- Category: >>>
- Supplier: Liaoning Wanlin Technology Co. Ltd.
Share on (62384251534):
Product Overview
Description
Product Description
15 Years Experience
PORTABLE WATERJET
CUTTING MACHINE
✔Support non-standard customization
✔Provide free sample trial cutting service for you
The cold cutting characteristics of Wonlean waterjet cutting machine and the cutting method with high efficiency and environmentally friendly can fundamentally eliminate the risk of dangerous goods cutting and make the cutting operation of dangerous goods safe, simple and efficient. It is an epoch-making significance for the cutting field of dangerous goods. Wonlean portable waterjet cutting machine has been widely used in many fields, such as petroleum, chemical industry, coal mine, weapon destruction, emergency rescue and so on.

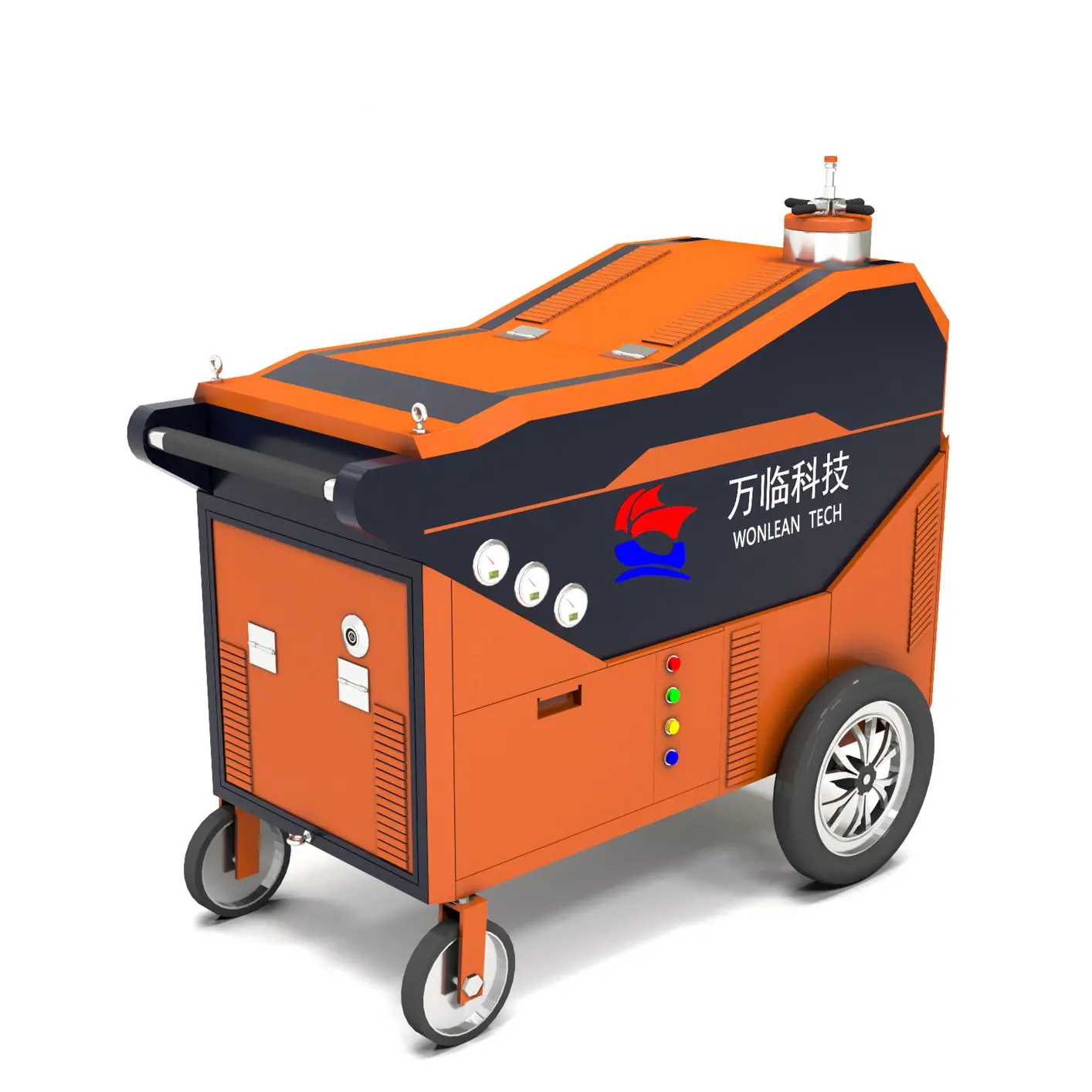

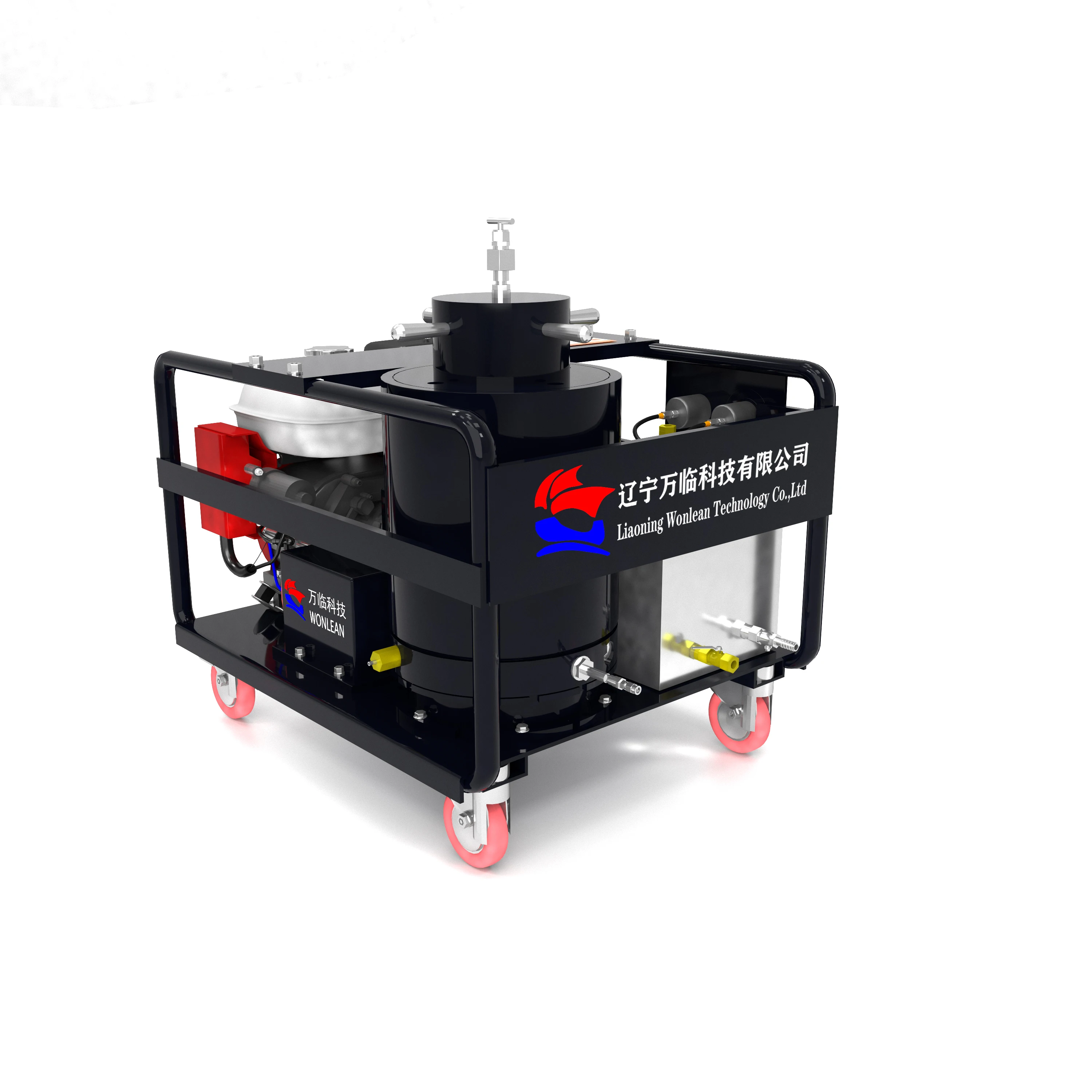

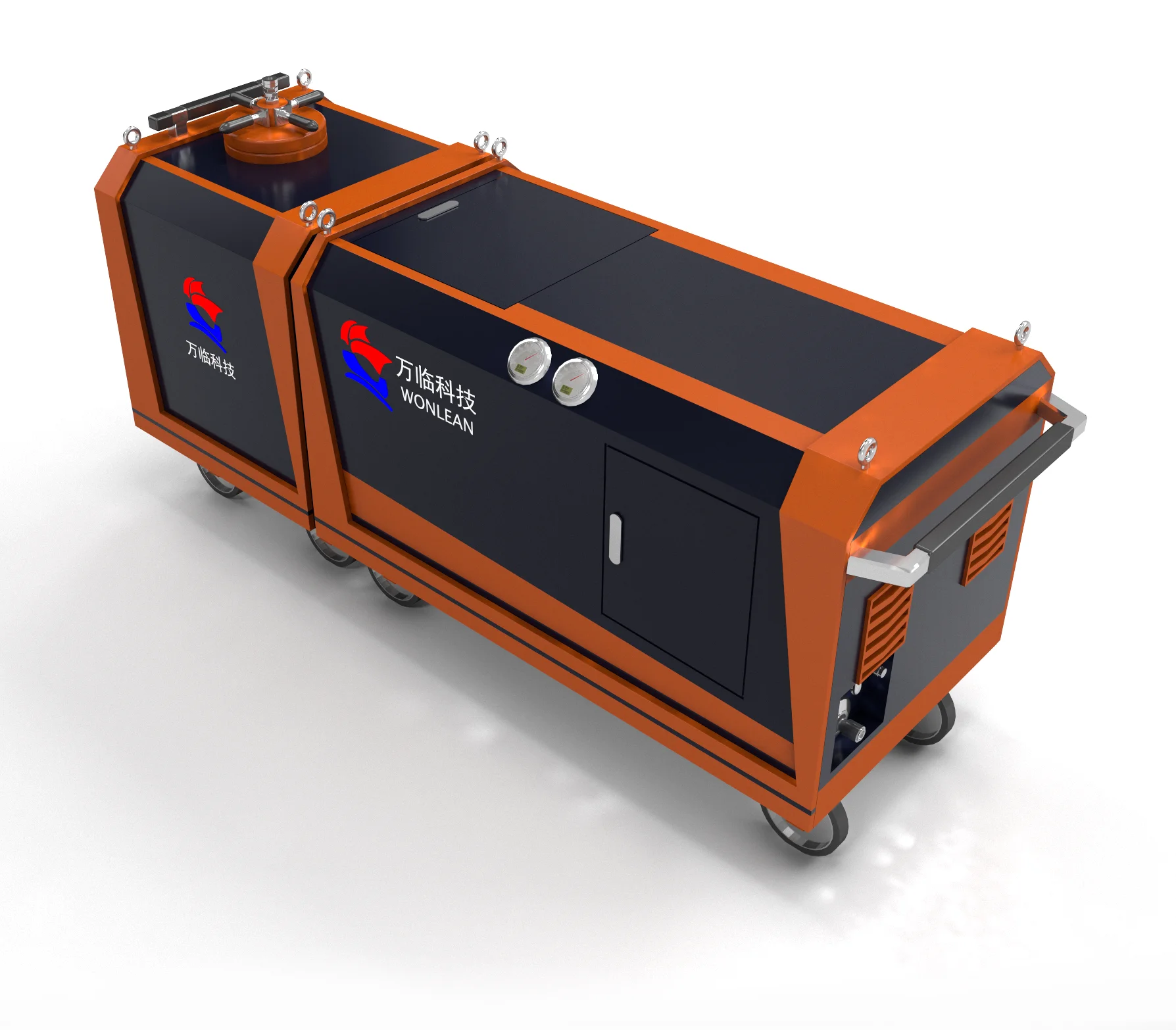

Electric integrated host
✔Exd II BT4 explosion-proof level.
✔Unique valve design eliminates sand blocking.
✔Small size is easy to move, flexible and light.
✔Oversized load-bearing wheels and universal wheels can adapt to various road surfaces.
✔Powerful integration capabilities can adapt to various complex cutting conditions.
✔Capacity of sand tank can be customized.
✔Exd II BT4 explosion-proof level.
✔Powerful cutting performance.
✔Unique valve design prevents sand blocking.
✔Split design is suitable for two places to operate.
✔Light weight Capacity of sand tank can
be customized.
be customized.
✔Integrated design, flexible movement.
✔Special valve body design does not block sand.
✔Equipped with oversized load wheels and universal wheels.
✔Gasoline powered without power.
✔Remote control.
model | WL-QSM2007DY | WL-QSM3011DY | WL-QSM5015DY | ||
Max. pressure | 25 MPa | 30 MPa | 50 MPa | ||
Operating pressure | 20 MPa | 25 MPa | 45 MPa | ||
Max. water flow rate | 15L/min | 20L/min | 30L/min | ||
Motor power | 7.5KW | 11KW | 15KW | ||
Power supply | 380V/50Hz | ||||
External dimension | 1240mm length ×740 mm width × 900mm height | ||||
Equipment weight | 380KG | ||||

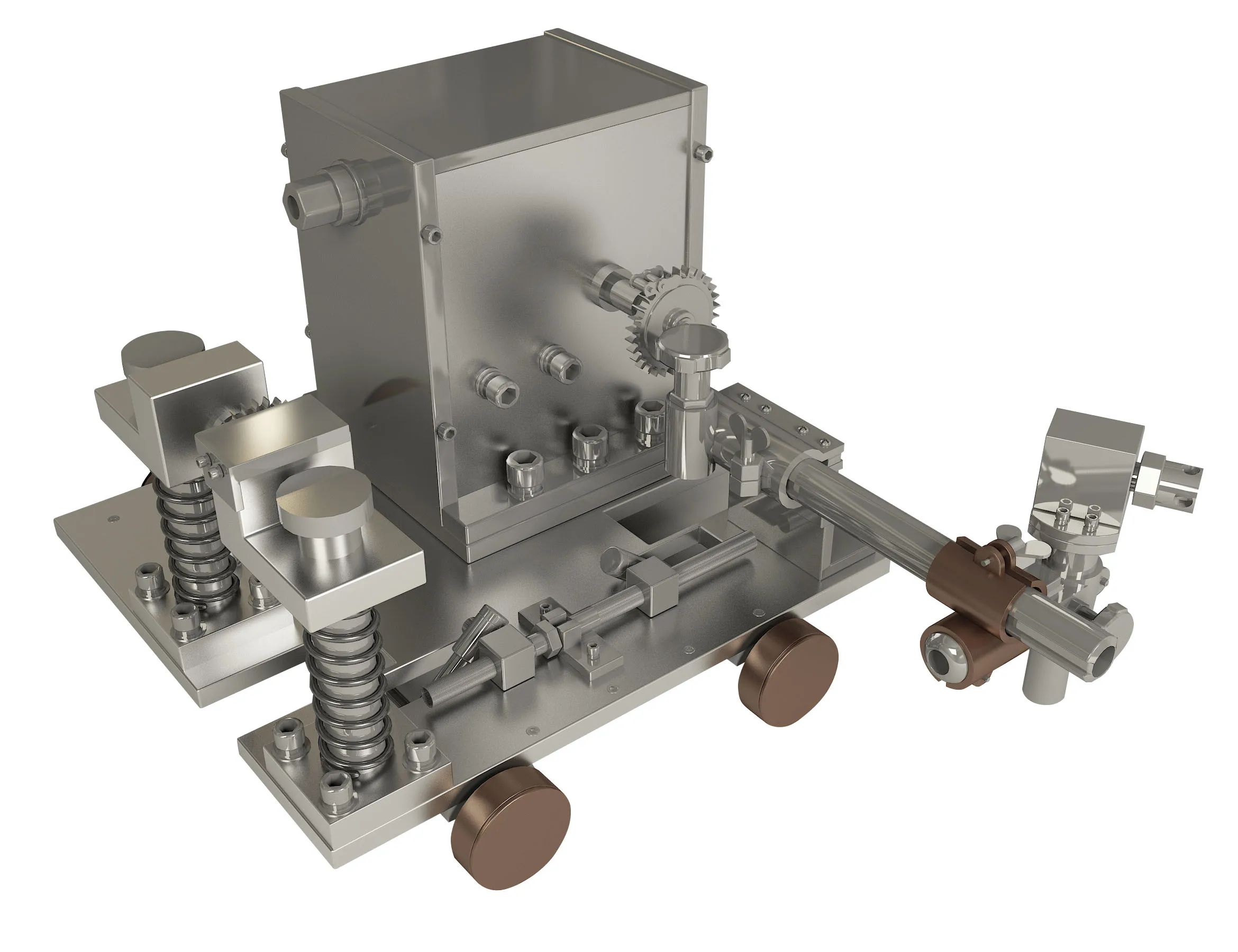

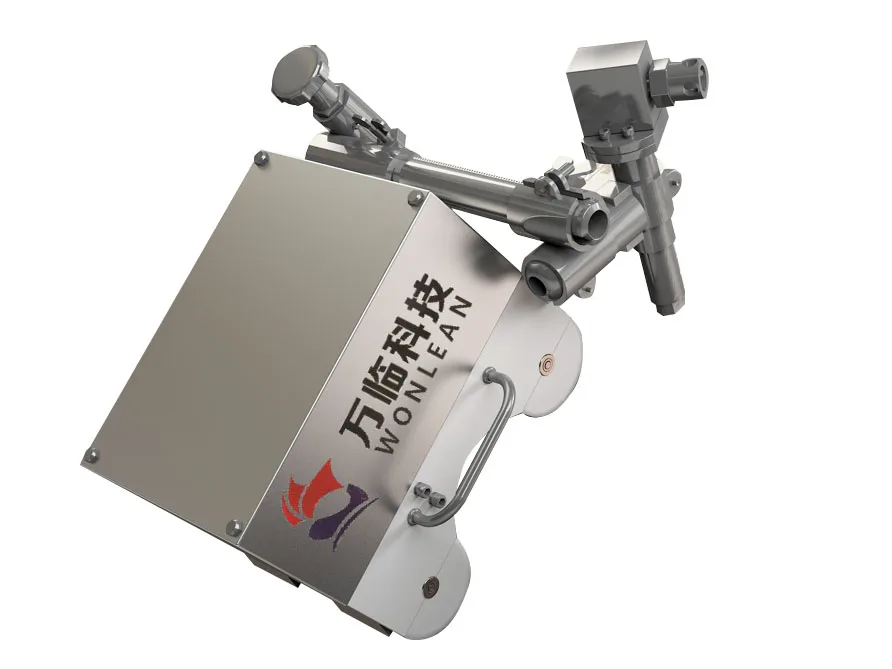

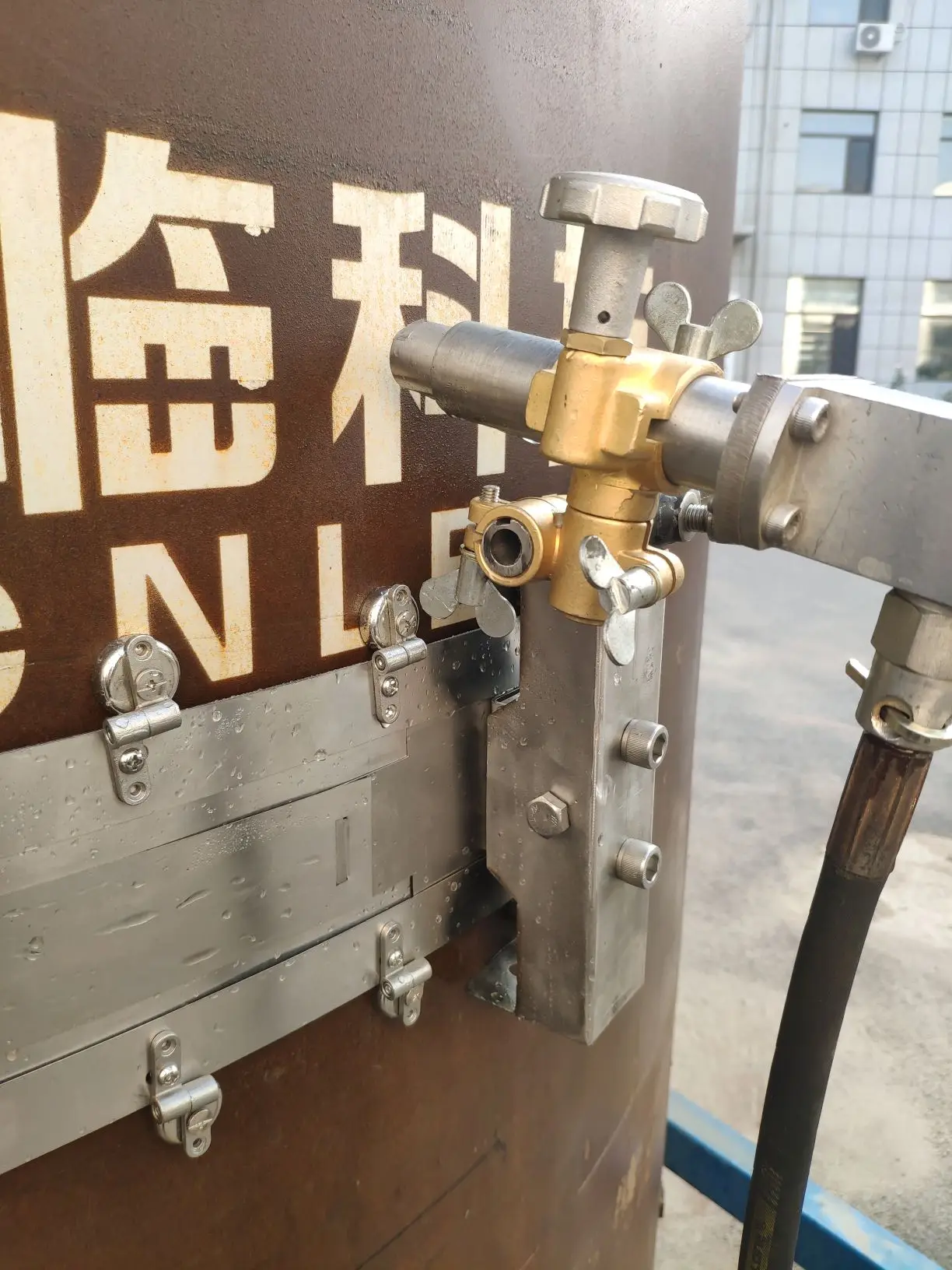

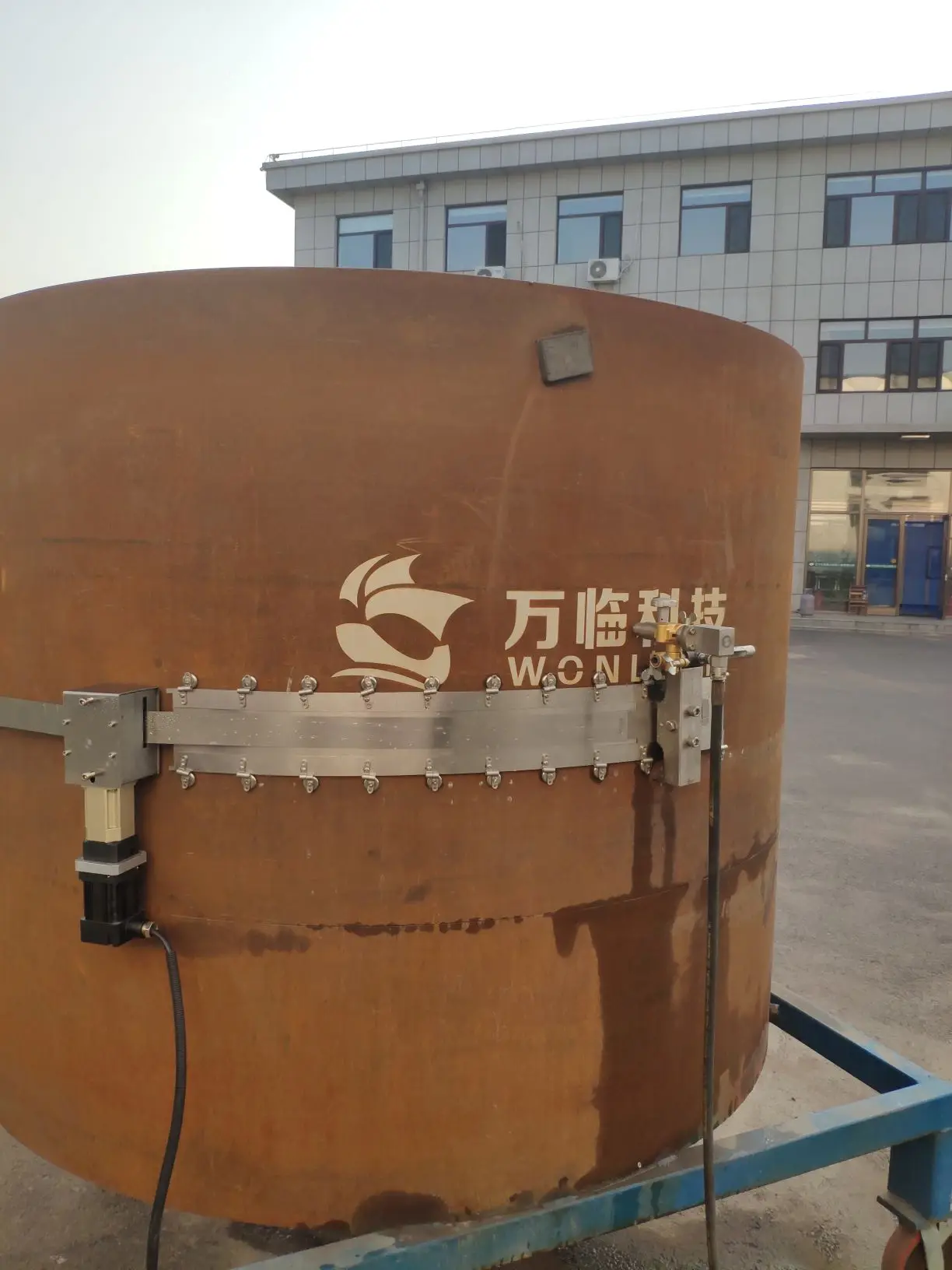

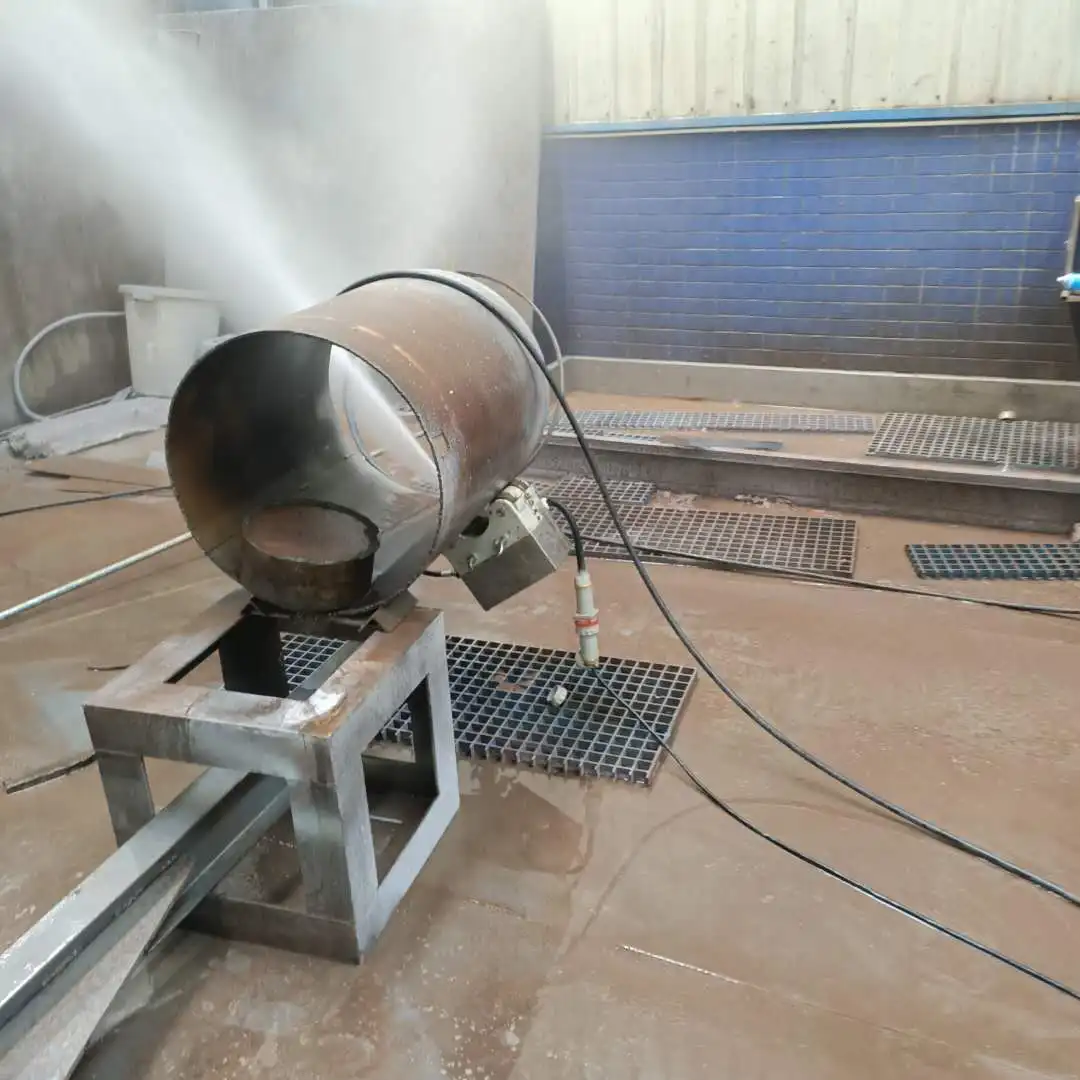

Magnetic Track Cutter
✔Exd II BT4 explosion-proof level.
✔Lightweight body design.
✔Ingenious structure design can adapt to a ✔large diameter range above 110mm.
✔Equipped with large suction and strong magnetic wheels to adapt to various complicated working conditions.
✔Equipped with an adjustable flexible track to eliminate the unevenness of the cutting surface and cause it to fall.
✔Equipped with guide wheels to ensure cutting straightness.
✔Waterproof .
✔Ingenious structure design can adapt to a ✔large diameter range above 110mm.
✔Equipped with large suction and strong magnetic wheels to adapt to various complicated working conditions.
✔Equipped with an adjustable flexible track to eliminate the unevenness of the cutting surface and cause it to fall.
✔Equipped with guide wheels to ensure cutting straightness.
✔Waterproof .
✔Exd II BT4 explosion-proof level.
✔Lightweight body design.✔Detachable chain design.
✔Gear transmission does not slip, high precision.
✔Size: 290 × 305 × 285mm.
✔Gear transmission does not slip, high precision.
✔Size: 290 × 305 × 285mm.
✔Waterproof.

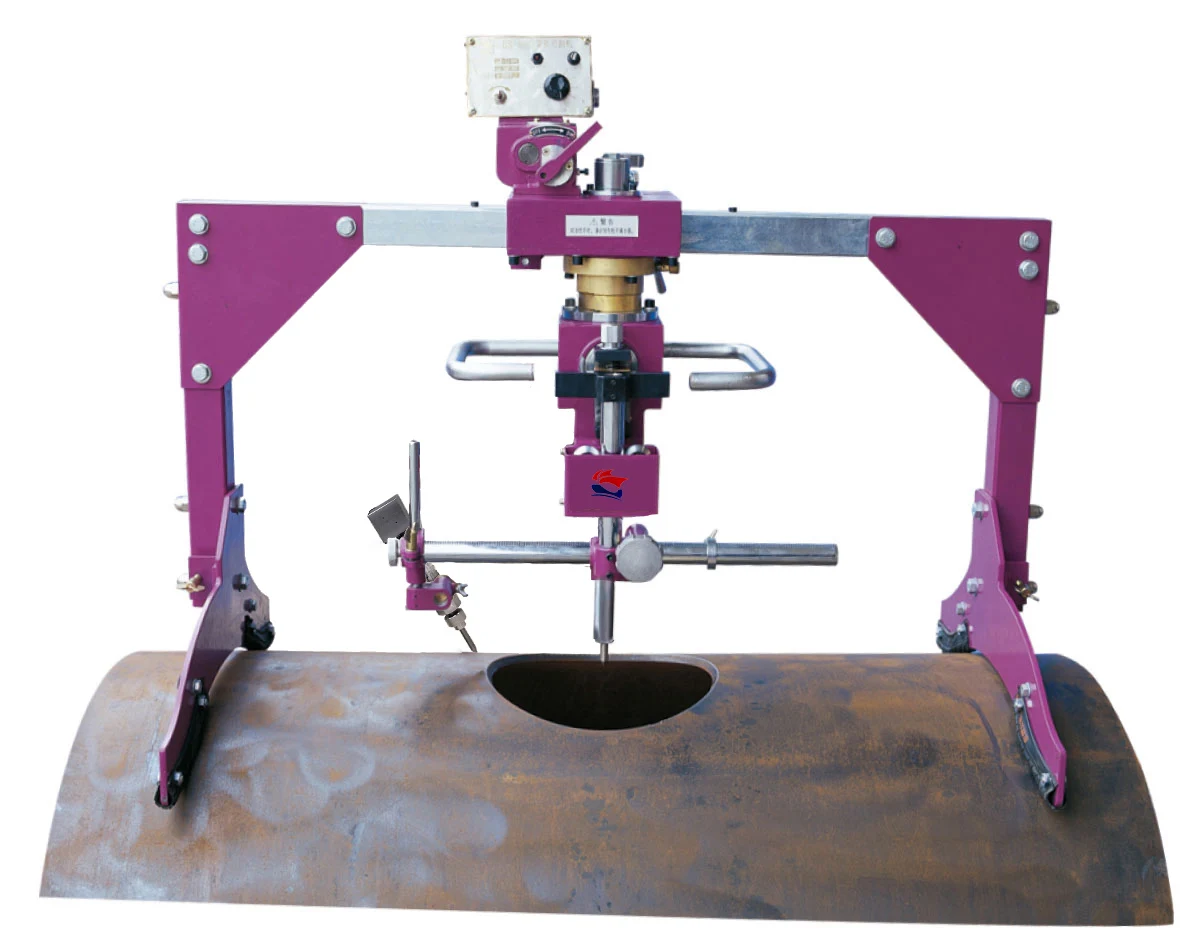

✔Electric, pneumatic and hydraulic power.
✔Exd II BT4 explosion-proof level.
✔Strong magnetic or vacuum adsorption, firm and stable.✔Equipped with adjustable height universal feet to adapt to various working conditions.
✔Custom opening size.

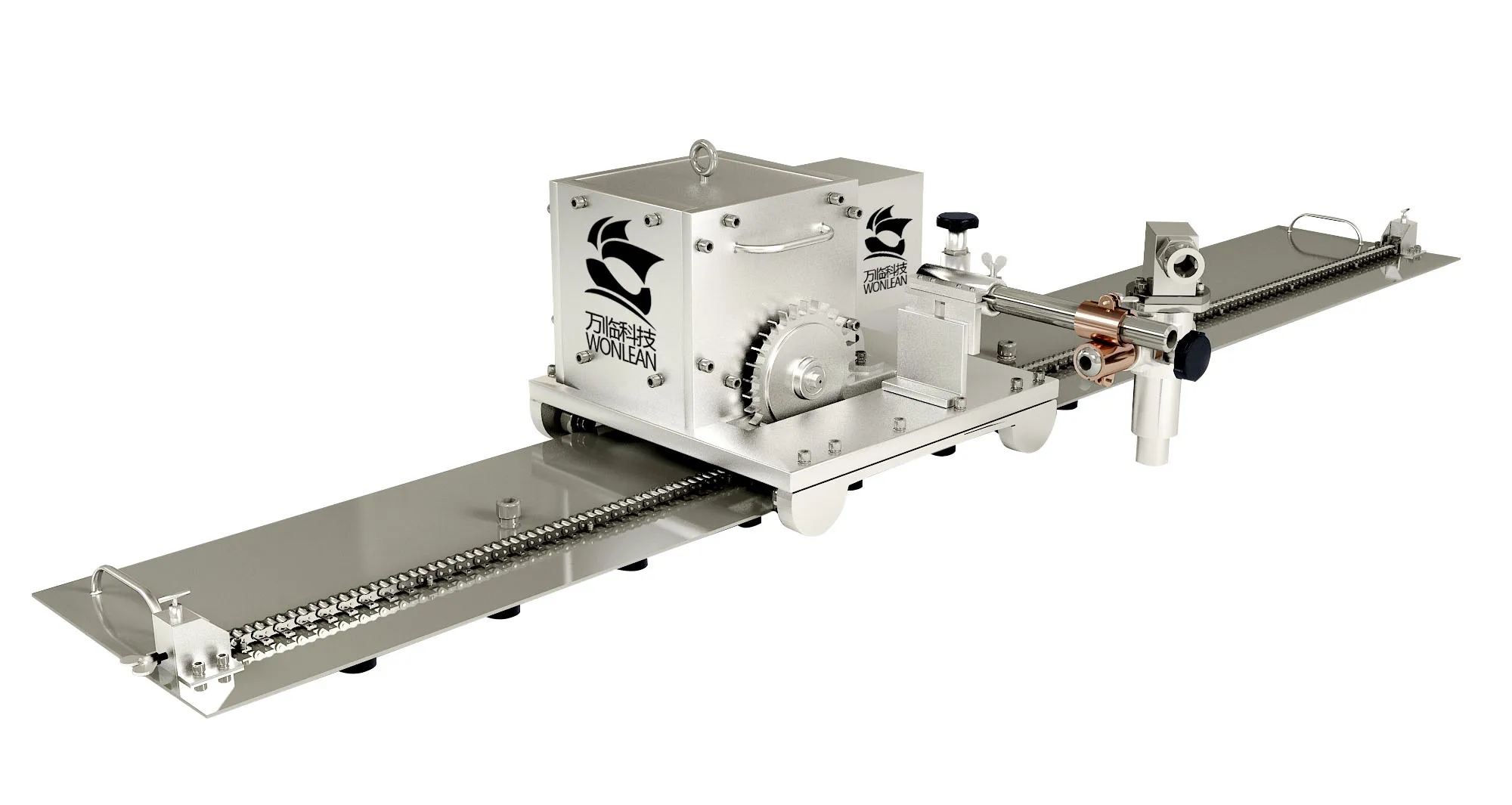

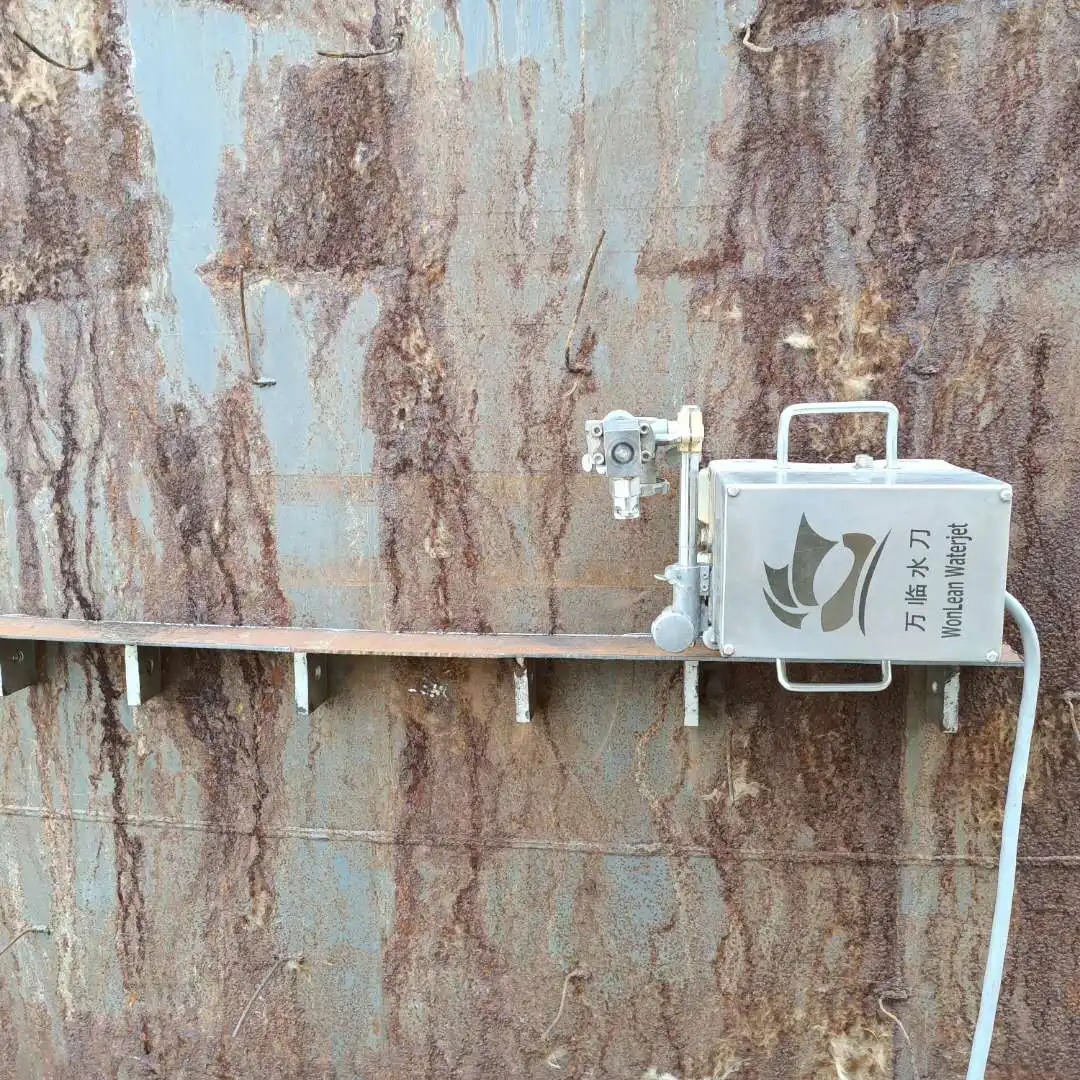

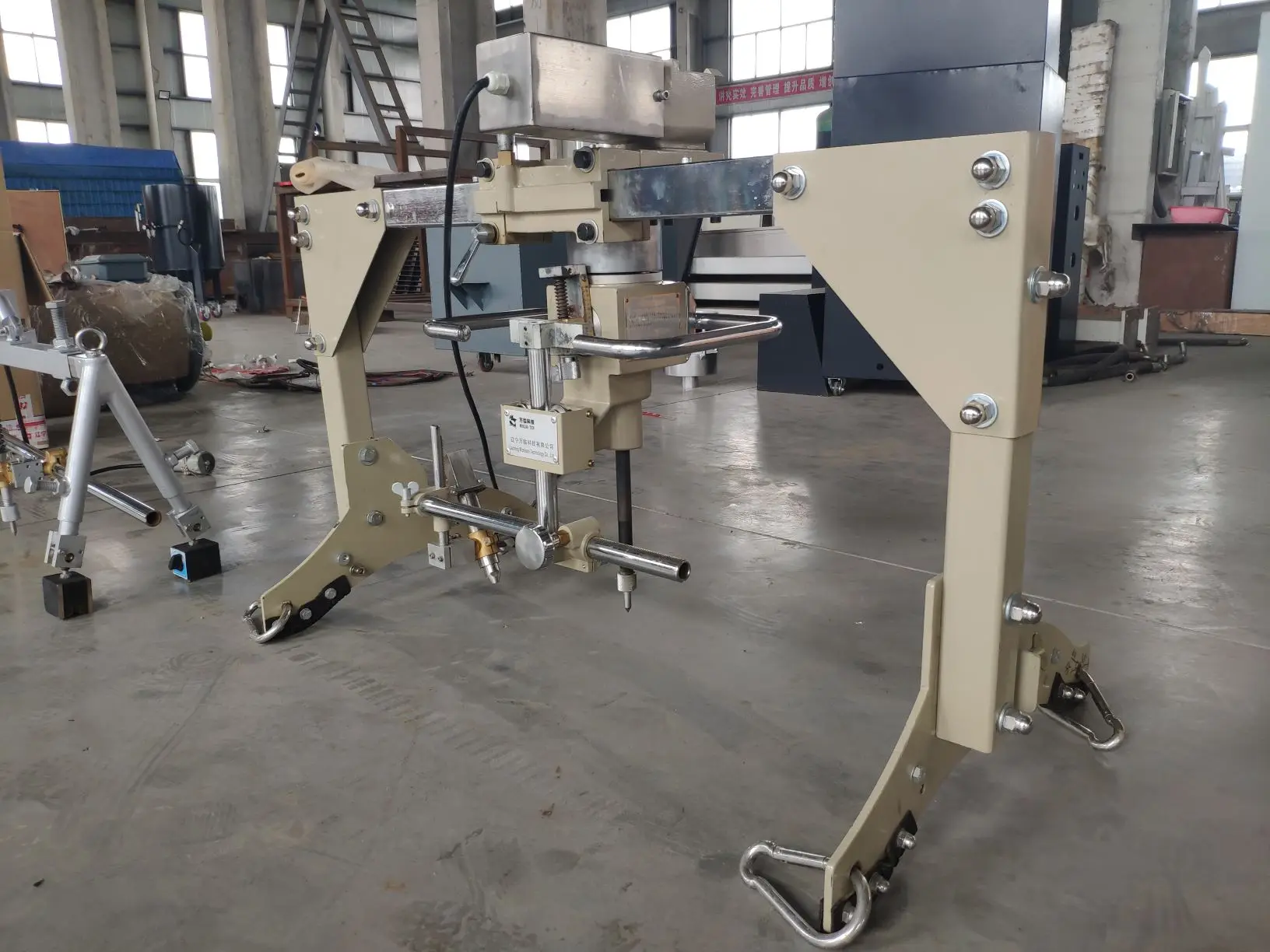

Linear Cutter
✔Exd II BT4 explosion-proof level.
✔Linear Cutter.
✔Strong magnetic or vacuum adsorption, firm and stable.
✔Equipped with adjustable height universal feet to adapt to various working conditions.
✔Strong magnetic or vacuum adsorption, firm and stable.
✔Equipped with adjustable height universal feet to adapt to various working conditions.
✔Custom cutting strokes.
✔Waterproof design.
✔Waterproof design.

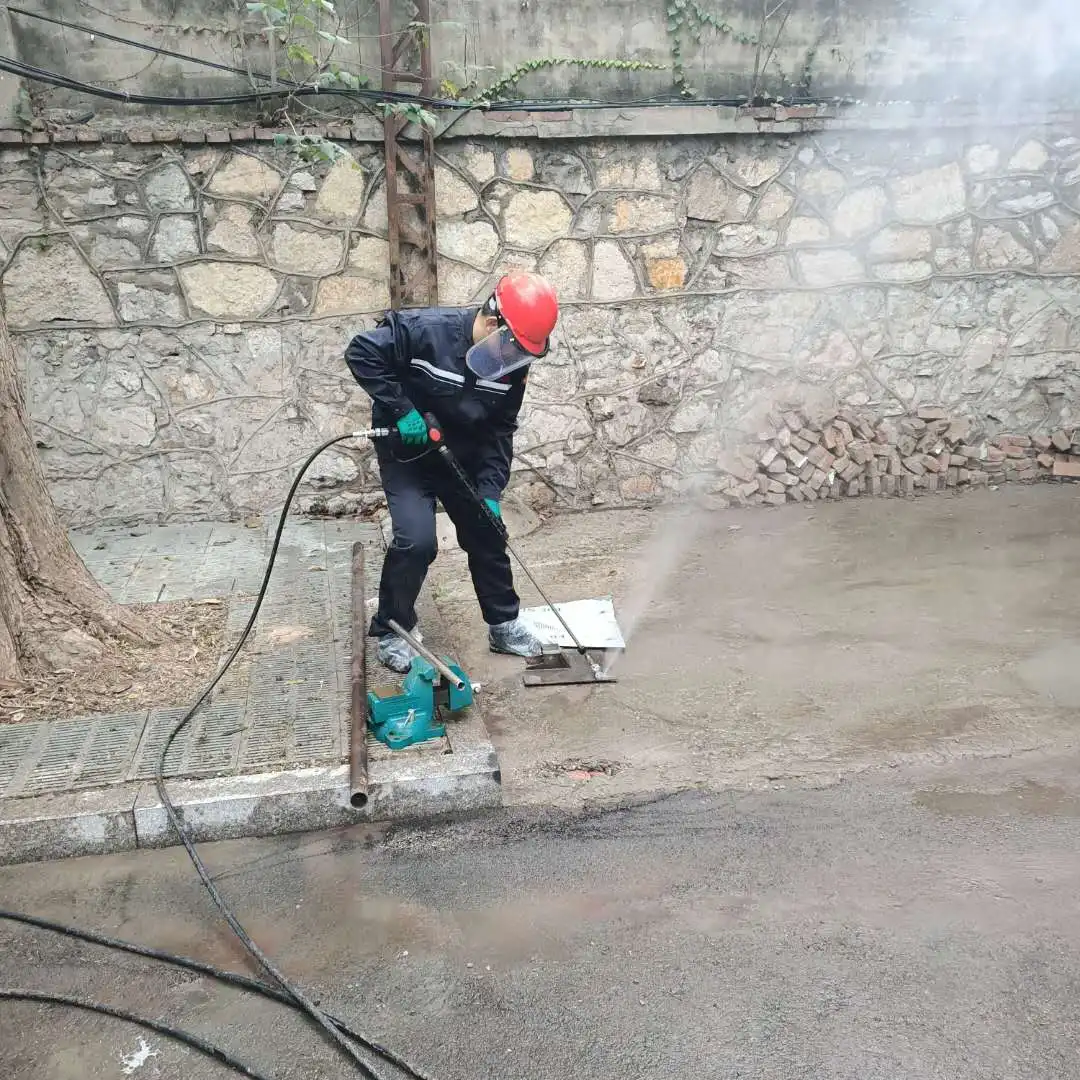

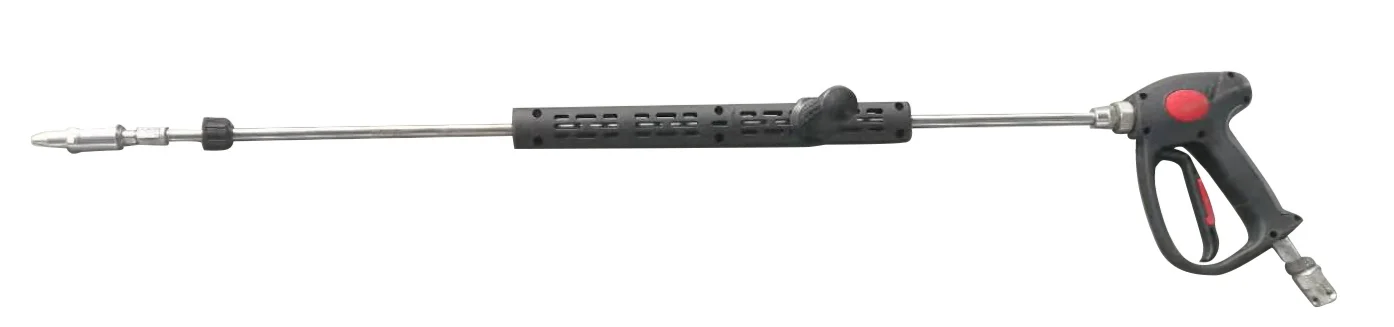

Handheld Cutter
✔Handheld operation, flexible and convenient.
✔The cutter head is equipped with a two-jaw roller to provide contact.
✔The cutter head is equipped with a two-jaw roller to provide contact.
✔The cutter head is equipped with a safety water shield.
✔Remote high-pressure water controller.
✔Size: 1270 × 240 × 40mm.
✔Remote high-pressure water controller.
✔Size: 1270 × 240 × 40mm.

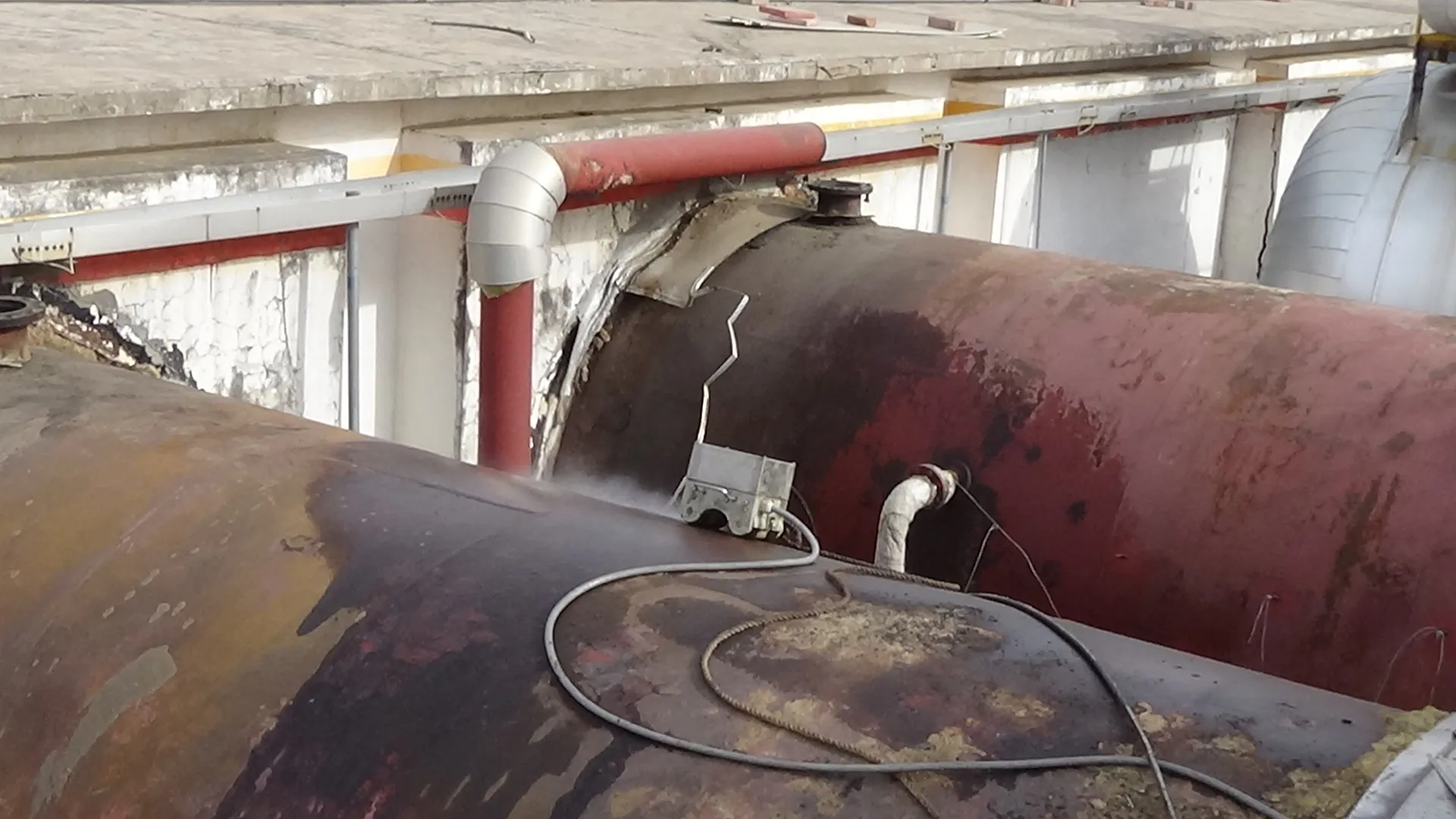

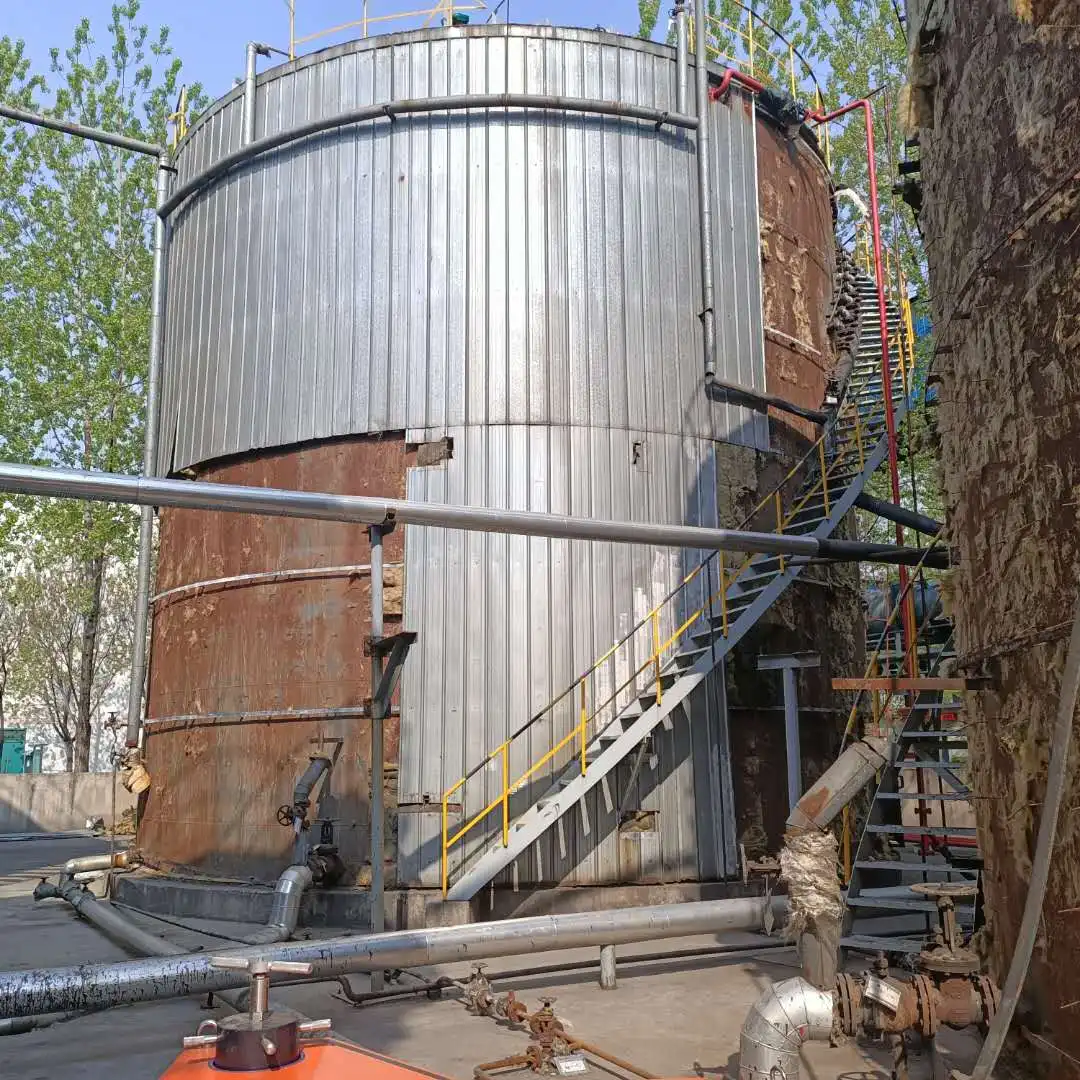

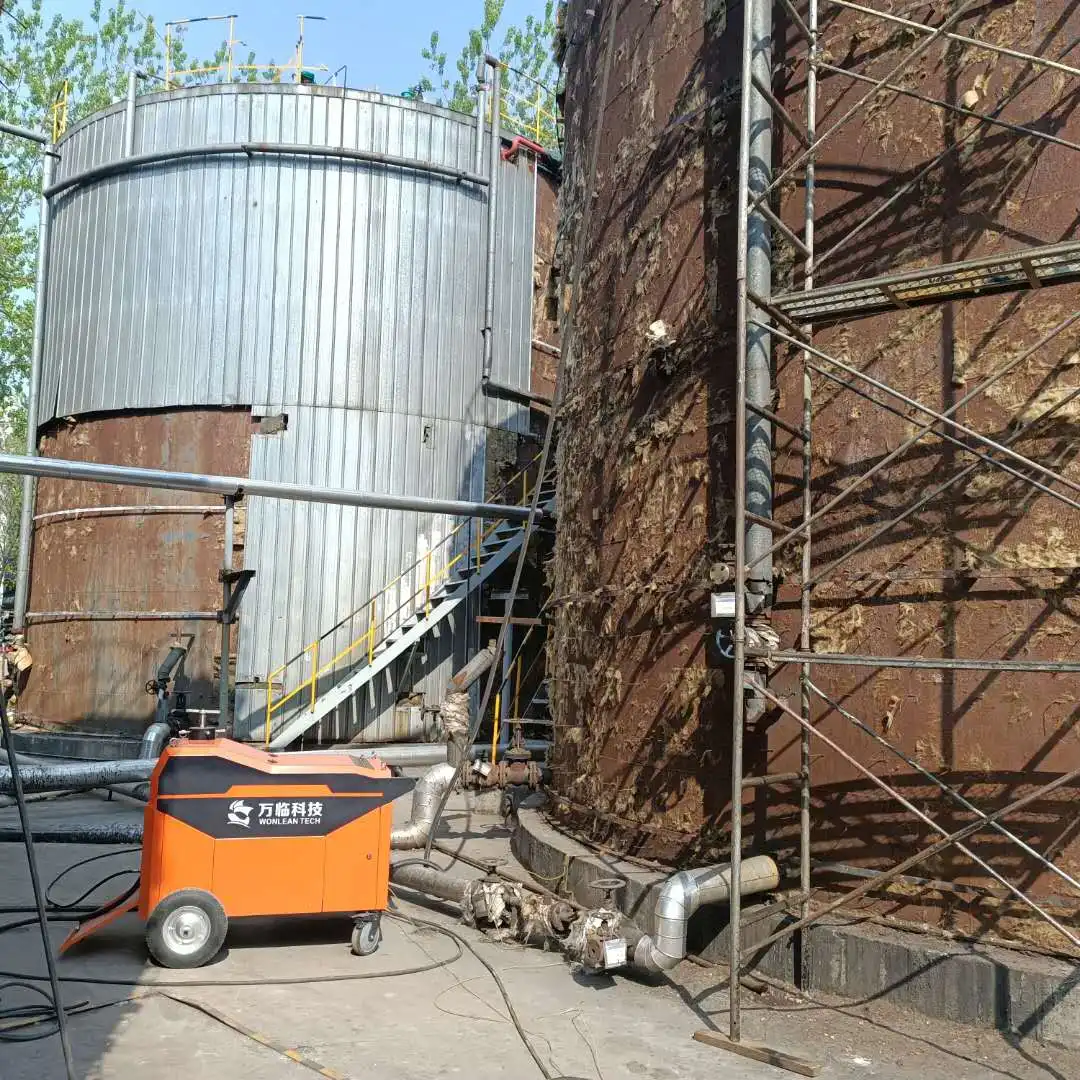

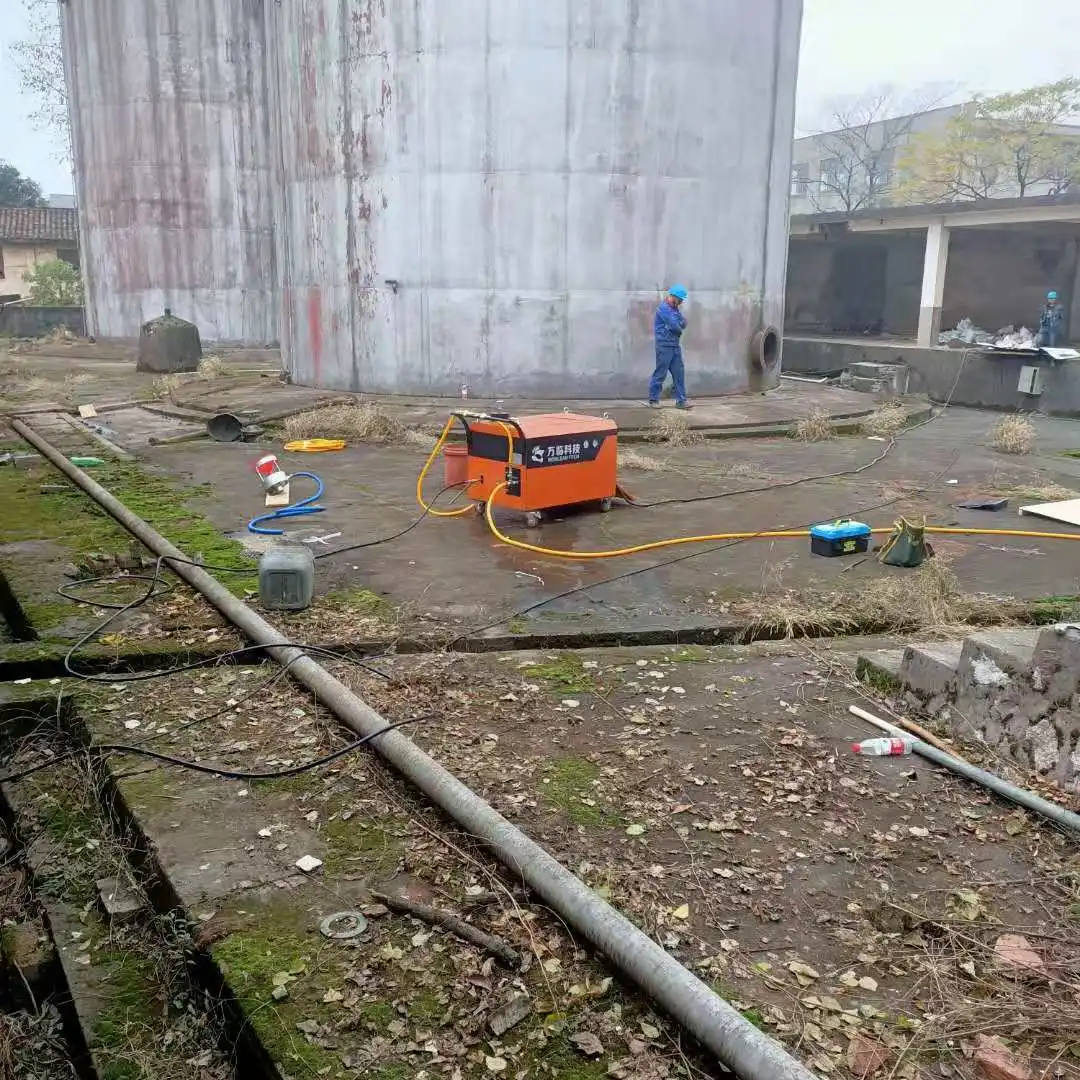

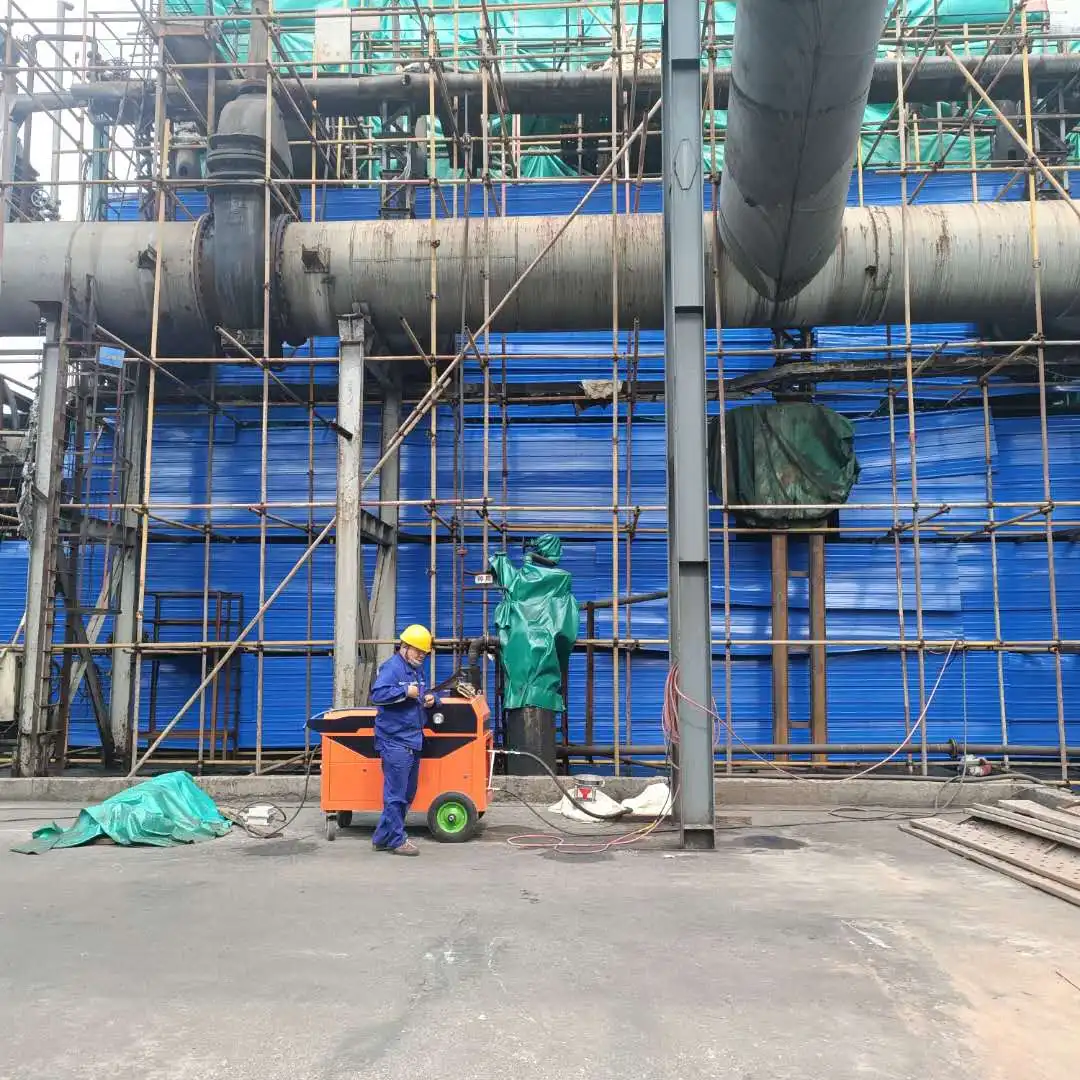

Customer's Construction Site
Why Choose Us
Company Profile
ABOUT US
Liaoning Wonlean Technology Co., Ltd. is a high-tech enterprise specializing in the development and application of ultra-high pressure water jet technology. Our products have won all praise from our customers by advanced technology and reliable performance. In the production line of Wonlean, we have a variety of advanced mechanical processing equipment and more than 100 people with rich experience in professional production team. Wonlean Technology will be your side of the water cutting experts and we will provide you with professional waterjet cutting solutions.
Service
Packing and Delivery
Delivery Time | 30days |
Payment Term | T/T,30% in advance ,70% before shipment(negotiable) |
Packaging details | Normal packaging is container. We can also according to the special requirements of customers for packaging |
port | Dalian |
Validity | 45 days from the date we offered validity |
FAQ
Q: What are the advantages of a portable water jet cutter?
A : Waterjet is cold-processed and is very sutiable for the cutting of flammable and explosive dangerous goods. The slit temperature is kept below 60 degrees and sparks. It is most advanced technology for cutting dangerous goods.
Q: Can you cut dangerous goods as long as it is water cut?
A: Special attention! This is not the case. The water cutting is divided into premixing and postmixing. We have done a lot of experiments. The postmixing still has sparks in the cutting process. Only the premixing waterjet cutting machine can cut dangerous goods.
Q: Is portable waterjet operation easy to maintain?
A: Operation and maintenance is very simple. Wonlean portable waterjet is very user-friendly and has few wearing parts. We provide on-site training services, and you can operate and maintain the equipment independentty through about two days of on-site training.
Q: ls the portable waterjet safe to operate？
A: We have done a lot of demonstrations and experiments on the equipment, and equipped with safety relief devices. The company has not had a safety accident since its establishment. Please feel free to use it.
Q: I don't know what is right for me?
A: We have many customers and cases to design various materials and fields for dangerous good cutting. You can contact us for professional cutting solutions. We also provide free trial service.
Q: Can you cut dangerous goods as long as it is water cut?
A: Special attention! This is not the case. The water cutting is divided into premixing and postmixing. We have done a lot of experiments. The postmixing still has sparks in the cutting process. Only the premixing waterjet cutting machine can cut dangerous goods.
Q: Is portable waterjet operation easy to maintain?
A: Operation and maintenance is very simple. Wonlean portable waterjet is very user-friendly and has few wearing parts. We provide on-site training services, and you can operate and maintain the equipment independentty through about two days of on-site training.
Q: ls the portable waterjet safe to operate？
A: We have done a lot of demonstrations and experiments on the equipment, and equipped with safety relief devices. The company has not had a safety accident since its establishment. Please feel free to use it.
Q: I don't know what is right for me?
A: We have many customers and cases to design various materials and fields for dangerous good cutting. You can contact us for professional cutting solutions. We also provide free trial service.
